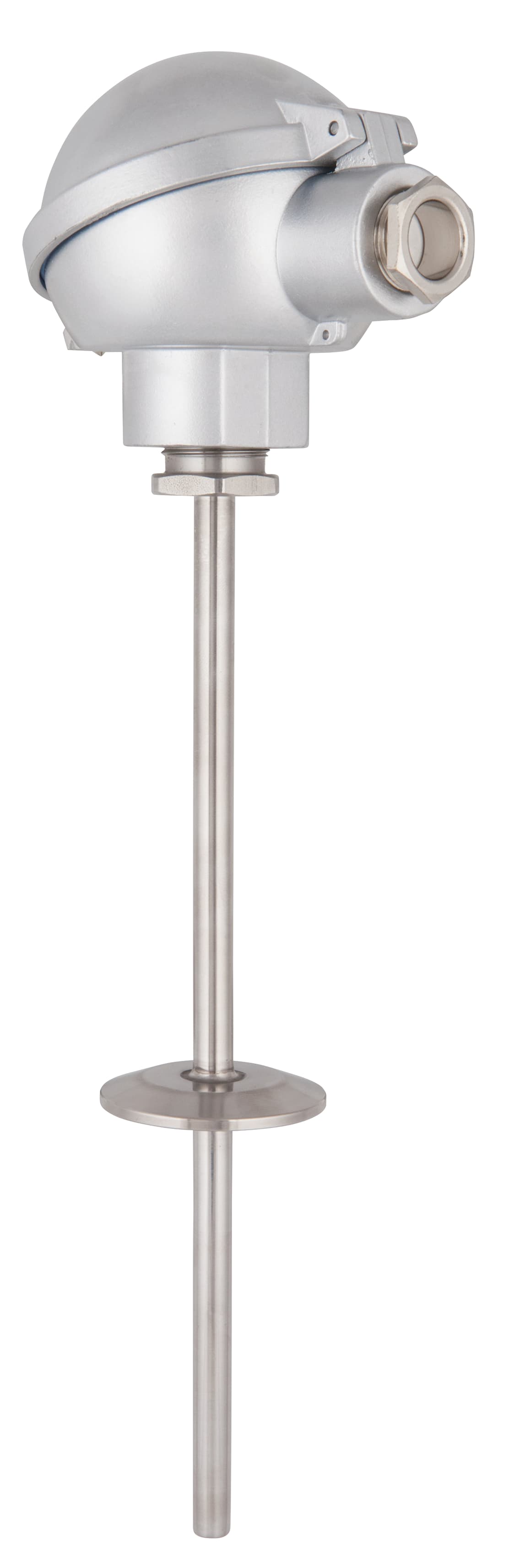

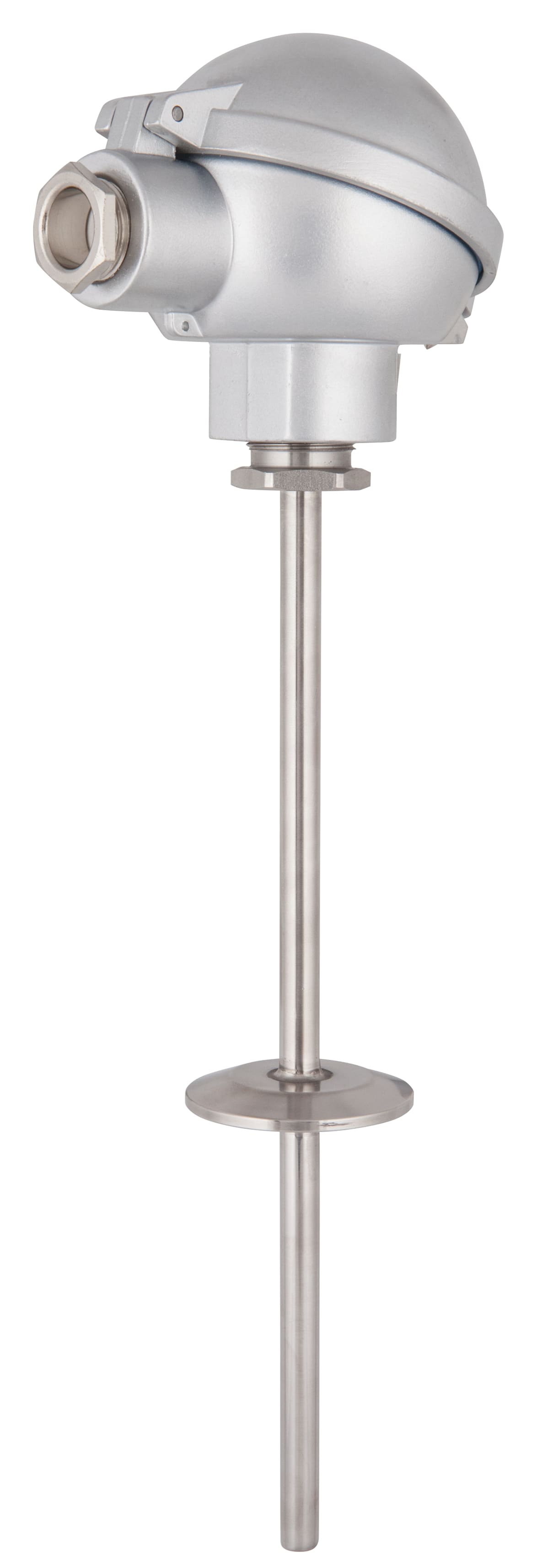

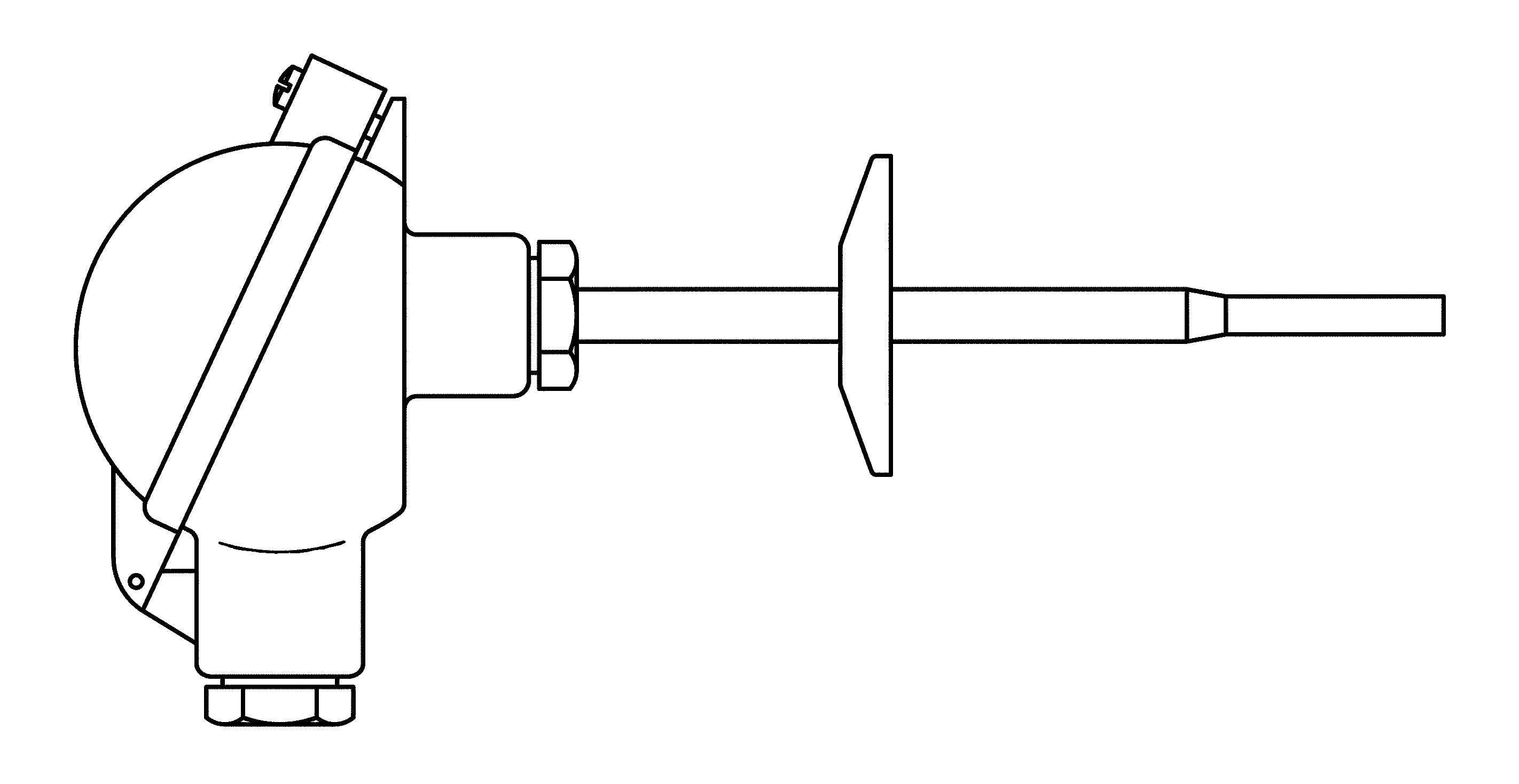

WTh 28

Resistance thermometers

Variants Documents

  • suitable for use in pharmaceutical and biotechnology applications and in the food industry
  • resistance thermometer with Pt100 sensor
  • clamp connection
  • Wetted parts 316 Ti

Resistance thermometer for hygienic processes, e.g. food, beverages, pharmaceutical, biotechnology applications

Installation lengthPart no.
Resistance thermometers WTh 28100 mm32230
Resistance thermometers WTh 28125 mm32231
Resistance thermometers WTh 28160 mm32232
Resistance thermometers WTh 28250 mm32233
Resistance thermometers WTh 28400 mm32234
  • in-stock items
  • manufactured goods

Sensor
1 x Pt100
3-wire
Class B, IEC 751
Measuring insert
replaceable
Diameter:
6 mm
Thermowell
∅ 9 x 1 mm
Stainless steel 316 Ti
Neck
∅ 9 x 1 mm
Length:
140 mm
Stainless steel 316 Ti
Process connection
Clamp 1"
Installation length
100 mm
Connection head
Type B, type BUZ
aluminium die cast
Electrical connection
Cable gland
Degree of protection
IP 54 (EN 60529)
Measuring range
-35/+300 °C
