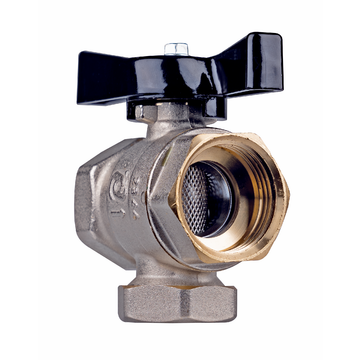

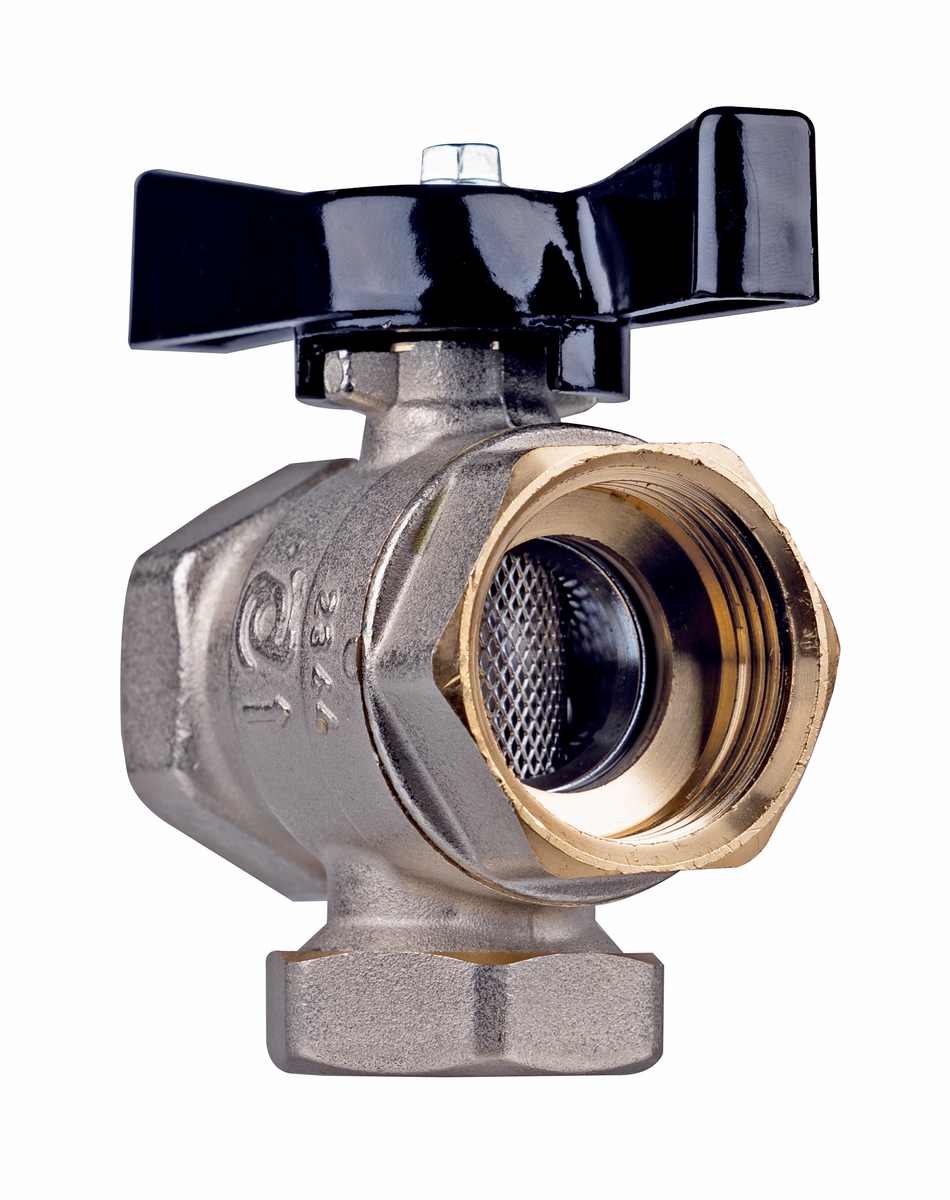

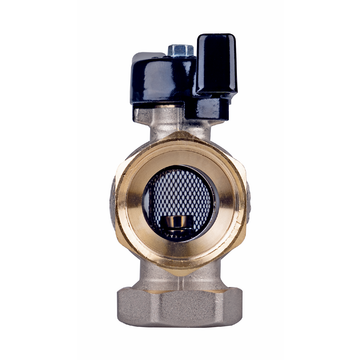

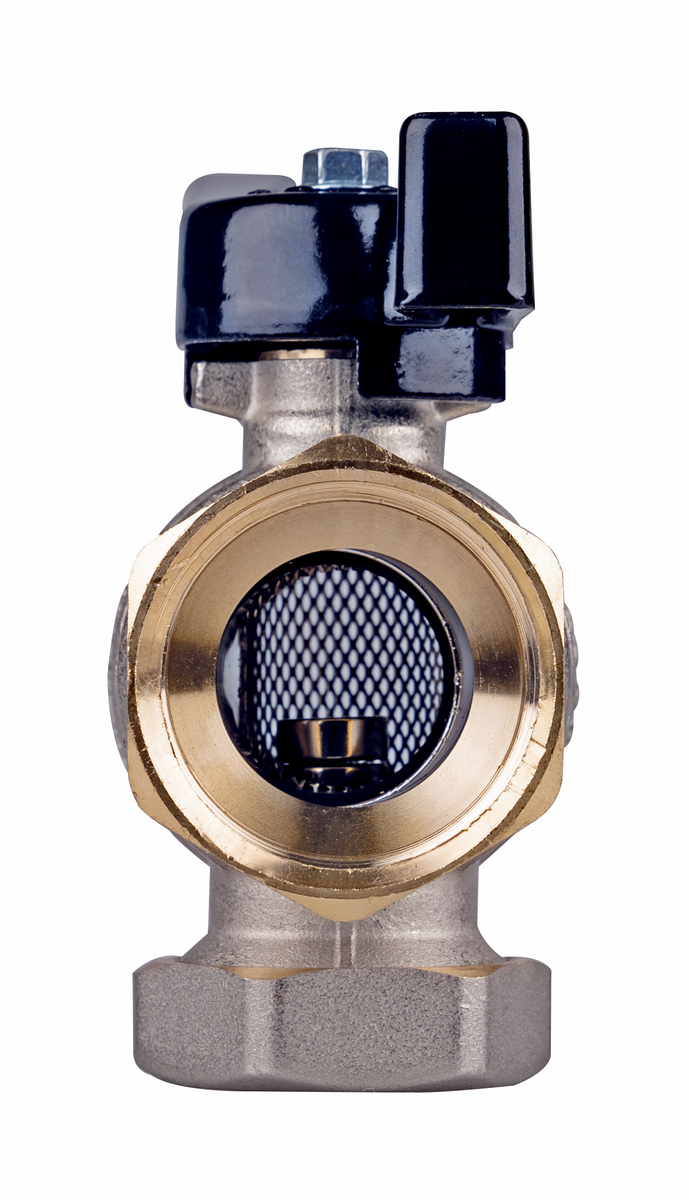

Ball valve KH 01 H DFVFM with filter and magnet

AFRISO Kugelhahn G3/4 IG mit Filter/Magnet, vernickelt 98920 98930 object_image_99382imagemain_en

AFRISO Kugelhahn G3/4 IG mit Filter/Magnet, vernickelt VOR 98920 98930

AFRISO Kugelhahn G3/4 IG mit Filter/Magnet, vernickelt BEF 98920

AFRISO Kugelhahn G1 IG mit Filter/Magnet, vernickelt BEF 98930

Data sheet ball valve KH 01 H DFVFM

Benefits

Shut-off element for universal use with heating systems
Integrated fi lter sieve and magnet as dirt collector
Easy cleaning
Nickel-plated housing

Application

Ideal for all applications in heating systems that require an additional filter function against lime, rust, sludge or other contaminants is required. The installation of shut-off elements in heating systems is essential for subsequent maintenance.

Versions

	Part no.	Remember
Ball valve KH 01 H DFVFM G¾ female	40955
Ball valve KH 01 H DFVFM G1 female	40956

Blue part no. = in-stock items

Downloads

	Description	Format	Language	Download / Link
Data sheet ball valve KH 01 H DFVFM	Data sheet	PDF

Description

Nickel-plated ball valve as shut-off element with integrated filter sieve and strong magnets. You can clean the unit without unpressurising and draining the system. For cleaning, the ball valve is simply closed and the filter sieve and magnet are cleaned by removing the cap on the underside.

Technical data

Connection

G¾ female
G1 female

Housing

Brass, nickel-plated

Filter

0.6 mm

Operating pressure

30 bar (PN 30)

Operating temperature range

-20/+90 °C (short-term 120 °C)

Magnet

1.2 T

Mounting position

Vertical

Kvs

40955:

2.1 m³/h

40956:

3 m³/h

Options

Other nominal sizes
Other connection threads

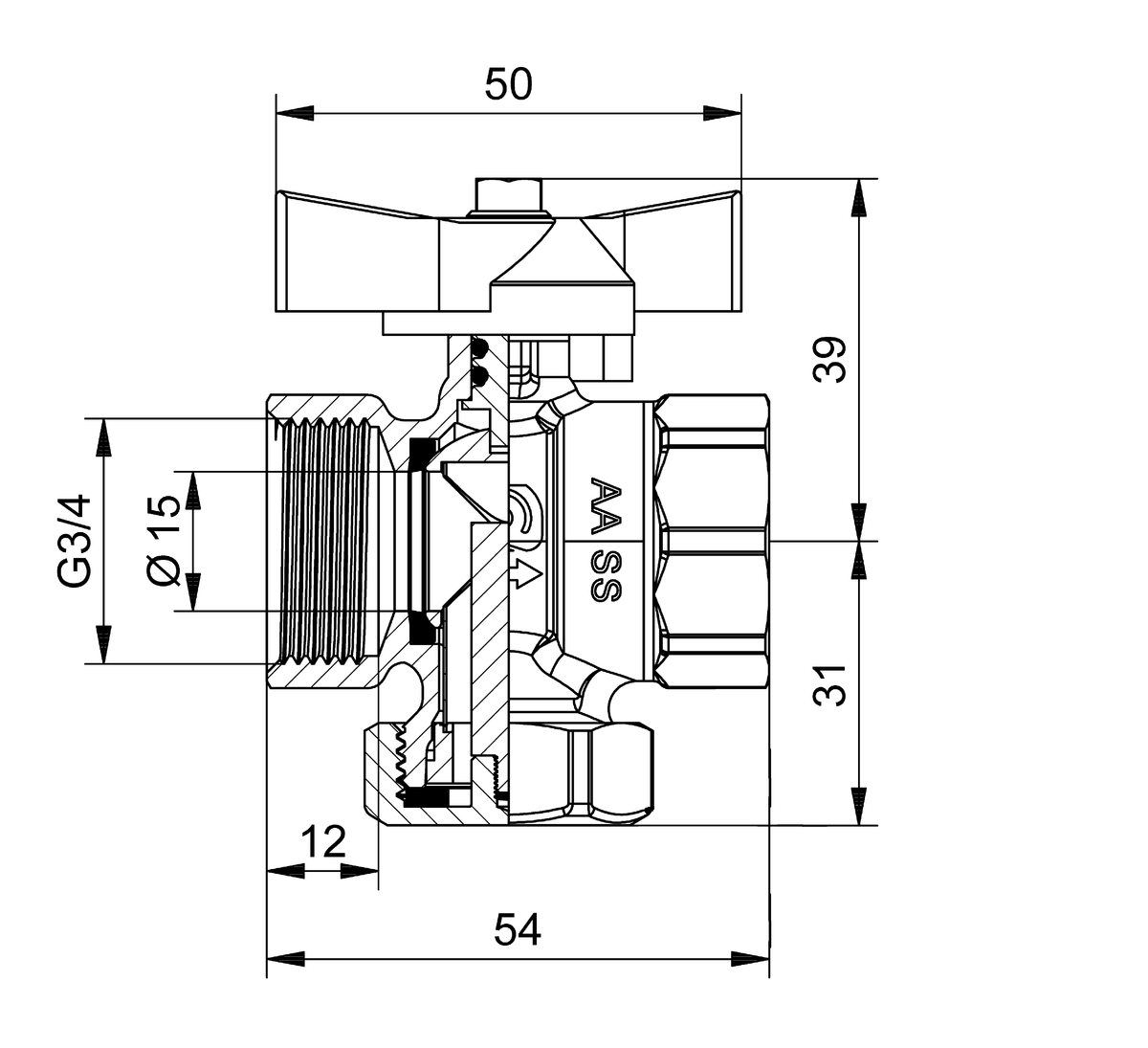

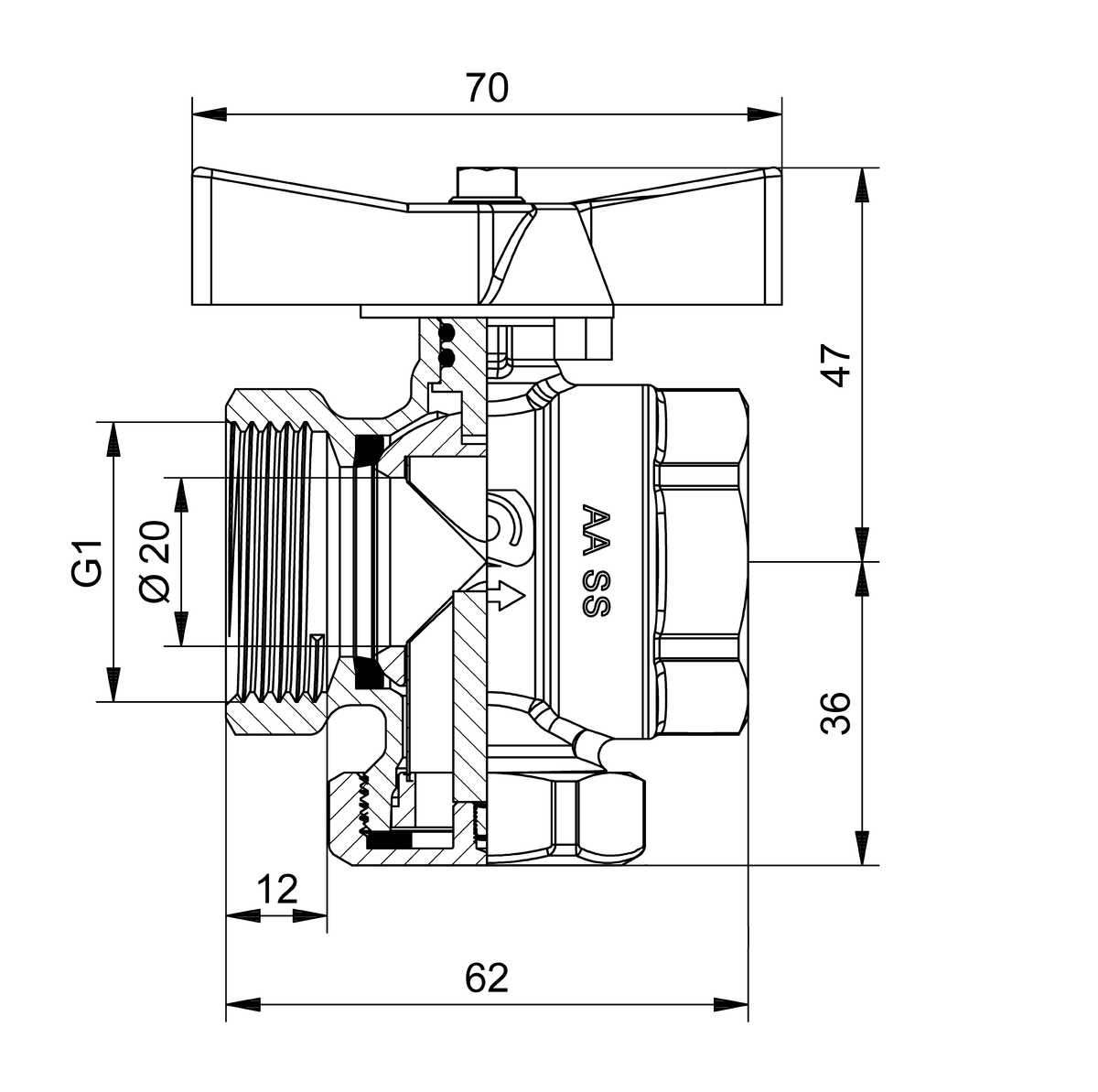

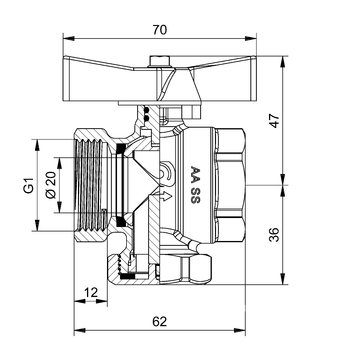

Technical drawings
