Data sheet leak detector LAG-14 ER
Afriso Data sheet leak detector LAG-14 ER

Versions

Part no. Remember
Leak detector LAG-14 ER with relay, including container and probe 43410

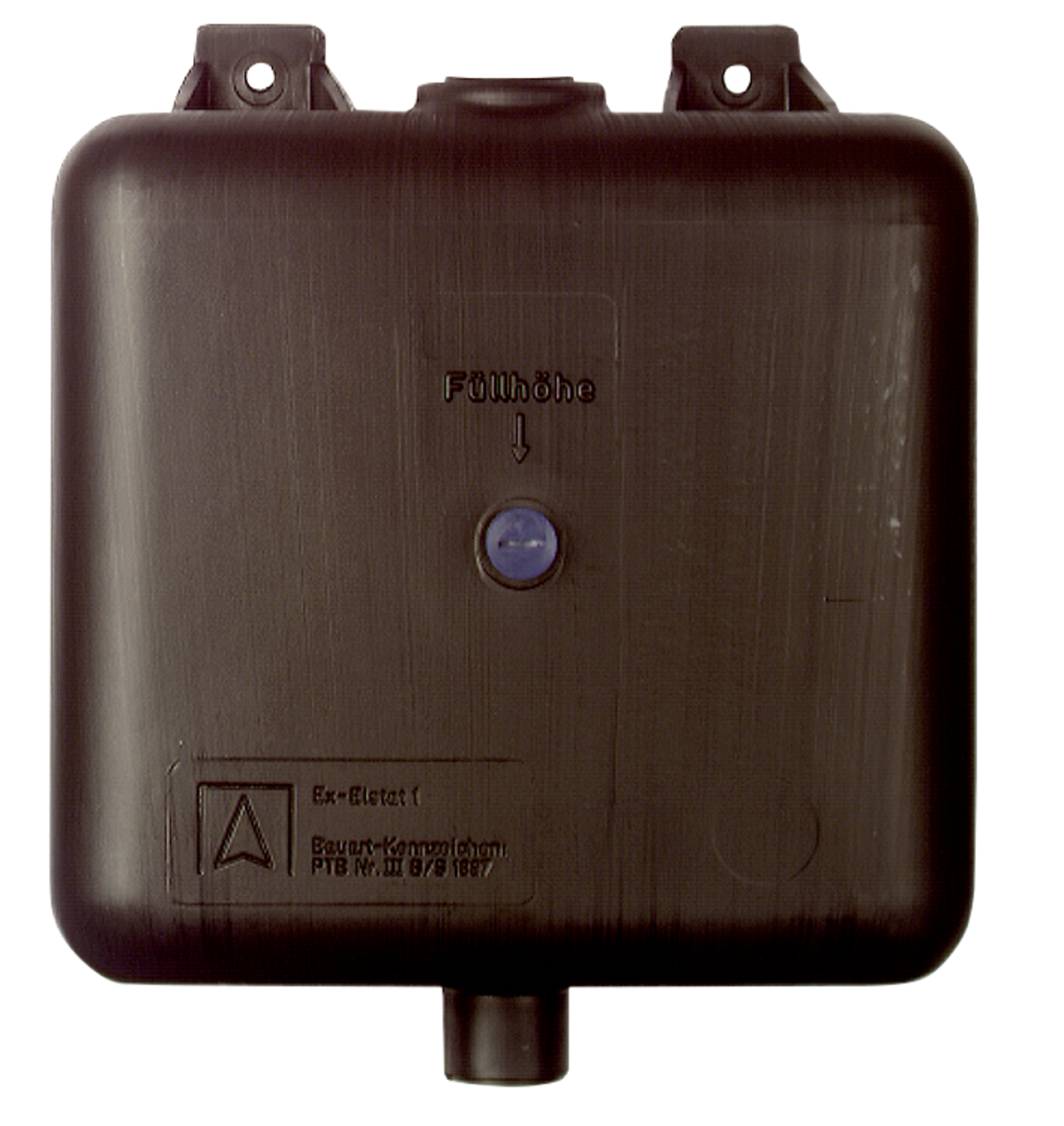

LAG container black 40731
LAG probe 40510
Control unit LAG-14 ER with relay 40642
Mounting frame 43521
Sealing kit IP 54 43416
LAG mounting kit 40540
Mounting kit for 1 LAG additional container without container 40539

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet leak detector LAG-14 ER Data sheet PDF
Afriso Data sheet leak detector LAG-14 ER
Leak detector LAG-14 ER Operating instructions PDF
Afriso Leak detector LAG-14 ER
Mounting frame Operating instructions PDF
Afriso Mounting frame
Sealing kit (IP 54) Operating instructions PDF
Afriso Sealing kit (IP 54)
Test report: Function test liquid based leak detector LAG Leak detector PDF
Afriso Test report: Function test liquid based leak detector LAG
Class II leak detector (EN 13160-1/-3) with intrinsically safe probe circuit. The system consists of a control unit, a container for leak detection fluid (LAG container black) and a probe. Control unit with operating and alarm indicators, audible/visual alarm, test button and increased interference protection. The audible alarm can be muted with the Acknowledge button. The voltage-free relay contact is provided for connection of additional external alarm equipment (such as horns,) or an additional alarm unit ZAG 01. With fail-safe mode: Audible alarm if the probe fails. Suitable for panel mounting with a mounting frame; a sealing kit (IP 54) is available for rough application conditions. The LAG container serves as detection container and as expansion vessel at the same time. For aboveground tanks, the ratio between usable contents and total volume of leak detection fluid must be no more than 1:35. If the interstitial space has a greater volume, you must use additional containers.
Operating temperature range
Ambient:
-20/+50 °C
Storage:
-20/+60 °C
Supply voltage
AC 230 V
Nominal power
5 VA
Housing (Wall mounting housing made of impact-resistant plastic (ABS))
W x H x D:
100 x 188 x 65 mm
Weight:
400 g
Degree of protection:
IP 30 (EN 60529)
Switching output
Relay contact:
1 x voltage-free changeover contact
Contact rating:
AC 250 V, 2 A
Alarm sound
Min. 70 dB(A)
Tanks (Antistatic plastic, black)
W x H x D:
300 x 325 x 145 mm
Active volume:
4.5 l
Total volume:
10 l
Outlet:
G¾ female
Degree of protection:
IP 20 (EN 60529)
Approval
CE marking as per EC Construction Products Regulation 305/2011, EU 574/2014, EN 13160-1/-3 and ÜHP
ATEX type examination certificate
EX5 11 02 15639 011
Ex II (1) G [Ex ia] IIC
Scope of delivery
  • Control unit
  • Tanks
  • Probe
