Data sheet Mounting accessories for inner linings
AFRISO Data sheet Mounting accessories for inner linings

Versions

Part no. Remember
Angled nipple short 6 x 4/6 mm 43906
Angled nipple short with spacer 6 x 4/6 mm 43904
Angled nipple Long 6 x 4/6 mm 43908
Condensate bar 43692
Liquid barrier 43646
Suction line Perforated 6 x 3 mm, roll 100 m 43910
Suction line Not perforated 6 x 3 mm, roll 100 m 43911
Fastening ring ⌀ 500 mm round gasket, foam rubber and cardboard gasket 43900A
Fastening ring ⌀ 550 mm round gasket, foam rubber and cardboard gasket 43900B
Fastening ring ⌀ 600 mm round gasket, foam rubber and cardboard gasket 43900C
Fastening ring ⌀ 620 mm round gasket, foam rubber and cardboard gasket 43900D
Hose connector GS4 4 x 4 mm Kst natur 43945
Hose connector GS6 6 x 6 mm Kst natur 43912
T piece TS4 4 x 4 x 4 mm, for suction hose 43944
T piece TS6 6 x 6 x 6 mm, for suction hose 43913
Hose connector kit NW4/6, G⅜ x G⅛ NW4 x G⅛, NW6 x G⅛, G⅜ x G⅛ 43914
Plate holder 43918
PVC hose transparent 4 x 2 mm, roll 100 m 43650
PVC hose Green 4 x 2 mm, roll 100 m 43649
PVC hose Red 4 x 2 mm, roll 100 m 43648
PVC hose transparent 6 x 2 mm, roll 100 m 43664
PVC hose Green 6 x 2 mm, roll 100 m 43663
PVC hose Red 6 x 2 mm, roll 100 m 43662

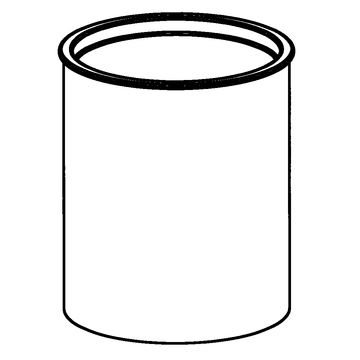

Sealing material Epple 28 can (1000 ml) 43919
Glue Epple 200 S 44025
Overpressure device G1½, opening pressure approx. 25 mbar 20466
Fastening ring ⌀ 500 mm V2A flat steel (without seal), 40 x 8 mm, glass bead blasted 43900N
Fastening ring ⌀ 600 mm V2A flat steel (without seal), 40 x 8 mm, glass bead blasted 43900O
Flange KT G2 44007
Flange KT NW65 44006
Foam rubber 50 x 5 mm roll 10 m 43926
Foam rubber 50 x 8 mm roll 10 m 43942
Mipoplast bottom plate 800 x 800 mm 43928
Fleece plate LSV2 1 x 2 m, without magnets 43952
Connection pieces G1 x NW 4/6 mm 43698

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Mounting accessories for inner linings Data sheet PDF
AFRISO Data sheet Mounting accessories for inner linings

Condensate bar with three condensate traps for visual inspection, with integrated bracket for easy wall mounting. If there is no steady gradient in the measuring, exhaust and suction lines from the leak detector to the tank, a condensate bar must be mounted at each lowest point of the lines. When condensate forms, the liquid is collected in the relevant condensate trap. The condensate traps can be easily unscrewed for emptying.

Tightness-tested

Compact, robust design made of high-strength plastic

Compatible with hoses with 4/6 mm
