Hydraulics module AMB 900 | 7690000
Hydraulics module AMB 900
- pre-installed, tightness-tested indoor unit, ready to be connected
- Integrated heating element: 3.6 and 9 kW
- with magnetite sludge separator and reversing valve
- Maximum time savings: No planning of hydraulics, no error sources during mounting

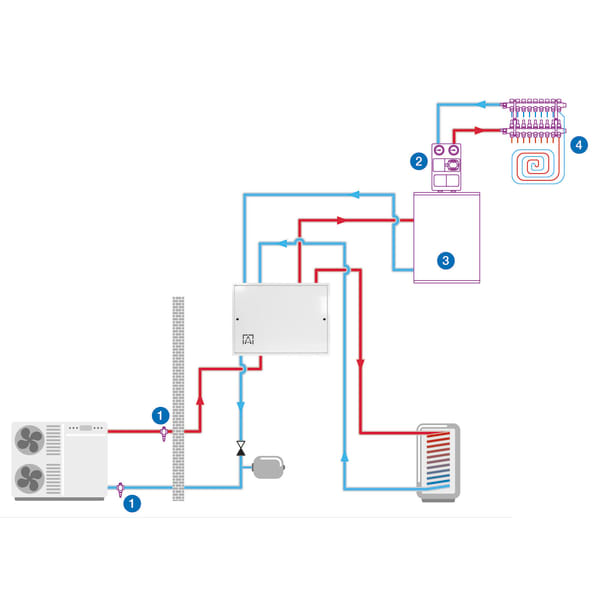

AMB 900 is a specially developed indoor unit for use in closed heating systems as per EN 12828. It allows for simple, reliable and fast integration of monobloc heat pumps into existing or new heating systems. The factory-preassembled and tightness tested unit is installed inside the building between the heat pump and the hot water storage tank or the heat distribution system. Thanks to the pre-wired 7 components, it is suffi cient to wire the power supply and connect the unit to the heat pump. With to the integrated electric heating element, AMB 900 can also be used as an auxiliary or emergency heat er in combination with the heat pump control.
AMB 900 Hydraulic module in a compact metal cabinet with electrically and mechanically pre- assembled components. It contains a 9 kW heating element, a 3-way reversing valve AZV 844 and a magnetite sludge separator ADS 181 specially designed for heat pumps. It features a large filter surface and optimised flow for minimum pressure loss. An extra-strong magnet quickly and reliably separates magnetite. The 3-way reversing valve allows you to switch between the heating circuit and the hot water tank. Integrated safety-related equipment such as 3 bar safety valve, safety temperature cut out, quick air vent and shut-off valves minimise potential errors during installation and ensure reliable operation. The installation is "plug & play": Fit the metal plate to the wall using the prepared eyelets, connect system lines with standard connections and then fit the metal housing without tools.
- system connections
- Heat pump:
- union nut G1¼
- Heating circuit:
- union nut G1¼
- Operating temperature range
- Medium:
- 5/90 °C
- System pressure
- max. 3 bar
max.
- Flow coefficient Kvs
- 6.5 m³/h
- Power heating element Heizstab
- Max. 3 kW at AC 230 V
max. 9 kW bei AC 400 V
- Heat pump power
- max. 16 kW

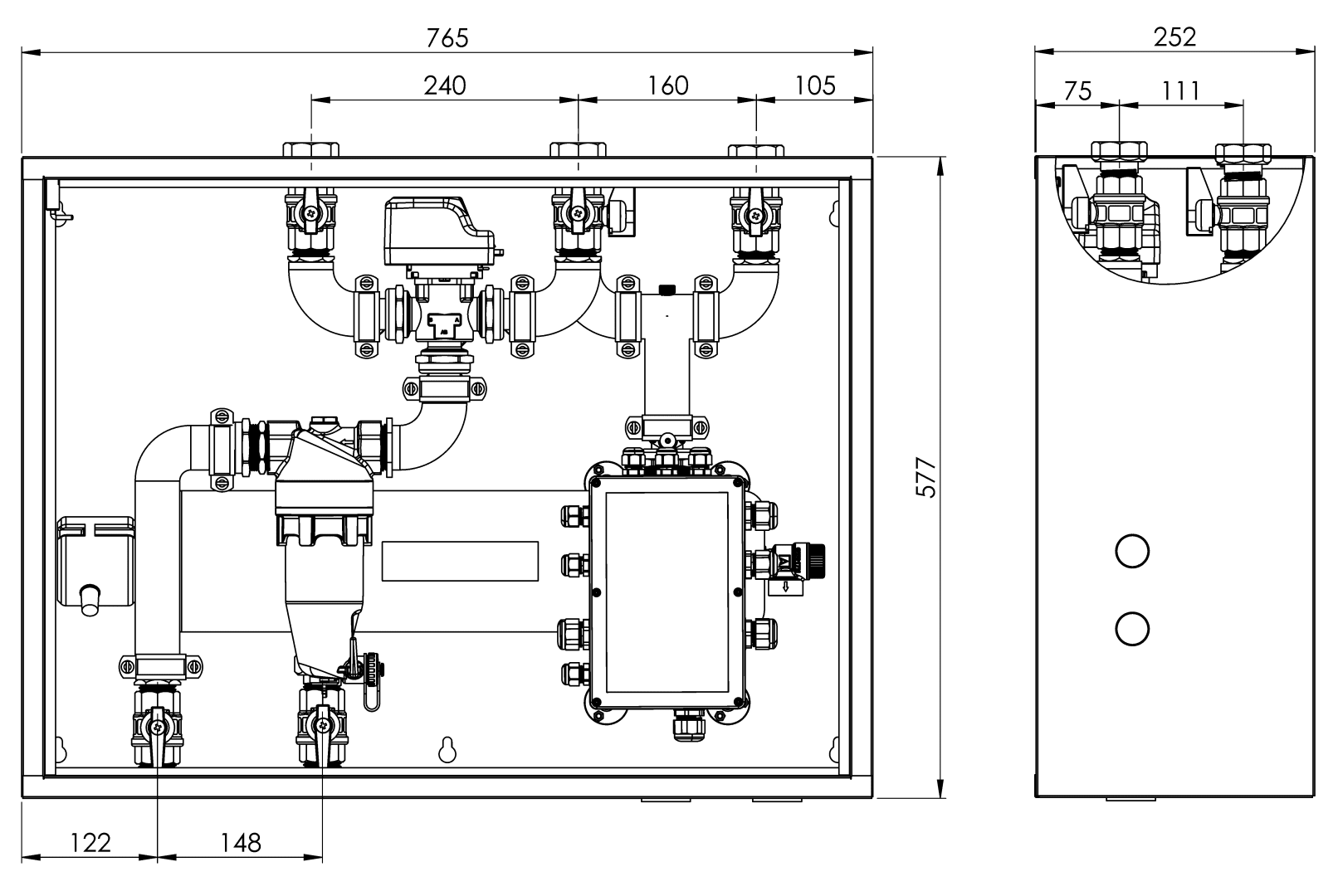

- Dimensions
- W x H x D:
- 765 x 577 x 252 mm
- Magnet insert
- Neodymium 1.4 T
