Heating pump assembly | 77335
Heating pump assembly PrimoTherm® C 130-1 DN20
in-stock items
- pre-assembled, tightness-tested and heat-insulated assembly
- modular system with flow at left or right
- easy, fast mounting
- with high-efficiency pump class A
- eligible for heating optimization program (BAFA)
Heating pump assembly for use in non-mixed heating circuits, specially for storage tank charging. It connects the heating boiler and the pipe system.

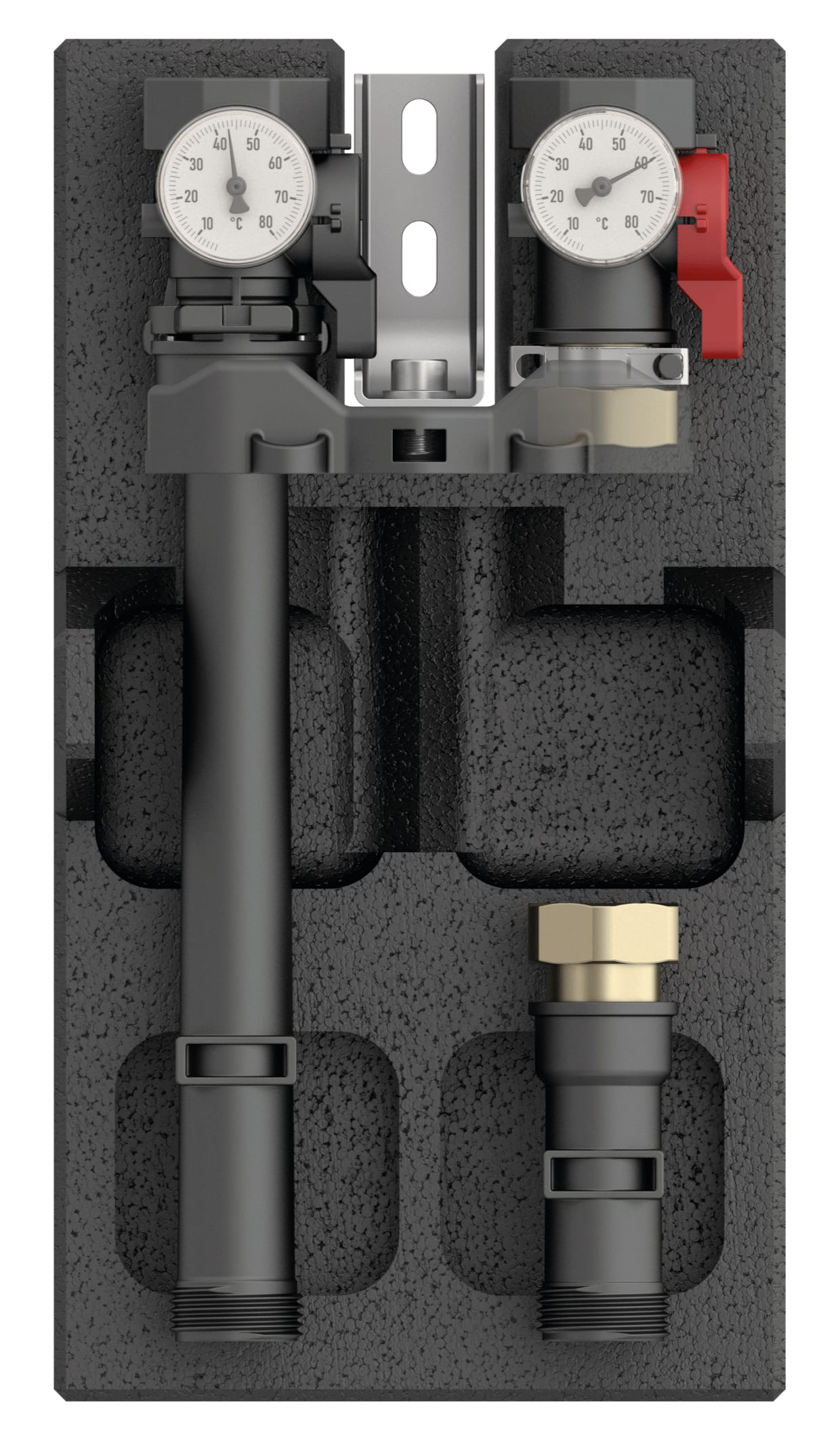

Complete, pre-assembled and tightness-tested heating pump assembly made of high-grade polymer material with all required functional components, form-fit heat insulation and wall mounting unit.

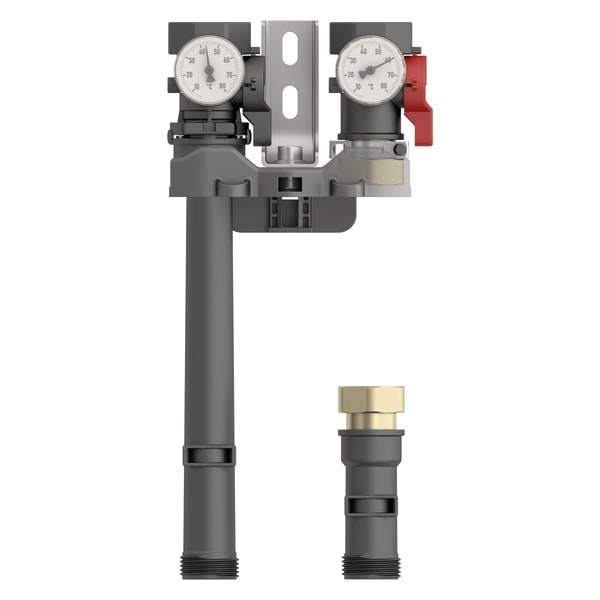

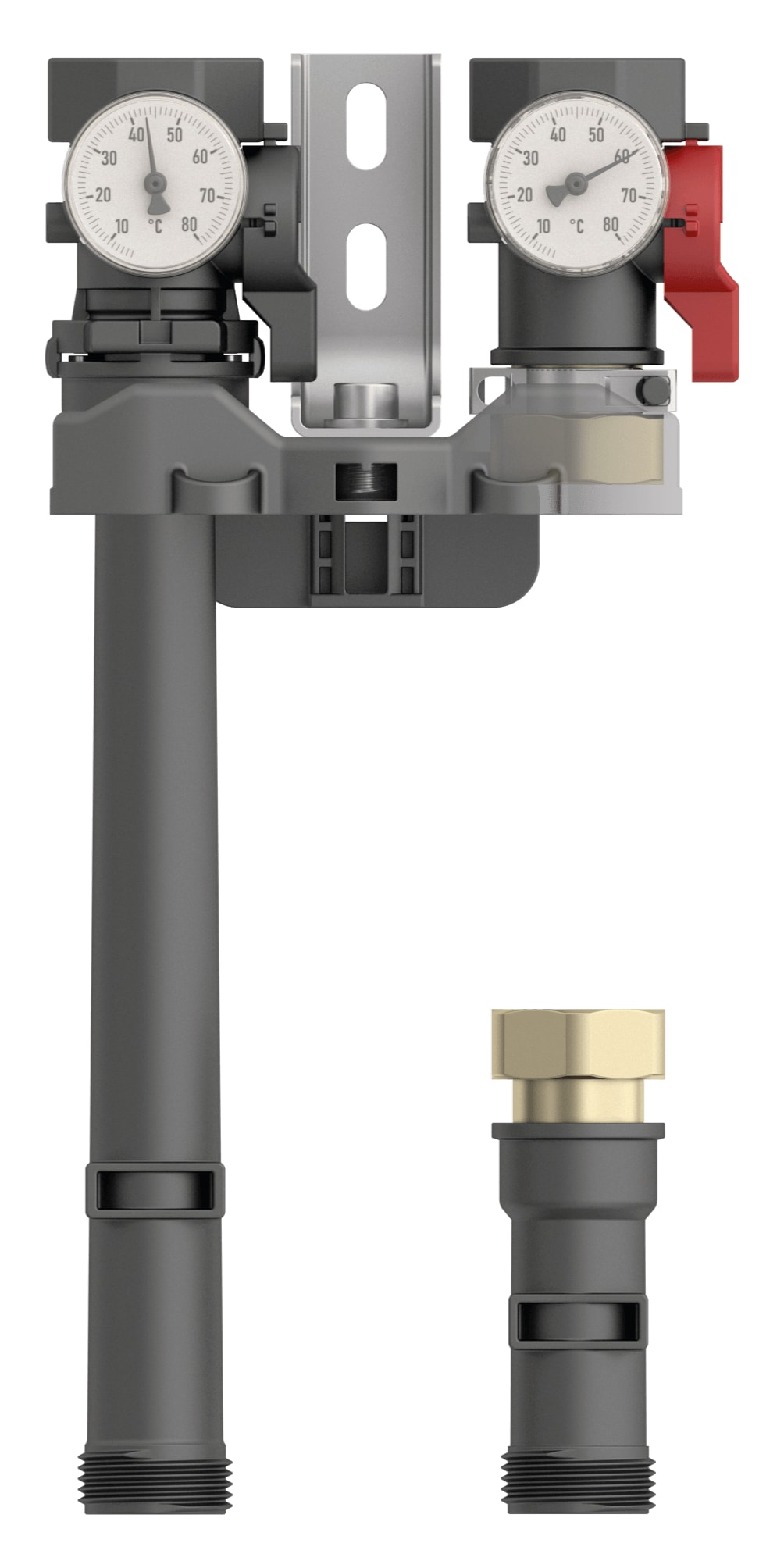

The flow line consists of:
Shut-off valve with thermometer holder (red handle)
Thermometer flow (5 to 80 °C)
Plastic pipe for length compensation
Suitable for circulation pumps DN 20 with G1 x 130 mm
The return line consists of:
Shut-off valve with thermometer holder (black handle)
Thermometer return (5 to 80 °C)
Gravity brake
Plastic pipe for length compensation pump / mixer
- Axis distance
- 90 mm
- system connections
- Boiler:
- G1 male
- Heating circuit:
- G1 female
- Operating temperature range
- Medium:
- max. 60 °C at 6 bar,
max. 70 °C bei 5 bar,
max. 90 °C at 3 bar
- Nominal size
- DN 20
- Flow coefficient Kvs
- 5.7 m³/h
- Heat insulation
- Polypropylene EPP
- Dimensions
- W x H x D:
- 189 x 335 x 240 mm
- Proportional pressure control
- 0
- Constant pressure control
- 0
- Fixed speed of rotation
- 0
Click the corresponding image for detail views, additional information and dimension tables.
PrimoTherm® C 130-1 mit AFRISO-Pumpe
