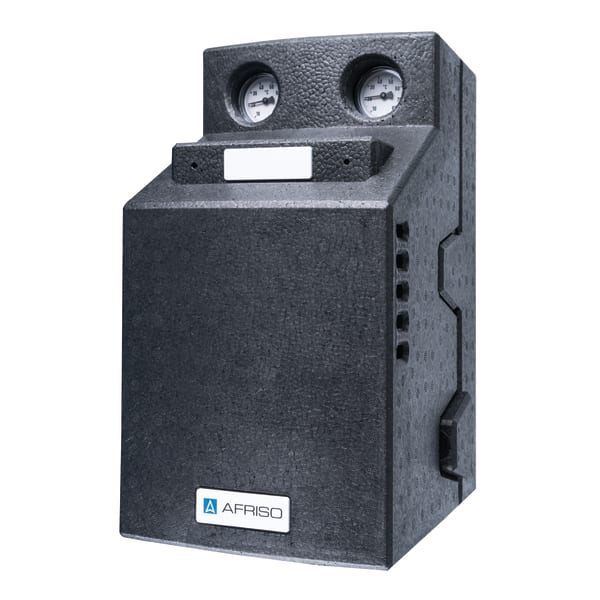

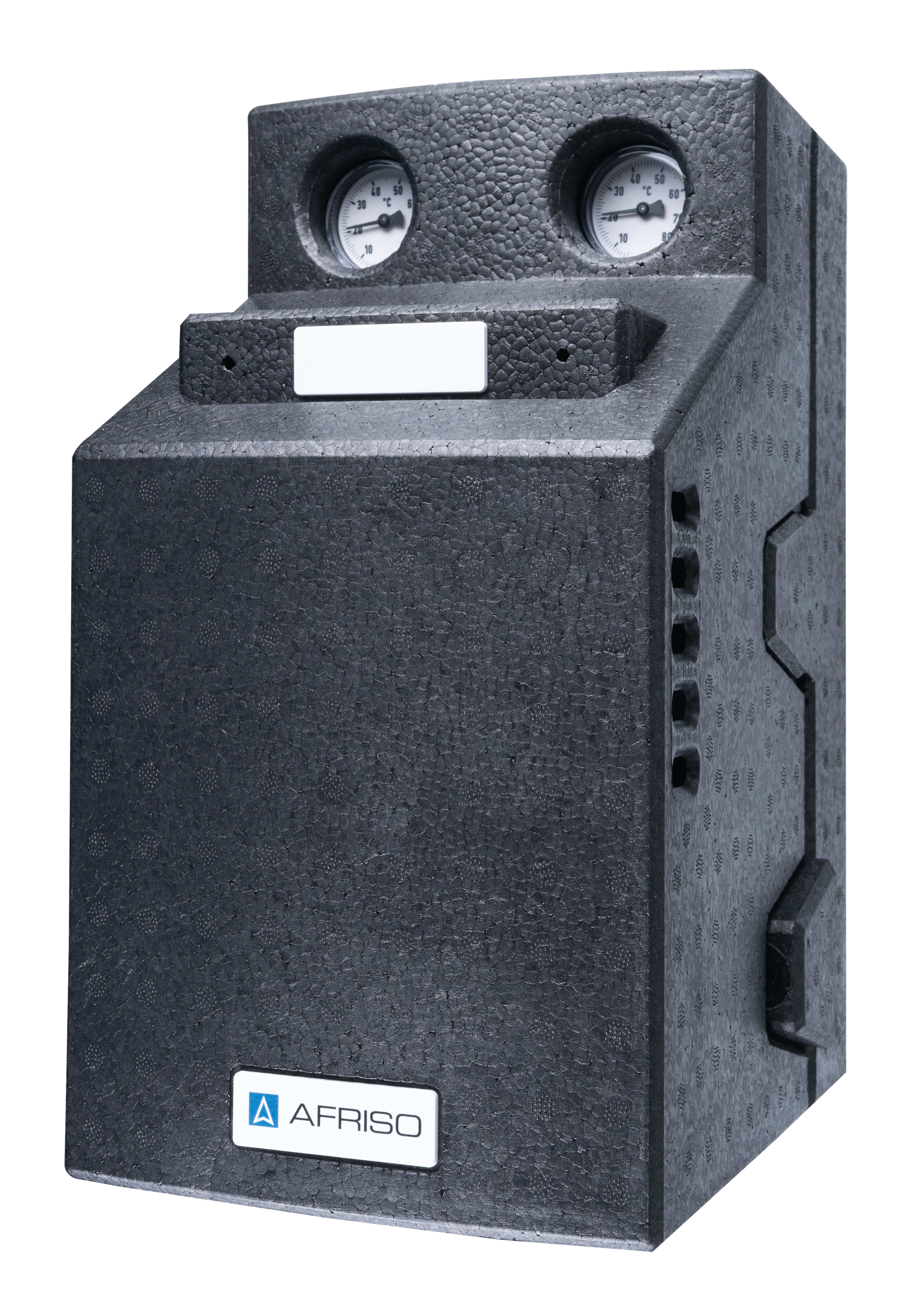

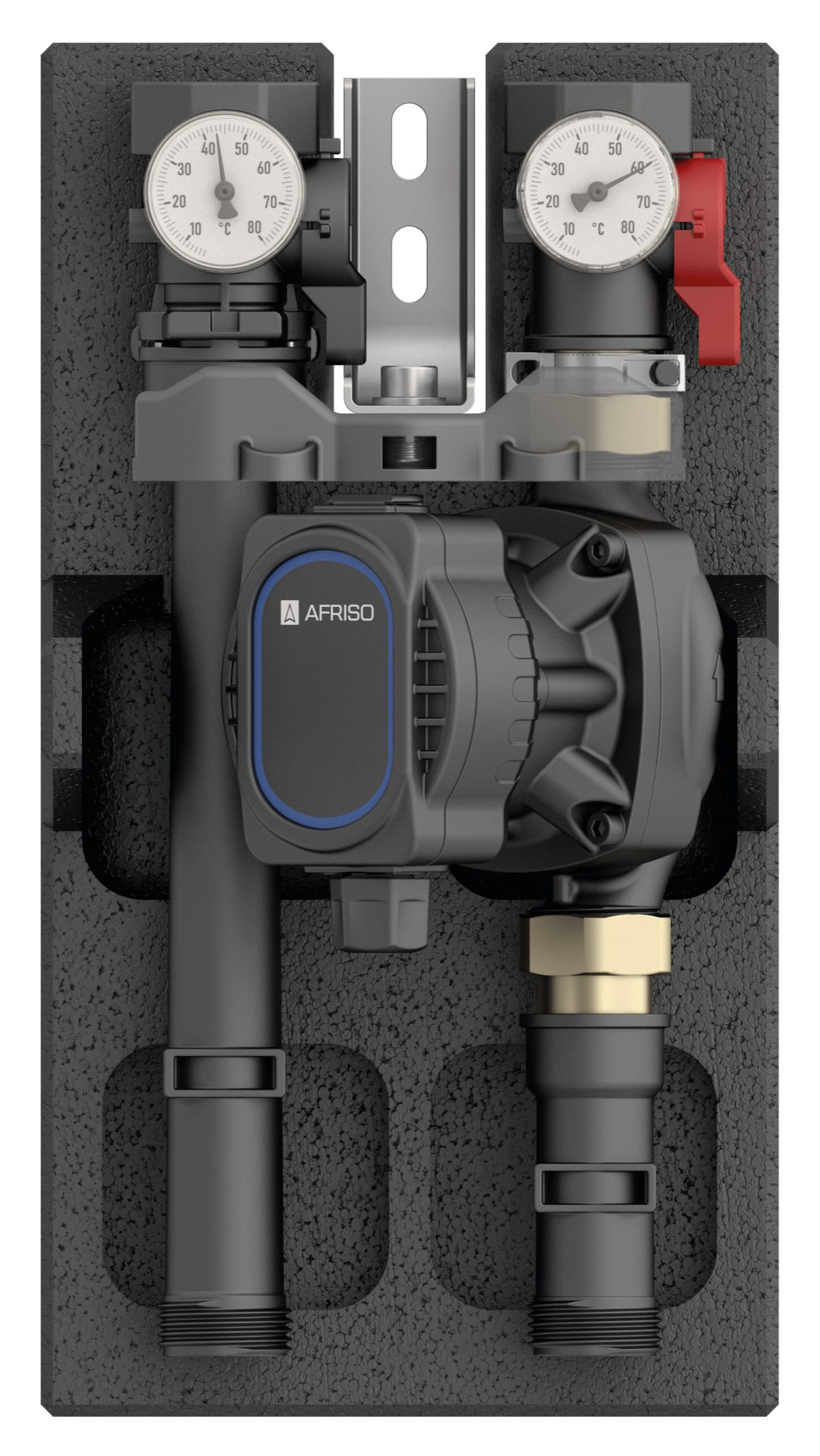

PrimoTherm® C 130-1 DN20

Heating pump assembly

Variants Documents

pre-assembled, tightness-tested and heat-insulated assembly
modular system with flow at left or right
easy, fast mounting
with high-efficiency pump class A
eligible for heating optimization program (BAFA)

	opening temperature is reached	Pump	Part no.
Heating pump assembly			77335
Heating pump assembly		AFRISO APH 160 15-7/130	77336
Heating pump assembly		Wilo Para 15-130/6-43/SC-12	77337
Heating pump assembly		Grundfos UPM3 Auto 15-70/130	77338

in-stock items
manufactured goods

Axis distance: 90 mm

system connections

Boiler:: G1 male

Heating circuit:: G1 female

Operating temperature range

Medium:: max. 60 °C bei 6 bar,
max. 70 °C bei 5 bar,
max. 90 °C bei 3 bar

Nominal size: DN 20

Flow coefficient Kvs: 5.7 m³/h

Heat insulation: Polypropylene EPP

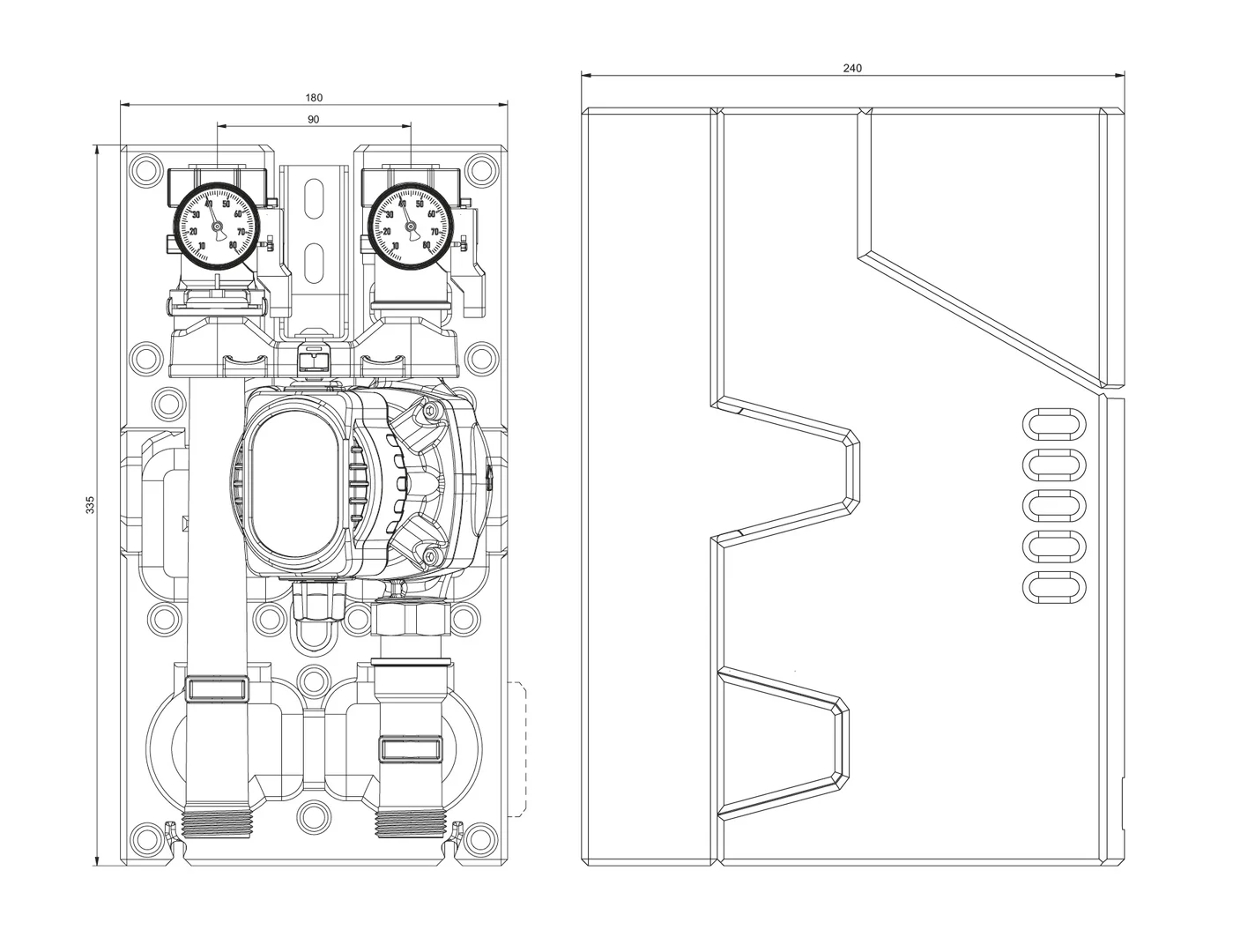

Dimensions

W x H x D:: 189 x 335 x 240 mm

Proportionaldruckgeregelt: 0 - 1

Konstantdruckgeregelt: 0 - 1

Feste Drehzahl: 0 - 1
