Heating pump assembly | 77338

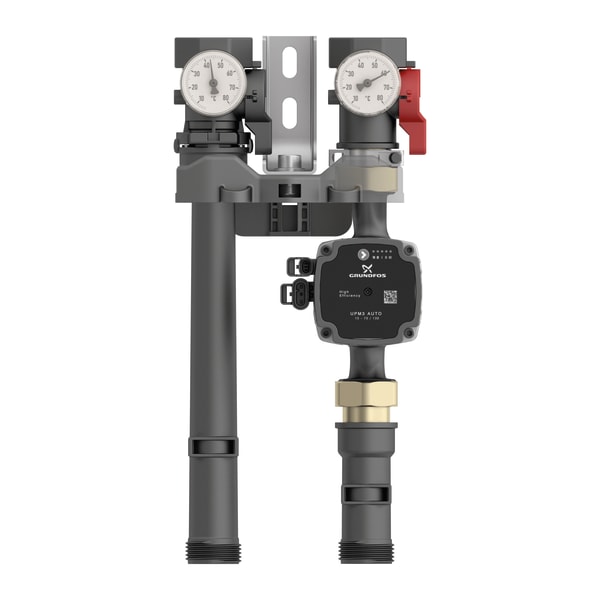

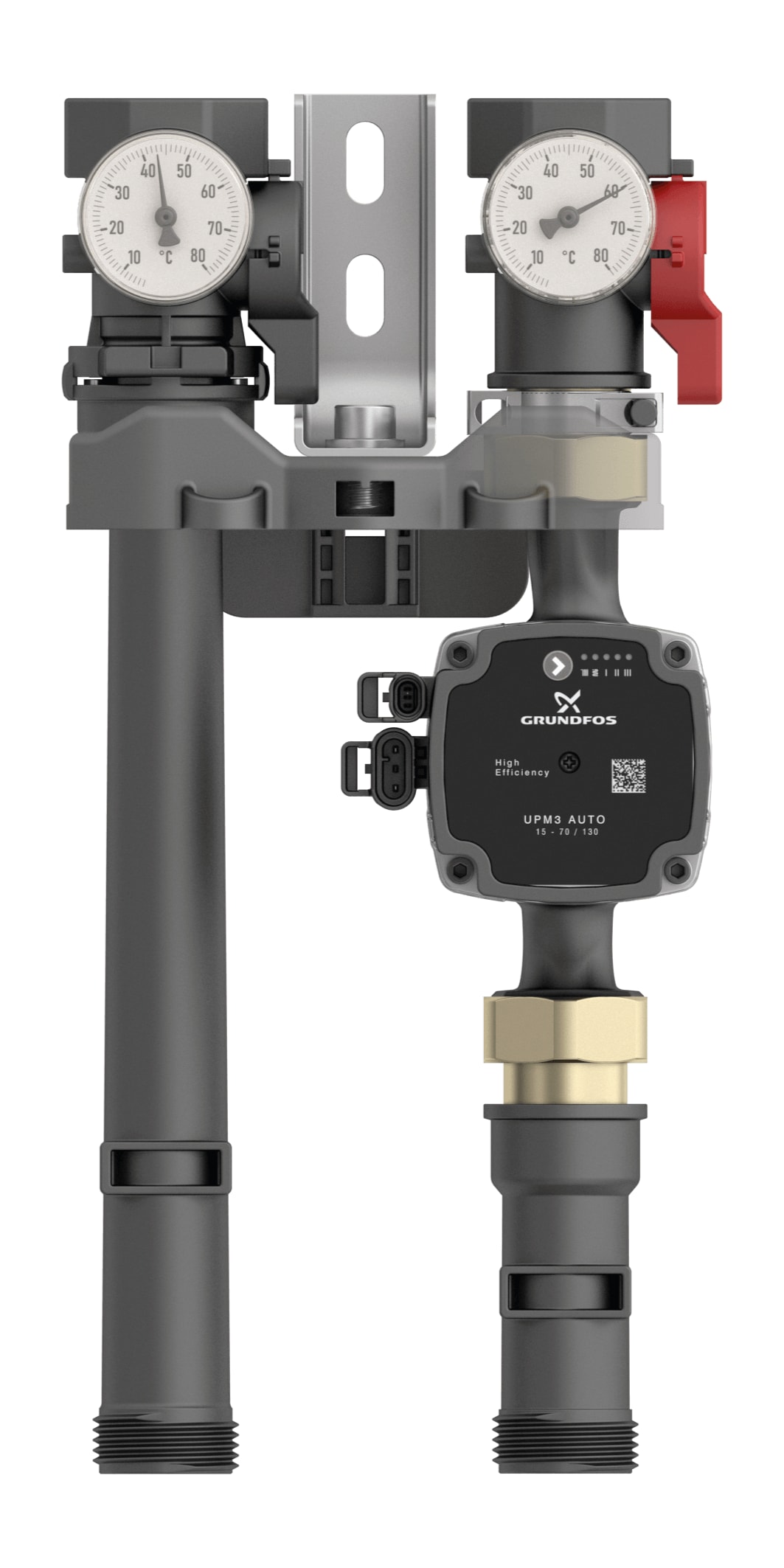

Heating pump assembly PrimoTherm® C 130-1 DN20
manufactured goods
- pre-assembled, tightness-tested and heat-insulated assembly
- modular system with flow at left or right
- easy, fast mounting
- with high-efficiency pump class A
- eligible for heating optimization program (BAFA)
- Axis distance
- 90 mm
- system connections
- Boiler:
- G1 male
- Heating circuit:
- G1 female
- Operating temperature range
- Medium:
- max. 60 °C bei 6 bar,
max. 70 °C bei 5 bar,
max. 90 °C bei 3 bar
- Nominal size
- DN 20
- Flow coefficient Kvs
- 5.7 m³/h

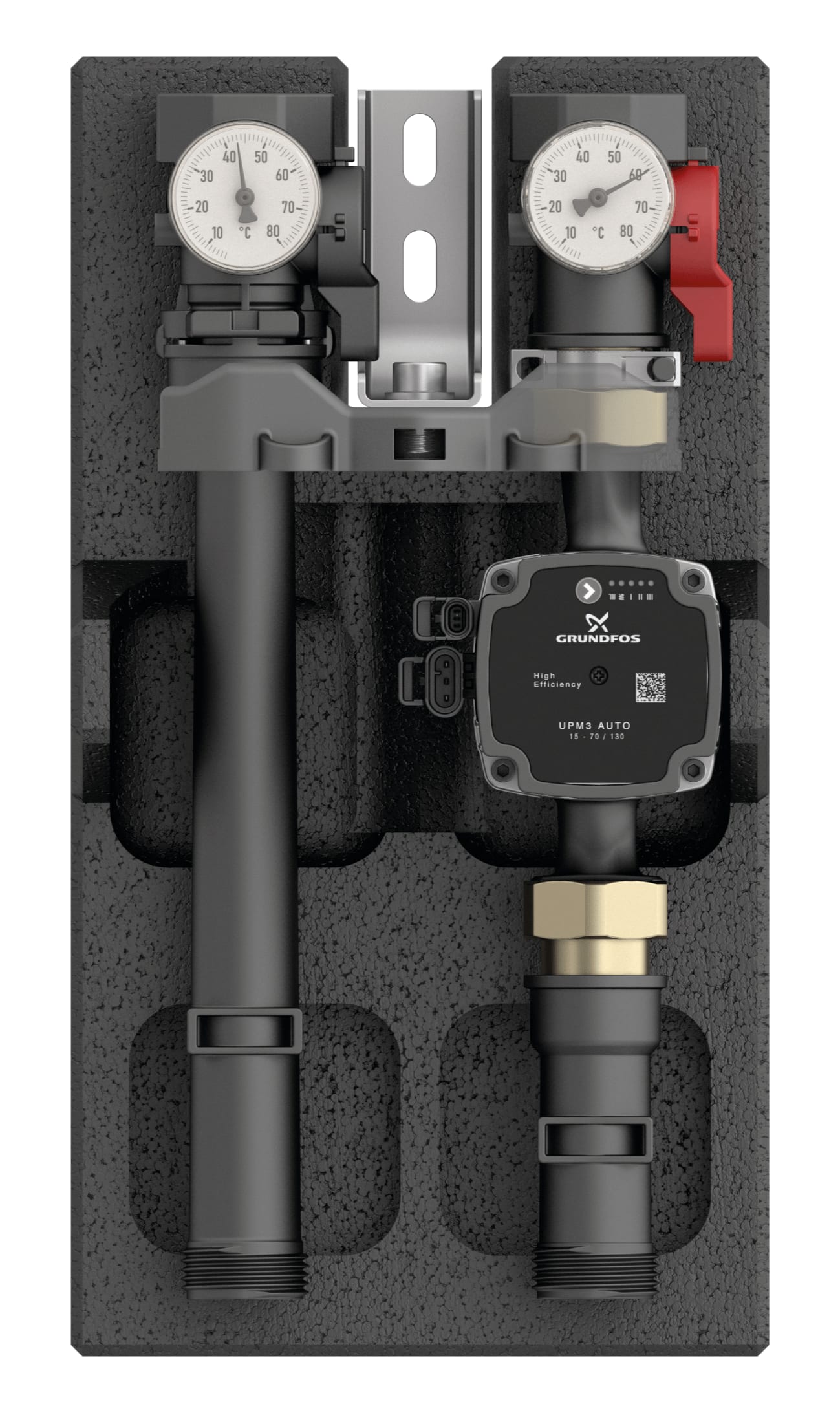

- Heat insulation
- Polypropylene EPP
- Dimensions
- W x H x D:
- 189 x 335 x 240 mm
- Circulation pump
- Grundfos UPM3 Auto 15-70/130
- Length
- 130 mm
- Degree of protection
- IP 44 (EN 60529)
- Supply voltage
- AC 230 V, 50 Hz
- Energy efficiency class
- A
- Power input
- Grundfos UPM3 Auto 15-70/130: 5 − 52 kW
- pumping head
- Grundfos UPM3 Auto 15-70/130: max. 7 m
- pumping volume
- Grundfos UPM3 Auto 15-70/130: max. 3.75 m³/h
- Proportionaldruckgeregelt
- 1 - 1
- Konstantdruckgeregelt
- 1 - 1
- Feste Drehzahl
- 1 - 1
