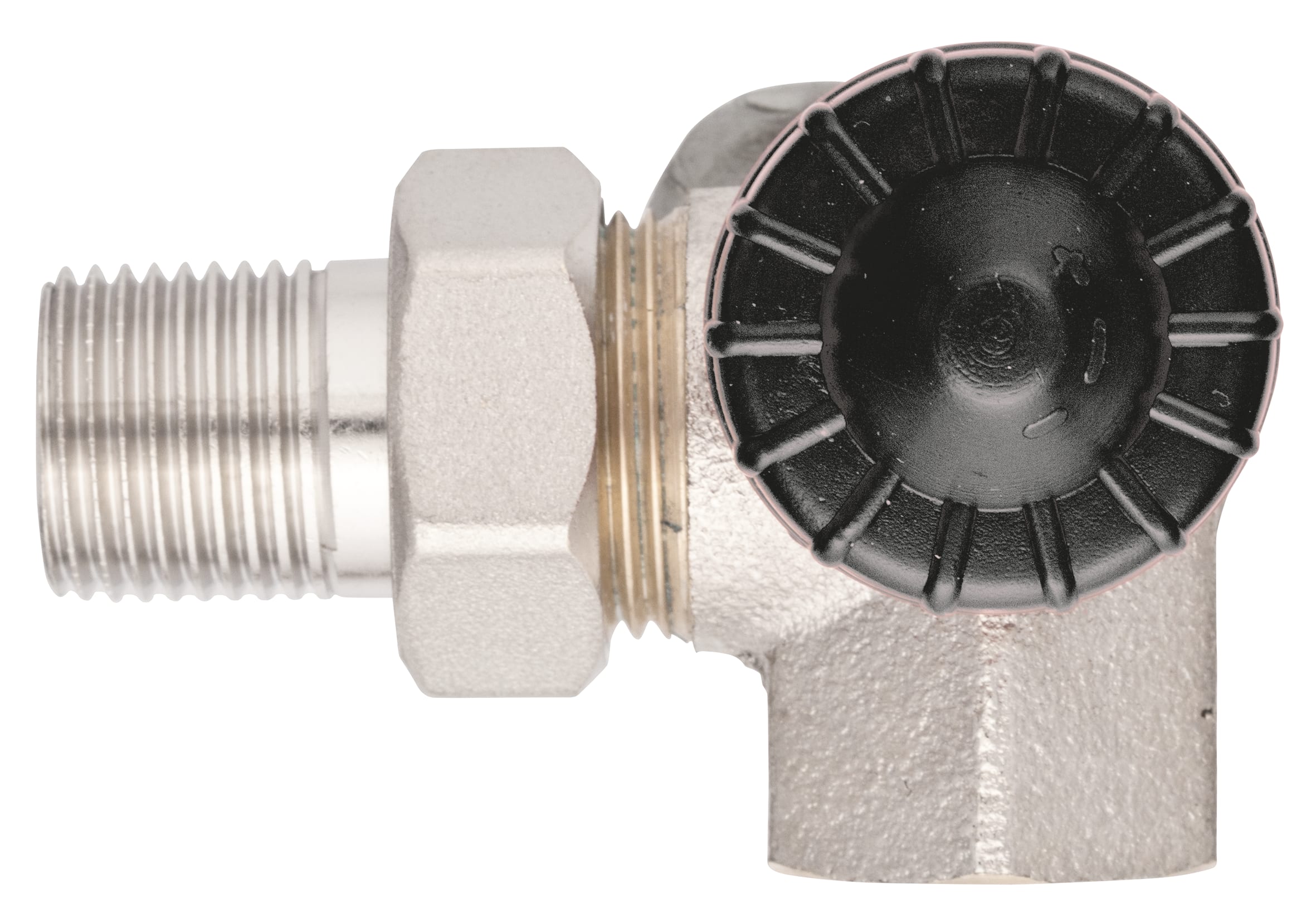

thermostat valve body Vario M WE-R DN15 for medium water volumes | 145_220-101

Thermostat valve bodies Vario

manufactured goods
Documents

  • fully adjustable
  • valve insert can be replaced without system having to be drained
  • various versions and sizes for virtually any application

Suitable for medium water volumes. For installation in dual-pipe central heating systems.

Low-noise thermostat valve body with threaded connection M 30 x 1.5 mm for thermostat control heads and actuators. Mounting cap with valve shut-off function. Fully adjustable with ES-SV adjustment key. Valve spindle with double O ring seal. The valve insert can be replaced with the MGV mounting unit at operating pressure without the system having to be drained.

System connection
see ordering table
Thermostat head/actuator connection
Threaded connection M 30 x 1.5 mm
Adjustment range
12 − 250 l/h
Nominal pressure
max. 10 bar
Nominal diameter
DN 15
Operating temperature range
Medium:
max. 120 °C
Housing
Gunmetal, nickel-plated

Click the corresponding image for detail views, additional information and dimension tables.

Vario M, – angled-angled, right
