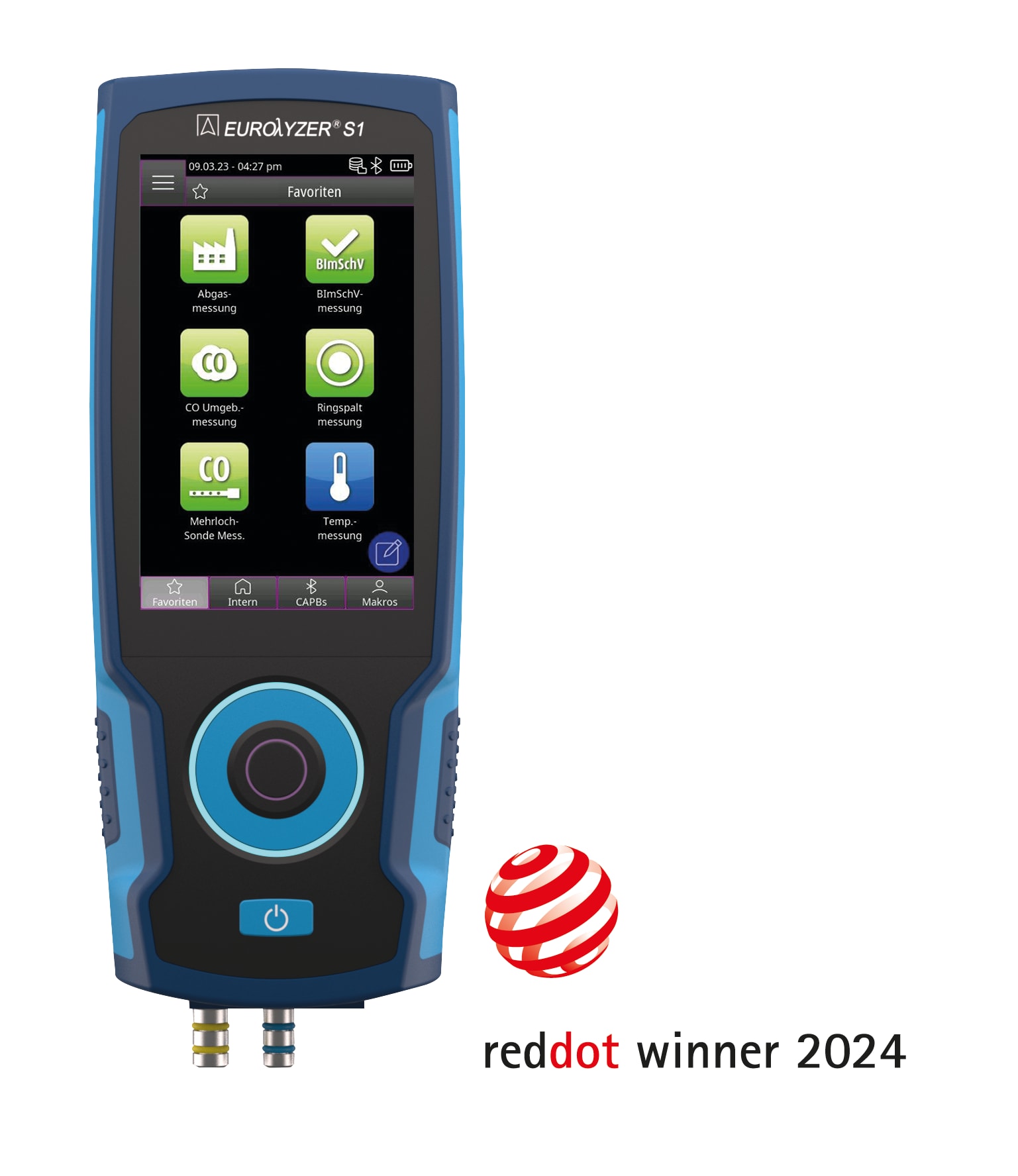

Flue gas analyser EUROLYZER® S1 set Basic O2, CO/H2+, draft | P00140

Flue gas analyser EUROLYZER® S1 set Basic

in-stock items
Documents Video

  • Configurable macros for practical multi-measurement of, for example, partial load, full load and annular gap
  • Compact flue gas probe AKS-K 170 mm with draft connection
  • large high-resolution display for optimum readability and and intuitive menu navigation, protected by scratch-resistant glass
  • Pioneering "dual-mode concept": Intuitive one-hand operation via scroll wheel or touch display – sensitive even with work gloves
  • Ready for all typical HVAC measuring tasks thanks to Bluetooth® connection to more than 35 sensor modules and sets of the CAPBs® system
  • TÜV-tested measurement as per 1st and 44th BlmSchV (German Federal Immission Act)
  • NO sensor can be retrofitted
  • H2-compensated robust CO sensor (measuring range up to 10,000 ppm)
  • Multi-memory: Combine up to six different measurements into a single measurement report (for example, full load measurement/partial load measurement or flue gas measurement and flow pressure measurement)
  • Data transmission via Bluetooth® or QR code to the AFRISO app EuroSoft® connect for on-site documentation
  • 5 years warranty on O2 sensor
  • 7 years full warranty in connection with a service contract

Designed for flue gas measurements at oil, gas and pellets fired systems as well as for tightness tests at gas lines, for checking the connection pressure/flow pressure and the pressure loss. TÜV-tested measurements as per 1st and 44th BlmSchV (German Federal Immission Act) can be performed reliably and intuitively. Fast and easy Bluetooth® connection to more than 35 sensor modules and sets of the AFRISO CAPBs® make EUROLYZER® S1 the central controller for all HVAC tasks.

Einsatzmedien
Produkteigenschaften
Schnittstellen
Zulassungen

measuring ranges (measured values)
Flue gas temperature/differential temperature
0/1 150 °C
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
O2 measurement
0/21 Vol.-%
COH2 measurement
nominal:
0/4 000 ppm
maximum:
0/10 000 ppm
additional technical specifications
Indication (calculated values)
CO2, COunverdünnt, Lambda, Taupunkt, Eta efficiency, Abgasverluste qA, CO mg/m3 (natural gas), CO mg/kWh (Heizöl)
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Dimensions
W x H x D:
80 x 218 x 44 mm
Degree of protection
IP 42 (EN 60529)
Display
high-resolution display 4.3 "
Connections
Draft:
∅ 7 mm
Gas:
∅ 8 mm
temperature:
2 x socket type K
Supply voltage
lithium-ion battery (3.6 V/5000 mAh)
Power supply unit (USB-C)
Battery or mains
Hours of operation (eco mode)
  12 Stunden
Data memory
internal memory,   10000 Messungen
Interfaces
Infrared,
Bluetooth®,
QR code generator,
USB-C
Approvals
TÜV-tested as per 1st and 44th BImSchV,
DIN EN 50379-1/2
Scope of delivery
  • Flue gas analyser EUROLYZER® S1 (O2, CO/H2+, draft)
  • mit integrierten Haftmagneten im Gehäuse
  • Calibration report
  • Netzteil NTE 5 USB-A
  • charging cable USB-A to USB-C (1 m)
  • 5 x Infiltec-Feinfilter
  • 5 x Teflon membrane
  • Kondensatfilterpatrone KFP
  • Flue gas combination probe, compact, AKS-K FZ 170 mm
  • Umgebungsluftfühler TFB-UL 50-1
  • system case L "Gas analysis"
