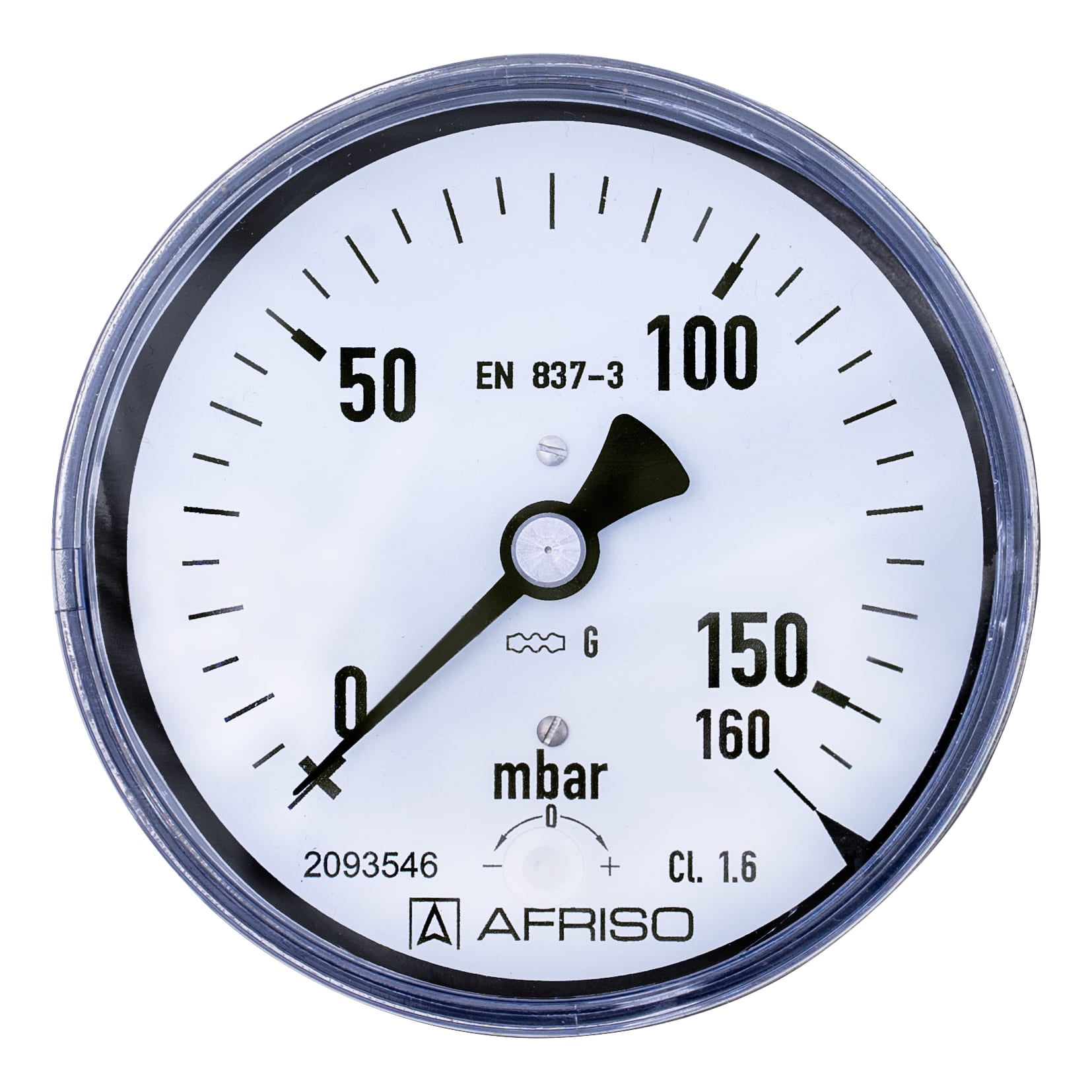

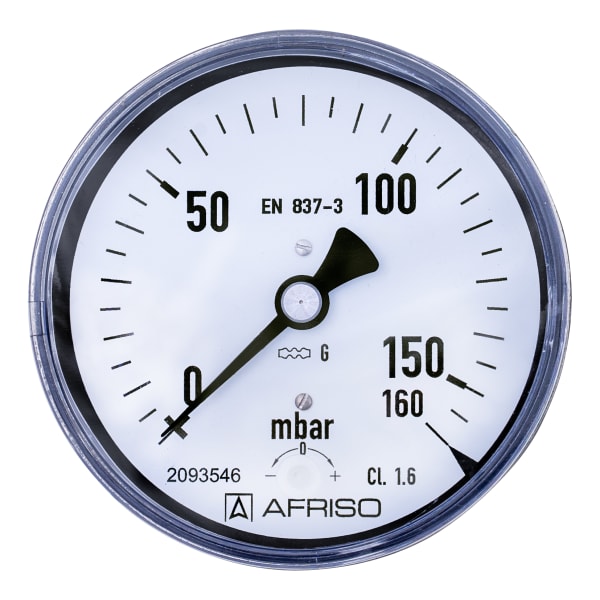

KP63 D311

Kapselfeder-Standardmanometer Typ D3

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • ideal for low pressure ranges
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbardirectKP63 D31135004311
-40/0 mbardirectKP63 D31135005311
-60/0 mbardirectKP63 D31135006311
-100/0 mbardirectKP63 D31135007311
-160/0 mbardirectKP63 D31135008311
-250/0 mbardirectKP63 D31135009311
-400/0 mbardirectKP63 D31135010311
-600/0 mbardirectKP63 D31135011311
-1 000/0 mbardirectKP63 D31135012311
0/25 mbardirectKP63 D31135016311
0/40 mbardirectKP63 D31135017311
0/60 mbardirectKP63 D31135018311
0/100 mbardirectKP63 D31135019311
0/160 mbardirectKP63 D31135020311
0/250 mbardirectKP63 D31135021311
0/400 mbardirectKP63 D31135022311
0/600 mbardirectKP63 D31135023311
0/1 000 mbardirectKP63 D31135024311
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
63 - 63
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 63: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
window
Kunststoff, eingeclipst

Click the corresponding image for detail views, additional information and dimension tables.

Centre back connection

PRO_TEC_BEP_KP_D21X-D31X_S.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
connection socket nickel-plated NG 63 | 38084
throttle screw brass NG 63 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38097
3-hole fixing, panel mounting bezel stainless steel 304 polished NG 63 | 37608
back flange stainless steel 304, vibratory-finished NG 63
back flange stainless steel 304, vibratory-finished NG 63 | 38048
red mark on dial NG 63 | 38184
1 reference pointer, red NG 63 SD External adjustment with screwdriver | 38115
1 reference pointer, red NG 63 DK external rotary knob adjustment | 38188
laminated safety glass window NG 63 | 38072
printing block creation per scale and colour NG 63 scale design as per EN 837-1, others on request | 38153
additional colour NG 63 | 38165
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 63 for factory-mounting
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 63 for factory-mounting | 38054
