Industrial technology Mechanical pressure measuring instruments KP80 D351
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
Images 1

KP80 D351

Kapselfeder-Standardmanometer Typ D3

Variants Documents

housing ⌀ (nominal size)80 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • ideal for low pressure ranges
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135054351
-40/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135055351
-60/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135056351
-100/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135057351
-160/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135058351
-250/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135059351
-400/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135060351
-600/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135061351
-1 000/0 mbarPanel mounting bezel, with clamp fixingKP80 D35135062351
0/25 mbarPanel mounting bezel, with clamp fixingKP80 D35135066351
0/40 mbarPanel mounting bezel, with clamp fixingKP80 D35135067351
0/60 mbarPanel mounting bezel, with clamp fixingKP80 D35135068351
0/100 mbarPanel mounting bezel, with clamp fixingKP80 D35135069351
0/160 mbarPanel mounting bezel, with clamp fixingKP80 D35135070351
0/250 mbarPanel mounting bezel, with clamp fixingKP80 D35135071351
0/400 mbarPanel mounting bezel, with clamp fixingKP80 D35135072351
0/600 mbarPanel mounting bezel, with clamp fixingKP80 D35135073351
0/1 000 mbarPanel mounting bezel, with clamp fixingKP80 D35135074351
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
80 - 80
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 80: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
window
Kunststoff, eingeclipst

Click the corresponding image for detail views, additional information and dimension tables.

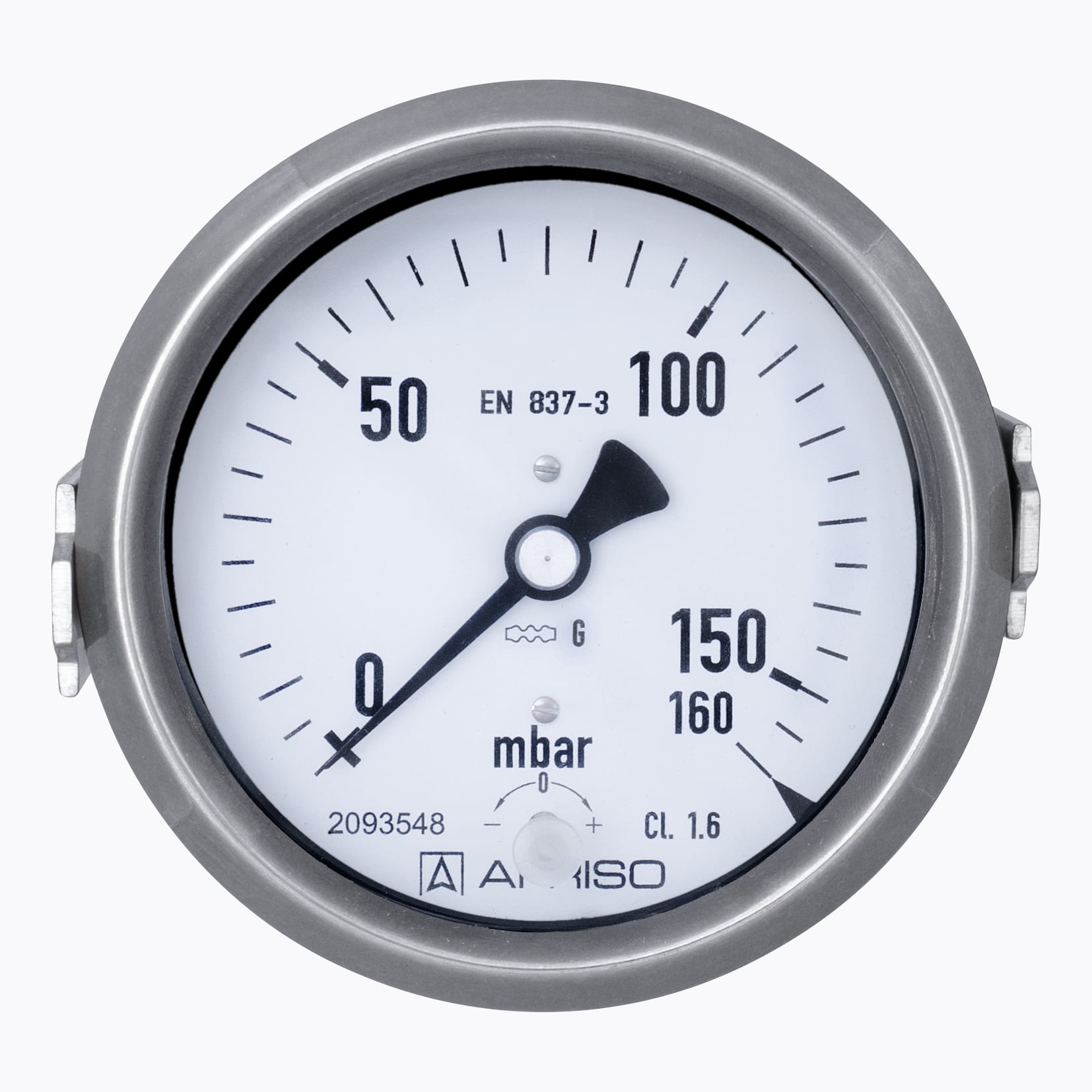

Centre back connection, panel mounting bezel with clamp fixing, NG 80/100

PRO_TEC_BEP_KP80-100_D35X_S.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
connection socket nickel-plated NG 80 | 38085
throttle screw stainless steel 316 Ti NG 80 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38104
Housing stainless steel 304 polished NG 80 | 37612
red mark on dial NG 80 | 38185
1 reference pointer, red NG 80 SD External adjustment with screwdriver | 38116
1 reference pointer, red NG 80 DK external rotary knob adjustment | 38189
oil and grease removed from wetted parts NG 80 label "Oil and grease free" | 37616
printing block creation per scale and colour NG 80 scale design as per EN 837-1, others on request | 38154
additional colour NG 80 | 38166
