Data sheet Event reporting system EMS 220
Afriso Data sheet Event reporting system EMS 220

Versions

Part no. Remember
Event reporting system EMS 220 90220
Setup of file on AFRISO Net server yyyyyyyyyy 90013
Monthly base fee per SIM card 90014

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Event reporting system EMS 220 Data sheet PDF
Afriso Data sheet Event reporting system EMS 220
Enquiry event reporting systems EMS Event reporting systems PDF
Afriso Enquiry event reporting systems EMS
Event reporting systems EMS: Operation via mobile phone - checklist 3 Event reporting systems DOC
Afriso Event reporting systems EMS: Operation via mobile phone - checklist 3
Event reporting systems EMS: Operation via mobile phone - checklist 2 Event reporting systems DOC
Afriso Event reporting systems EMS: Operation via mobile phone - checklist 2
Event reporting systems EMS: Operation via mobile phone - checklist 1 Event reporting systems DOC
Afriso Event reporting systems EMS: Operation via mobile phone - checklist 1
GSM software for event reporting system EMS Event reporting systems ZIP Afriso GSM software for event reporting system EMS

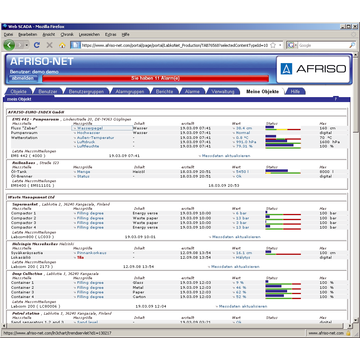

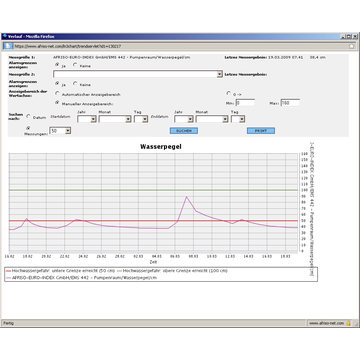

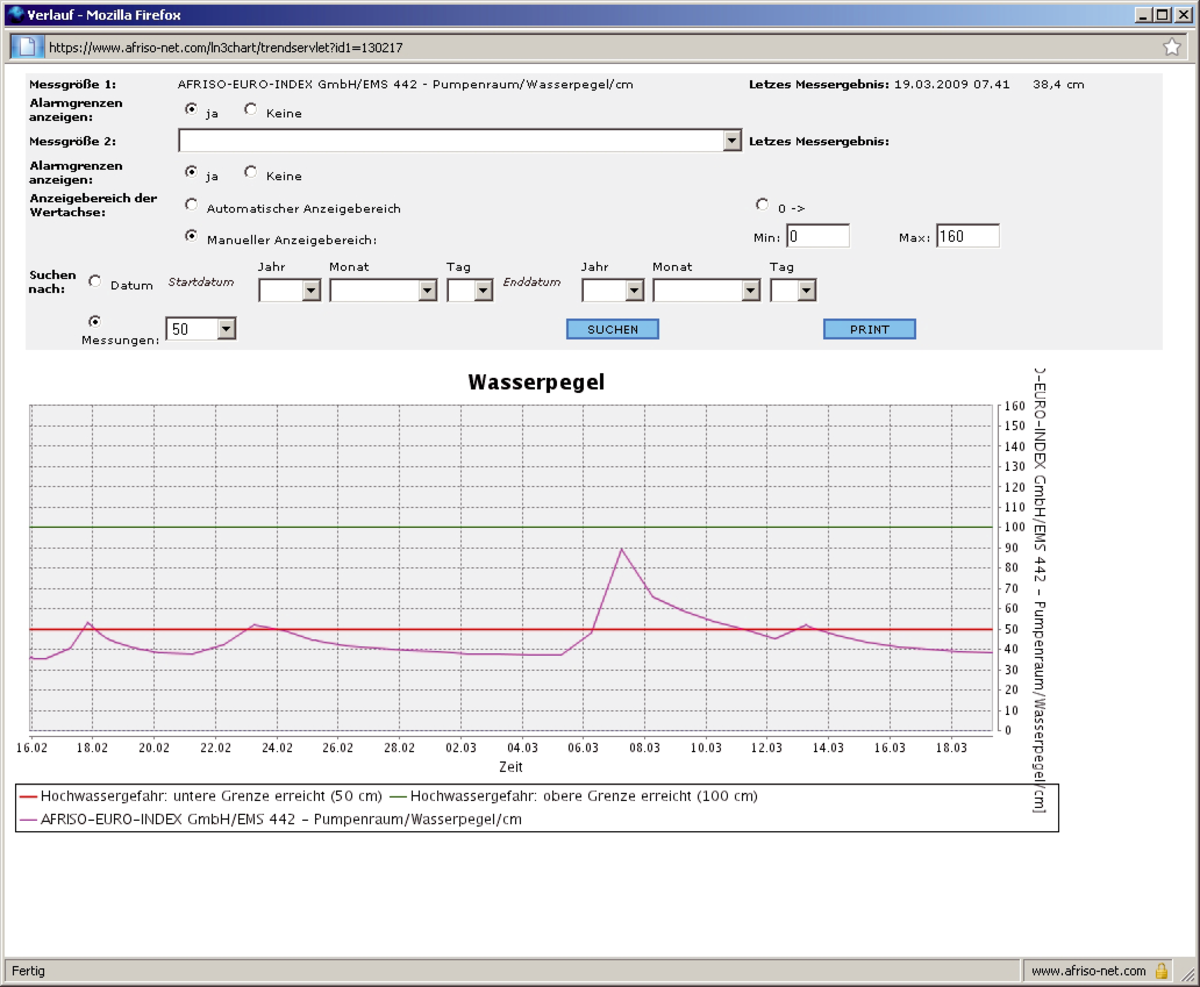

EMS 220 has 2 analogue and 2 digital inputs. EMS 220 sends alarm signals or results of continuous measurements to the mobile phone of the user or to the AFRISO Net server for documentation and further distribution. From the server, messages can be sent via Internet, text message or e-mail. The owner/operator can request information on the system status or change parameters via mobile phone at any time. Measuring intervals, limit values and data transmission intervals can be adjusted as required.
Operating temperature range
Ambient:
-20/+50 °C
Supply voltage
AC 230 V
Sensor supply
DC 24 V, max. 25 mA
Alarm inputs
2 analogue inputs 4–20 mA, active or passive
2 digital inputs, for voltage-free assignment
Data transmission
GSM short message system (SMS) with integrated 2G/3G modem
900/1,800/2,100 MHz
Measuring intervals/data transmission intervals
Adjustable as required
Parameterisation/configuration
Via mobile phone
Housing
Wall mounting housing made of impact-resistant plastic (ABS)
W x H x D:
100 x 188 x 65 mm
Degree of protection
IP40 (EN 60529)
Electrical connection
Cable gland
CE conformity
EMC Directive 2014/30/EU
RED Directive 2014/53/EU
