Data sheet automatic fuel oil de-aerator FloCo-Top-2
Afriso Data sheet automatic fuel oil de-aerator FloCo-Top-2

Versions

Filter Filter surface Part no. Remember
Fuel oil de-aerators FloCo-Top-2KM MC-7 Opticlean MC-7 short, 5–20 µm 700 cm² 70112
Fuel oil de-aerators FloCo-Top-2KM MS-5 Opticlean MS-5 short, 20–35 µm 500 cm² 70134
Fuel oil de-aerators FloCo-Top-2KM Optimum MC-18 Opticlean MC-18 long, 5–20 µm 1,850 cm² 70114
Fuel oil de-aerators FloCo-Top-2KM Optimum Si Sintered plastic sieve Optimum, 50–70 µm 200 cm² 70115
Fuel oil de-aerators FloCo-Top-2KM Si Sintered plastic sieve short, 50–70 µm 115 cm² 70110

Blue part no. = in-stock items

Part no. Remember
Pressure gauges -0.7/+0.9 bar 70030
Holder for FloCo-Top-2 series 70127

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet automatic fuel oil de-aerator FloCo-Top-2 Data sheet PDF
Afriso Data sheet automatic fuel oil de-aerator FloCo-Top-2
Fuel oil de-aerator FloCo-Top-2 Operating instructions PDF
Afriso Fuel oil de-aerator FloCo-Top-2
Certificate Proofed barrier: Tested odour impermeability of oil tank components (odour barrier) Products PDF
Afriso Certificate Proofed barrier: Tested odour impermeability of oil tank components (odour barrier)
STP file (3D) PRO_TEC_STP_70110-19_FLOCO-TOP-2 CAD file STP Afriso STP file (3D) PRO_TEC_STP_70110-19_FLOCO-TOP-2

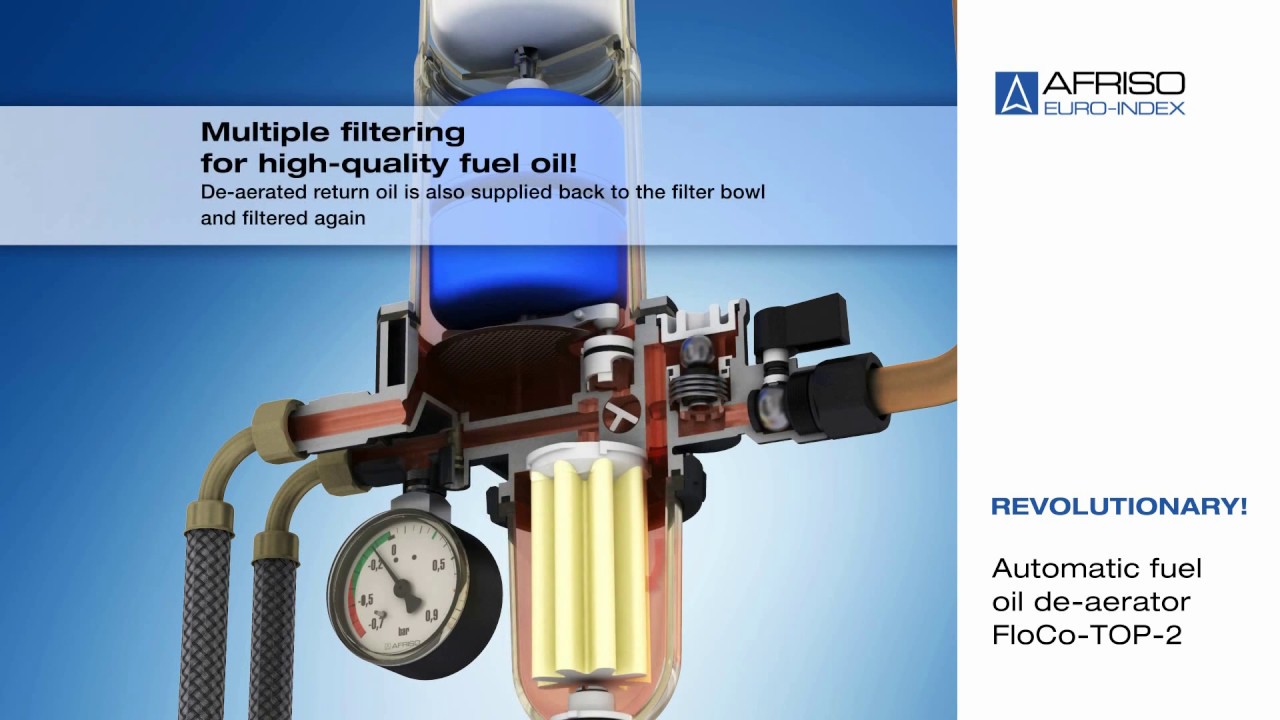

Automatic fuel oil de-aerator, safety version, with integrated filter, shut-off valve and vacuum gauge. Housing with changeover valve for multiple filtration as well as backflow preventer with integrated pressure relief towards the tank. Compact de-aerator hood made of transparent plastic with dual float safety system to keep oil foam from escaping via the de-aerator opening. The vent hose is connected at the side in an unobtrusive way. For venting, the oil is guided via the float chamber and can then be added directly to the flow or it can be filtered again by switching a valve. In the case of multiple filtration, the return oil increases the flow rate so that the filter bowl is permanently filled with de-aerated oil. In service mode, the vacuum gauge indicates the pump vacuum. The shut-off valve can be closed to check the suction capacity of the burner pump. Increased vacuum provides information on the degree of pollution of the filter. The drain unit ensures that replacing the filter is easy and clean: Connect the hose, open the drain valve, loosen the union nut of the filter cup and drain the oil in a controlled way. When the burner hose needs to be replaced, it is sufficient to open a bypass valve so that the oil is drained from the float chamber via the filter cup and the drain unit. Watertight up to 10 m water column.
Connection burner end
G⅜ male with 60° cone for burner hoses
Connection tank
G⅜ female
Nozzle capacity
Max. 100 l/h
Return flow
Max. 120 l/h
Separating capacity air/gas
> 4 l/h
Mounting position
Float housing vertical to the top
Operating temperature range
Medium:
Max. 60 °C
Ambient:
Max. 60 °C
Operating overpressure
Max. 0.7 bar
Corresponds to static oil column of approx. 8 m
Test pressure
6 bar
Vacuum gauge
Range:
-0.7/+0.9 bar
Dimensions (W x H x D)
183 x 254 x 103 mm
183 x 348 x 103 mm
Material
Housing:
Zinc die cast
De-aerator hood:
Transparent plastic
Filter cup:
Transparent plastic
Test
TÜV-tested (S 133 2013 E2)
Approval for construction products
Conformity certificate (ÜHP) as per EN 12514-2
Scope of delivery
  • Fuel oil de-aerators
  • Universal screw connections for pipes ∅ 6/8/10 mm
  • Bracket with mounting material
  • Cover for connection of the vent hose
  • Drain hose
