Hygienic processes

Sterile process separation, hygienic design, material quality – adapted to suit specific industrial production processes, AFRISO products meet the most demanding requirements and hygiene regulations.

Industries & Topics Hygienic processes

A comprehensive range of measuring technology for hygienic systems and processes

Innovation and rapid development characterise the production processes in the cosmetics, beverages, food, biotechnology and pharmaceutical industries. The production processes in these industries are particularly  demanding. Specific product properties need to comply with special hygienic requirements. The products are manufactured in highly complex and sometimes sterile processes.

Measuring and control components in machines and production facilities must therefore meet the highest standards. Sterile process separation, hygienic design of devices, superior quality of materials and maximum measuring accuracy are some of the key factors for maximum process reliability.

Discover new possibilities for your applications. With AFRISO.

Specific production processes

AFRISO components and system solutions are adapted to suit specific production processes and comply with the pertinent hygienic regulations and recommendations to meet stringent requirements. Our robust measuring devices deliver perfect measuring results and reliably monitor and control simple to highly complex processes. Sophisticated kit systems and innovative ideas such as the seal-free design of diaphragm seals, pressure transmitters and thermometers help in the continuous optimisation of production facilities.

Requirements for sterile processes

Manufacturing and processing food, cosmetics and pharmaceuticals involve highly demanding production technologies.

A vast array of standards and stringent directives cover all aspects of the hygienic design of machines, systems and, of course, peripheral equipment such as measuring instruments. AFRISO products consider these standards. National and international approvals and certificates ensure superior quality.

Anforderungen hygienische Prozesse

AFRISO products are subject to stringent requirements

Quality assurance according to ISO 9001 and an environmental management according to ISO 14 001 are self-evident for us an implemented in every process. The certified quality and environmental management system guarantees safety for people, processes and the environment.

Specifies directives with characteristics for the hygienic design of devices for processing food. It recommends the design of components and test methods for using and cleaning such devices.

(Safety integrity level as per IEC 61508/IEC 61511)

(Product directive 94/9/EG, workplace directive 1999/92/EG)

(Pressure Equipment Directive) Pressure Equipment Directive 97/23/EG

Non-profit organisation (USA) for product safety in processes of the food and pharmaceutical industries.

Organisation of the US Department of Health. Issues recommendations, directives and test methods for the examination of materials.

Measuring technology for hygienic processes

Hygienic production equipment is designed in such a way as to avoid external contamination and microbiological pollution and to ensure easy cleaning. All wetted parts, i. e. materials coming into contact with the medium, must have been tested and classified as hygienic. The materials used in hygienic AFRISO measuring systems meet FDA requirements for contact with food and drugs as per CFR (Code of Federal Regulations), part 21.

These materials comprise metals as well as elastomers for seals or oils for transmission in diaphragm seals. The EHEDG recommendations are considered in the design of hygienic measuring instruments. AFRISO has been an EHEDG member since 2010; various process connections are EHEDG-certified (EL - Class I).

Precision turning/polishing assure a surface quality of the wetted parts with a medium roughness of Ra ≤ 0.8 μm. Please enquire for an even higher quality of up to Ra ≤ 0.4 μm.

The cleanability of components in closed systems is ensured by CIP (cleaning in place) or SIP (sterilisation in place) cleaning methods. CIP with circulation or flushing methods involve flushing a plant or parts of a plant with alkaline or acid cleaning agents and alcoholic disinfection agents and then rinsing with ultra-pure water. SIP uses hot steam to kill micro-organisms for sterilisation.

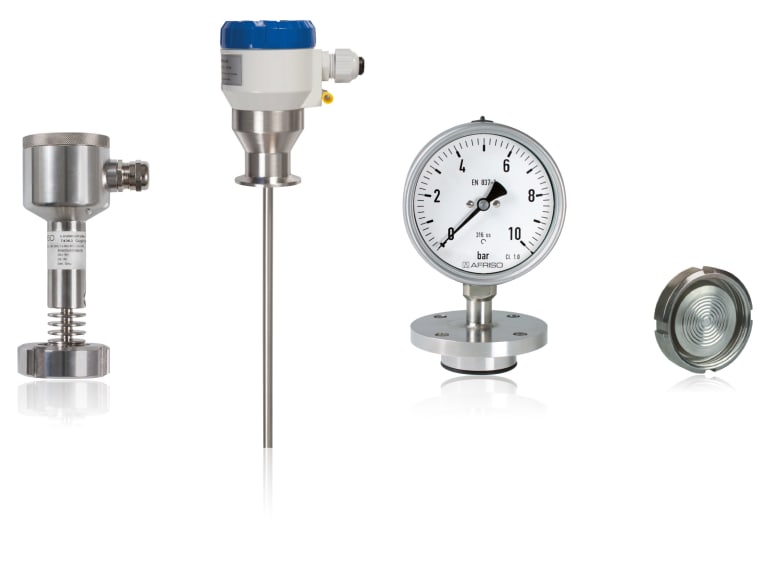

AFRISO components for hygienic processes



  • Hygienic design of wetted parts in view of materials and surface quality: Stainless steel 316 Ti/316 L, Monel, Hastelloy, platinum, titanium, PFA/PFTE coatings, plastic materials
  • FDA-listed materials
  • Device design as per EHEDG recommendations
  • EHEDG certificates: Type EL - Class I
  • Welding seams with a roughness height of Ra ≤ 0.8 μm
  • Perfect external cleanability due to stainless steel housing with a degree of protection of up to IP 69
  • Surface quality with a roughness height of Ra ≤ 0.8 μm (optionally 0.4 μm)
  • Resistance to acid, alkaline and alcoholic cleaning agents
  • Suitable for CIP and SIP
  • High resistance to vibration and temperature
  • Numerous process connections for optimum adaptation to the application
  • Relevant certificates such as EHEDG, SIL, GOST, 3-A, ATEX are available, others such as Kosher,Halal can be optionally provided

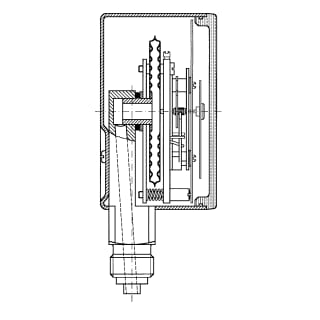

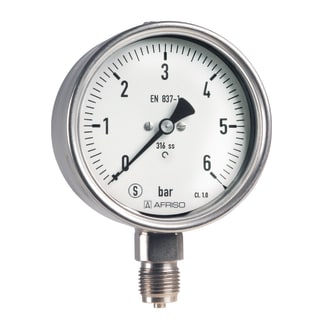

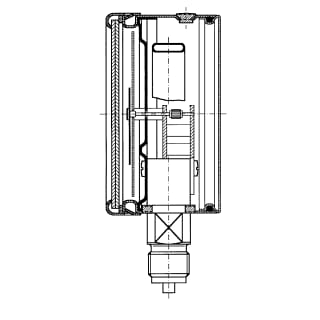

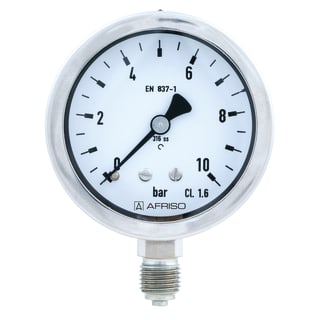

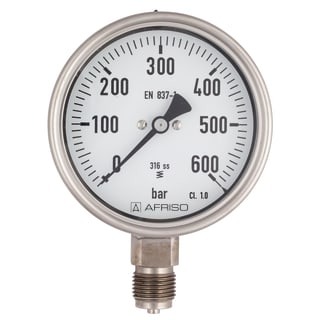

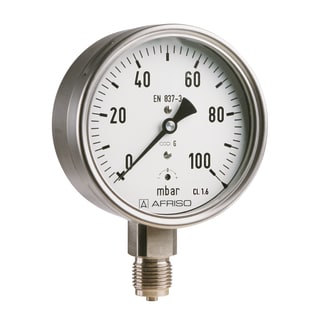

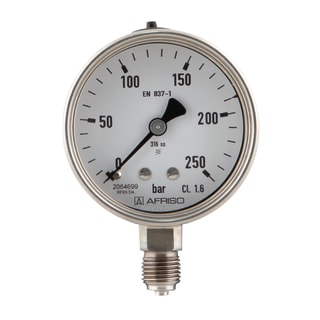

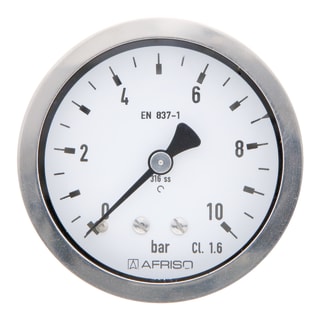

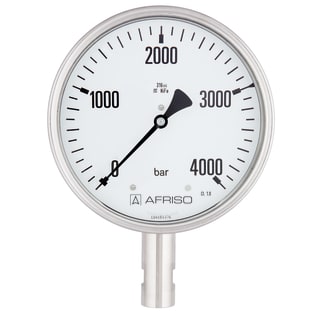

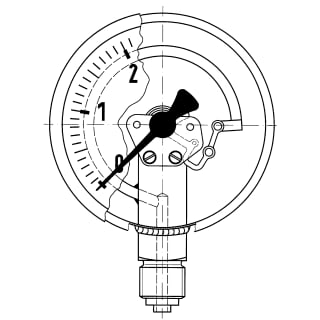

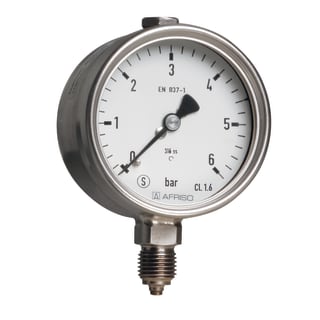

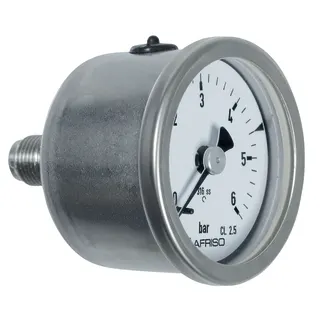

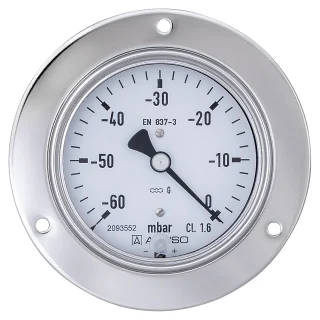

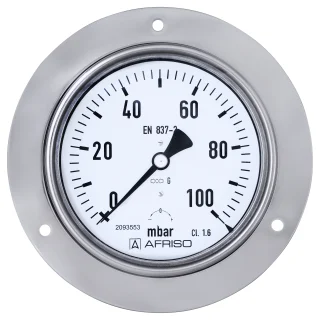

Mechanical pressure measurement: Robust pressure gauges and high-precision pressure transmittlers

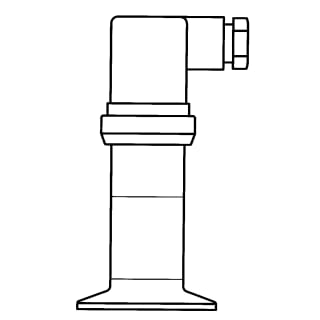

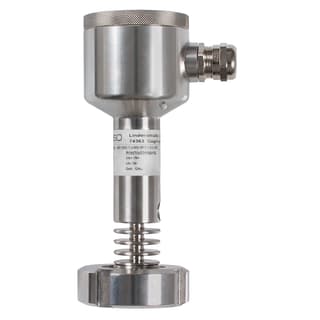

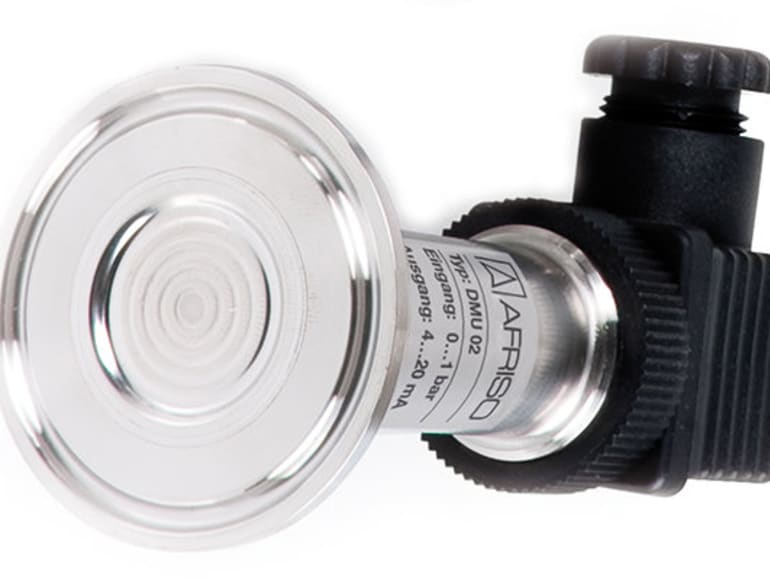

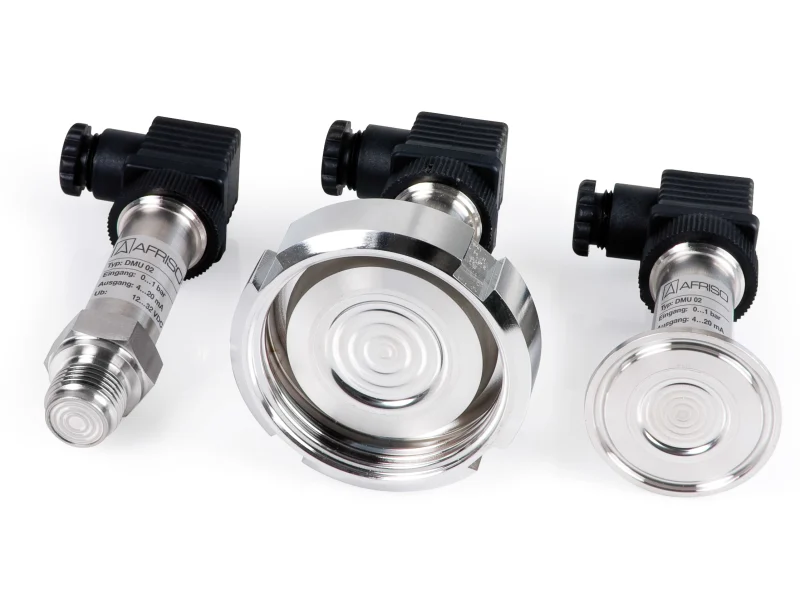

Electronic pressure measurement: Robust pressure gauges and high-precision pressure transmittlers

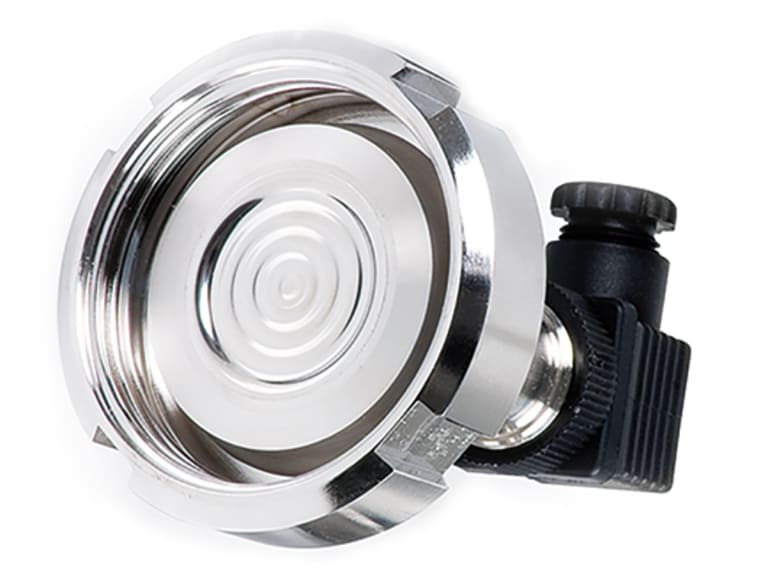

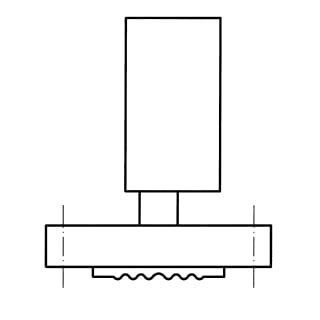

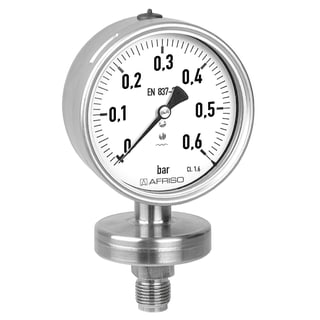

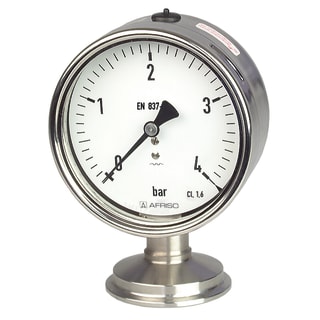

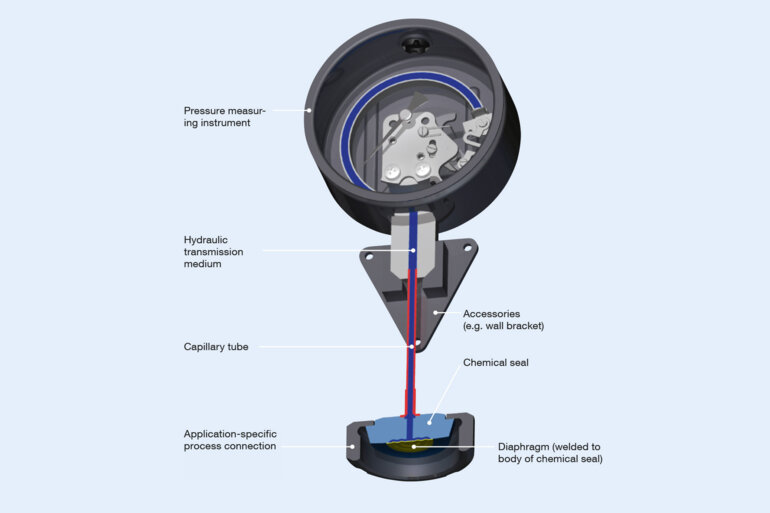

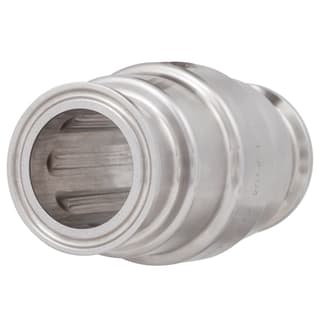

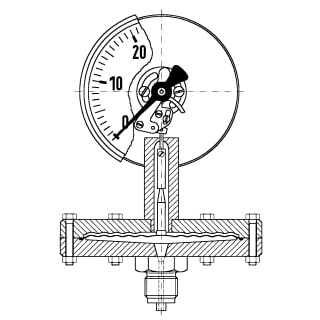

Diaphragm seal for hygenic separation of measuring instrument and medium

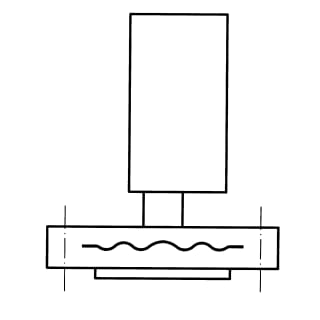

Chemical seals are mechanical process separators. They use a diaphragm to separate the medium to be measured from the measuring system. This separating diaphragm is joined to the body of the chemical seal, in hygienic applications usually by means of welding.

Chemical seal systems

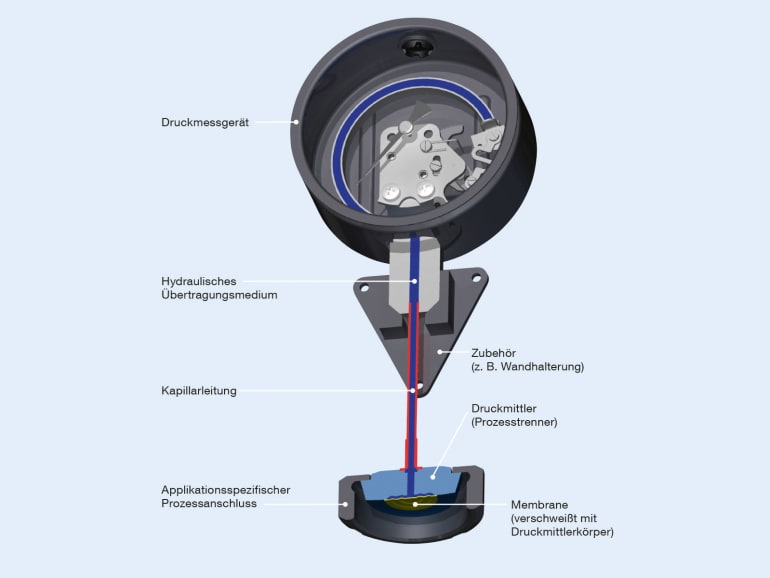

A chemical seal system consists of two connected devices (instrument and seal). Welding or screwing turn the chemical seal and the instrument (e. g. Bourdon tube pressure gauge, pressure transducer or pressure switch) into a single, inseparable unit. Spaces in the measuring element and channel holes are evacuated and then filled with a hydraulic transmission fluid. This transmission fluid transmits the process pressure to the instrument. The instrument and the medium to be measured are protected this way: The instrument cannot come into contact with hot, polluted or corrosive media and the medium is not polluted by corrosion or bacteria.

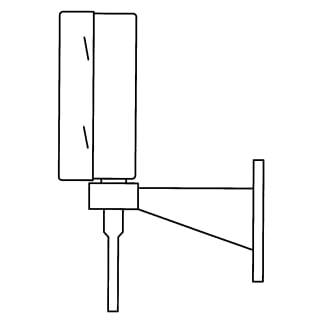

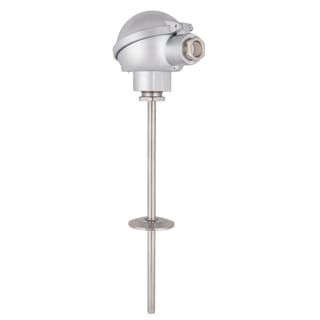

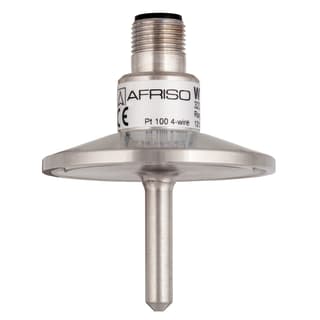

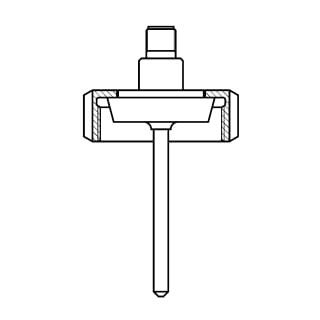

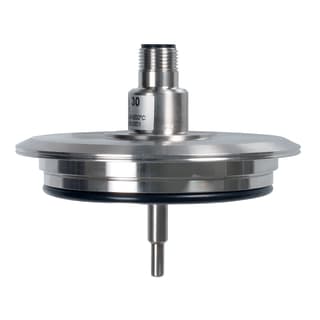

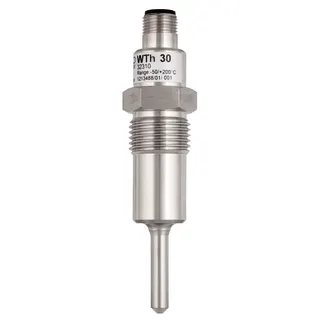

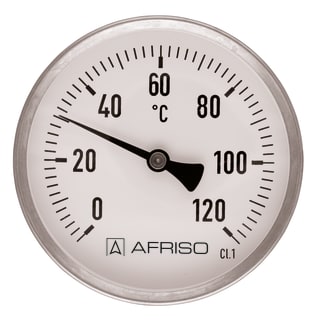

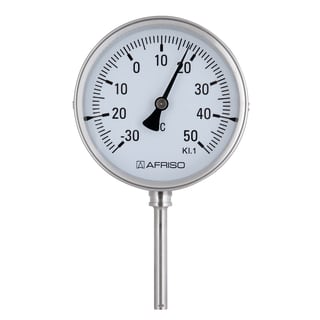

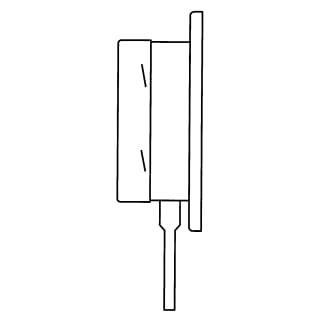

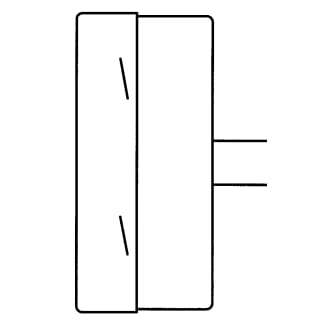

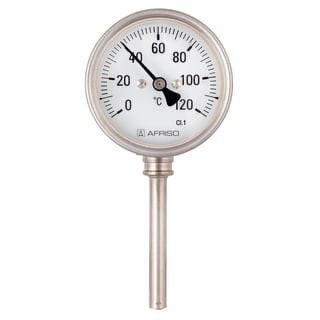

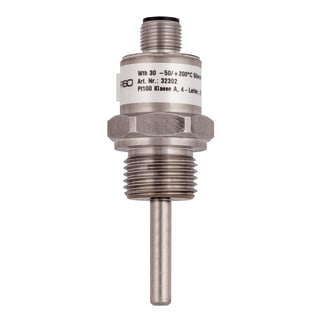

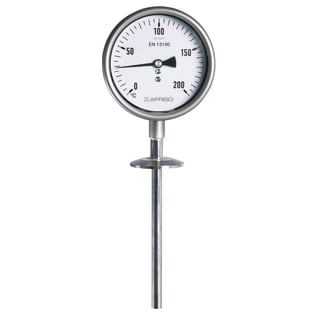

Mechanical and electronic temperature measurement: Versatile and application-specific

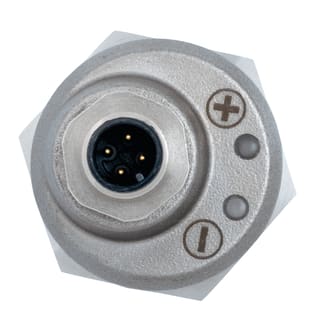

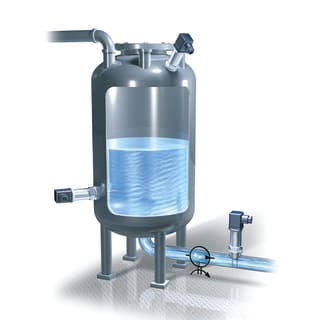

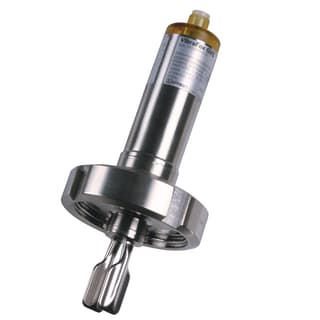

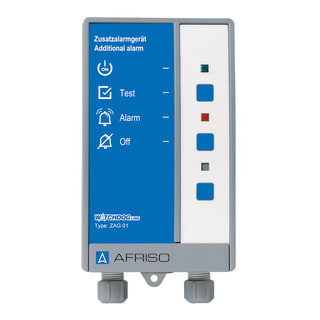

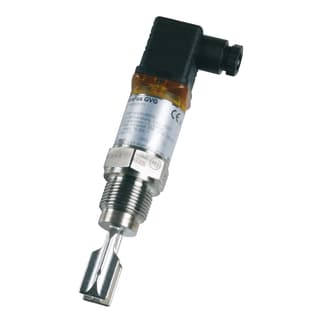

Individual or complete solutions for level measurement, evaluation and event reporting

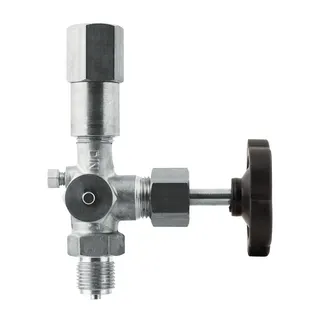

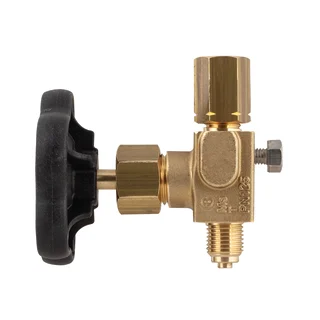

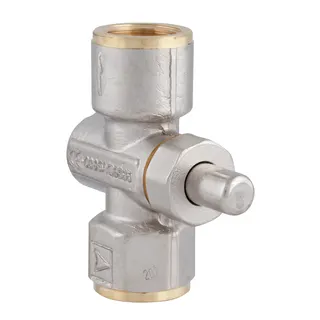

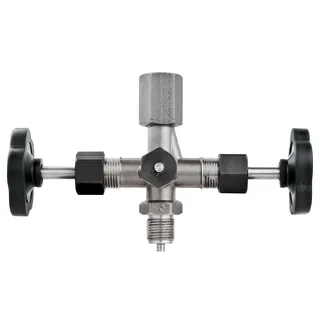

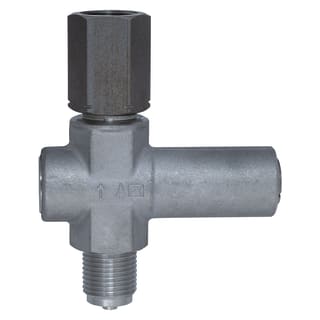

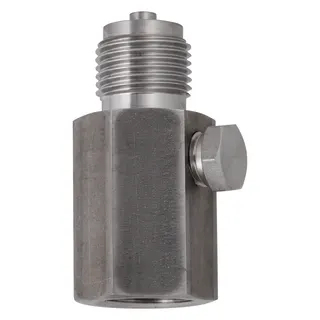

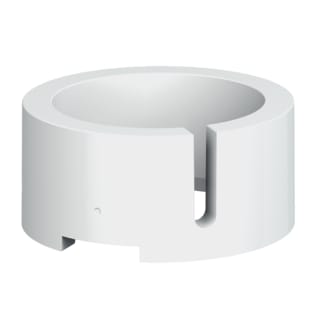

Accessories
