RF160ChF D412

Rohrfeder-Feinmessmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentbottom back
accuracy class0,6
standardEN 837-1

RangeMounting typeTypePart number
-1/0 bardirectRF160ChF D41285701412
-1/0.6 bardirectRF160ChF D41285702412
-1/+1.5 bardirectRF160ChF D41285703412
-1/+3 bardirectRF160ChF D41285704412
-1/+5 bardirectRF160ChF D41285705412
-1/+9 bardirectRF160ChF D41285706412
-1/+15 bardirectRF160ChF D41285707412
0/0.6 bardirectRF160ChF D41285709412
0/1 bardirectRF160ChF D41285710412
0/1.6 bardirectRF160ChF D41285711412
0/2.5 bardirectRF160ChF D41285712412
0/4 bardirectRF160ChF D41285713412
0/6 bardirectRF160ChF D41285714412
0/10 bardirectRF160ChF D41285715412
0/16 bardirectRF160ChF D41285716412
0/25 bardirectRF160ChF D41285717412
0/40 bardirectRF160ChF D41285718412
0/60 bardirectRF160ChF D41285719412
0/100 bardirectRF160ChF D41285720412
0/160 bardirectRF160ChF D41285721412
0/250 bardirectRF160ChF D41285722412
0/400 bardirectRF160ChF D41285723412
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-1/6)
0,6
ranges
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, bottom back
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, stainless steel 316 Ti/316 L
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass/nickel silver, jewel bearing
Dial
Aluminium, weiß
Scaling black
NG 160:
knife edge pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

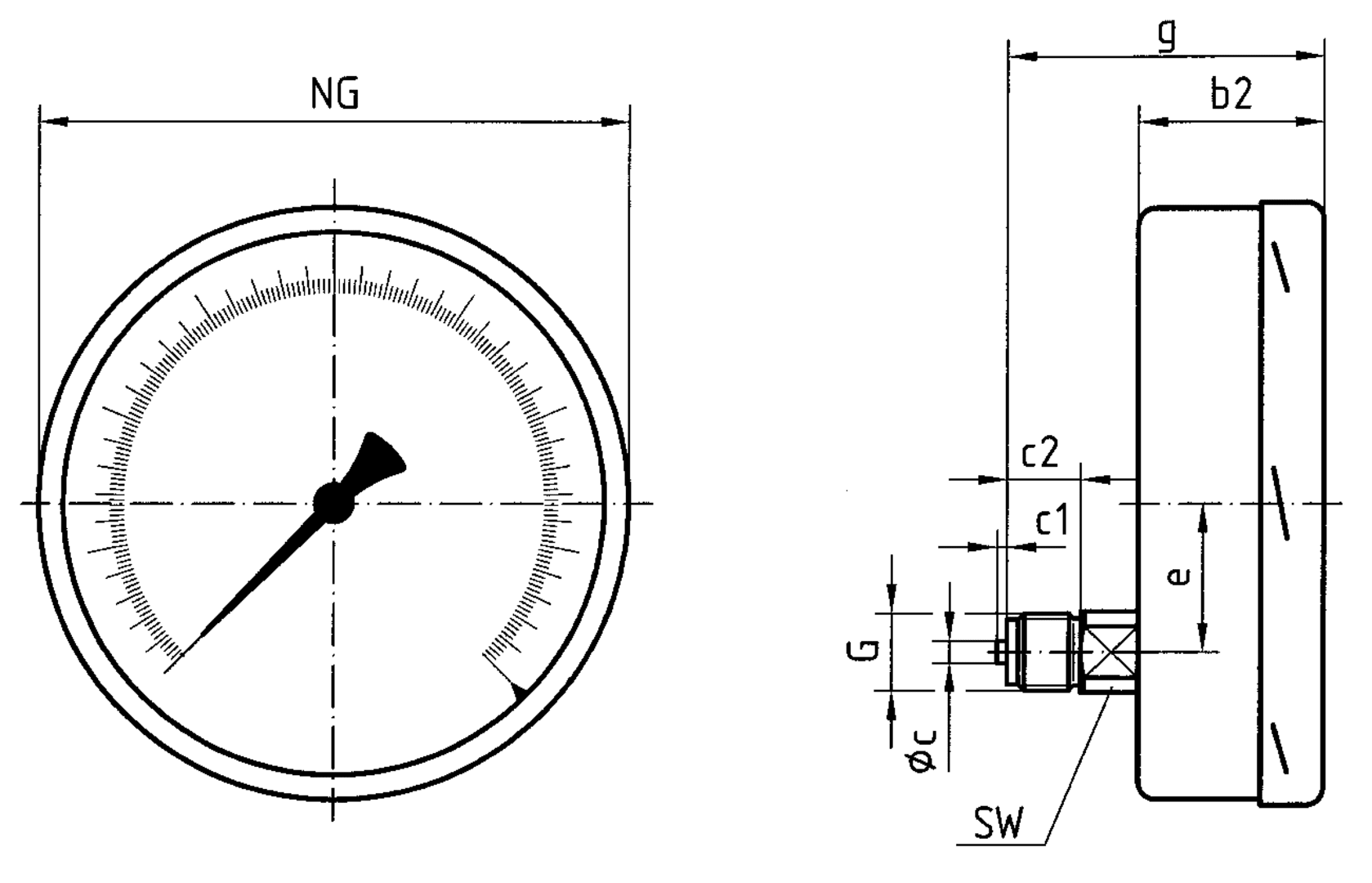

NG 160 – bottom back connection
