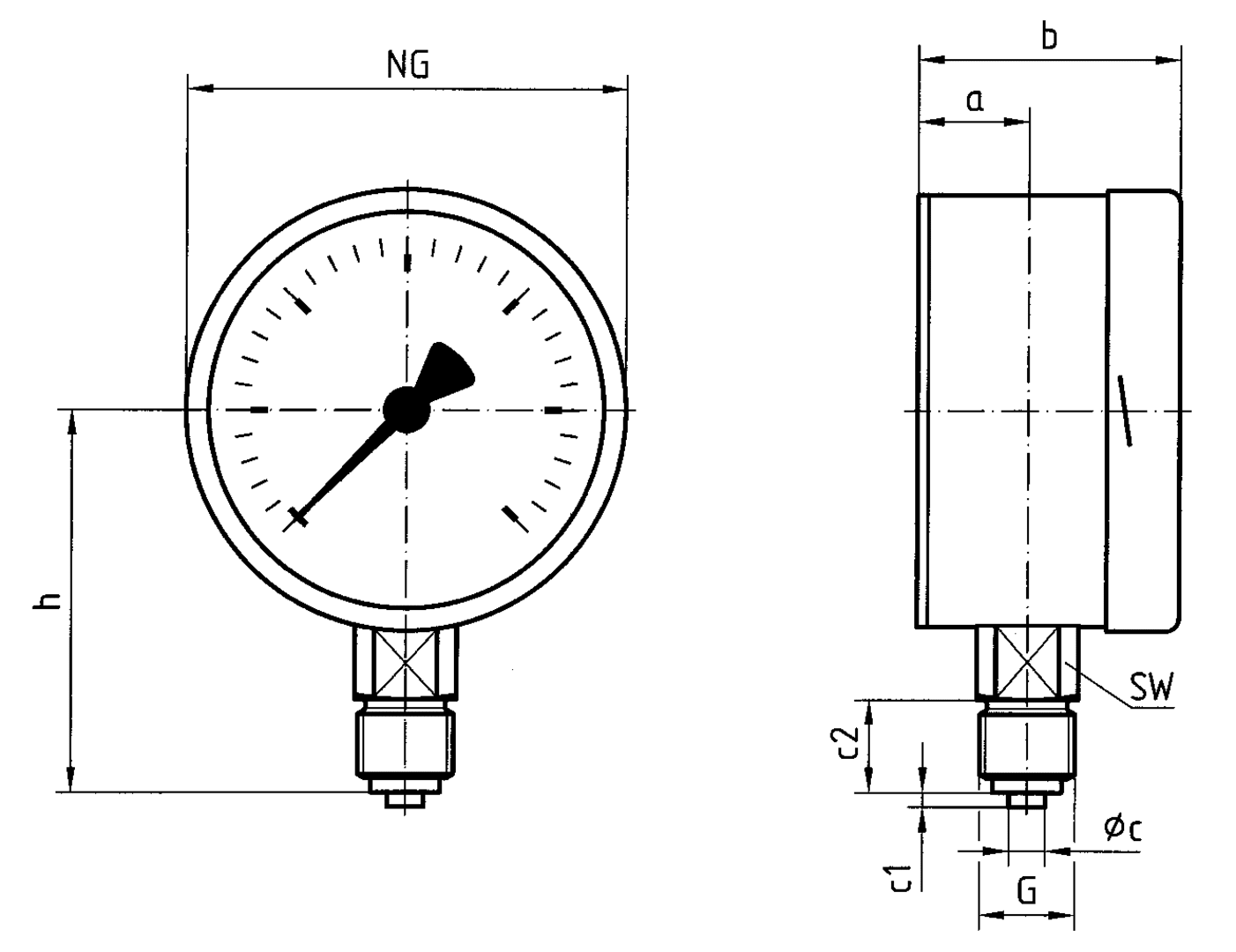

Images 3 RF63Si D402 Rohrfeder-Sicherheitsmanometer Typ D4 Variants Documents Info housing ⌀ (nominal size)63 mmConnectionG¼Balignmentbottomaccuracy class2,5standardEN 837-1 Benefits Safety housing S3 as per EN 837-1/9.7.2measuring system fully welded to housingtightness-tested with heliumDNV- and GOSSTANDART-certifiedEx version (optional) Application For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. This gauge is designed for applications as per EN 837-1/9.7.2. Variants Technical data Technical drawings Downloads Variants RangeMounting typeTypePart number0/600 bardirectRF63Si D402854244020/1 000 bardirectRF63Si D40285425402 in-stock items manufactured goods Technical data TypeD4Nominal size63 - 63accuracy classEN 837-1/6NG 63, ≥ 600 bar: 2,5ranges (EN 837-1/5)see ordering tableNG 100, NG 160static loaddynamic loadshort-termOperating temperature rangeMedium: max. 100 °CAmbient: -20/+60 °CDegree of protectionIP 54 (EN 60529) Standard design ConnectionStainless steel 316 L, bottomMeasuring elementBourdon tubestainless steel 316 Ti/316 L≤ 60 bar: "C" type tube> 60 bar: helical tubetightness-tested with heliummovementStainless steelDialAluminium, weißScaling blackPointerAluminium, schwarzHousingEdelstahl 304, with solid baffle wall and blow-out (S3)bayonet bezelEdelstahl 304windowSicherheitsverbundglas Technical drawings Click the corresponding image for detail views, additional information and dimension tables. NG 63 – bottom connection Dimensions (mm) NG a b∅c c1 c2 G h SW 63 18 41 5 2 13 G¼B 53 14 Downloads Rohrfeder-Manometer Domestic Technology PDF English German Auswahlkriterien und Sicherheitsaspekte für Druckmessgeräte nach EN 837-2 PDF English German AFRISO_EU-KONFORMITAETSERKLAERUNG_DRUCKGERAETE_DE.PDF Industrial technology PDF Download Montage Manometer Manuals Industrial technology PDF Download Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck Manuals Industrial technology PDF Ukrainian German German RF63SI_D402_854XX402.STP STEP 3D Modell Industrial technology STP Download
Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck Manuals Industrial technology PDF Ukrainian German German
