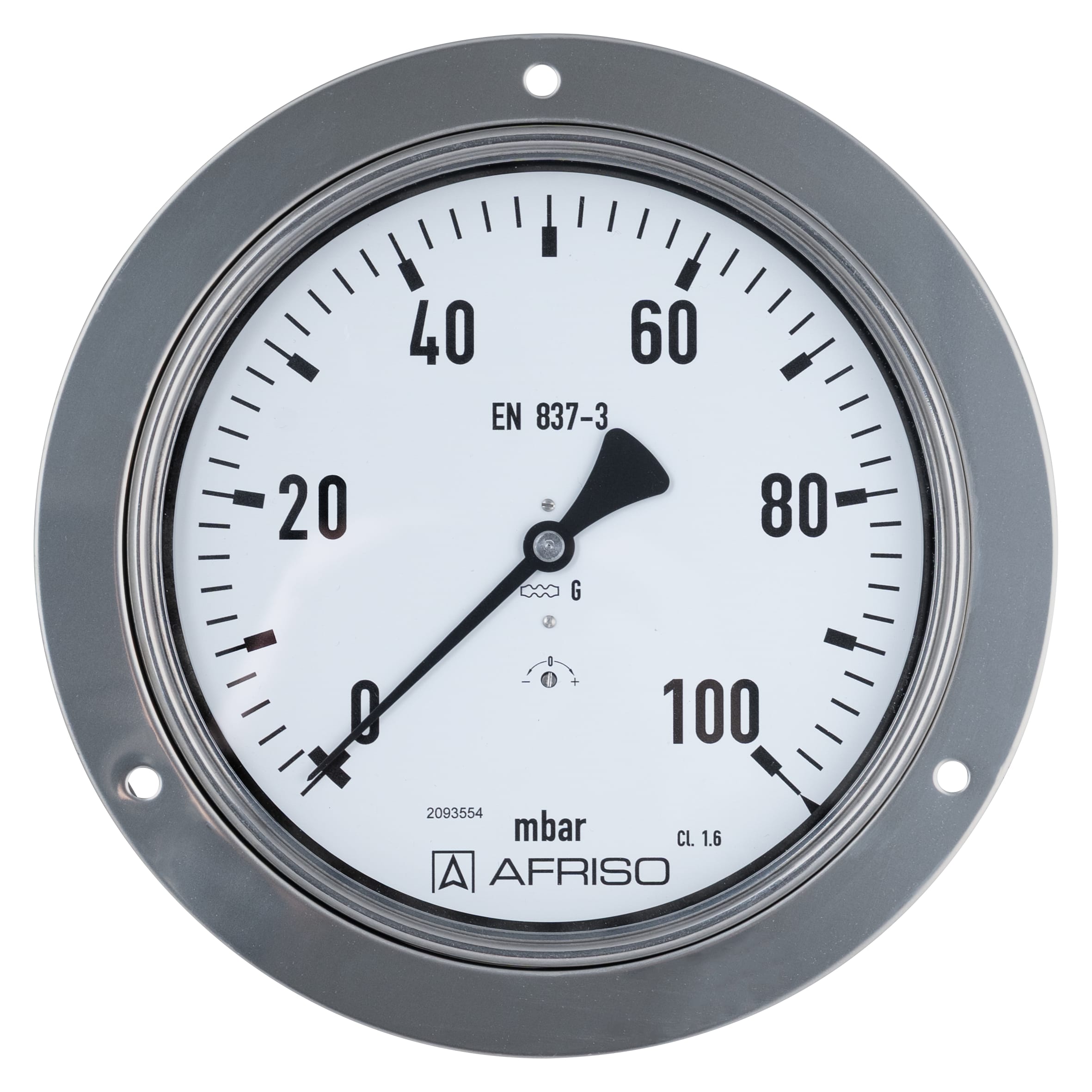

KP160Ch D432

Kapselfeder-Chemiemanometer Typ D4

Variants Documents

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • robust stainless steel housing (with bayonet bezel)
  • wetted parts and movement made of stainless steel
  • GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and dry media, also for use in corrosive environments.

RangeMounting typeTypePart number
-25/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235154432
-40/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235155432
-60/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235156432
-100/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235157432
-160/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235158432
-250/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235159432
-400/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235160432
-600/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235161432
-1 000/0 mbar3-hole fixing, panel mounting bezelKP160Ch D43235162432
0/25 mbar3-hole fixing, panel mounting bezelKP160Ch D43235166432
0/40 mbar3-hole fixing, panel mounting bezelKP160Ch D43235167432
0/60 mbar3-hole fixing, panel mounting bezelKP160Ch D43235168432
0/100 mbar3-hole fixing, panel mounting bezelKP160Ch D43235169432
0/160 mbar3-hole fixing, panel mounting bezelKP160Ch D43235170432
0/250 mbar3-hole fixing, panel mounting bezelKP160Ch D43235171432
0/400 mbar3-hole fixing, panel mounting bezelKP160Ch D43235172432
0/600 mbar3-hole fixing, panel mounting bezelKP160Ch D43235173432
0/1 000 mbar3-hole fixing, panel mounting bezelKP160Ch D43235174432
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, centre back
Measuring element
Capsule element, stainless steel 316 Ti/316 L
movement
Stainless steel
Zero correction
from the front
Seal
FKM (Viton)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D432: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

Centre back connection, 3-hole fixing, panel mounting bezel

PRO_TEC_BEP_KAPSELFEDER_CHEMIE_D4_ANSCHLUSS_AXIAL_2.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
Drosselschraube Edelstahl 316 Ti | 38106
Bajonettring Edelstahl 304 poliert KP | 38055
Gehäuse Edelstahl 304 poliert KP | 37614
red mark on dial | 38187
1 Markenzeiger rot verstellbar mit Drehknopf | 38191
laminated safety glass window | 38075
oil and grease removed from wetted parts | 37618
Klischeekosten je Skala und Farbe | 38156
Druckkosten je Farbe | 38168
