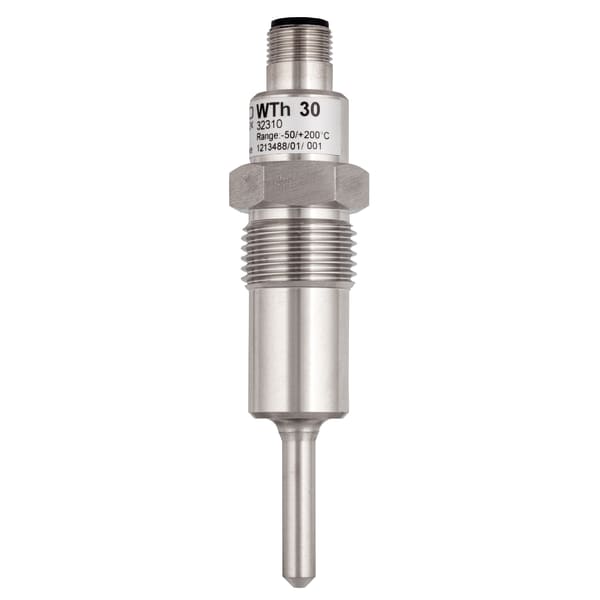

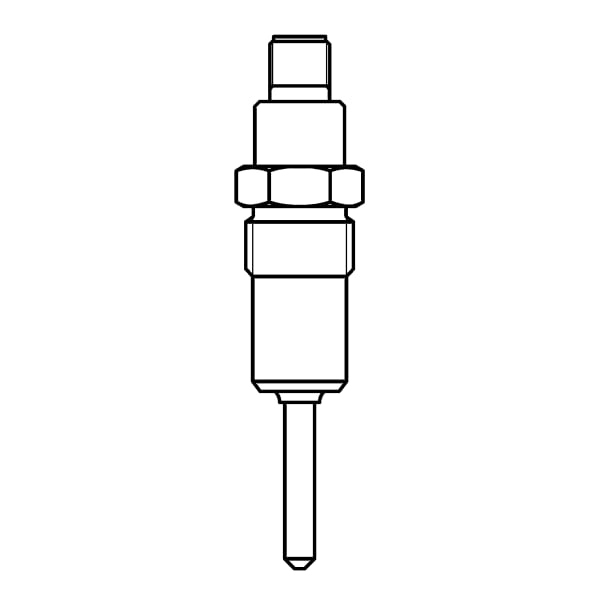

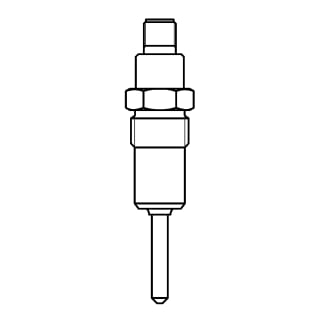

Images 2 WTh 30 DK Resistance thermometers Variants Documents Benefits hygienic design as per EHEDG recommendationscompact designhigh accuracyshort response timevarious process connectionstransducer can be integrated Application For temperature measurement in tanks and pipelines and applications requiring hygienic process connections, materials and processing. Specially suitable for food, pharmaceutical and biotechnology applications due to the compact design and the high accuracy. Description WTh 30 consists of a sturdy stainless steel housing with diverse process connections and a Pt 100 measuring insert which is directly integrated in a thermowell. The change in resistance depending on the measured temperature is directly available as a signal or can be detected by a transducer and converted into a 4–20 mA output signal. The instrument is connected by means of a compact M12 plug connection. Variants Technical data Downloads Variants Installation lengthPart no.Resistance thermometers WTh 30 DK30 mm32310Resistance thermometers WTh 30 DK35 mm32311Resistance thermometers WTh 30 DK50 mm32312Resistance thermometers WTh 30 DK100 mm32313Resistance thermometers WTh 30 DK150 mm32314Resistance thermometers WTh 30 DK200 mm32315 in-stock items manufactured goods Technical data Sensor1 x Pt1004-wireclass A, IEC 751Thermowell∅ 6Stainless steel 316 LProcess connectionG½B conical metal sealStainless steel 316 LInstallation length30 mmElectrical connectionconnector M12Connector housing: Stainless steelHousingmaterial: Stainless steelDiameter: 18 mmDegree of protectionIP 67 (EN 60529)Surface roughnessRa: < 0.8 µmwelding seam: < 1.6 µmOperating pressuremax. 16 barMeasuring range-50/+200 °Cresponse time t90 5.5 s as per EN 60751, test in flowing water (without transducer) Downloads Widerstandsthermometer WTh 30 PDF Download
