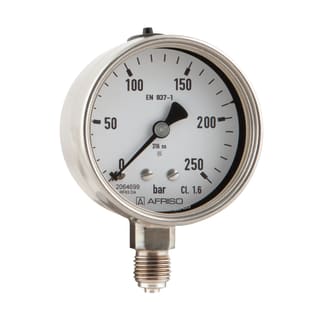

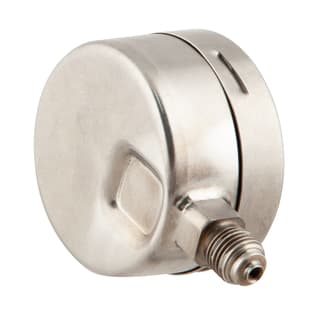

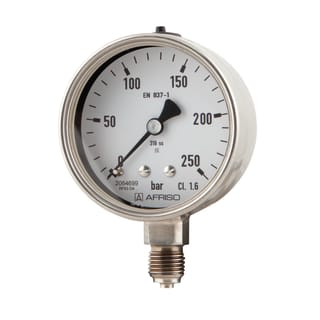

RF63Ch D402

Rohrfeder-Chemiemanometer Typ D4

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-1

  • for chemical and process engineering applications
  • measuring system fully welded to housing
  • extremely robust design
  • for temperatures of the medium of up to 200 °C
  • tightness-tested with helium
  • DNV- and GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!

RangeMounting typeTypePart number
-1/0 bardirectRF63Ch D40285101402
-1/0.6 bardirectRF63Ch D40285102402
-1/+1.5 bardirectRF63Ch D40285103402
-1/+3 bardirectRF63Ch D40285104402
-1/+5 bardirectRF63Ch D40285105402
-1/+9 bardirectRF63Ch D40285106402
-1/+15 bardirectRF63Ch D40285107402
0/0.6 bardirectRF63Ch D40285109402
0/1 bardirectRF63Ch D40285110402
0/1.6 bardirectRF63Ch D40285111402
0/2.5 bardirectRF63Ch D40285112402
0/4 bardirectRF63Ch D40285113402
0/6 bardirectRF63Ch D40285114402
0/10 bardirectRF63Ch D40285115402
0/16 bardirectRF63Ch D40285116402
0/25 bardirectRF63Ch D40285117402
0/40 bardirectRF63Ch D40285118402
0/60 bardirectRF63Ch D40285119402
0/100 bardirectRF63Ch D40285120402
0/160 bardirectRF63Ch D40285121402
0/250 bardirectRF63Ch D40285122402
0/400 bardirectRF63Ch D40285123402
0/600 bardirectRF63Ch D40285124402
0/1 000 bardirectRF63Ch D40285125402
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
63 - 63
accuracy class (EN 837-1/6)
1,6
ranges (EN 837-1/5)
see ordering table
Application area NG63
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
static load
dynamic load
short-term
Operating temperature range
Medium:
max. 200 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert

Standard design

Connection
Stainless steel 316 L, bottom
G¼B, SW14 (EN 837-1/7.3)
Measuring element
Bourdon tube, stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
helical tube
tightness-tested with helium
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz

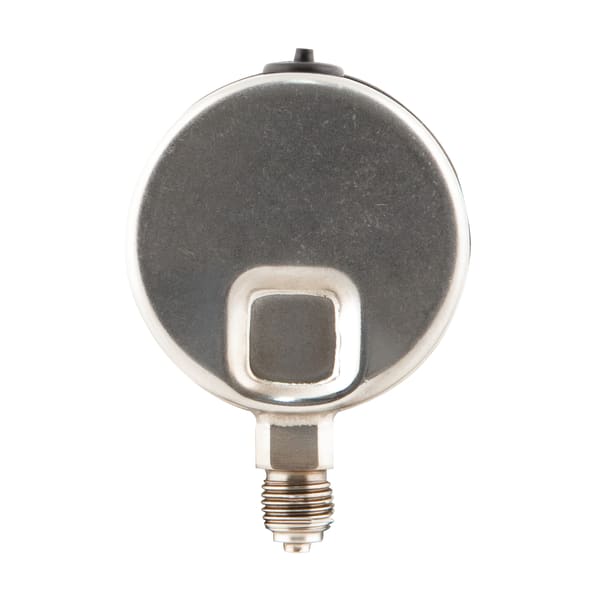

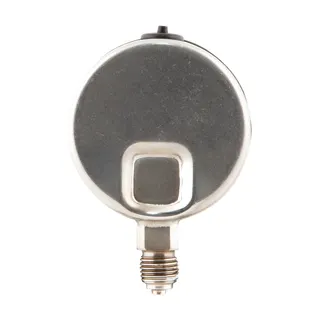

Housing
Edelstahl 304, with blow-out
bayonet bezel
Edelstahl 304
window
Sicherheitsverbundglas

Click the corresponding image for detail views, additional information and dimension tables.

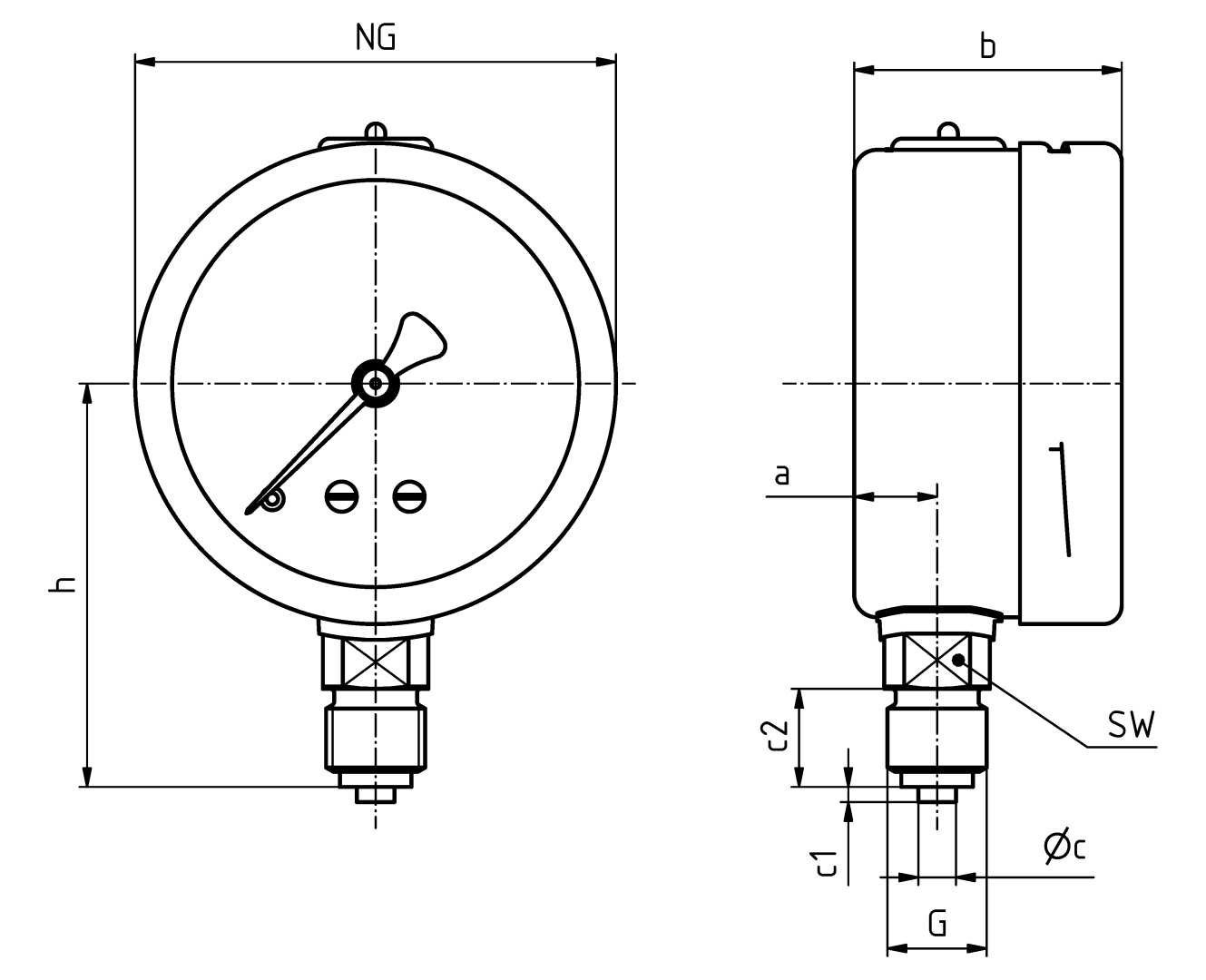

Bottom connection

PRO_TEC_BEP_RF63_D40X_ANSCHLUSS_RADIAL.TIF
