FTh 160 Ch D412

gas filled thermometer for chemical applications

Variants

for chemical, process engineering and food industry applications
high measuring accuracy
fast response

For corrosive media. Meets the most exacting measuring demands, e.g. in process engineering as well as chemical and food industry applications.

	Type	housing ⌀	Range	Type	Type	Part no.
	FTh 160 Ch	160 mm	-20/+60 °C	FTh 160 Ch	D412	64343412
	FTh 160 Ch	160 mm	0/60 °C	FTh 160 Ch	D412	64363412
	FTh 160 Ch	160 mm	0/120 °C	FTh 160 Ch	D412	64375412
	FTh 160 Ch	160 mm	0/160 °C	FTh 160 Ch	D412	64379412
	FTh 160 Ch	160 mm	0/200 °C	FTh 160 Ch	D412	64383412
	FTh 160 Ch	160 mm	0/300 °C	FTh 160 Ch	D412	64391412
	FTh 160 Ch	160 mm	0/400 °C	FTh 160 Ch	D412	64399412
	FTh 160 Ch	160 mm	0/500 °C	FTh 160 Ch	D412	64403412

in-stock items
manufactured goods

Type: D4

Nominal size: 160 - 160

Measuring principle: Pressurised gas filling

accuracy class: 1 (EN 13190)

ranges °C: -20/+60 °C

Application area (EN 13190)

continuous load:: Full scale value

short-term:: 1.1 x full scale value

Operating pressure at thermowell

: max. 10 bar (max. Up to 300 °C)

Degree of protection: IP 65 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 321, ∅ 10 mm, plain

mounting position: centre back

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Zero correction: at the side

movement: Brass

Housing

: Edelstahl 304

bayonet bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

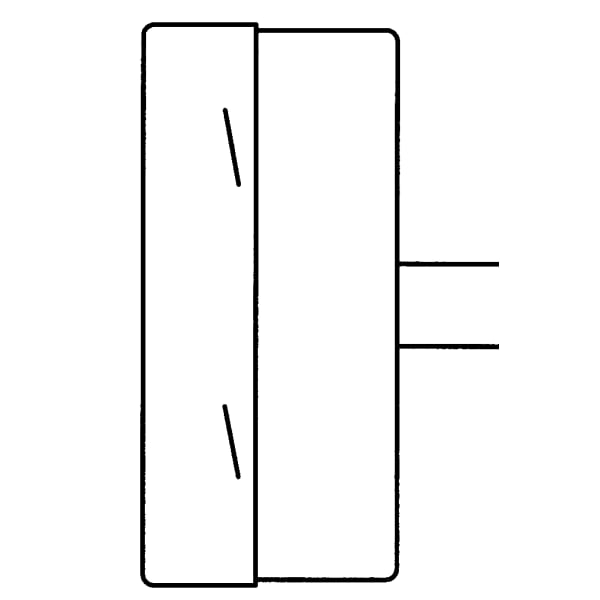

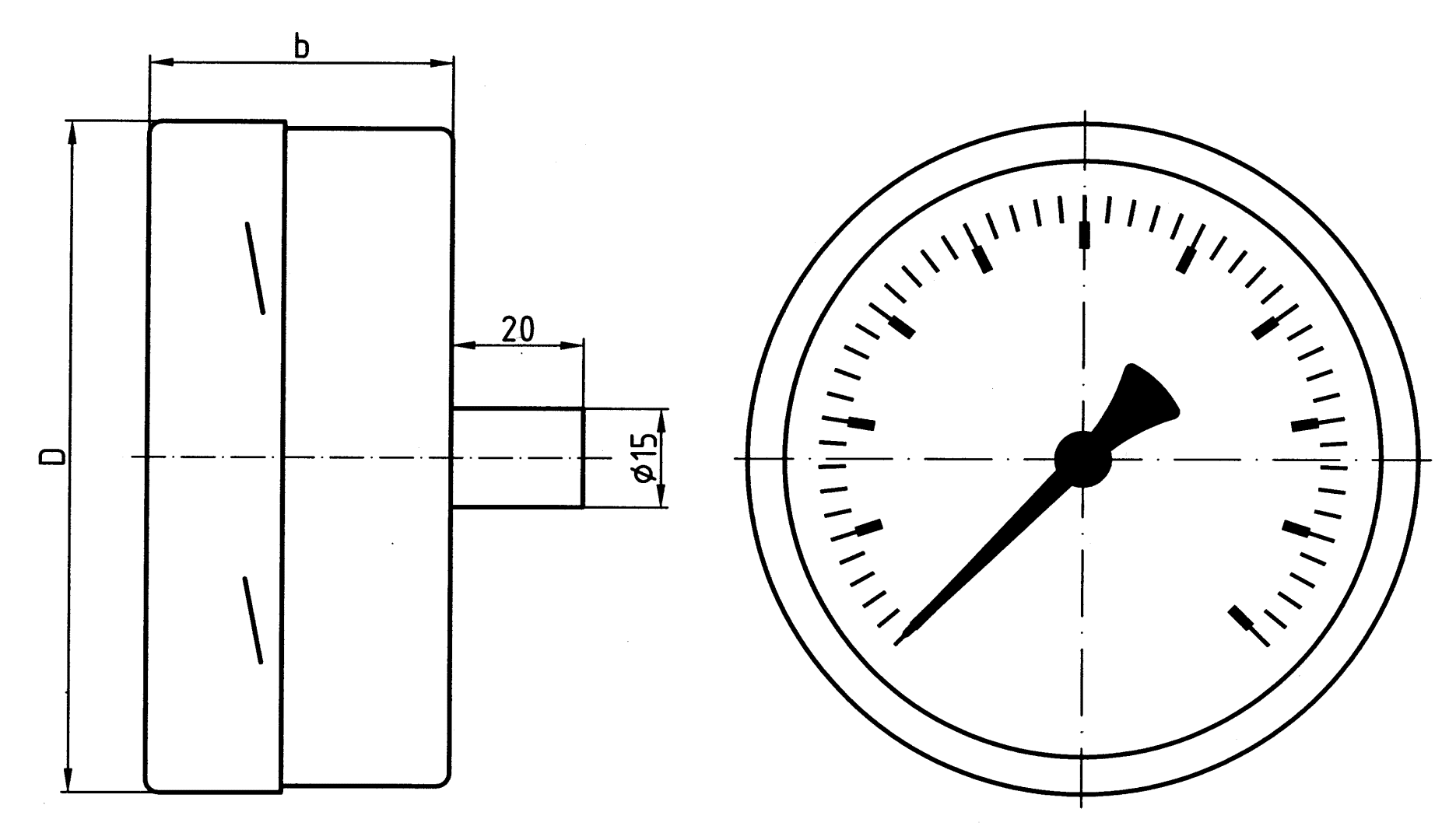

Centre back connection
