Industrial technology Temperature measuring instruments / temperature controllers WTh 30 VT

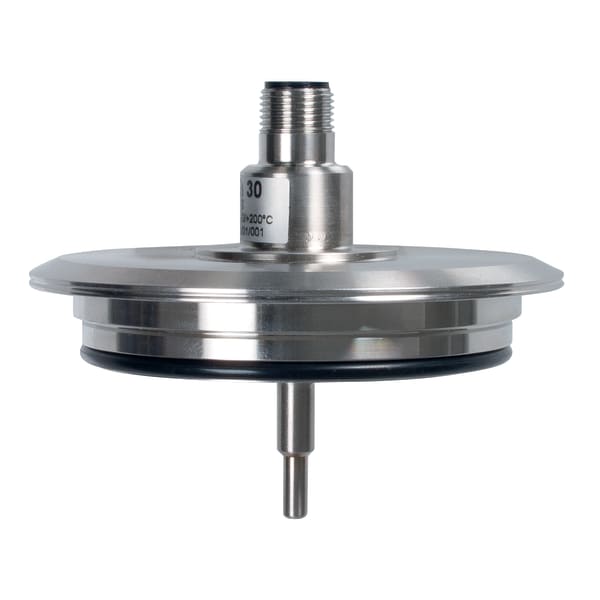

PRO_TEC_VOR_WTH_30_VT_32334.TIF

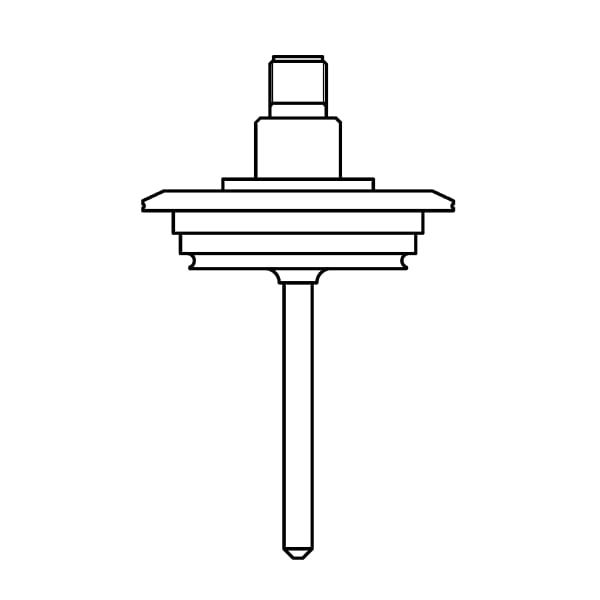

PRO_TEC_SCD_WTH30_VT.TIF
PRO_TEC_VOR_WTH_30_VT_32334.TIF
PRO_TEC_SCD_WTH30_VT.TIF
Images 2

WTh 30 VT

Resistance thermometers

Variants Documents

  • hygienic design as per EHEDG recommendations
  • compact design
  • high accuracy
  • short response time
  • various process connections
  • transducer can be integrated

For temperature measurement in tanks and pipelines and applications requiring hygienic process connections, materials and processing. Specially suitable for food, pharmaceutical and biotechnology applications due to the compact design and the high accuracy.

WTh 30 consists of a sturdy stainless steel housing with diverse process connections and a Pt 100 measuring insert which is directly integrated in a thermowell. The change in resistance depending on the measured temperature is directly available as a signal or can be detected by a transducer and converted into a 4–20 mA output signal. The instrument is connected by means of a compact M12 plug connection.

Installation lengthPart no.
Resistance thermometers WTh 30 VT30 mm32334
Resistance thermometers WTh 30 VT35 mm32335
Resistance thermometers WTh 30 VT50 mm32336
Resistance thermometers WTh 30 VT100 mm32337
Resistance thermometers WTh 30 VT150 mm32338
Resistance thermometers WTh 30 VT200 mm32339
  • in-stock items
  • manufactured goods

Sensor
1 x Pt100
4-wire
class A, IEC 751
Thermowell
∅ 6
Stainless steel 316 L
Process connection
VARIVENT® type N
Stainless steel 316 L
Installation length
30 mm
Electrical connection
connector M12
Connector housing:
Stainless steel
Housing
material:
Stainless steel
Diameter:
18 mm
Degree of protection
IP 67 (EN 60529)
Surface roughness
Ra:
< 0.8 µm
welding seam:
< 1.6 µm
Operating pressure
max. 10 bar
Measuring range
-50/+200 °C
response time t90
  5.5 s as per EN 60751, test in flowing water (without transducer)
