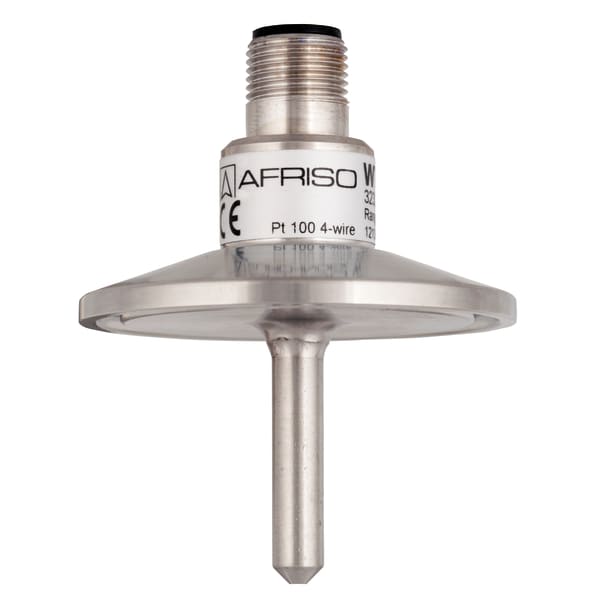

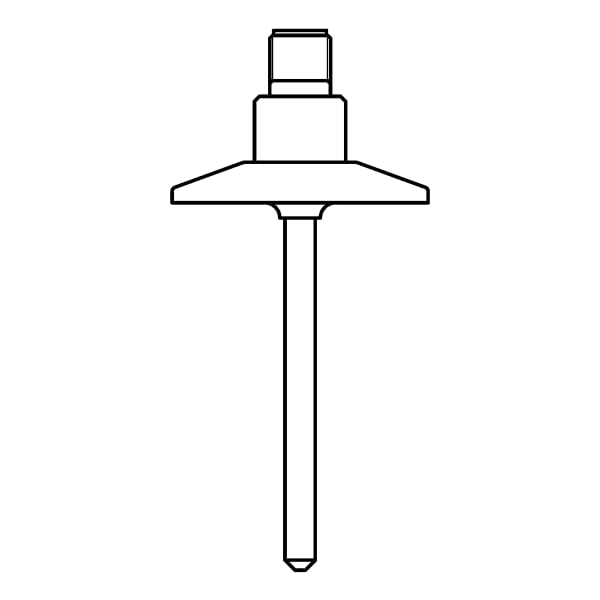

WTh 30 CP

Resistance thermometers

Variants Documents

  • hygienic design as per EHEDG recommendations
  • compact design
  • high accuracy
  • short response time
  • various process connections
  • transducer can be integrated

For temperature measurement in tanks and pipelines and applications requiring hygienic process connections, materials and processing. Specially suitable for food, pharmaceutical and biotechnology applications due to the compact design and the high accuracy.

WTh 30 consists of a sturdy stainless steel housing with diverse process connections and a Pt 100 measuring insert which is directly integrated in a thermowell. The change in resistance depending on the measured temperature is directly available as a signal or can be detected by a transducer and converted into a 4–20 mA output signal. The instrument is connected by means of a compact M12 plug connection.

Installation lengthPart no.
Resistance thermometers WTh 30 CP30 mm32326
Resistance thermometers WTh 30 CP35 mm32327
Resistance thermometers WTh 30 CP50 mm32328
Resistance thermometers WTh 30 CP100 mm32329
Resistance thermometers WTh 30 CP150 mm32330
Resistance thermometers WTh 30 CP200 mm32331
  • in-stock items
  • manufactured goods

Sensor
1 x Pt100
4-wire
class A, IEC 751
Thermowell
∅ 6
Stainless steel 316 L
Process connection
Clamp ISO 2852
Stainless steel 316 L
Installation length
30 mm
Electrical connection
connector M12
Connector housing:
Stainless steel
Housing
material:
Stainless steel
Diameter:
18 mm
Degree of protection
IP 67 (EN 60529)
Surface roughness
Ra:
< 0.8 µm
welding seam:
< 1.6 µm
Operating pressure
max. 16 bar
Measuring range
-50/+200 °C
response time t90
  5.5 s as per EN 60751, test in flowing water (without transducer)
