RF160ChF D402

Rohrfeder-Feinmessmanometer Typ D4

Variants Manuals

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentbottom
accuracy class0,6
standardEN 837-1

RangeMounting typeTypePart number
-1/0 bardirectRF160ChF D40285701402
-1/0.6 bardirectRF160ChF D40285702402
-1/+1.5 bardirectRF160ChF D40285703402
-1/+3 bardirectRF160ChF D40285704402
-1/+5 bardirectRF160ChF D40285705402
-1/+9 bardirectRF160ChF D40285706402
-1/+15 bardirectRF160ChF D40285707402
0/0.6 bardirectRF160ChF D40285709402
0/1 bardirectRF160ChF D40285710402
0/1.6 bardirectRF160ChF D40285711402
0/2.5 bardirectRF160ChF D40285712402
0/4 bardirectRF160ChF D40285713402
0/6 bardirectRF160ChF D40285714402
0/10 bardirectRF160ChF D40285715402
0/16 bardirectRF160ChF D40285716402
0/25 bardirectRF160ChF D40285717402
0/40 bardirectRF160ChF D40285718402
0/60 bardirectRF160ChF D40285719402
0/100 bardirectRF160ChF D40285720402
0/160 bardirectRF160ChF D40285721402
0/250 bardirectRF160ChF D40285722402
0/400 bardirectRF160ChF D40285723402
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160
accuracy class (EN 837-1/6)
0,6
ranges
see ordering table
application area
static load:
¾ x full scale value
dynamic load:
⅔ x full scale value
short-term:
Full scale value
Operating temperature range
Ambient:
-20/+60 °C
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, bottom
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, stainless steel 316 Ti/316 L
> 60 bar:
helical tube, stainless steel 316 Ti/316 L
movement
Brass/nickel silver, jewel bearing
Dial
Aluminium, weiß
Scaling black
Pointer
knife edge pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

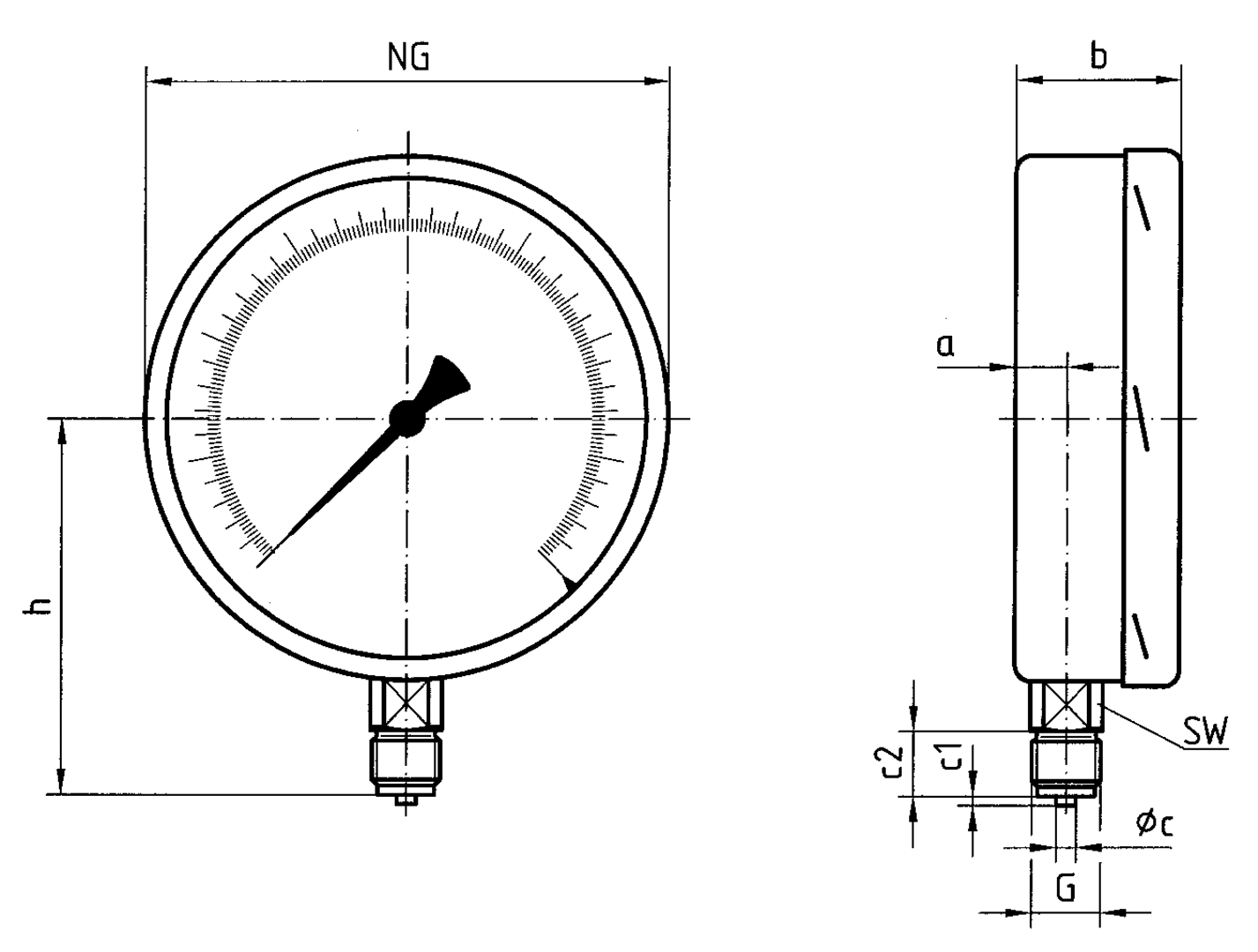

Bottom connection

PRO_TEC_BEP_RF160F_D40X_K06S.TIF

AFRISO_DIALS_FOR_PRESSURE_GAUGES-GRADUATION.PDF

dials for pressure gauges – graduation

technical information
PDF
DOK_TEC_KON_KONFORMITAETSERKLAERUNG.PDF

EC-Declaration of Conformity pressure gauges

Declarations of Conformity
PDF
ATEX-ZERTIFIKAT_MANOMETER_EX9A_015639_0020_EN.PDF

ATEX certificate pressure gauges

Certificates / DIBt approvals
Industrial technology
PDF
900_400_0882.PDF

mounting of pressure gauge

operating instructions
Industrial technology
PDF
854_017_0336-00.PDF

bourdon tube pressure gauges, capsule pressure gauges, diaphragm pressure gauges, spring diaphragm pressure gauge for differential pressure

operating instructions
Industrial technology
PDF
