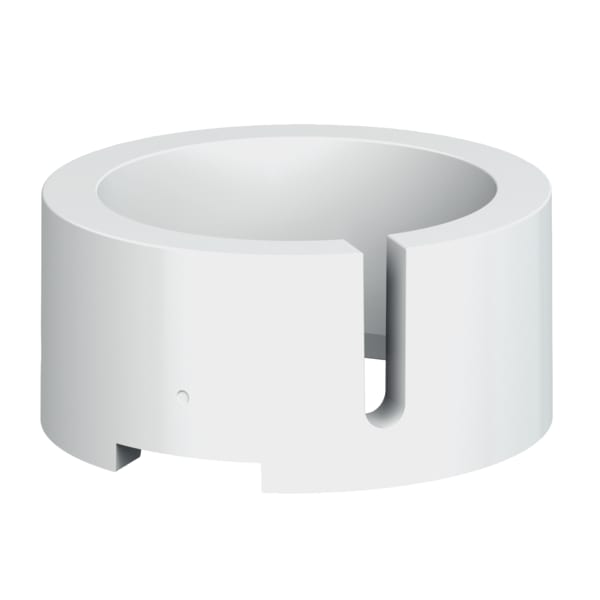

PRO_TEC_SAL_ADAPTERRING_TECSIS.TIF

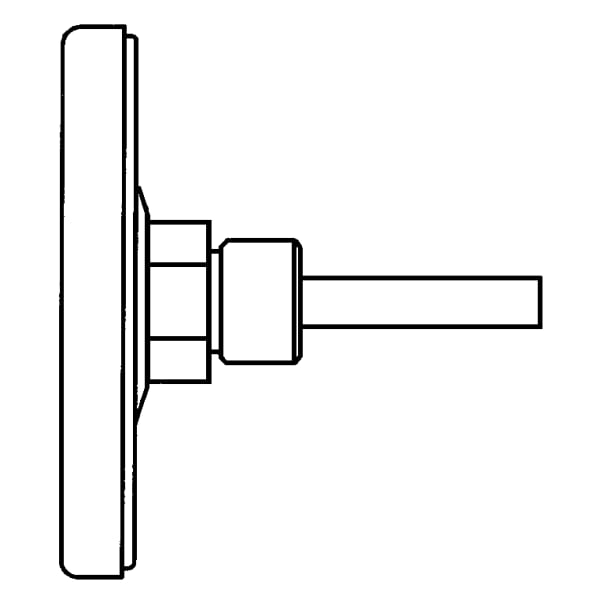

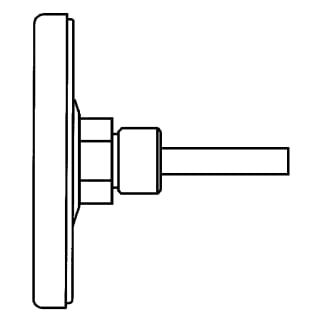

PRO_TEC_SCD_BITH_AXIAL_GEWINDE.TIF

Images 2

BiTh 63 E D312

Bimetall-Edelstahlthermometer

Variants

suitable for use in mechanical engineering, plant engineering, process engineering or food industry
ideal for hygienic processes
accuracy class 1 as per EN 13190
for temperatures of the medium of up to 160 °C
with adapter ring for thermowell Ø 18 mm

For corrosive media. Suitable for a great range of industrial applications.

	Type	housing ⌀	mounting position	Connection	Range	For thermowell with length L1	Stem length L1	Type	Type	Part no.
	BiTh 63 E	63 mm	centre back	fixed male connection, fixed G½B	0/160 °C		63 mm	BiTh 63 E	D312	66152312AFG4D8
	BiTh 63 E	63 mm	centre back	fixed male connection, fixed G½B	0/160 °C		100 mm	BiTh 63 E	D312	66153312AFG4D8
	BiTh 63 E	63 mm	centre back	fixed male connection, fixed G½B	0/160 °C		150 mm	BiTh 63 E	D312	66154312AFG4D8
	BiTh 63 E	63 mm	centre back	fixed male connection, fixed G½B	0/160 °C		200 mm	BiTh 63 E	D312	66155312AFG4D8

in-stock items
manufactured goods

Type: D3

Nominal size: 63 - 63

measuring element: Bimetal helix

accuracy class: 1 (EN 13190)

ranges °C: 0/160 °C

Application area (EN 13190)

continuous load:: Measuring range

short-term:: Range

Operating pressure at thermowell

: (not included in scope of delivery)

: max. 25 bar max.

Degree of protection: IP 43 (EN 60529)

Standard design

Connection

Stem:: Stainless steel 316 L, ∅ 8 mm

Stem:: fixed male connection, fixed G½B

mounting position: centre back

Dial

: Aluminium, weiß

: Scaling black

Pointer

: Aluminium, schwarz

Housing

: Edelstahl 304

push on bezel

: Edelstahl 304

window

: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

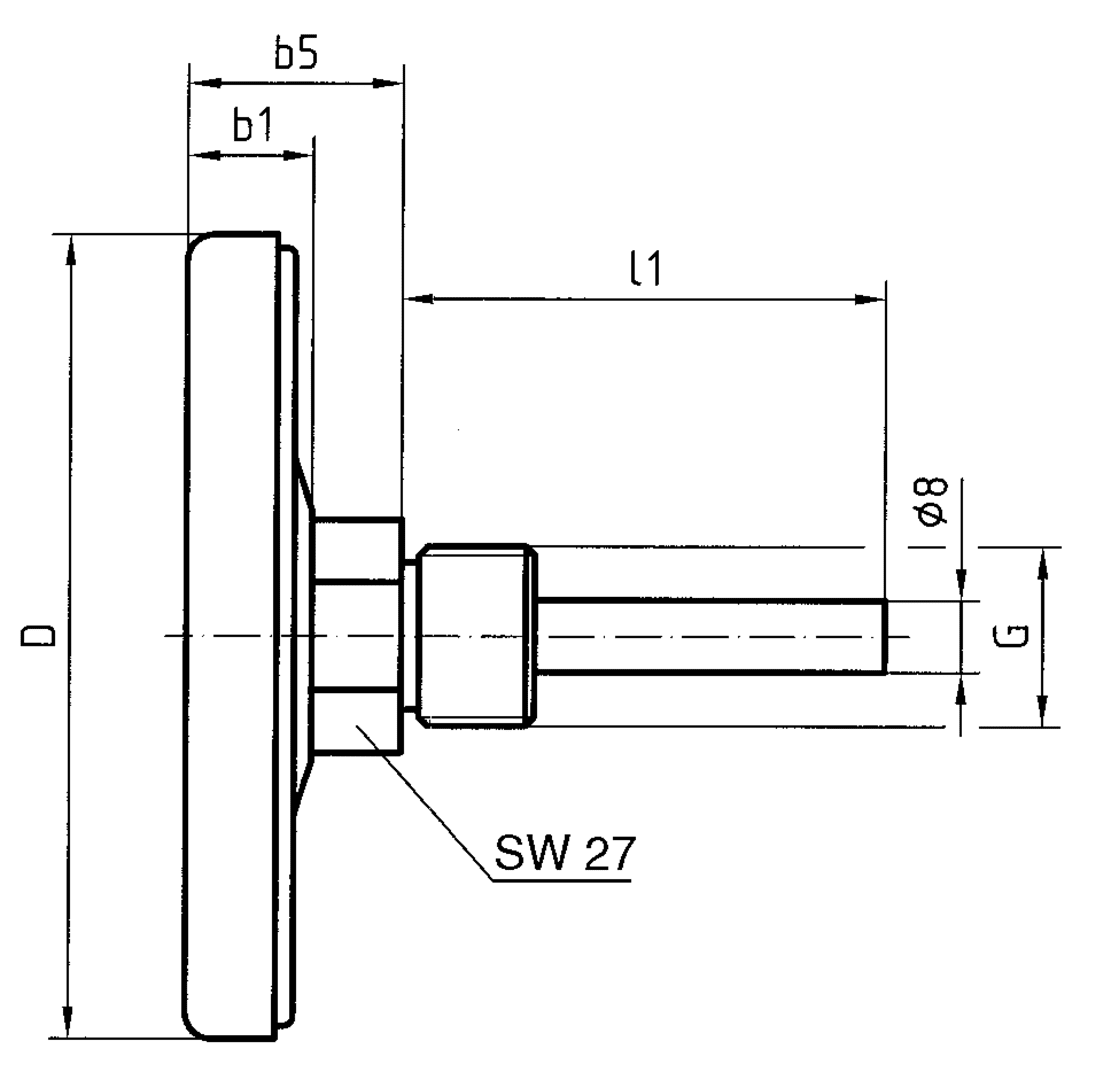

centre back connection, fixed male connection
