ZAG 01 | 40633

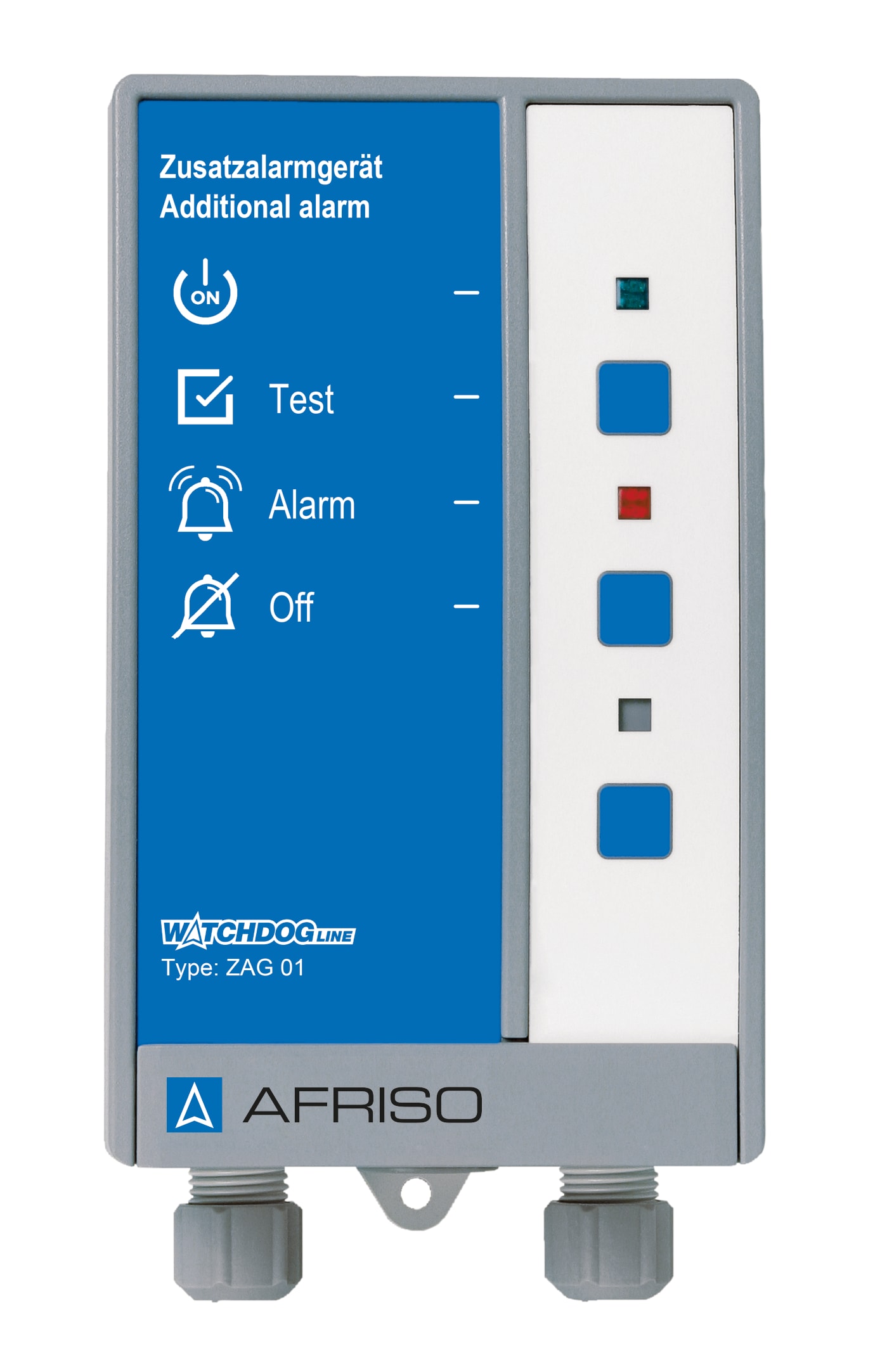

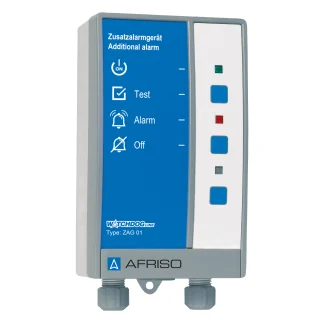

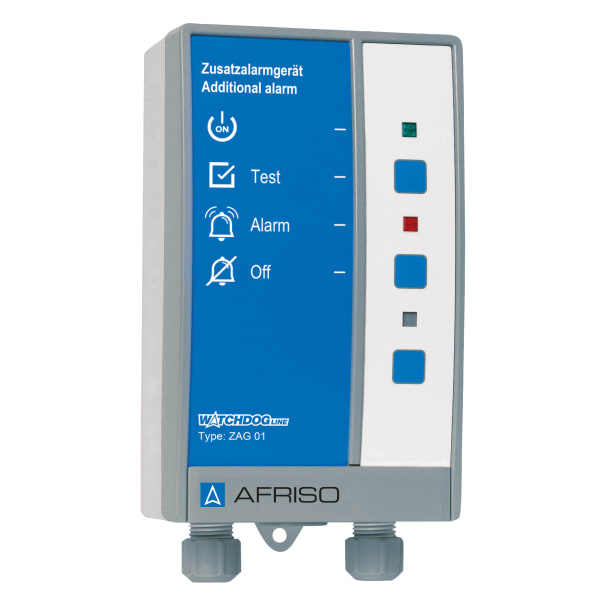

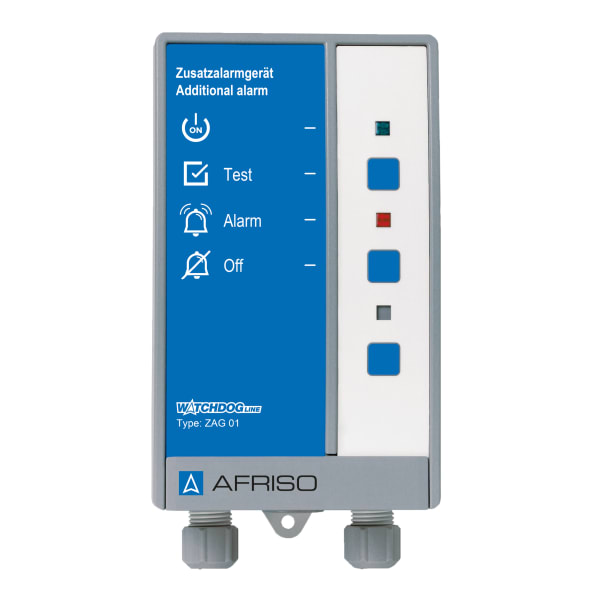

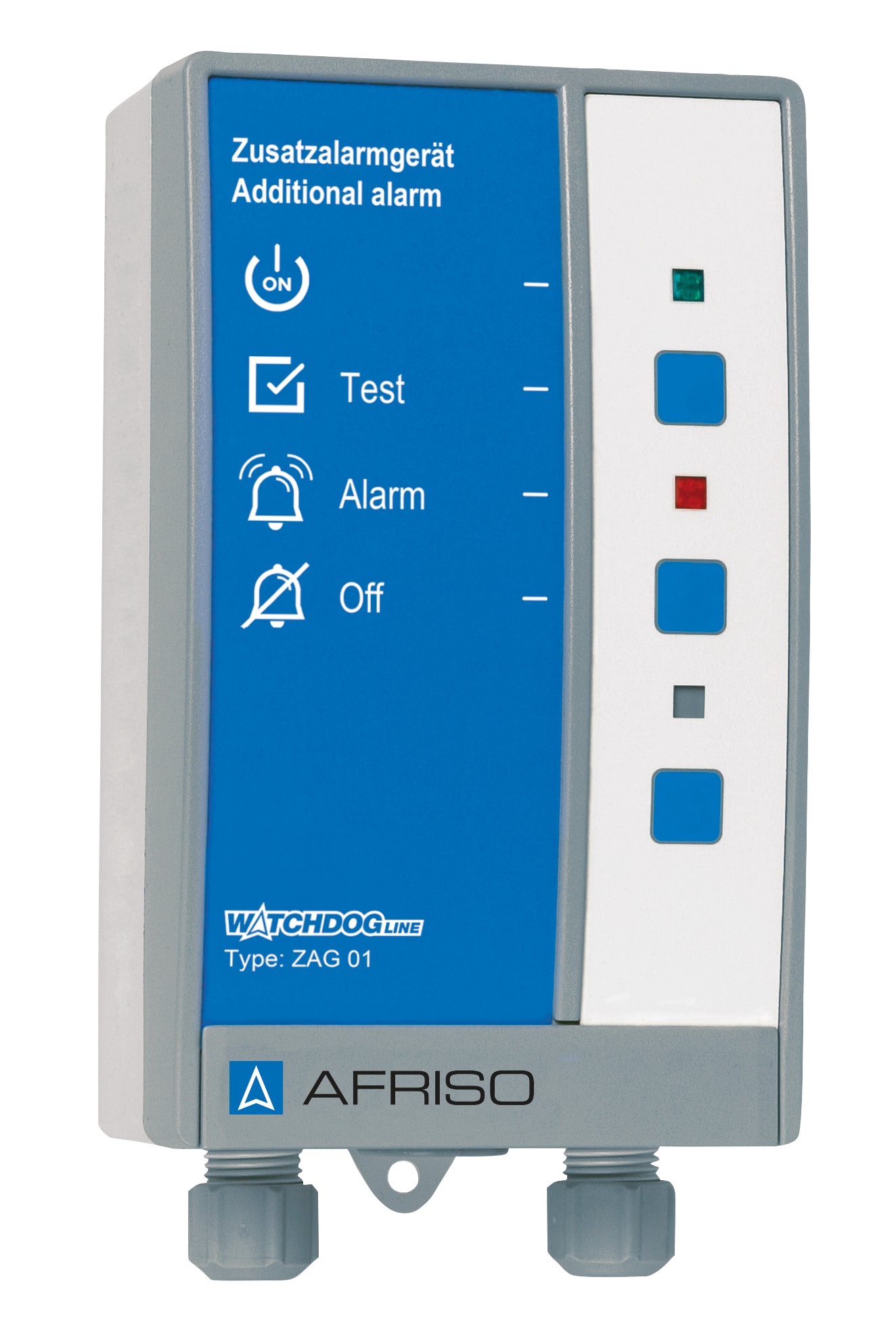

Additional alarm unit

manufactured goods
Documents

  • audible and visual alarms for maximum safety
  • manufacturer-independent use with devices with switching output (relay contact)
  • with 2 voltage-free changeover contacts (at output side)
  • ready-to-connect device for easy installation and commissioning

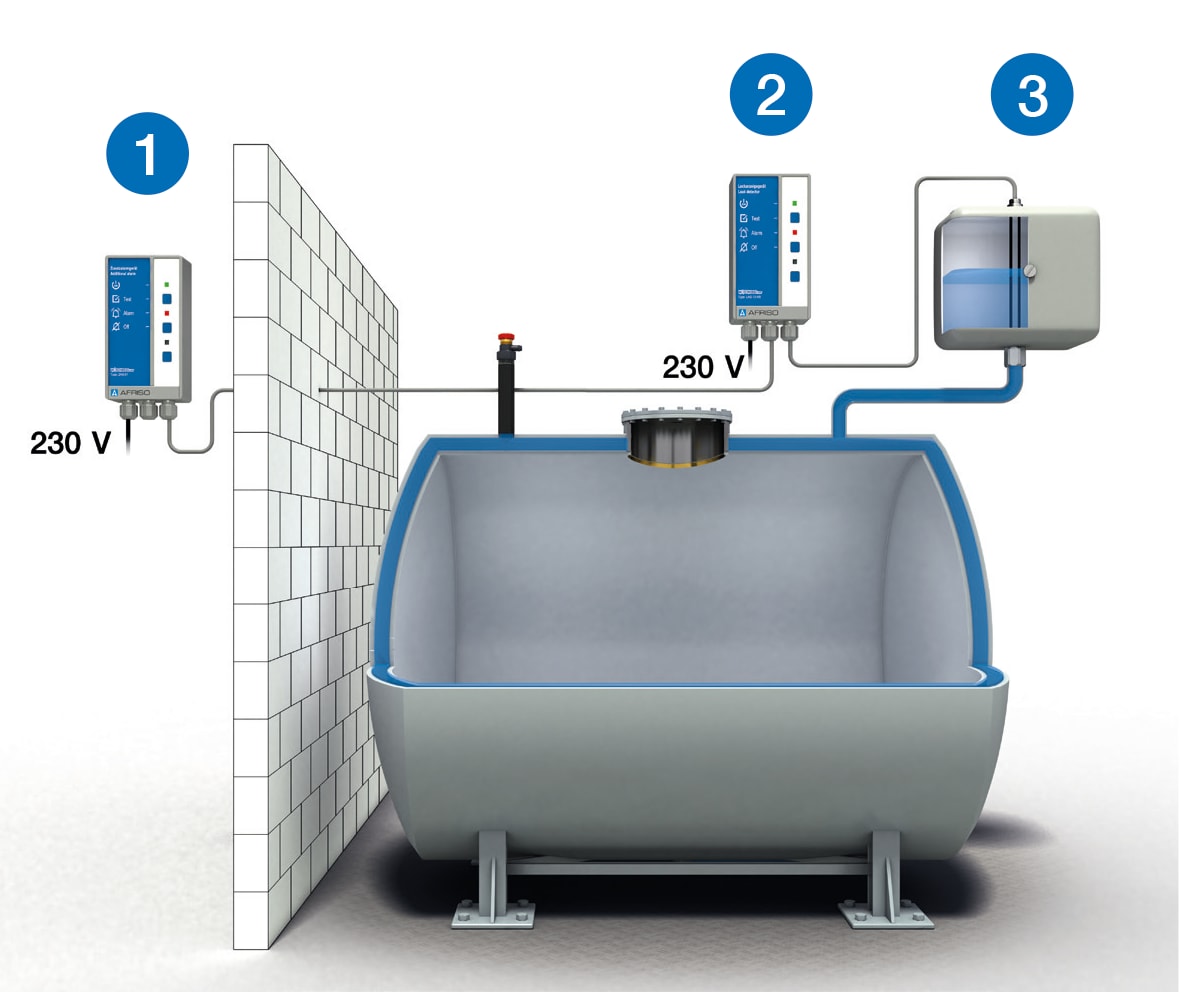

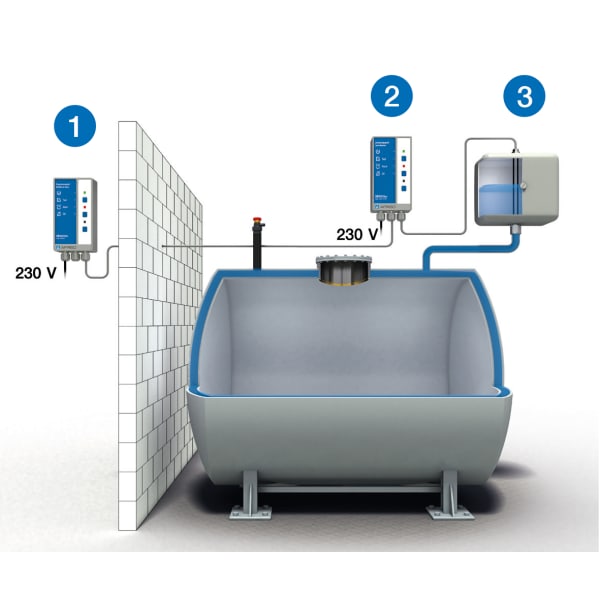

For indication and transfer of alarm signals from AFRISO WATCHDOG alarm units, AFRISO leak detectors or any other switching equipment. Suitable for triggering additional visual and audible alarms in buildings, e.g. in the case of underground tank facilities or in rooms which are far away from the dangerous location. Can be connected directly to the output of the alarm unit.

The additional alarm unit in a wall mounting housing signals alarm conditions in conjunction with an alarm unit or a leak detector. ZAG 01 is connected to the voltage-free contact of the alarm unit. A 230 V alarm input is also available. The audible alarm can be acknowledged with the Acknowledge button in the case of an alarm. The visual alarm is cleared once the leak or event has been removed. The Test button allows you to perform a function test.
The voltage-free relay contacts allow for connection of additional external signalling equipment (such as horns), event reporting systems EMS, building control systems or similar equipment. ZAG 01 is suitable for panel mounting with a mounting frame. A sealing kit (IP 54) is available for rough application conditions.

Operating temperature range
Ambient:
-10/+60 °C
Storage:
-10/+60 °C
Supply voltage
AC 230 V
Nominal power
  3 VA
Alarm input
input 1:
voltage-free
input 2:
AC 230 V
switching outputs
relay contacts:
1 voltage-free changeover contact, can be acknowledged
1 potenzialfreier Wechsler, nicht quittierbar
Contact rating:
AC 250 V, 2 A
Alarm sound
min. 70 dB(A)
Housing
Wall mounting housing made of impact-resistant plastic (ABS)
W x H x D:
100 x 188 x 65 mm
Weight:
  0.4 kg
Degree of protection:
IP 40 (EN 60529)

Mounting accessories
Abb.
Bezeichnung
Dichtungsrahmen IP 54
Dichtungsrahmen IP 54 | 43416
mounting frame
mounting frame | 43521
Montageset WATCHDOG Warngeräte
Montageset WATCHDOG Warngeräte | 43100
