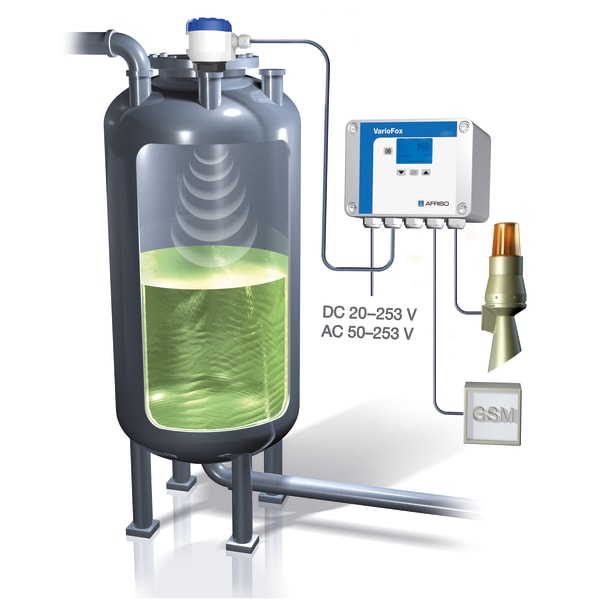

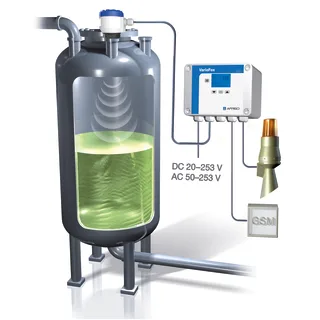

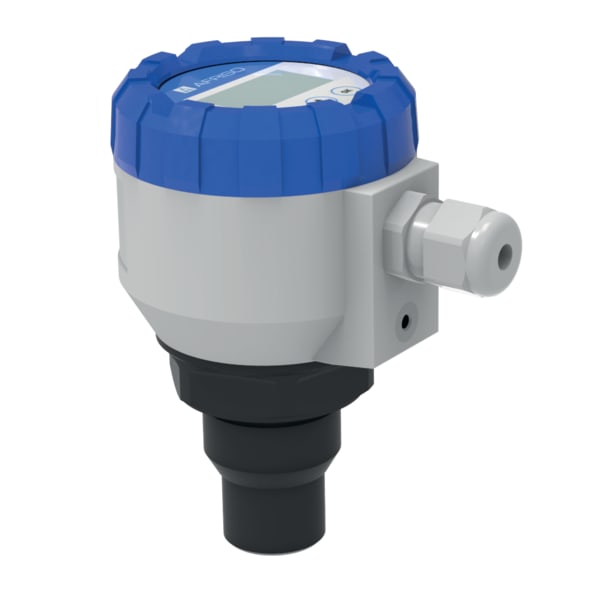

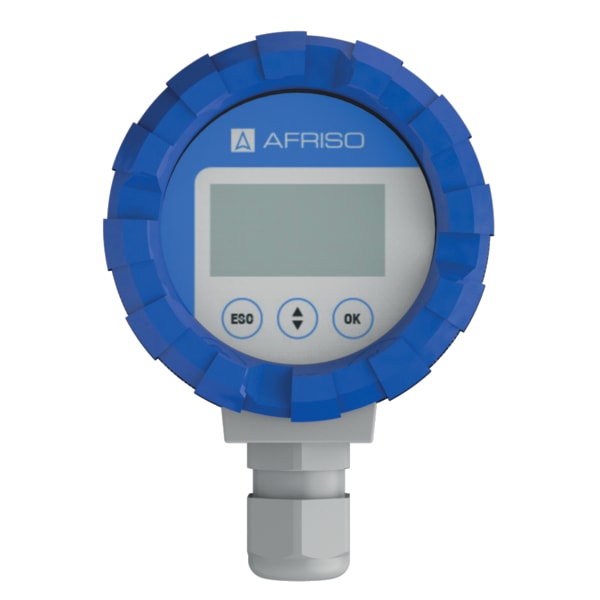

Images 3 SonarFox® UST 20 ultrasonic level indicator Variants Documents Benefits non-contact level measurementeasy adjustment even without mediumrobust housing for rough ambient conditionsSuppression of interference signalsOptional Ex version Application For continuous, non-contact level measurement in open or closed containers, tanks or silos. Suitable for liquid, mushy and pasty media. Ideal for sludge, adhesives, resins and waste water. The device can be easily adjusted even without a medium by means of the programming display with user-friendly menus. It also serves as a local display. Description The SonarFox® UST 20 level indicator uses the physical properties of ultrasonic waves to determine the level. An ultrasonic wave is emitted which is reflected by objects in the sound cone. The time up to the reception of the reflected echo is a measure of the distance. Since the mounting position is defined, it is possible to calculate the filling level of the medium. Type, density and temperature of the medium have no effect on the measurement – the only prerequisite is a reflecting surface. Acoustically diffuse surfaces such as foam or uneven surfaces of bulk solids are to be tested with regard to the application. An optional, additional alignment horn adapter can be used for such media. Installations or stirrers above the surface of the medium can be masked during empty setup. Variants Technical data Downloads Accessories Variants Part no.ultrasonic level indicator SonarFox® UST 20-01O01measuring range 0.15/2 m, G1B33545ultrasonic level indicator SonarFox® UST 20-11O01measuring range 0.25/6 m, G1½B33544ultrasonic level indicator SonarFox® UST 20-21O01measuring range 0.4/10 m, G2¼B33559ultrasonic level indicator SonarFox® UST 20-31O01measuring range 0.5/20 m, flange DN 10033560ultrasonic level indicator SonarFox® UST 20-01D01measuring range 0.15/2 m, G1B, with display33543ultrasonic level indicator SonarFox® UST 20-11D01measuring range 0.25/6 m, G1½B, with display33542ultrasonic level indicator SonarFox® UST 20-21D01measuring range 0.4/10 m, G2¼B, with display33557ultrasonic level indicator SonarFox® UST 20-31D01measuring range 0.5/20 m, flange DN 100, with display33558 in-stock items manufactured goods Technical data Measuring rangeUST 20-01: 0.15/2 mResolutionUST 20-01: < 1 mmMeasuring accuracy± 0.15 % FSTemperature errormax. 0.04 %/KMeasuring frequencyUST 20-01: 120 kHzMeasuring interval0–4 sOperating temperature rangeUST 20-01: -30/+70 °Cat process connection up to 90 °C (short-term up to 60 minutes)Process pressuremax. 1 barProcess connectionUST 20-01: PP, G1B, with lock nutSupply voltageDC 18 − 36 VOutput signal4–20 mA/HART, 2-wireLoadRmax = 270 Ω at U = 24 VRmax = 180 Ω bei U = 22 VRmax = 90 Ω at U = 20 VRmax = 45 Ω bei U = 19 VCurrent inputmax. 22 mASignal dampingadjustable from 0 to 99 sHousingaluminium die castUltrasonic transducerPVDFDegree of protectionIP 67 (EN 60529)Electrical connectionCable gland M16 x 1.5WeightUST 20-01: 0.3 kgOptionsOutput RS-485 Modbus RTUEx-Ausführung Downloads SonarFox® UST 20 PDF English German Ultraschall-Füllstandmessgerät SonarFox® UST 20 PDF Download Ultraschall-Füllstandmessgerät SonarFox® UST 20 Industrial technology PDF English German professionelle Füllstandlösungen für Industrie- und Prozesstechnik PDF Italian English German Ultraschall-Füllstandmessgerät SonarFox® UST 20 Katalog-Bestellschlüssel PDF English German Ultraschall-Füllstandmessgerät SonarFox® UST 20 Manuals PDF English German Professionelle Fuellstandloesungen Prospekt PDF German English Italian Accessories Accessories and spare parts for level indicators and level controllers Abb. Bezeichnung Programmierdisplays/Vorortanzeigen PD | 56225
