Industrial technology Mechanical pressure measuring instruments KP63Ch D402
PRO_ECO_PRI_KP_CHEMIE_D402.TIF

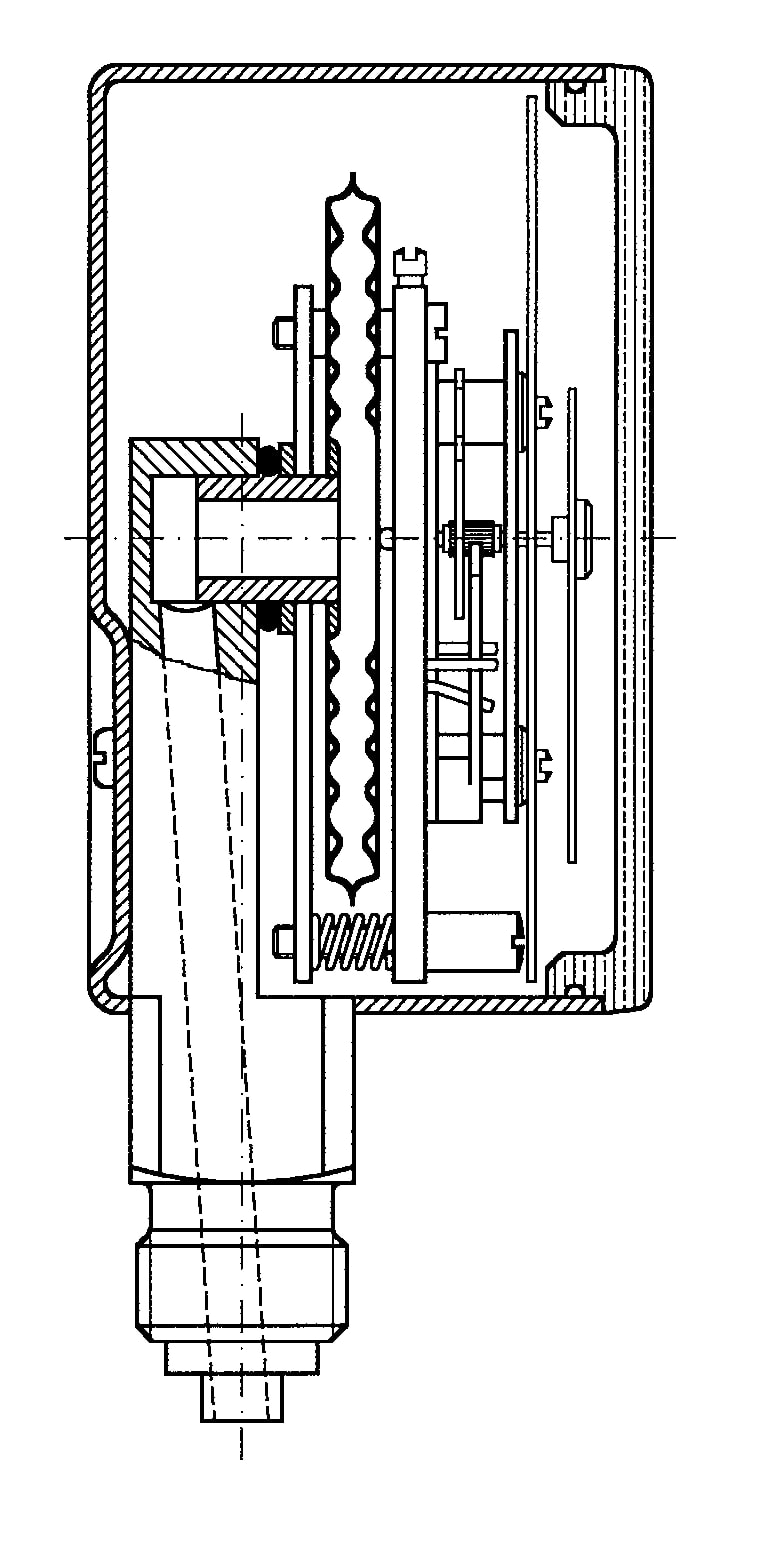

PRO_TEC_ILL_IT_SCHNITT_KP100_D402.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
PRO_ECO_PRI_KP_CHEMIE_D402.TIF
PRO_TEC_ILL_IT_SCHNITT_KP100_D402.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
Images 3

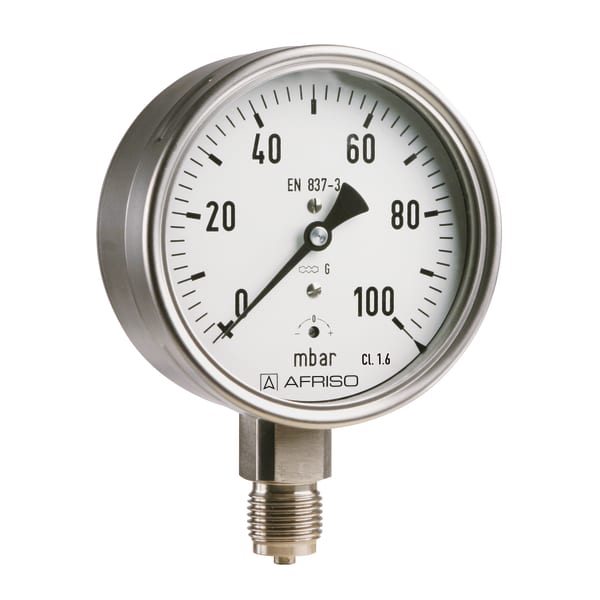

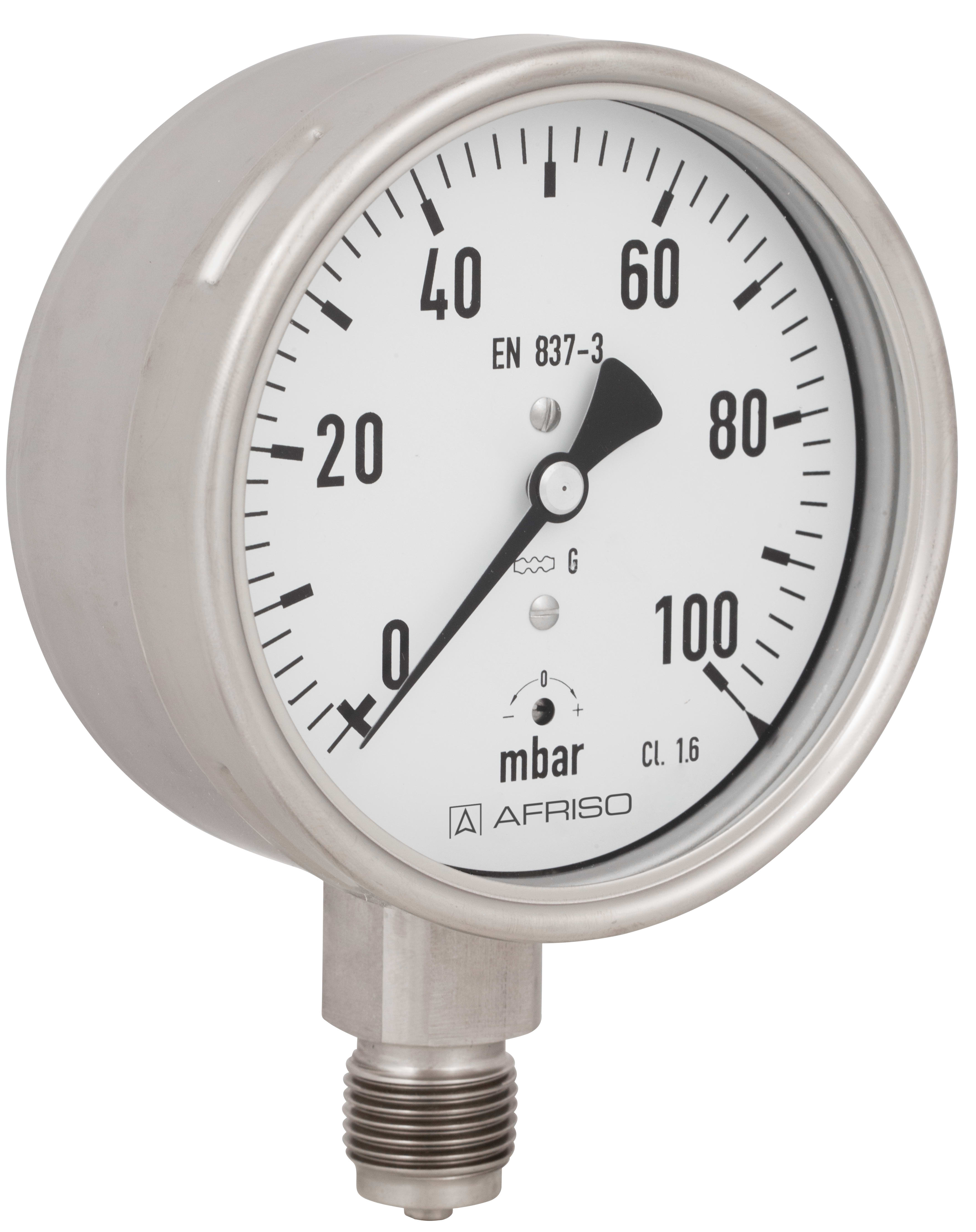

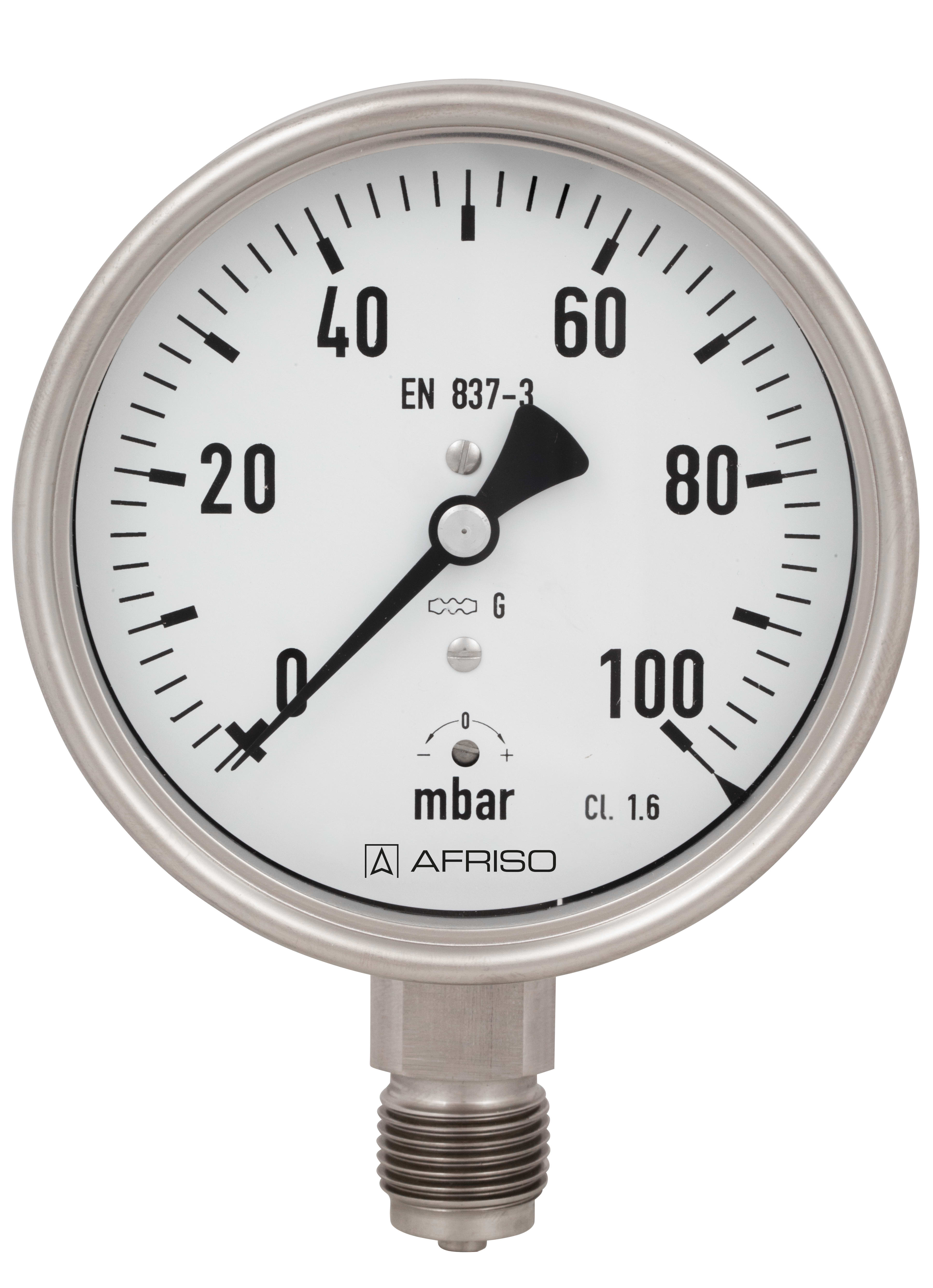

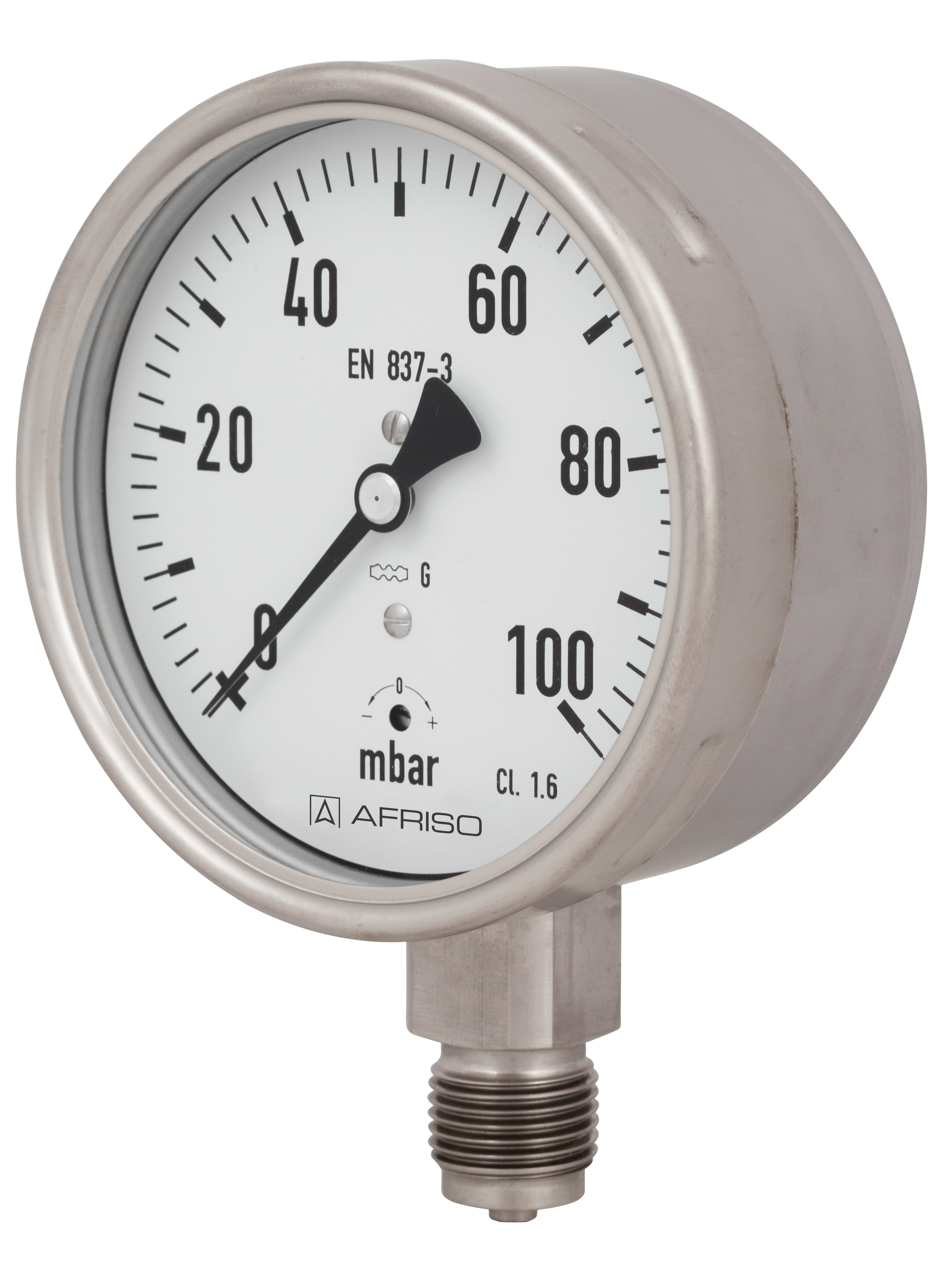

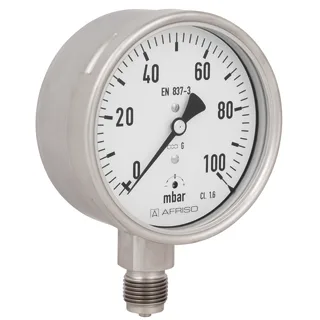

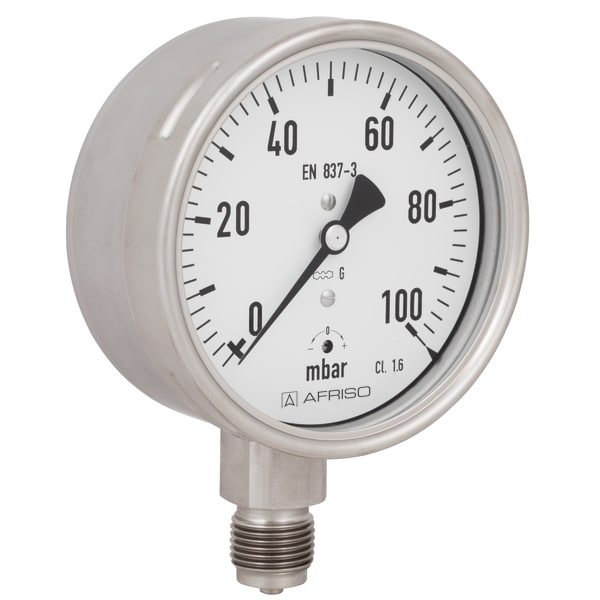

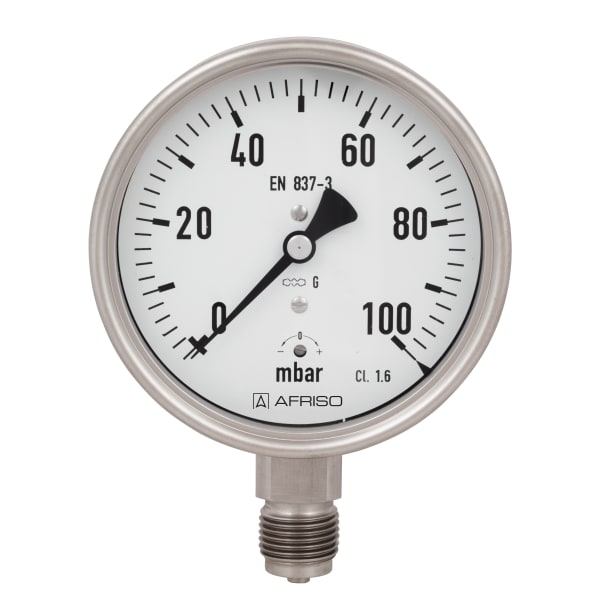

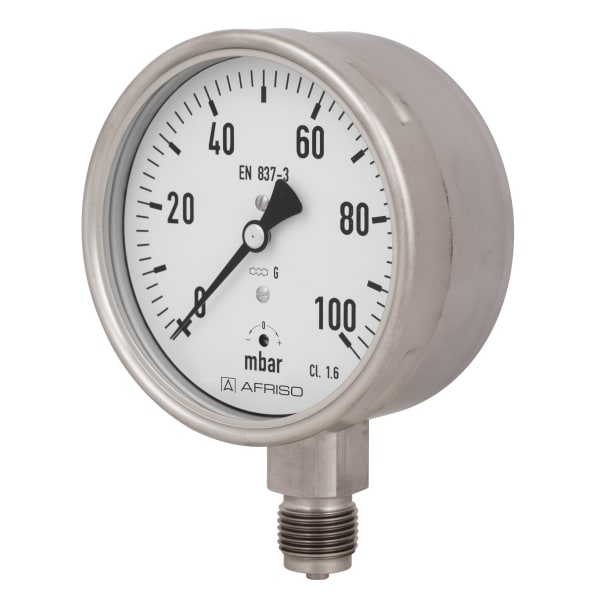

KP63Ch D402

Kapselfeder-Chemiemanometer Typ D4

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-3

  • with zero correction
  • robust stainless steel housing (with bayonet bezel)
  • wetted parts and movement made of stainless steel
  • GOSSTANDART-certified
  • Ex version (optional)

For corrosive gaseous and dry media, also for use in corrosive environments.

RangeMounting typeTypePart number
-25/0 mbardirectKP63Ch D40235004402
-40/0 mbardirectKP63Ch D40235005402
-60/0 mbardirectKP63Ch D40235006402
-100/0 mbardirectKP63Ch D40235007402
-160/0 mbardirectKP63Ch D40235008402
-250/0 mbardirectKP63Ch D40235009402
-400/0 mbardirectKP63Ch D40235010402
-600/0 mbardirectKP63Ch D40235011402
-1 000/0 mbardirectKP63Ch D40235012402
0/25 mbardirectKP63Ch D40235016402
0/40 mbardirectKP63Ch D40235017402
0/60 mbardirectKP63Ch D40235018402
0/100 mbardirectKP63Ch D40235019402
0/160 mbardirectKP63Ch D40235020402
0/250 mbardirectKP63Ch D40235021402
0/400 mbardirectKP63Ch D40235022402
0/600 mbardirectKP63Ch D40235023402
0/1 000 mbardirectKP63Ch D40235024402
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
63 - 63
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 100 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 32 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L, bottom

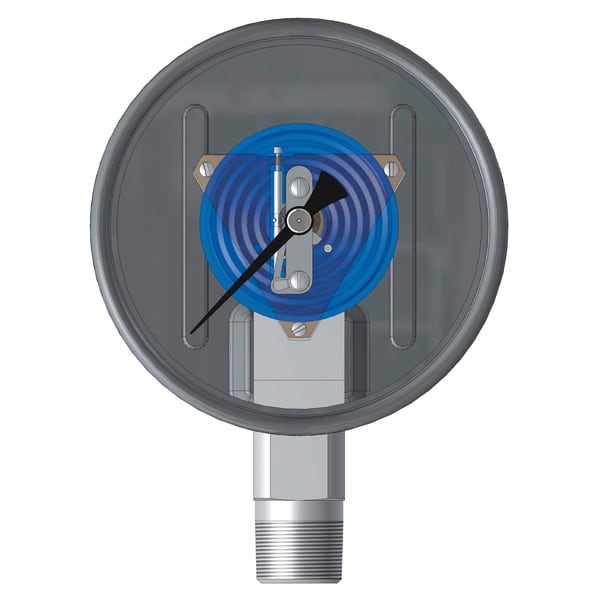

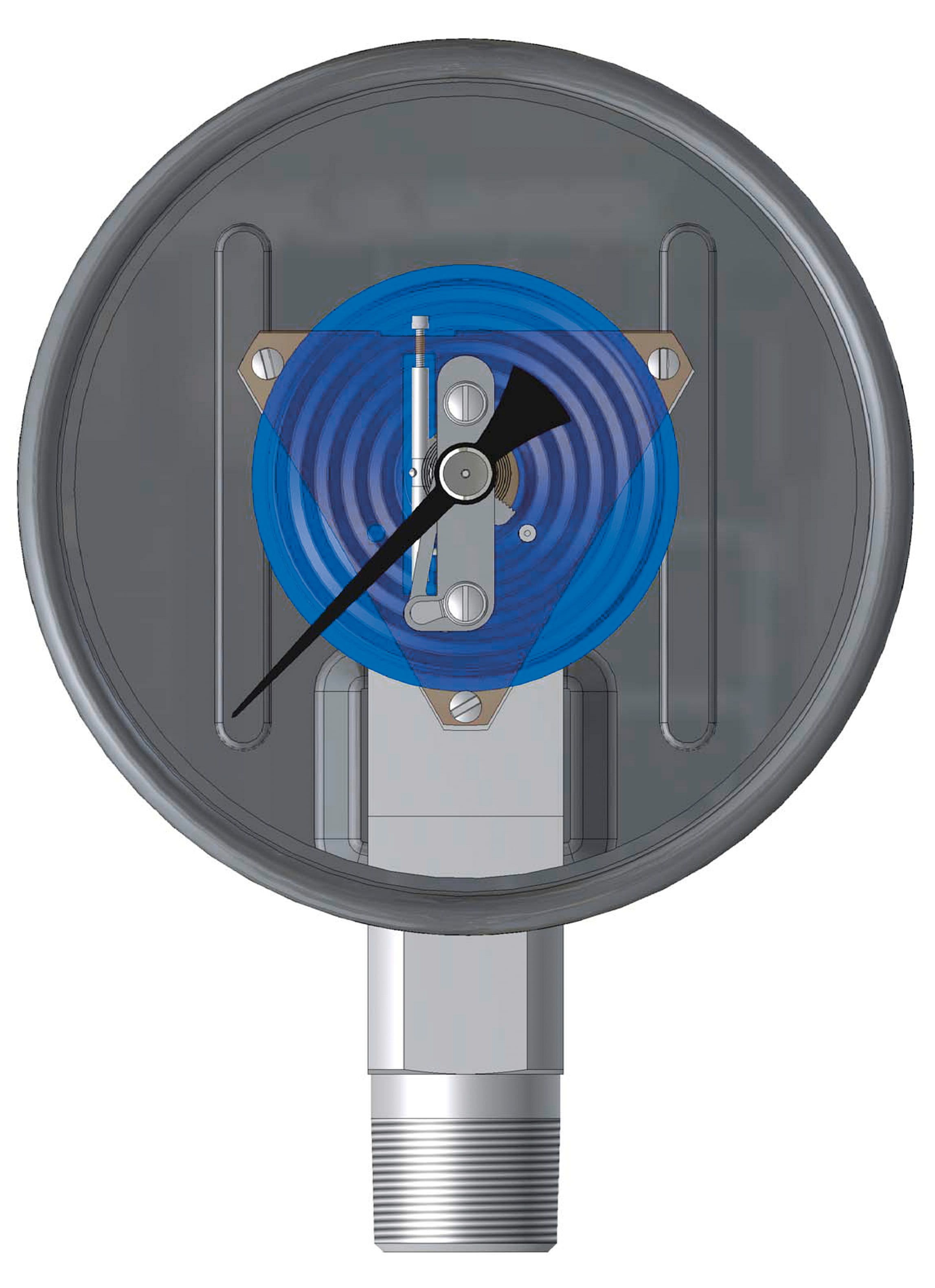

Measuring element
Capsule element, stainless steel 316 Ti/316 L
movement
Stainless steel
Zero correction
from the front
Seal
FKM (Viton)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D402: Sicherheitsverbundglas

Click the corresponding image for detail views, additional information and dimension tables.

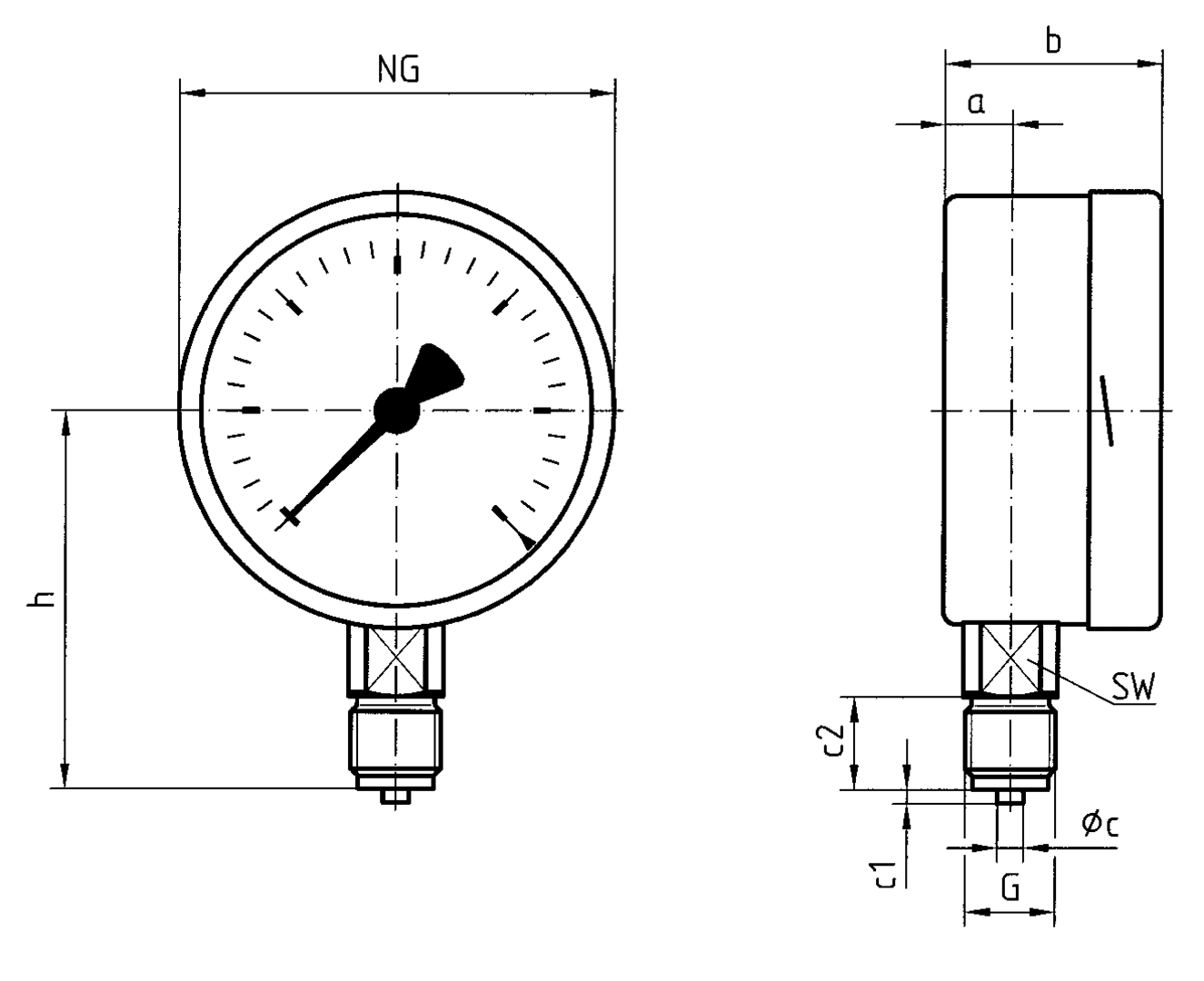

Bottom connection

PRO_TEC_BEP_KAPSELFEDER_CHEMIE_D4_ANSCHLUSS_RADIAL_1.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
throttle screw stainless steel 316 Ti NG 63 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38103
3-hole fixing, panel mounting bezel stainless steel 304 polished NG 63 | 37608
back flange stainless steel 304, vibratory-finished NG 63
back flange stainless steel 304, vibratory-finished NG 63 | 38048
bayonet bezel stainless steel 304 polished NG 63 | 38052
Housing stainless steel 304 polished NG 63 | 37611
red mark on dial NG 63 | 38184
1 reference pointer, red NG 63 SD External adjustment with screwdriver | 38115
1 reference pointer, red NG 63 DK external rotary knob adjustment | 38188
laminated safety glass window NG 63 | 38072
special mounting position NG 63 | 38147
oil and grease removed from wetted parts NG 63 label "Oil and grease free" | 37615
printing block creation per scale and colour NG 63 scale design as per EN 837-1, others on request | 38153
additional colour NG 63 | 38165
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 63 for factory-mounting
3-hole fixing, panel mounting bezel (bayonet type) stainless steel 304 polished NG 63 for factory-mounting | 38054
