Data sheet Single line filters for fuel oil

Benefits

Shut-off valve in the flow line
Vent valve with hose connector in the return line (R 500)
Impact-resistant, shock-resistant and transparent plastic filter cup
Pipe connection via universal screw connection for pipes with Ø 8/10 mm
Materials resistant to biofuel and biodiesel mixtures with max. 30 % FAME
Proofed Barrier (odour-tight)
Watertight up to 10 m water column - ideal for use in flood hazard areas
Green fuels ready: suitable for use at tank facilities filed with the new paraffinic fuels HVO or GTL

Application

For single-line systems with return line (version R 500) or without return line (version V 500). Suitable for fuel oil EL (DIN 51603-1), diesel fuel (EN 590), liquid fuels as per DIN SPEC 51603-6 and DIN/TS 51603-8 as well as biofuel and biodiesel with a maximum of 30 % FAME (EN 14214). This product is therefore ideal for all ecologically upgraded fuel oil consuming systems that use the new paraffinic fuels HVO or GTL as an admixture or 100 %. Also for use in flood hazard areas and flood risk areas.

Versions

	Connection		Filter	Oil throughput at ∆p=100 mbar	Part no.	Remember
	Tank	Burner			Part no.	Remember

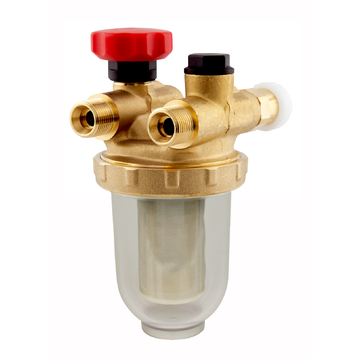

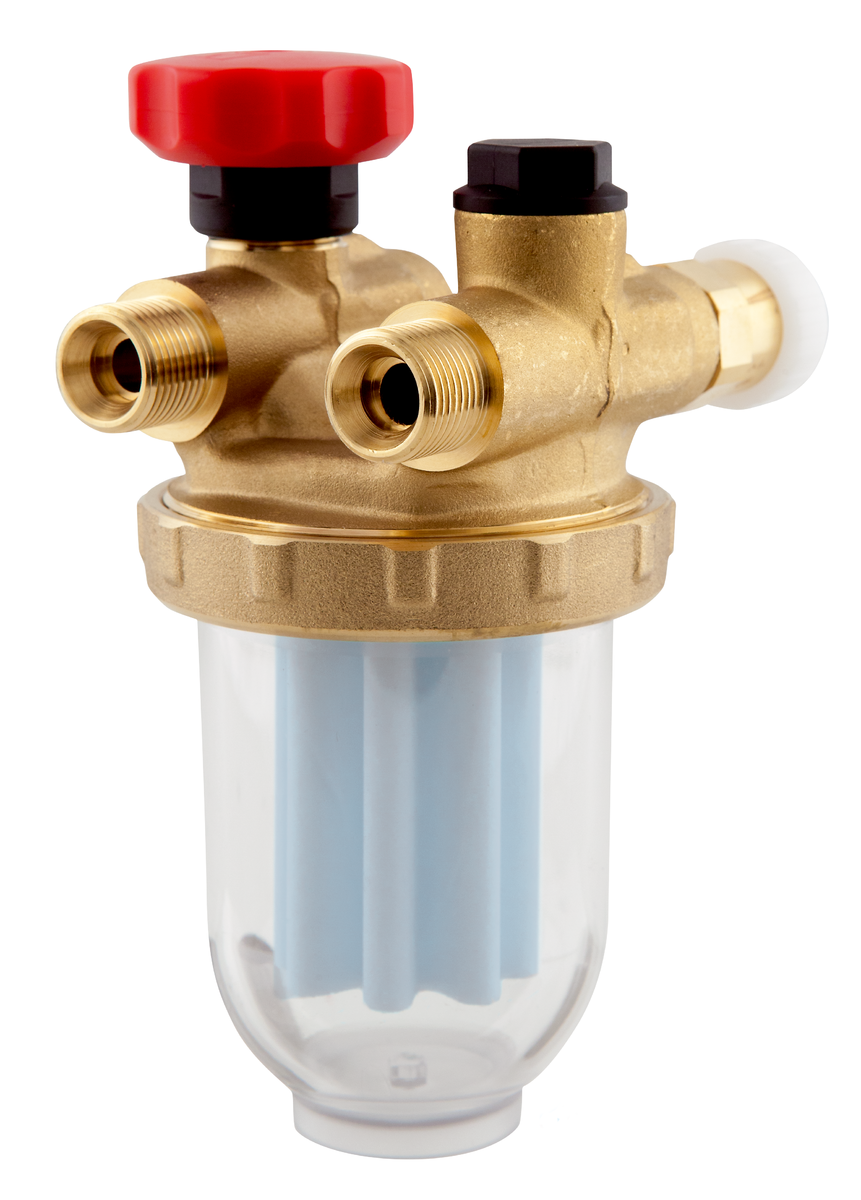

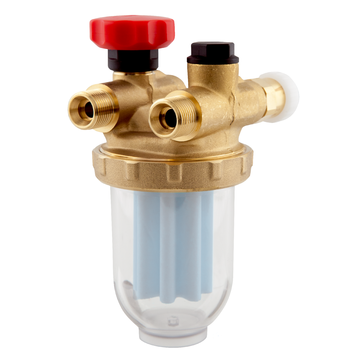

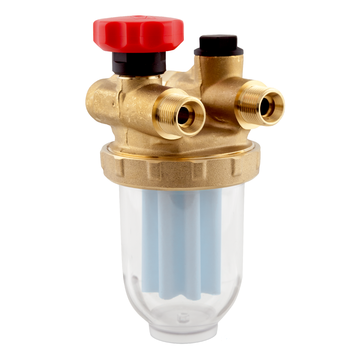

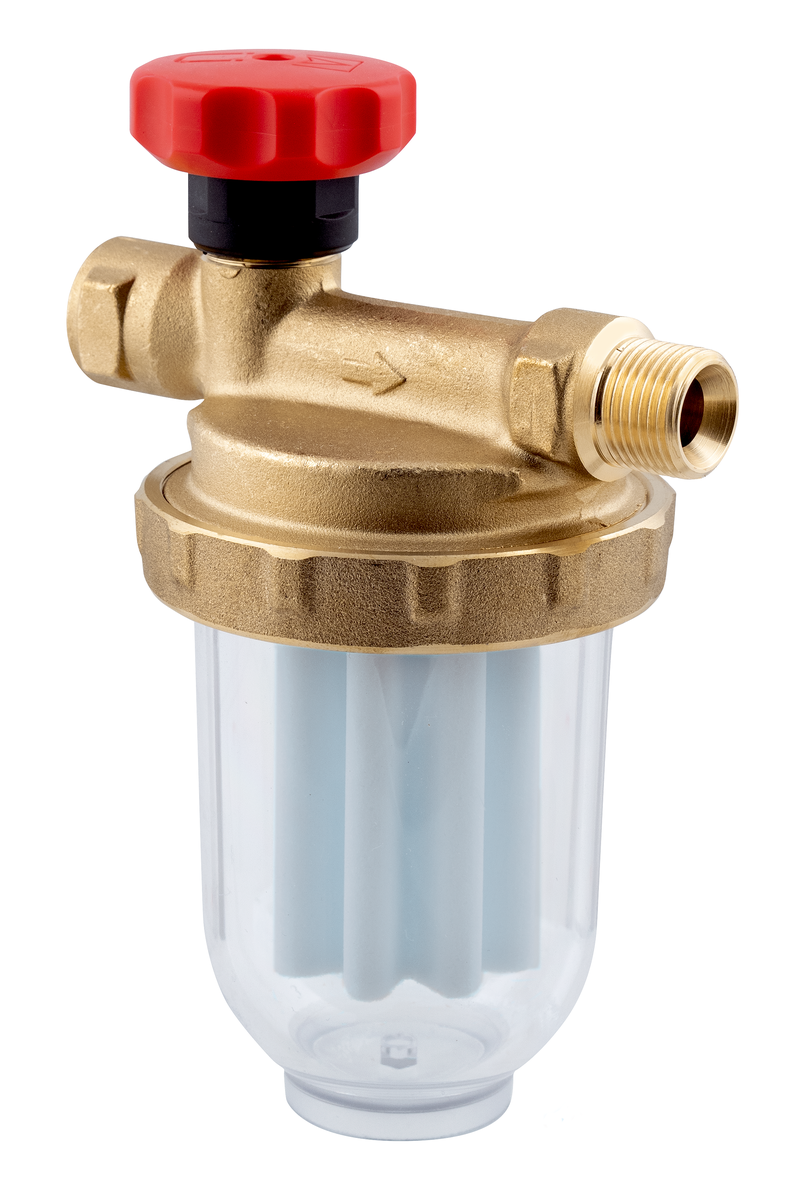

Single line filters R 500 Si 50–70 µm	1x G⅜ female	2x G⅜ male	Sintered plastic sieve short, 50–70 µm	210 l/h	20281

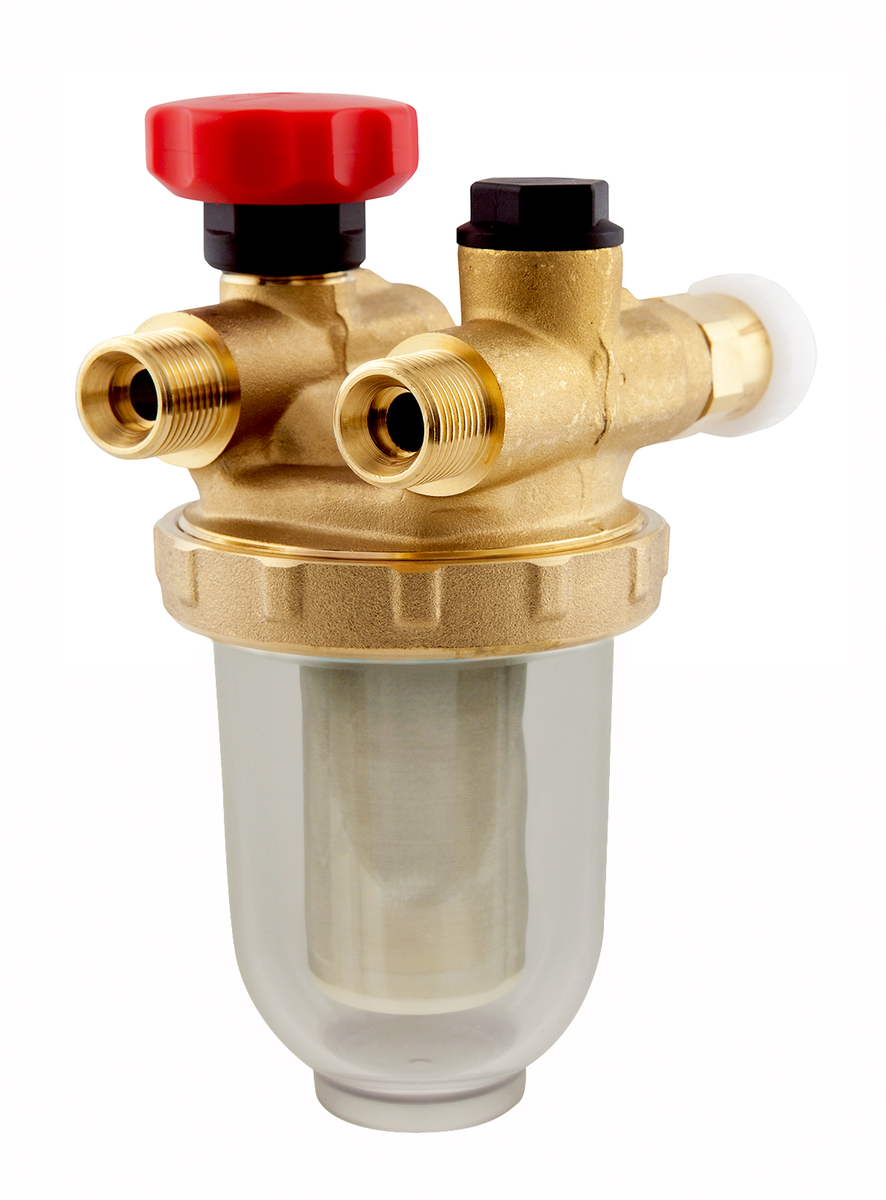

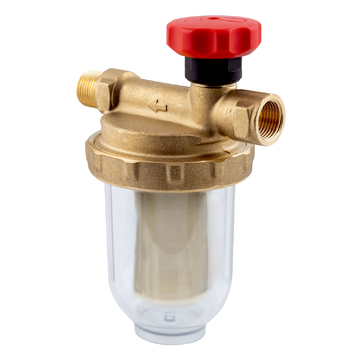

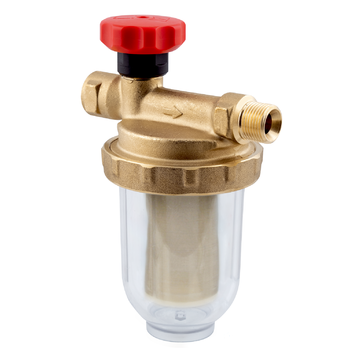

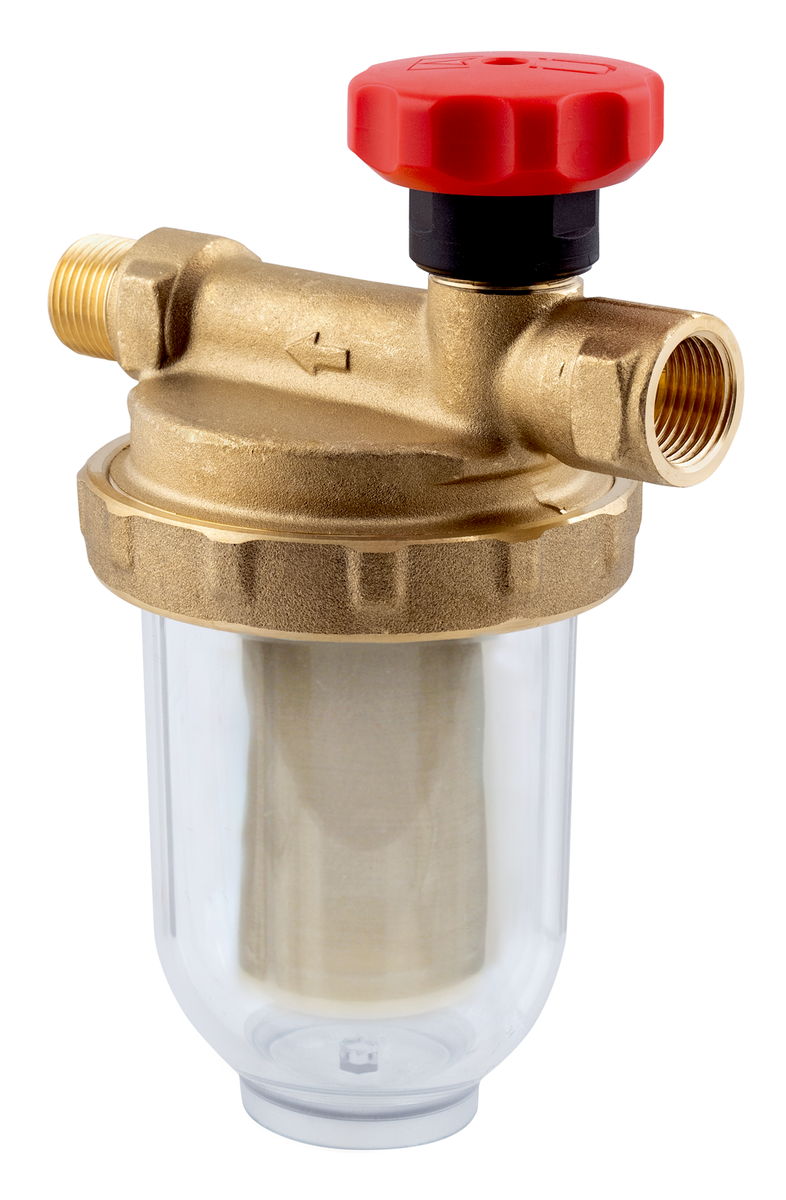

Single line filters R 500 St 100 µm	1x G⅜ female	2x G⅜ male	Stainless steel sieve, 100 µm	250 l/h	20283

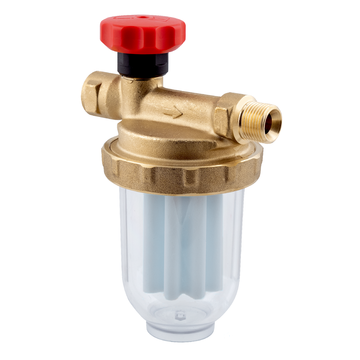

Single line filters V 500 Si 50–70 µm	1x G⅜ female	1x G⅜ male	Sintered plastic sieve short, 50–70 µm	250 l/h	20292
Single line filters V 500 St 100 µm	1x G⅜ female	1x G⅜ male	Stainless steel sieve, 100 µm	320 l/h	20294

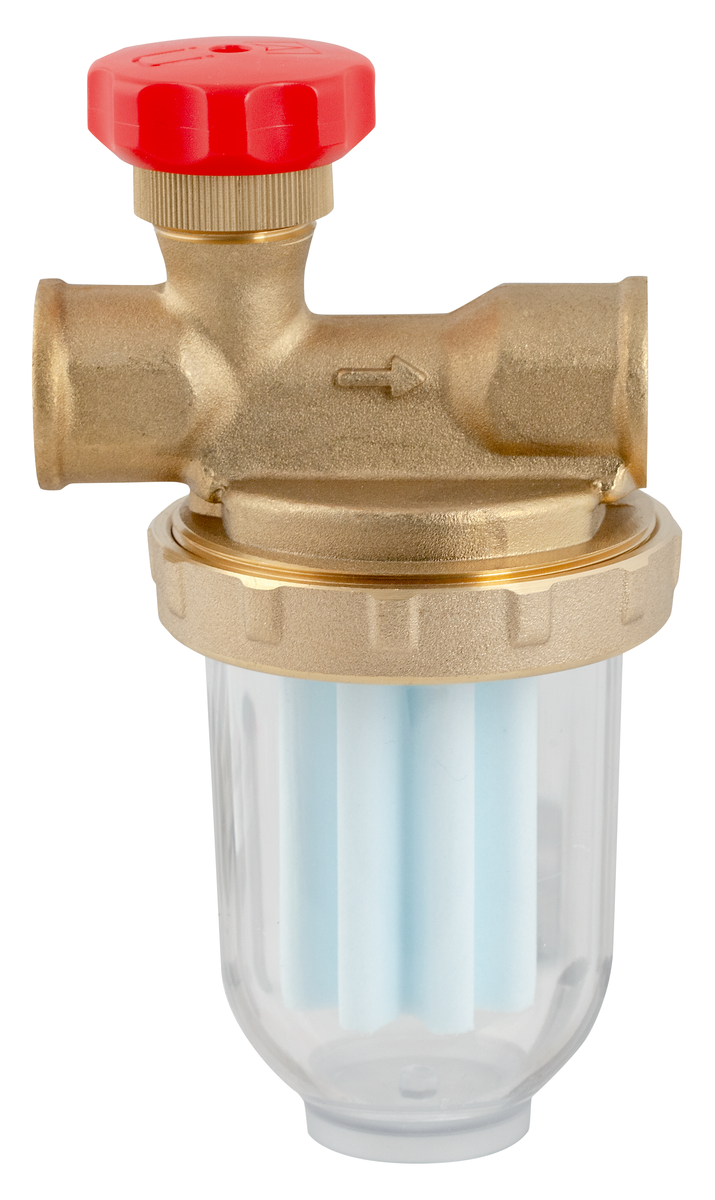

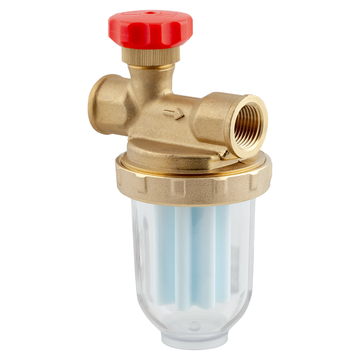

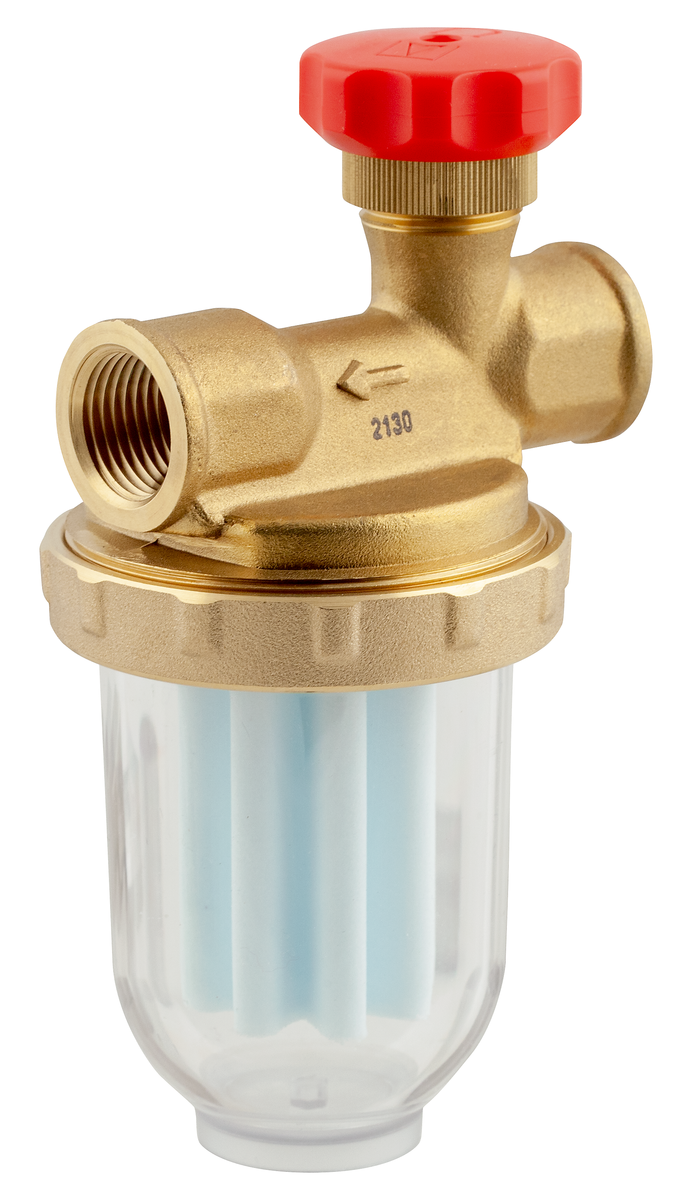

Single line filters V 1/2 500 Si 50–70 µm	1x G½ female	1x G½ female	Sintered plastic sieve short, 50–70 µm	390 l/h	20485

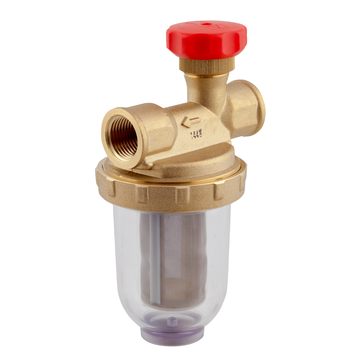

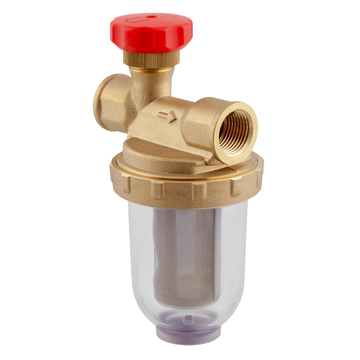

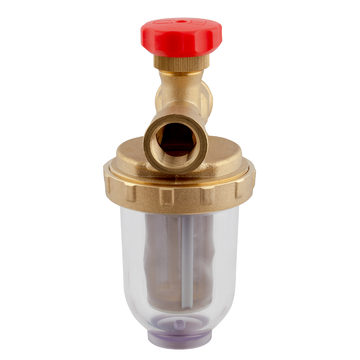

Single line filters V 1/2 500 St 100 µm	1x G½ female	1x G½ female	Stainless steel sieve, 100 µm	560 l/h	20487

Blue part no. = in-stock items

Downloads

	Description	Format
Data sheet Single line filters for fuel oil	Data sheet	PDF
Fuel oil filters	Operating instructions	PDF
Table of resistance of oil components	Equipment for fuel oil storage tanks and oil carrying pipes	PDF

Description

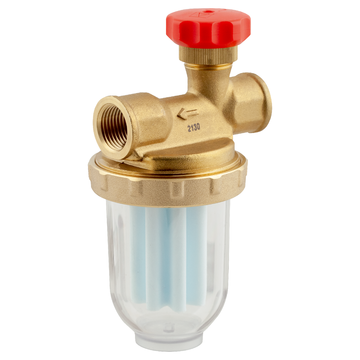

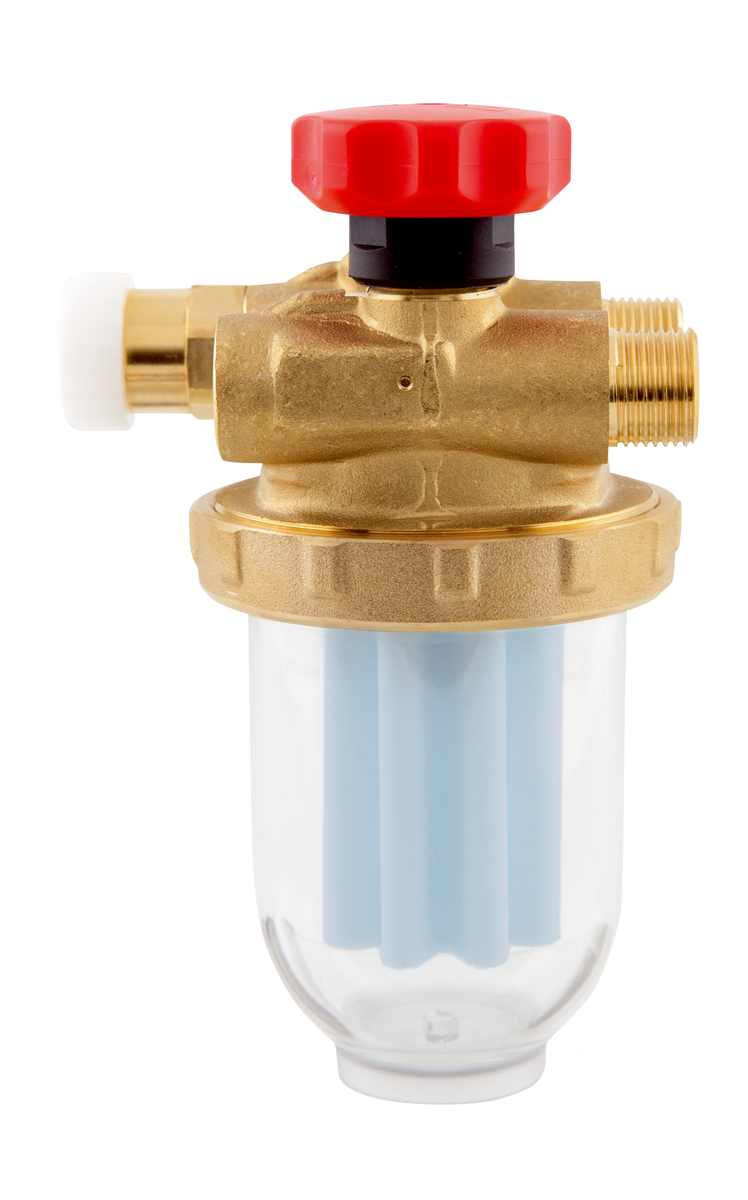

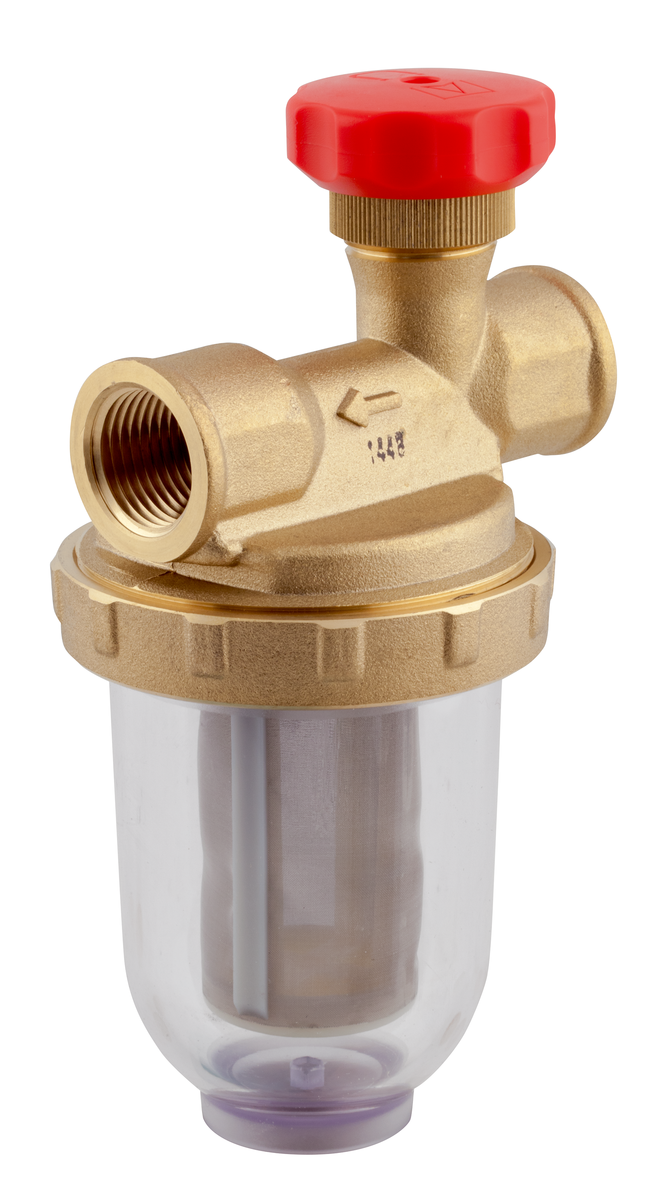

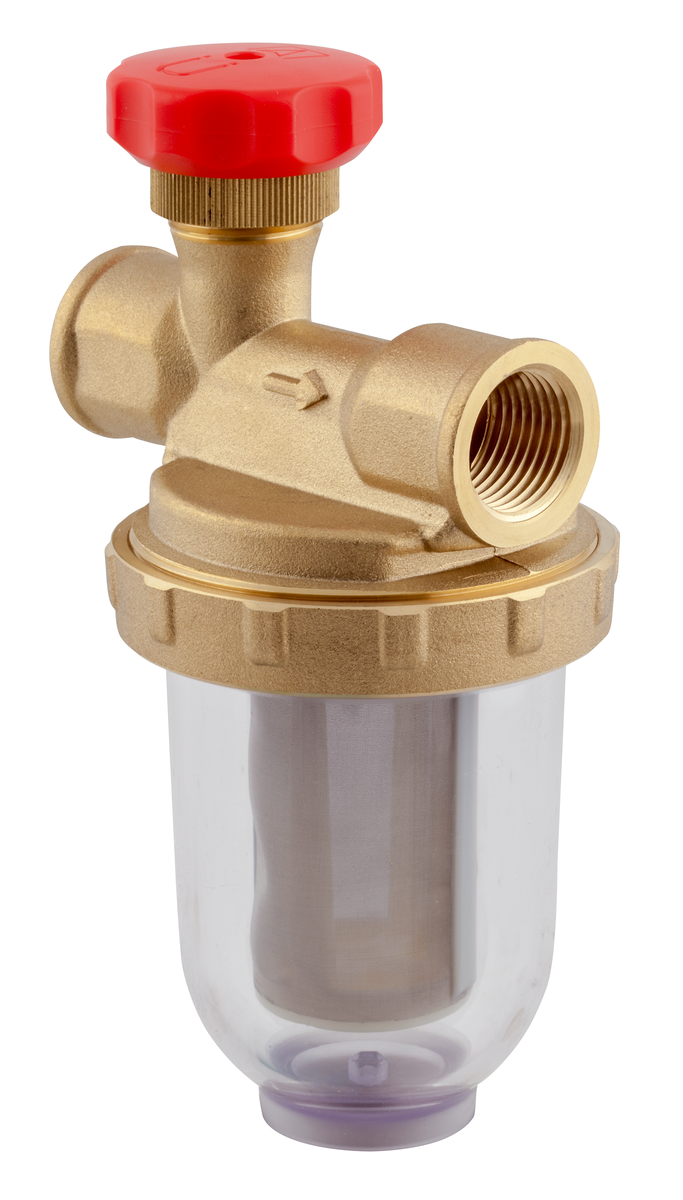

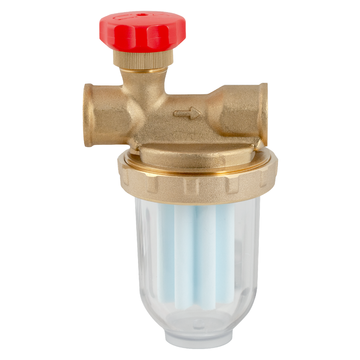

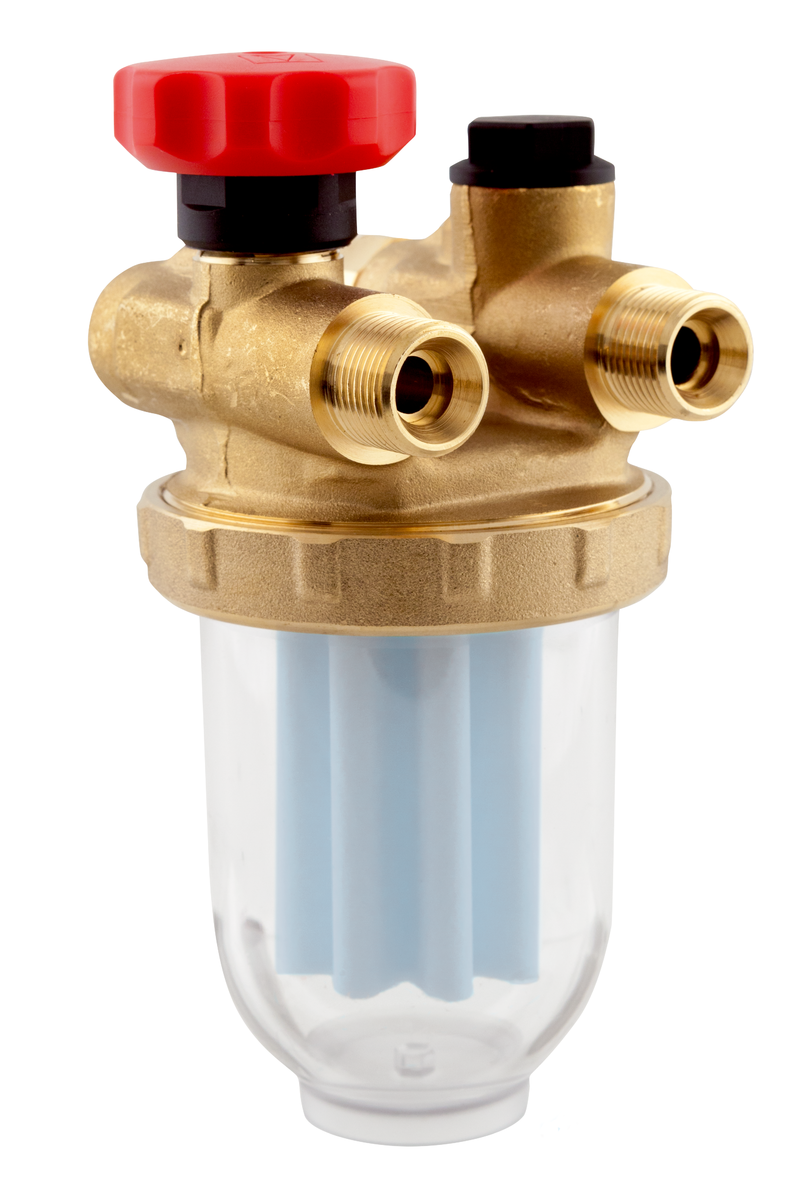

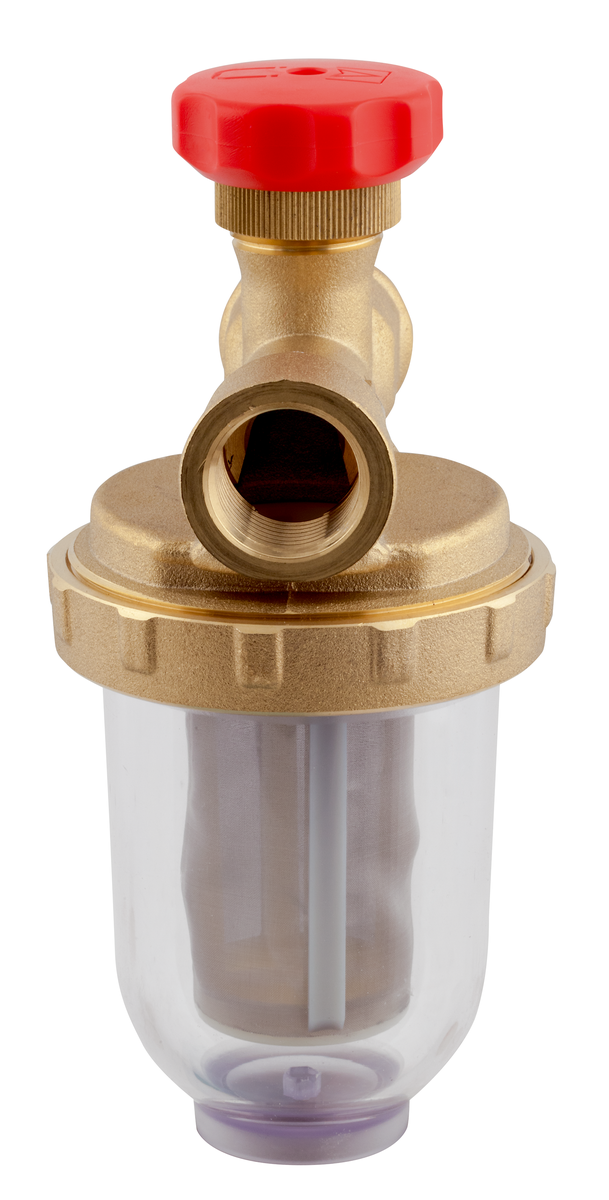

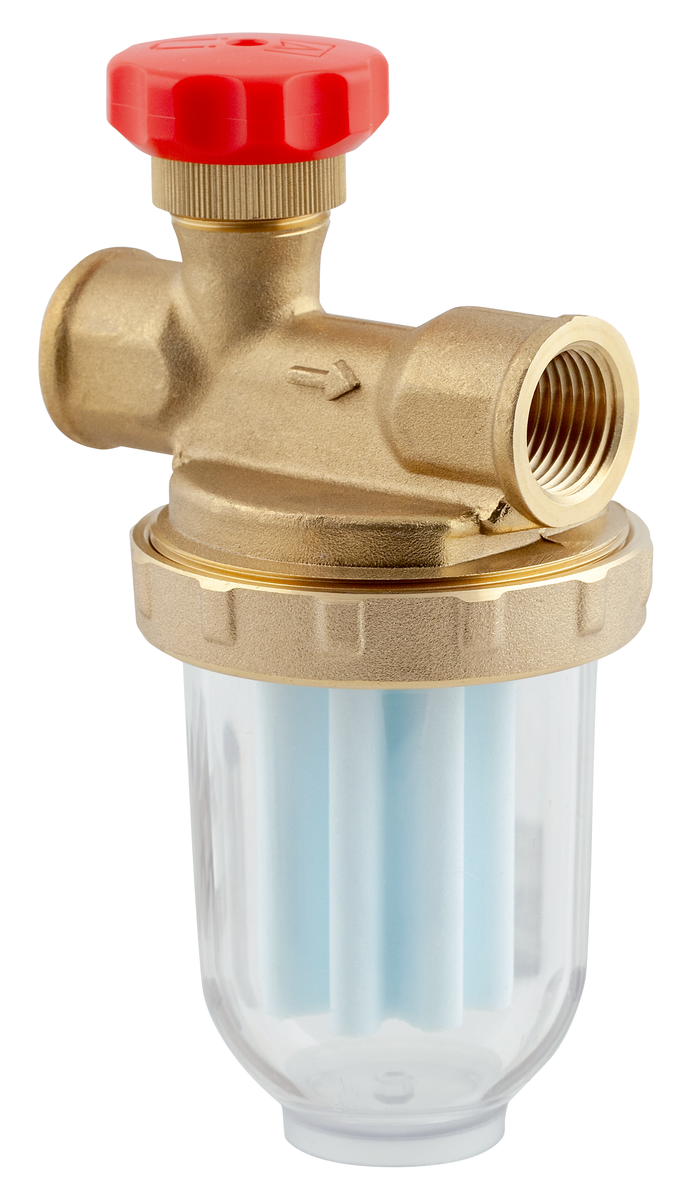

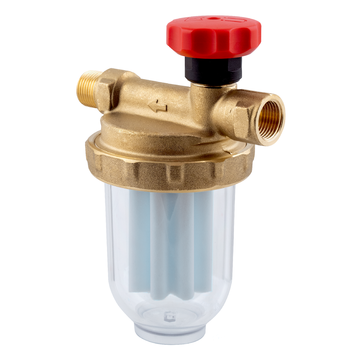

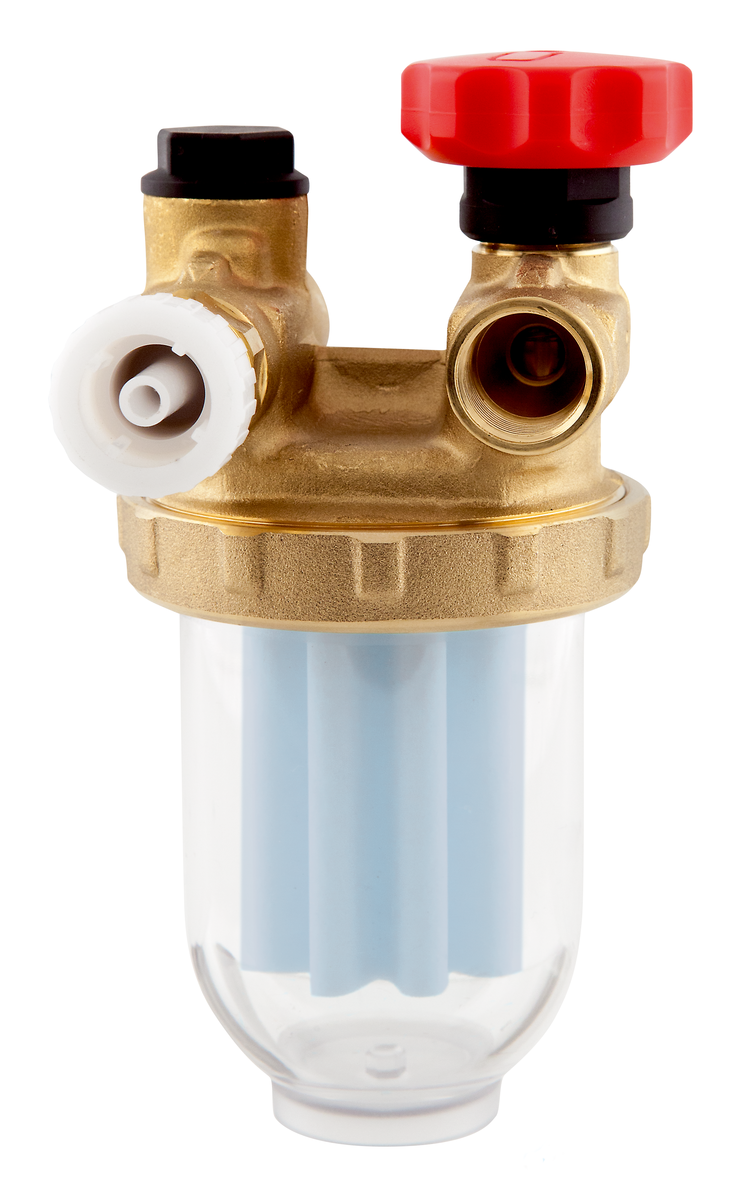

Brass filter housing, filter cup made of transparent, impact-resistant plastic. With shut-off valve in the flow line. Version R 500 also features a vent valve with hose connector in the return line. Universal compression fittings for pipes with 8/10 mm outside diameters included. Watertight up to 10 m water column.

Technical data

Connection burner end

See ordering table

Connection tank

See ordering table

Mounting position

Filter cup vertically down

Operating temperature range

Medium:

Max. 40 °C

Operating overpressure

(suction mode only)

Material

Housing:

Brass

Filter cup:

Plastic, transparent and impact-resistant

Approval

Conformity certificate (ÜHP) as per EN 12514-2
