Data sheet tank withdrawal system Euroflex
Afriso Data sheet tank withdrawal system Euroflex

Versions

Part no. Remember
Tank withdrawal system Euroflex 2 (2.15) suction hose 2.15 m, without measuring line connection 20162
Tank withdrawal system Euroflex 3 (2.15) suction hose 2.15 m 20160
Tank withdrawal system Euroflex 3 (3.15) suction hose 3.15 m 20164
Tank withdrawal system Euroflex 3 (2.15) with float suction hose 2.15 m 20130
Tank withdrawal system Euroflex 3 (3.15) with float suction hose 3.15 m 20131
Tank withdrawal system Euroflex 3 (3.15) without check valve suction hose 3.15 m, for self-securing suction line 20129
Conversion kit float kit G1 for Euroflex and Miniflex 20125
Conversion kit shut-off valve for Euroflex (10/98 and later), Miniflex and communicating AFRISO withdrawal systems for battery tanks for conversion to automatically safeguarding suction lines 74305

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet tank withdrawal system Euroflex Data sheet PDF
Afriso Data sheet tank withdrawal system Euroflex
Tank withdrawal system Euroflex, Miniflex Operating instructions PDF
Afriso Tank withdrawal system Euroflex, Miniflex
Table of resistance of oil components Equipment for fuel oil storage tanks and oil carrying pipes PDF
Afriso Table of resistance of oil components
Certificate Proofed barrier: Tested odour impermeability of oil tank components (odour barrier) Certificates PDF
Afriso Certificate Proofed barrier: Tested odour impermeability of oil tank components (odour barrier)

Combination fitting made of plastic as a withdrawal system with measuring line (not Euroflex 2) and TÜV-tested isolating piece that screws into the tank. G⅜ stainless steel threaded female connections for suction and return lines. Universal compression fittings for pipes with 8 and 10 mm outside diameters for connecting the suction line are enclosed. The integrated check valve with elastic valve seat keeps the oil column in the suction line from being interrupted when the burner is off. Quick-action shut-off valve with lever for remote closing in emergency situations. Pressure- and vacuum-tight up to 1 bar. Available also without check valve for self securing suction line.

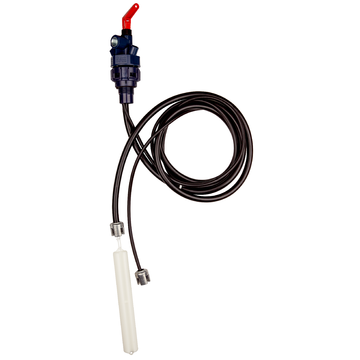

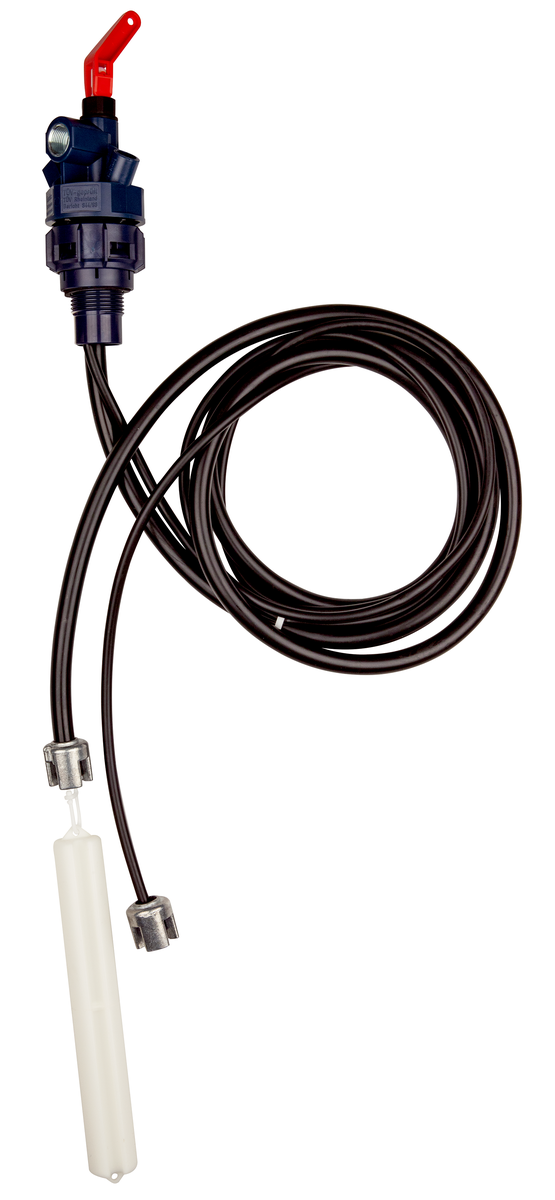

Euroflex 3 with float and special G1 screw connection for withdrawing oil in the clean area (as per TRWS 791 not recommended in underground tanks). Measuring line connection for hose or pipe with 6 mm outside diameter. Suction hose length 2.15 m or 3.15 m with additional float at the suction hose end.

GWG 12 K/1C, combination of level sensor and withdrawal system. With measuring line connection for hose or pipe with 6 mm outside diameter. For battery tanks as per DIN 6620 and tanks as per DIN 6625 manufactured on site. Specially useful if there is no connection socket at the tank. Connection G1½.

Connection
Tank:
G1 male
Suction line/return line:
G⅜ female
Measuring line:
6 mm
Length
Suction hose:
2.15 m or 3.15 m
Measuring hose
Euroflex 3 (2.15):
2.15 m
Euroflex 3 (3.15):
3.15 m
Test pressure
Max. 6 bar
Flow rate
Max. 150 l/h
Material
Screw fitting:
Plastic (POM), Blue
Suction hose:
NBR/PVC
Bottom part:
Zamak (ZnAl4Cu1)
Approval
Conformity certificate (EN 12514-2), ÜHP
