Pump assembly PrimoTherm® Floor 130 for manifold systems

AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP VOR 105960 object_image_90466imagemain_en AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP VOR 105960 object_image_90466imagemain_en
Pumpengruppe PrimoTherm Floor 130 G1 ATM563 WP
AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP VOR 105960 object_image_90466imagemain_en
AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP BEF 105960 AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP BEF 105960
Pumpengruppe PrimoTherm Floor 130 G1 ATM563 WP
AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP BEF 105960 <div class="gallery-information"> <p>Dimensions (in mm)</p> <b>Legend:</b> <ol> <li>Circulation pump WILO Yonos PARA 15/6 RKA 130</li> <li>3-way mixing valve ATM 563</li> <li>Safety temperature limiter with thermometer and de-aeration unit</li> </ol> </div>
AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP VOR 105960 object_image_90466imagemain_en
AFRISO Pumpengruppe PrimoTherm Floor 130  G1 ATM563 WP BEF 105960
Data sheet Pump assembly PrimoTherm® Floor 130 for manifold systems
AFRISO Data sheet Pump assembly PrimoTherm® Floor 130 for manifold systems

Versions

Part no. Remember
Pump assembly PrimoTherm® Floor 130 77490

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Pump assembly PrimoTherm® Floor 130 for manifold systems Data sheet PDF
AFRISO Data sheet Pump assembly PrimoTherm® Floor 130 for manifold systems
Pump assembly PrimoTherm® Floor 130 Operating instructions PDF
AFRISO Pump assembly PrimoTherm® Floor 130

Complete, pre-assembled and tightness-tested pump assembly with all required functional components, including shut-off ball valve DN 20. The required flow temperature is set within a range from 35 to 60 °C at the thermostatic mixing valve mixing valve ATM 563. A cover that can be lead-sealed protects the control knob against improper adjustments during operation. The selected adjustment is visible through the window in the cap. The special chamber geometry also helps to avoid damage caused by overpressure during closing (backflow preventer to return).

The circulation pump automatically switches off if a safety-related temperature limitation is exceeded. It is adjustable between 20 to 60 °C; the factory setting is 55 °C. This helps to prevent damage to the underfloor heating system. The pump features the following operating modes:

Constant volume flow

Constant pressure

Venting function of pump housing

In venting mode, the entire surface heating/cooling system can be conveniently vented by means of the valve integrated in the pump assembly and the enclosed vent hose.

System connections
Boiler:
G¾ female
Manifolds:
G1 male
Operating temperature range
Medium:
Max. 90 °C
short-term 110 °C
System pressure
Max. 6 bar
Flow coefficient Kvs
2.5 m³/h
Dimensions
W x H x D:
200 x 370 x 88 mm
Thermostatic mixing valve ATM 563
Adjustment range:
35/60 °C
Housing:
Brass (CW626N), dezincification-resistant
Cap:
Plastic (ABS/PBT)
Control knob:
Plastic (ABS/PBT)
Seals:
EPDM
Circulation pump
WILO Yonos PARA 15/6 RKA 130
Length:
130 mm
Degree of protection:
IP 44 (EN 60529)
Supply voltage:
AC 230 V, 50 Hz
Pumping volume:
Max. 3.3 m³/h
Pumping head:
Max. 6 m
Options
  • Other circulation pumps
AFRISO

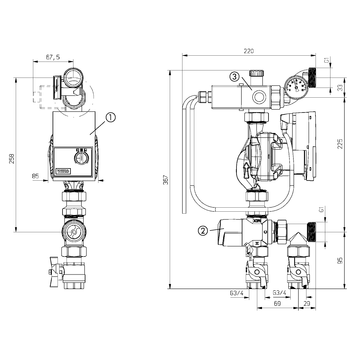

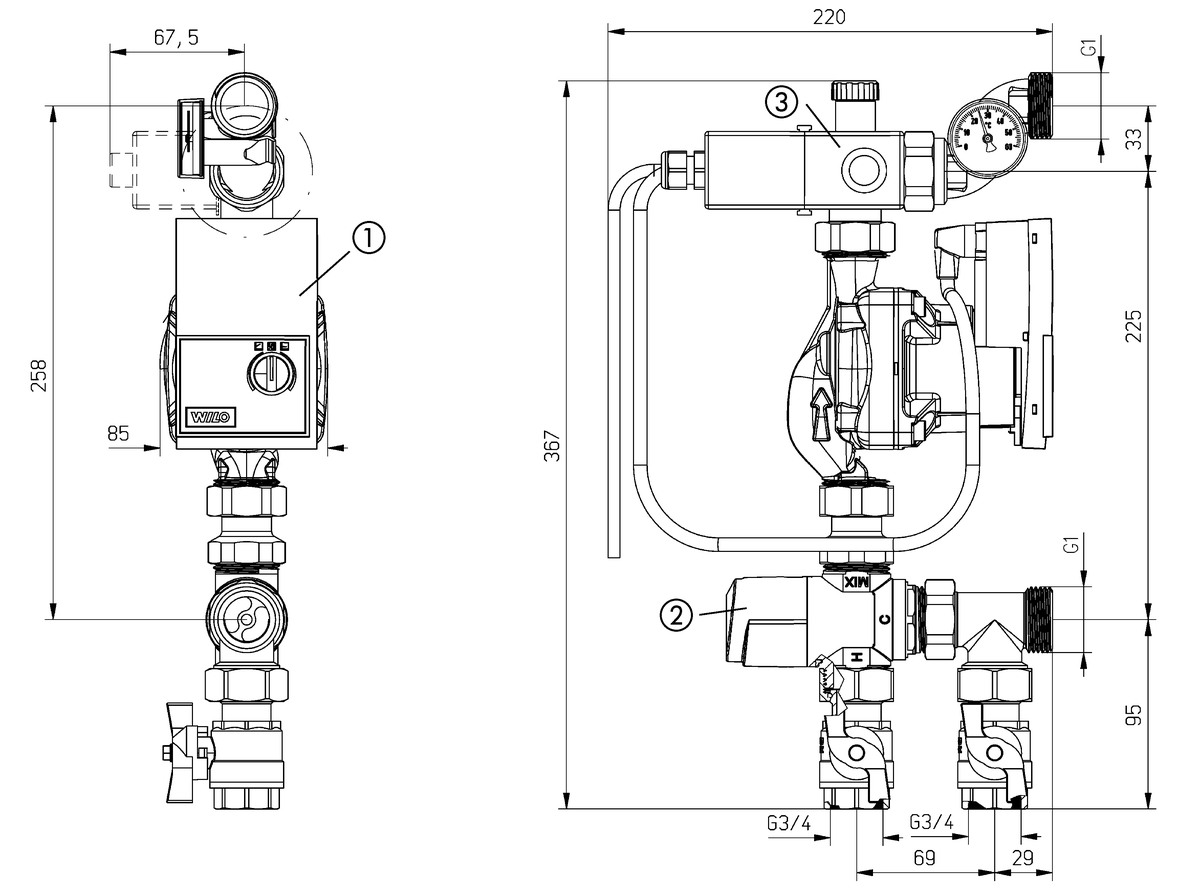

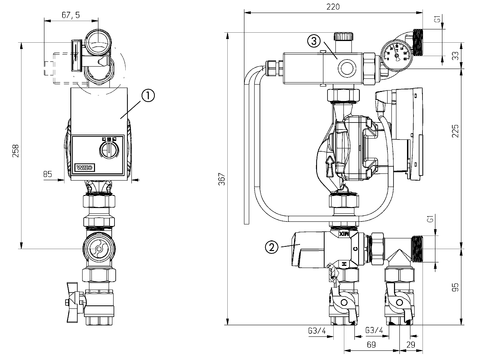

Dimensions (in mm)
  1. Circulation pump WILO Yonos PARA 15/6 RKA 130
  2. 3-way mixing valve ATM 563
  3. Safety temperature limiter with thermometer and de-aeration unit
