Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired

AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 VOR 76110 object_image_95326imagemain_en AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 VOR 76110 object_image_95326imagemain_en
CosiTherm Basic Klemmleiste WB 10 D8-230
AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 VOR 76110 object_image_95326imagemain_en
AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 BEF 76110 AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 BEF 76110
CosiTherm Basic Klemmleiste WB 10 D8-230
AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 BEF 76110
AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 VOR 76110 object_image_95326imagemain_en
AFRISO CosiTherm Basic Klemmleiste WB 10 D8-230 BEF 76110
Data sheet Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired
AFRISO Data sheet Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired

Benefits

  • Controller terminal bar for connection of actuators and room thermostats
  • For water-based underfloor heating systems
  • Suitable for room thermostat RT 10 D-230

Application

For wiring of the room thermostats and actuators. The controller terminal bar supplies the actuators and room thermostats.

Versions

Part no. Remember
Controller terminal bar WB 10 D-8-230 80236

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired Data sheet PDF
AFRISO Data sheet Single room temperature controller CosiTherm® Basic Controller terminal bar WB 10 D – wired
Operating instructions Operating instructions PDF
AFRISO Operating instructions
CosiTherm® Basic controller terminal bar WB 10-D 8-230 Declaration of Conformity PDF
AFRISO CosiTherm® Basic controller terminal bar WB 10-D 8-230

Up to 8 room thermostats and up to 20 actuators can be connected to the controller terminal bar. The room thermostat measures the actual temperature in the corresponding rooms. The reference temperature is adjusted by means of the keys of the room thermostat. The room thermostat then switches the thermostatic actuator via the controller terminal bar to control the heating circuit at the manifold.

Room thermostats D-BAT require a cable 2 x 0.5 mm², room thermostats D-230 a cable 3 x 0.5 mm².

It is also possible to connect a pump. When all actuators are de-energised (closed), the pump is switched off.

Connections
Max. 8 control circuits and 20 actuators
Max. 1 room thermostat per control circuit
Control circuits 1 + 2 = 4 actuators each
Control circuits 3 – 8 = 2 actuators each
Operating temperature range
Ambient:
5/50 °C
Storage:
5/50 °C
Supply voltage
AC 230 V
Housing
Plastic housing (PC/ABS)
Colour:
Light grey, similar to RAL 7047
W x H x D:
210 x 92 x 24 mm
Degree of protection:
IP 20 (EN 60529)
Weight
275 g
Scope of delivery
  • Controller terminal bar with connection cable/Euro plug
  • Operating instructions
CosiTherm® Basic controller terminal bar WB 10-D 8-230
AFRISO
CosiTherm® Basic controller terminal bar WB 10-D 8-230
AFRISO

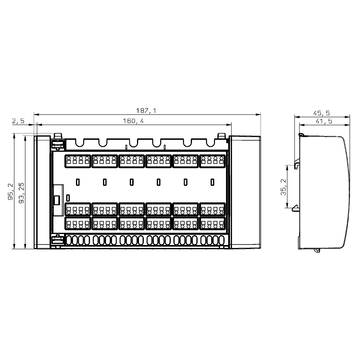

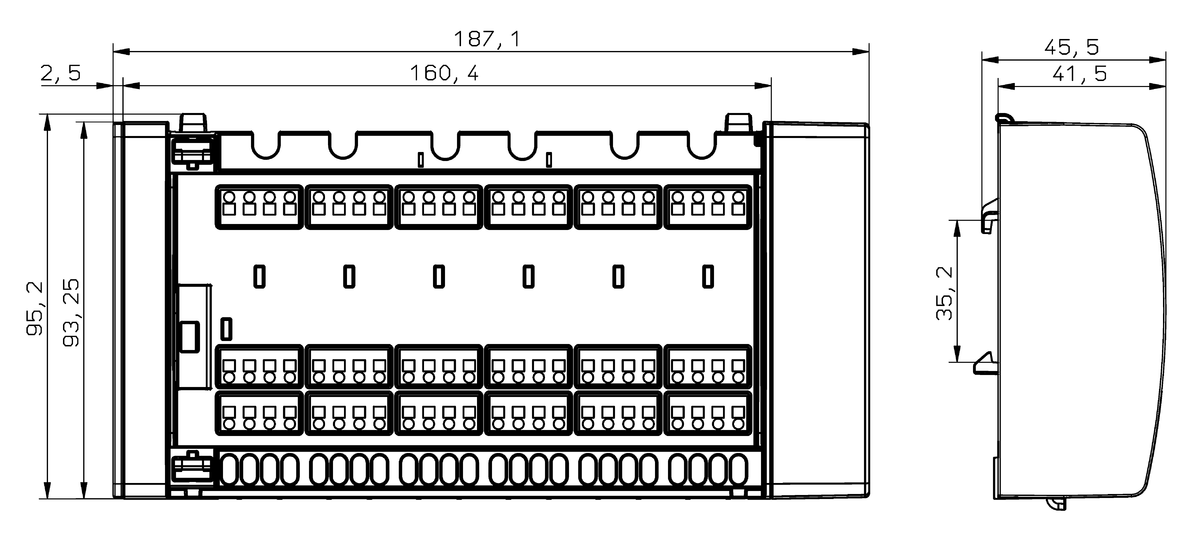

Dimensions (in mm)
