Data sheet AFRISOhome gateway HG 02
AFRISO Data sheet AFRISOhome gateway HG 02

Versions

Part no. Remember
AFRISOhome gateway HG 02 with WLAN and EnOcean® wireless module 78102
Extension module ZigBee 78103
Extension module Z-Wave V700/Gen 7 78126

Blue part no. = in-stock items

Description Format Language Download / Link
Data sheet AFRISOhome gateway HG 02 Data sheet PDF
AFRISO Data sheet AFRISOhome gateway HG 02
Product range: AFRISO smart home Brochures PDF
AFRISO Product range: AFRISO smart home
Whitelist AFRISOhome Gateway: Interoperable wireless produkte Product range: AFRISO smart home PDF
AFRISO Whitelist AFRISOhome Gateway: Interoperable wireless produkte
Mobile App AFRISOhome Product information PDF
AFRISO Mobile App AFRISOhome
AFRISOhome gateway HG 02 Declaration of Conformity PDF
AFRISO AFRISOhome gateway HG 02

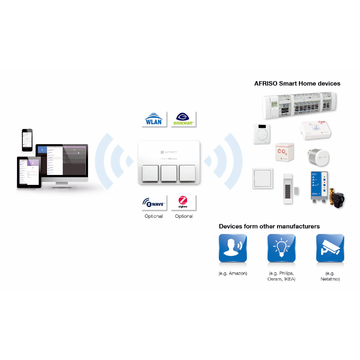

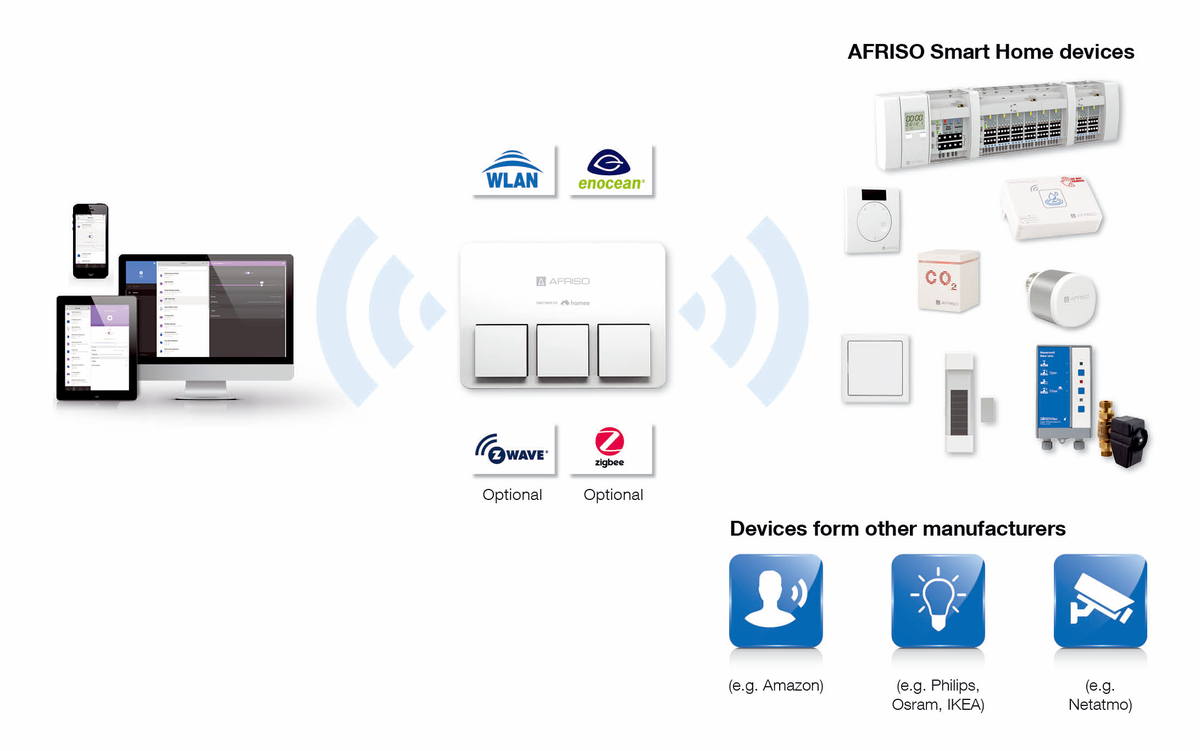

The AFRISOhome gateway HG 02 is the control centre of your smart home. The app (iOS, Android and WebApp) allows you to add and control a large variety of compatible devices (see whitelist at www.afrisohome.de) to the smart home. A WLAN interface is provided for Internet access and communication with routers and smartphones. All user data and passwords are stored and processed locally on the AFRISOhome gateway. Three slots are available that allow you to integrated additional wireless standards by means of an extension module. Currently, Zigbee and Z-Wave are provided.

The free AFRISOhome app for iOS and Android allows for fast and easy operation of the gateway. Smart home systems based on an AFRISOhome gateway excel with virtually unlimited customisability and extensibility.

Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+60 °C
Supply voltage
AC 100 – 240 V
Frequency:
50 – 60 Hz
Housing
W x H x D:
205 x 46.1 x 146 mm
EnOcean<sup>®</sup> wireless
Frequency:
868.3 MHz
Transmission power:
Max. 10 mW
Range:
10 – 30 m
depending on room arrangement and materials in the building
Scope of delivery
  • Gateway HG 02
  • Neutral cubes as covers
  • Power supply unit
