Accessories and spare parts CAPBs® sets for hydraulic balancing

AFRISO Prüfadapter G3/4 IG  mit Stecknippel DN5 VOR 24490 26010 93680 AFRISO Prüfadapter G3/4 IG  mit Stecknippel DN5 VOR 24490 26010 93680
Prüfadapter G3/4 IG mit Stecknippel DN5
AFRISO Prüfadapter G3/4 IG  mit Stecknippel DN5 VOR 24490 26010 93680
 VOR 27570 object_image_90360imagemain_en
 VOR 27590
 VOR 27630
 VOR 27640
 VOR 27650
 VOR 24470 25990 93660
 VOR 24480 26000 93670
AFRISO Prüfadapter G3/4 IG  mit Stecknippel DN5 VOR 24490 26010 93680
 VOR 24500 26020 93690
 VOR 27680
 VOR 27700
 VOR 27720
 VOR 27740
 VOR 27760
 VOR 27780
 VOR 27800
 DRU 27680
Data sheet accessories and spare parts CAPBs® sets for hydraulic balancing
AFRISO Data sheet accessories and spare parts CAPBs® sets for hydraulic balancing

Versions

Part no. Remember
Angled measuring needle ø 3.3 mm For measurement and adjustment of line control valves 511182
Measurement needle drill For cleaning the measuring needles 524783
ASS-PTSV85 KP5KP2.7 ⌀ 6 mm (red and blue) 511205
ASS-PTVQ85 KP2.7 ⌀ 4 mm (red and blue) 511206
ASS-PTSV86 KP5SN2.7 ⌀ 6 mm (red and blue) 1 x plug-in nipple DN 2.7, 1 x coupling DN 5 511207
Test adapter G⅜ IG SN5 with plug-in nipple DN 5 511171
Test adapter G½ IG SN5 with plug-in nipple DN 5 511172
Test adapter G¾ IG SN5 with plug-in nipple DN 5 511173
Test adapter G1 IG SN5 with plug-in nipple DN 5 511174
Adjustment key VarioQ For measurement of VarioQ valves 524792
Adjustment key for VarioQ and VarioQ-Kombi 524781

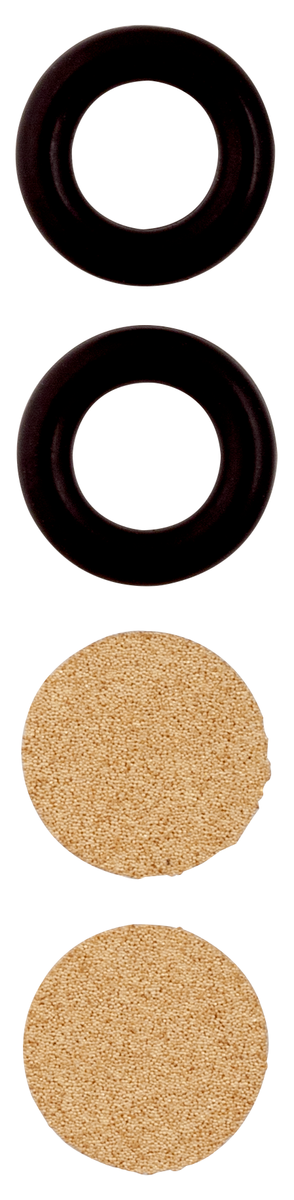

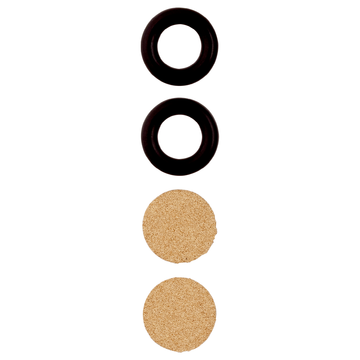

Sintered filter with O ring 524784
Reaction container 2.0 ml, blue For storing filters and O rings 524564
Screwdriver 6.5 x 25 mm 524775
Hex key 4 mm 524776
Battery Micro AAA LR03 1.5 V 523472

Blue part no. = in-stock items
