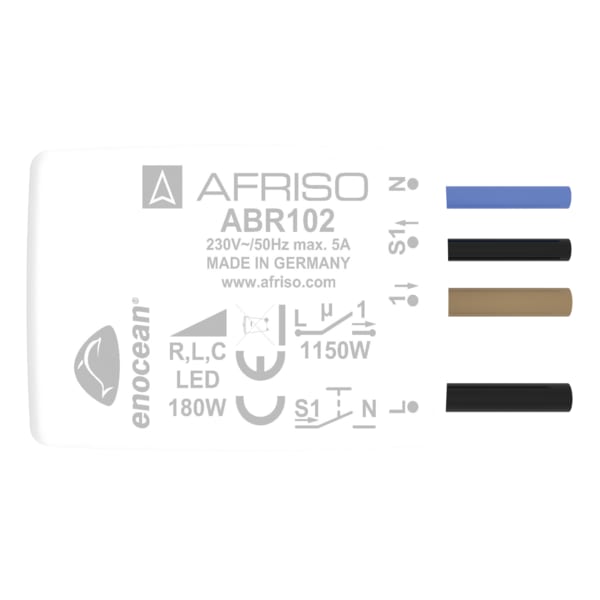

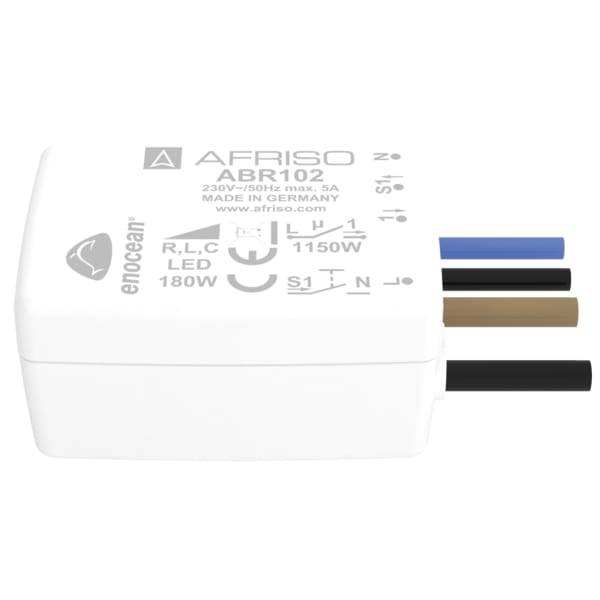

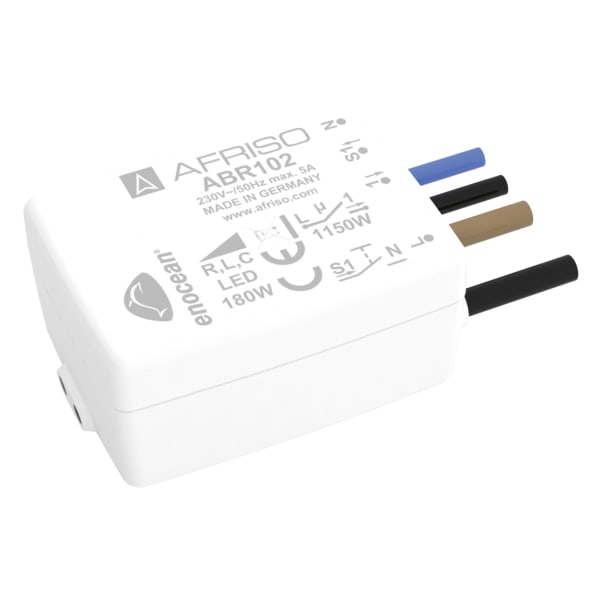

Funk-Einbaurelais ABR 102

dimming of LEDs and other lamps of type RLC up to 180 W
from 180 W to 1,150 W / 5 A: switching function
automatically determines the dimming characteristic of the lamp
supports deep dimming of LEDs (dimming values up to 1 %)
ECO mode: actuator send signals only after request or state change
EnOcean® wireless technology

For remote switching/dimming of lamps and for power measurement of the connected devices. Repeater function levels 1 and 2. Suitable for direct installation in in-wall junction boxes or lamps due to the small size. Approved loads: retrofit LEDs, AC-dimmable LED controllers, low-voltage halogen lamps with electronic and wound transformers, high-voltage halogen lamps and filament lamps.

The wireless relay ABR 102 can be used for dimming and switching of lamps. The wireless relay automatically determines the dimming characteristic of the lamp and allows for dimming down to 1 % of the maximum power of the lamp. If the load exceeds 180 W, the dimming function is deactivated. The connected electrical equipment can be switched on and offer. The wireless relay allows for teaching in up to 30 EnOcean® sensors. This includes, for example, switches, window contacts, the water sensor eco, presence detectors or card switches. The wireless relay can be used in parallel with conventional switches and three-way switches. Existing circuits become part of a building automation system. The relay can also be operated as a component of the AFRISOhome gateway. This enables remote control via mobile devices. The wireless relay also features a power metering function to measure the power consumption of connected equipment on an ongoing basis as well as a repeater function.
