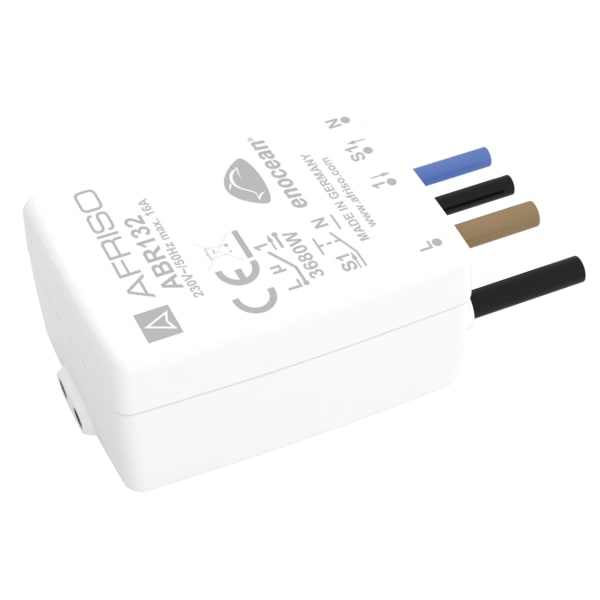

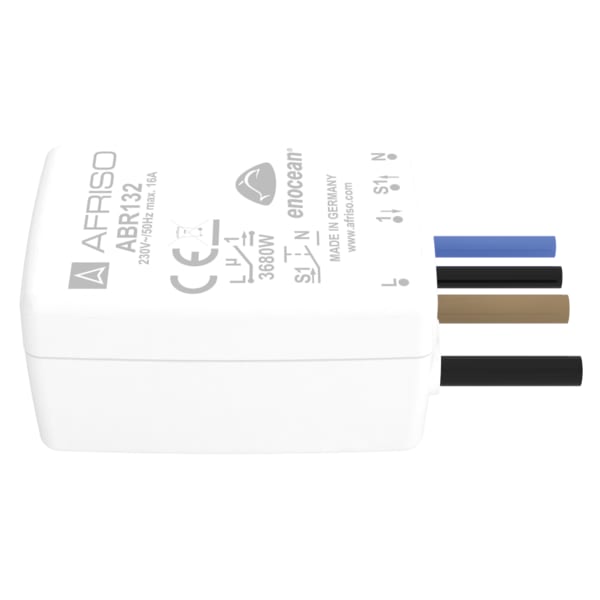

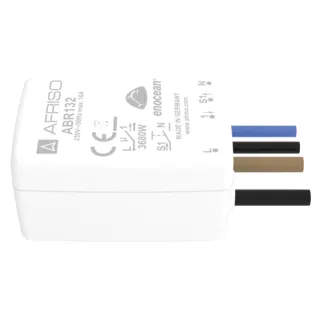

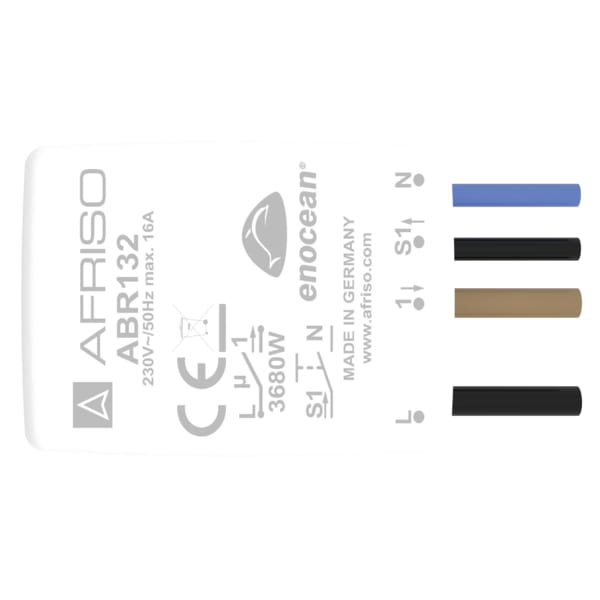

Funk-Einbaurelais ABR 132

for switching of electrical consumers
Heating control via on-off or PWM control
it is possible to teach in up to 30 sensors, control via AFRISOhome app
integrated power metering and repeater function
certified as per EN 60669-2-1, VDE 0632-2-1:2010-03
EnOcean® wireless technology
EEP (EnOcean® Equipment Profile): A5-38-08 or D2-01-09

For remote switching of electrical consumers and for on-off control or pulse width modulation (PWM) control as thermostat control (e.g. electrical heating systems or thermal actuators). For power metering of connected devices; with repeater function (levels 1 and 2). Suitable for direct installation in in-wall junction boxes or lamps due to the small size.

The wireless relay allows for remote control of electric devices. It is possible to teach in up to 30 sensors. This includes, for example, switches, window contacts and presence detectors. This allows you to implement a great variety of functions, for example, switching on the light when a person enters the room, etc. The relay can be used in parallel with conventional switches and three-way switches. Existing circuits become part of a building automation system. The relay can be operated as a component of the AFRISOhome gateway. This enables remote control via mobile devices. The wireless relay also features a power metering function to measure the power consumption of connected equipment on an ongoing basis as well as a repeater function.
