GS 1.1

gas alarm unit

Variants Documents

for private homes
Detection of, for example, natural gas (methane) and liquefied gas (propane, butane) in ambient air and generation of gas alarm

For the detection of flammable gases such as methane, propane, butane in ambient air in residential buildings.

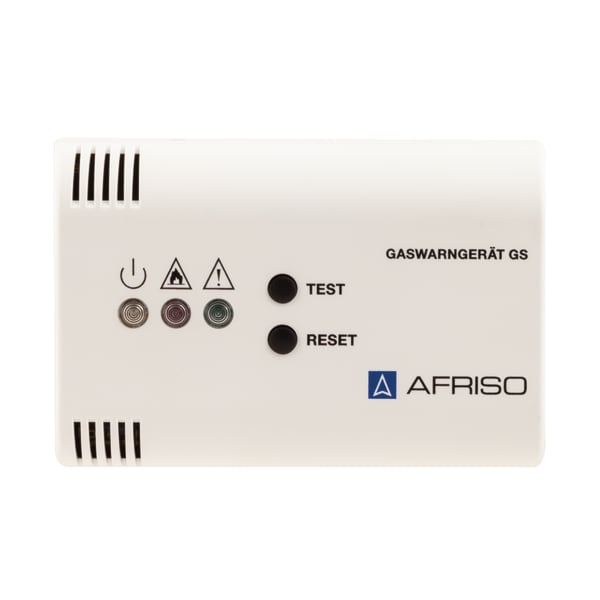

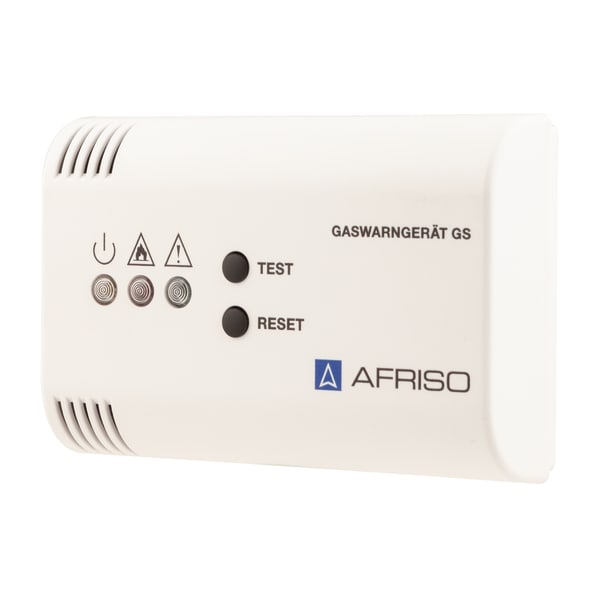

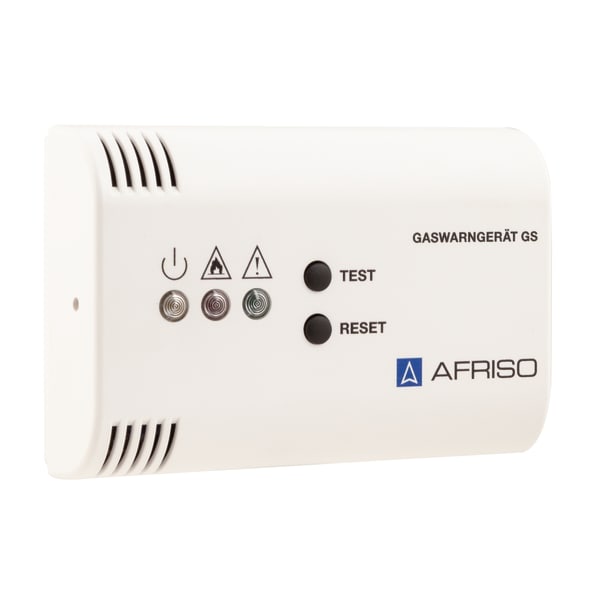

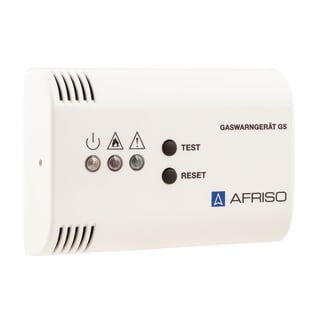

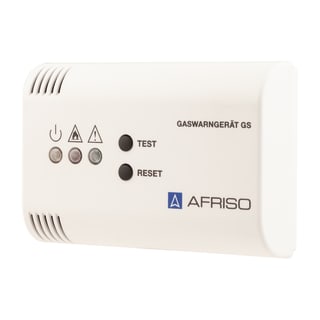

Gas alarm unit with integrated semiconductor sensor and alarm buzzer. LEDs for operation (green), alarm (red), error (yellow), the Test button and the Reset button are located at the front side of the housing. The alarm is triggered when approx. 20 % of the lower explosion limit (LEL) is reached. The audible alarm can be muted with the Reset button. The visual alarm remains active until the alarm condition no longer exists.

		Part no.
gas alarm unit GS 1.1 Methane		61184
gas alarm unit GS 1.1 Propane/butane		61186

in-stock items
manufactured goods

Supply voltage

: AC 230 V

Nominal power: 5 VA

Housing

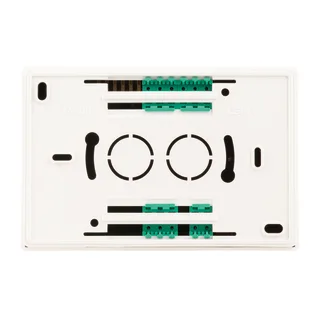

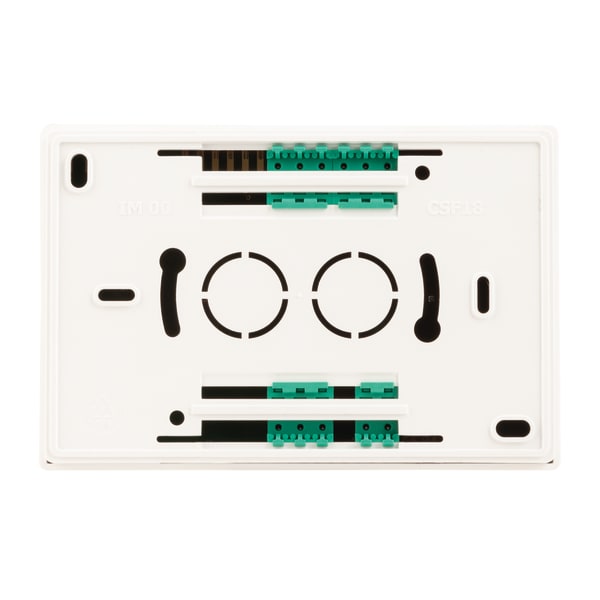

: Wall mounting plastic housing

W x H x D:: 120 x 80 x 35 mm

Weight:: ca. 900 g

Degree of protection:: IP 20 (EN 60529)

Operating temperature range

Ambient:: 0/50 °C

Storage:: -10/+60 °C

Humidity/moisture:: 5/90 % r.F.

Alarm value: ca. 20 % UEG

Alarm sound

: internal piezo buzzer

: min. 50 dB(A), at a distance of 1 m

Service life: ca. 5 Jahre

Gaswarngerät, Gassensor GS 1.1, GS 2.1, GS 4.1

PDF

Gaswarngerät, Gassensor GS 1.1, GS 2.1, GS 4.1

Manuals

PDF

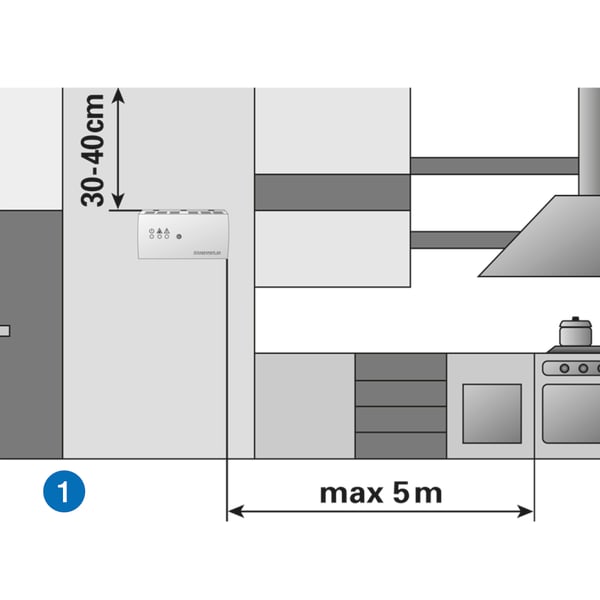

Application example
