Domestic technology Alarm units, probes and signalling devices GS 4.1
PRO_TEC_VOR_GASSENSOR_GS4.TIF
PRO_TEC_SAL_GASSENSOR_GS4.TIF
PRO_TEC_SAR_GASSENSOR_GS4.TIF
PRO_TEC_RUE_GASSENSOR_GS4.TIF
PRO_TEC_VOR_GASSENSOR_GS4.TIF
PRO_TEC_SAL_GASSENSOR_GS4.TIF
PRO_TEC_SAR_GASSENSOR_GS4.TIF
PRO_TEC_RUE_GASSENSOR_GS4.TIF
Images 4

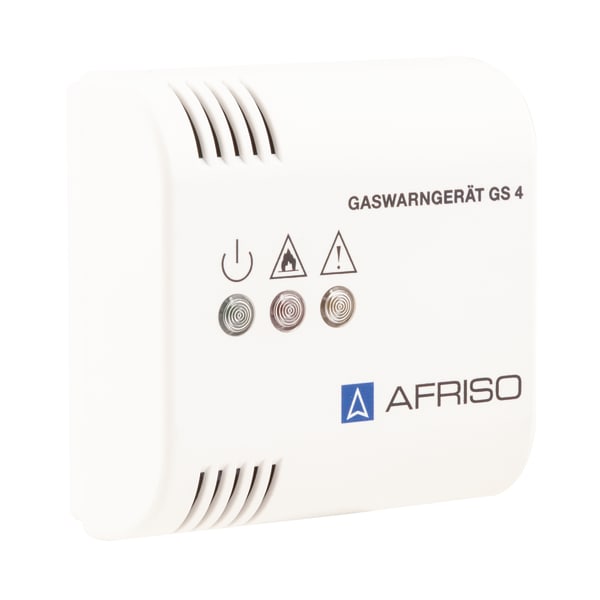

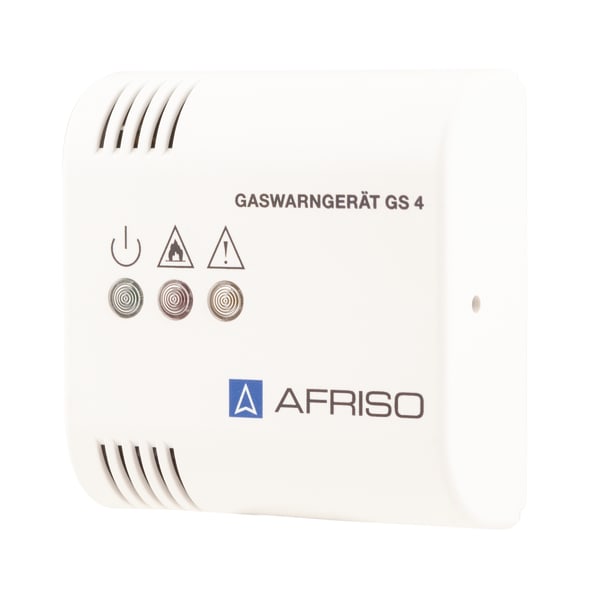

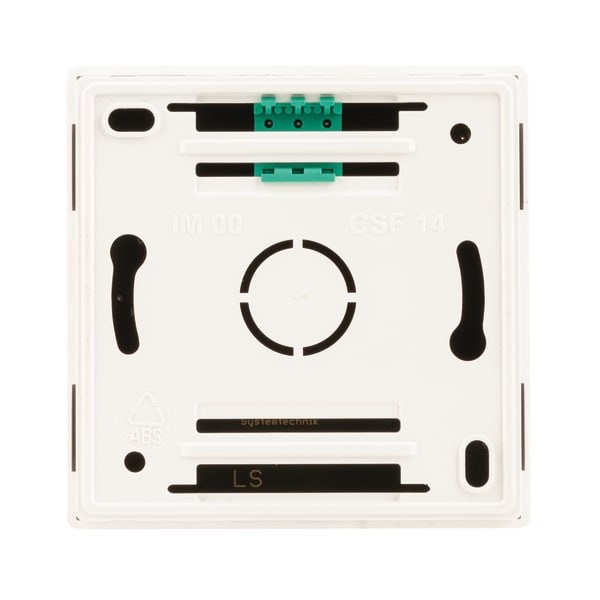

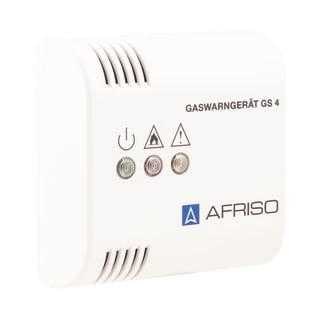

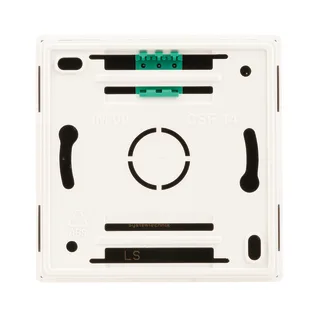

GS 4.1

Gas sensor

Variants Documents

  • additional sensor suitable for gas alarm unit GS 2.1
  • detectable gases: methane or propane / butane
  • LEDs indicate the operating and alarm state of the gas alarm system

Additional gas sensor to be used with the gas alarm unit GS 2.1. Enables monitoring at two points in different rooms.

Remote probe for gas alarm unit GS 2.1. Audible alarm is triggered by the gas alarm GS 2.1.
Detectable gases: Methane, butane, propane. LEDs at the sensor indicate the operating and alarm state of the gas alarm system:
LED green: operation
LED yellow: error
LED red: gas alarm

Part no.
Gas sensor GS 4.1 Methane61188
Gas sensor GS 4.1 Propane/butane61189
  • in-stock items
  • manufactured goods

Supply voltage
via GS 2.1
Housing
Wall mounting plastic housing
W x H x D:
80 x 80 x 35 mm
Weight:
ca. 500 g
Degree of protection:
IP 20 (EN 60529)
Operating temperature range
Ambient:
0/50 °C
Storage:
-10/+60 °C
Humidity/moisture:
max. 75 % r.F.
Alarm value
ca. 20 % UEG
Service life
ca. 5 Jahre

900_000_0260.PDF

Gaswarngerät, Gassensor GS 1.1, GS 2.1, GS 4.1
