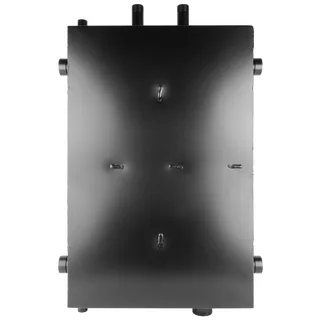

ABT 50 | 6805000

buffer tank

in-stock items

50 litres storage capacity
space-saving, wall-mounted installation, versatile connection system
integration of 2 heat generators possible
mounting option for electric heating element
optimum stratifi cation thanks to heat conduction system

Buffer tank for hot or cold storage in sealed heating systems as per EN 12828. The buffer tank allows for the integration of up to two heat generators and an additional electric heating element. The connection to the heating circuit operates as a hydraulic separator and is designed for direct connection of the AFRISO boiler manifolds KSV or the pump assemblies PrimoTherm®. Operation with a heat pump ensures a sufficient volume flow and keeps the heat pump from intermittent operation due to a lack of system volume. In addition, the buffer tank ensures that there is sufficient heat capacity for defrosting the outdoor unit.

Storage capacity: 50 l

Connections

Heat generator/chiller:: 4 x G1¼ IG

Heating/cooling circuit, boiler manifold:: 2 x screw connection G1 female x G1½ union nut

Heating element:: G1½ female

Operating pressure: max. 3 bar

Medium: Heating circuit water or water/glycol mixture (glycol max. 50 %)

Operating temperature range

Medium:: 5/90 °C

Ambient:: 0/60 °C

material

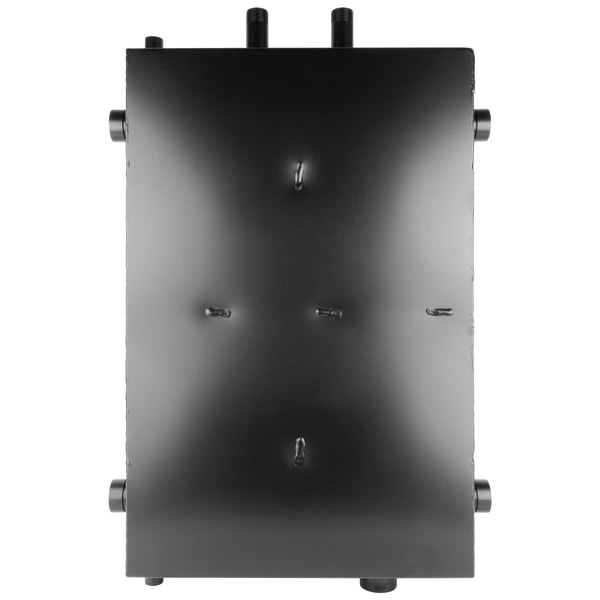

Storage tank:: Sheet steel (4 mm)

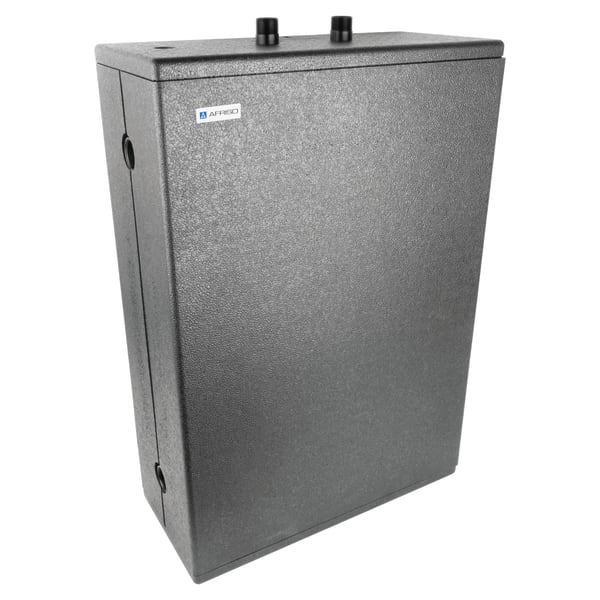

Heat insulation:: Polypropylene EPP

Weight: 30 kg

Dimensions (W x H x D): 842 x 555 x 252 mm

Length of heating element: max. 360 mm

Energy class

: (as per EU Regulation 812/2013)

: C

Heat losses: 56.4 W

Scope of delivery

2 x screw connection G1 female x G1½ union nut for heating circuit
1 x Verschlussstopfen G1½ für Anschluss Heizelement
2 x closing plug G1¼ for thermal source connection
1 x Verschlussstopfen G½ für Schnellentlüfteranschluss
1 x quick air vent with mounting valve R½
2 x Wandkonsolen
Drilling template
