Magnetite sludge separator ADS 110 | 40961

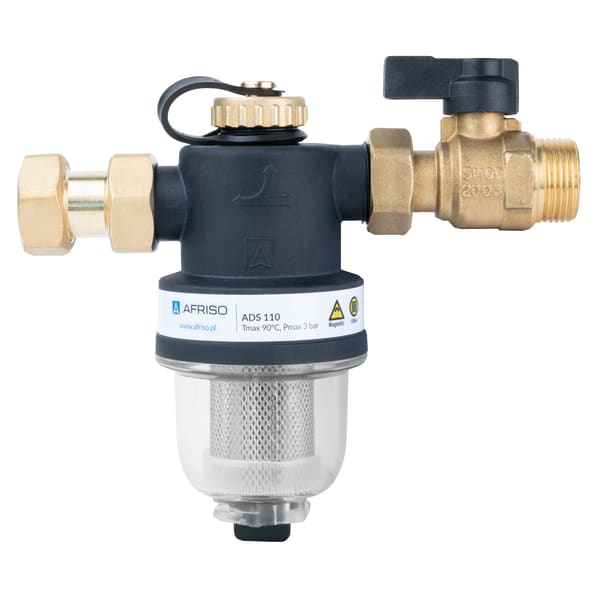

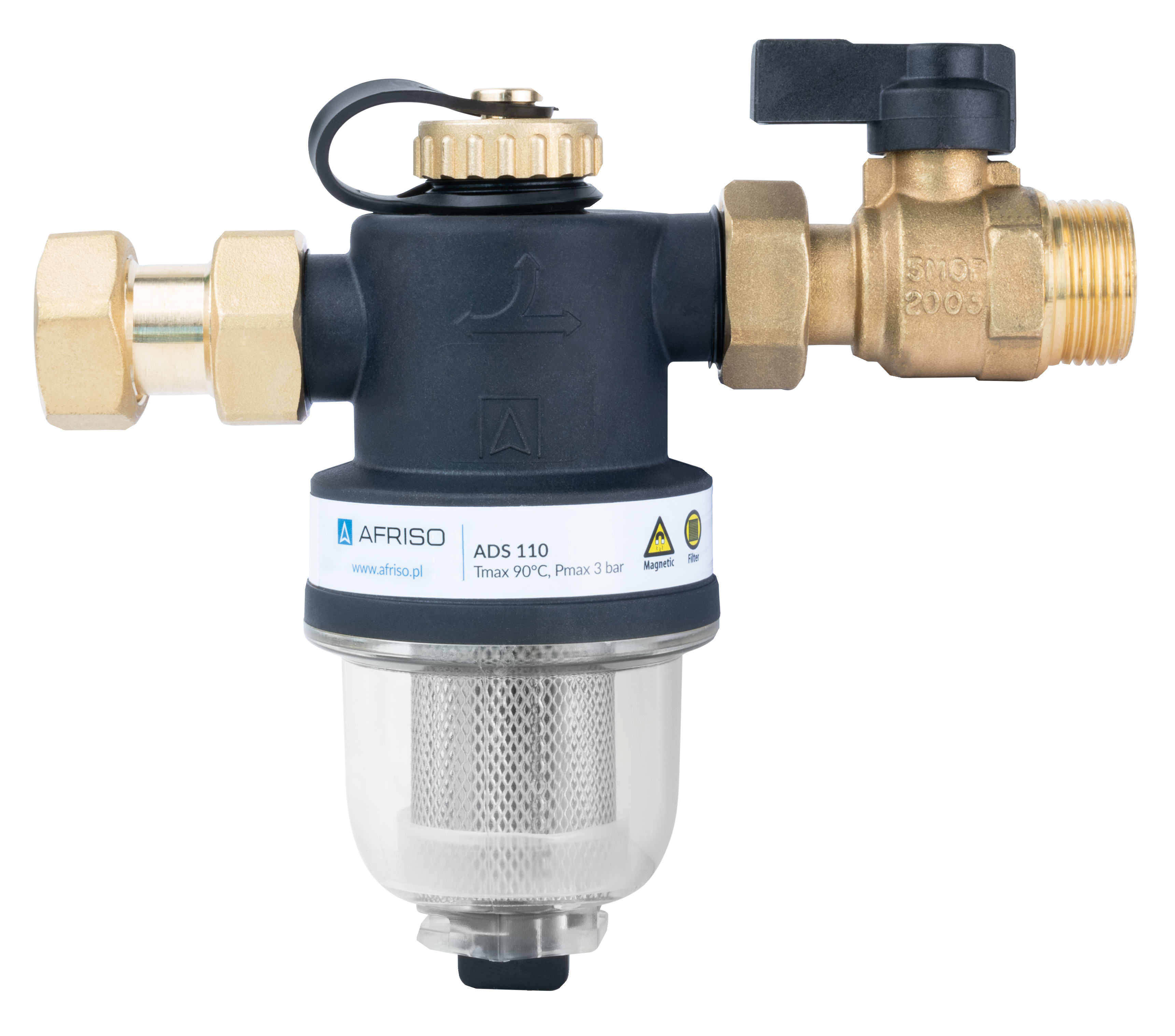

Magnetite sludge separator ADS 110

manufactured goods

  • effective separation of particles by means of magnet insert and filter sieve
  • ideal for wall-mounted condensing gas boilers with up to 35 kW
  • transparent filter cup for fast visual inspection

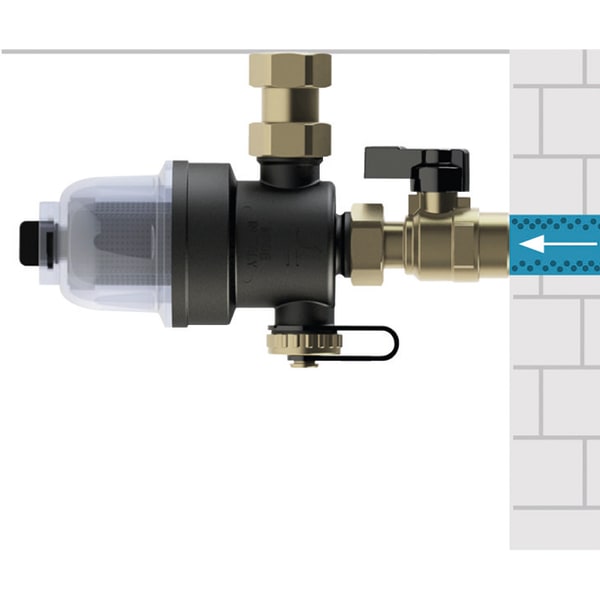

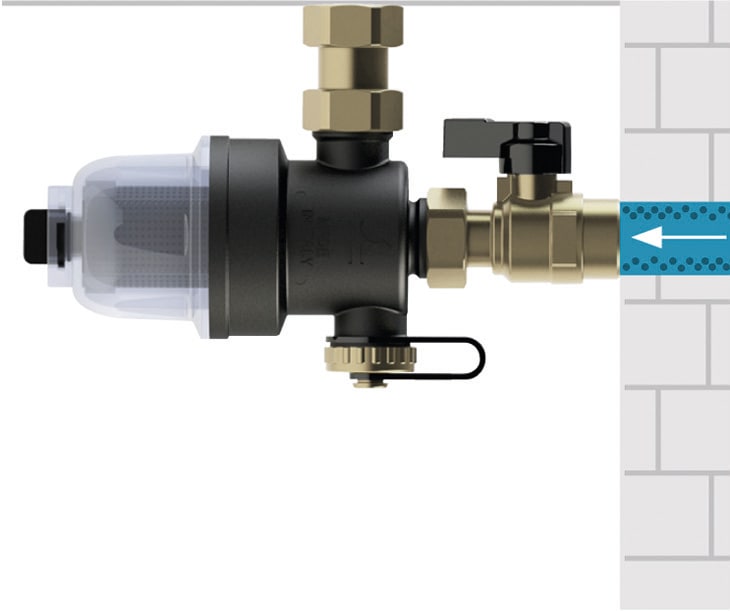

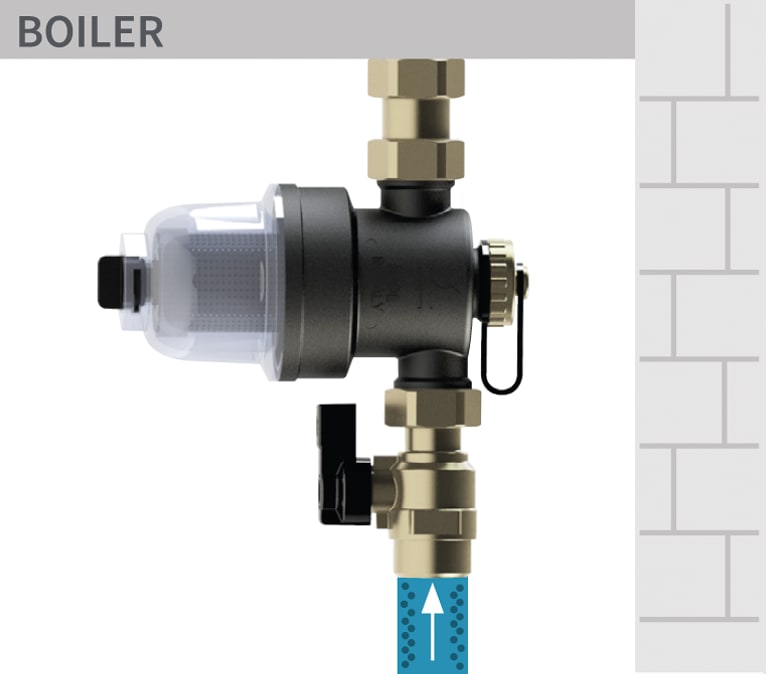

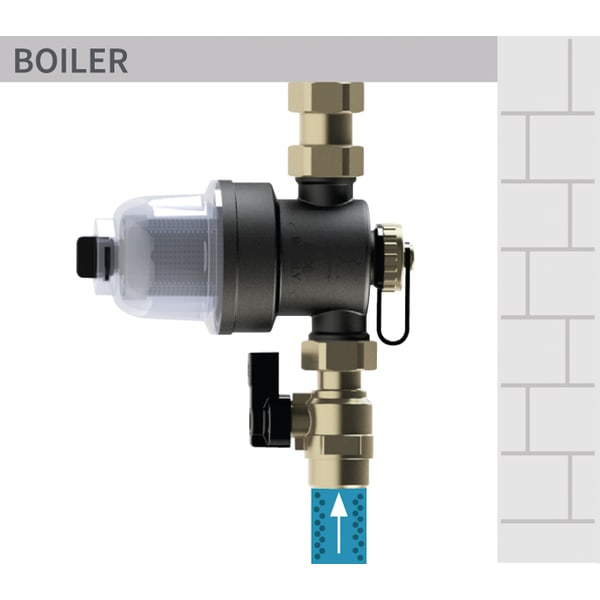

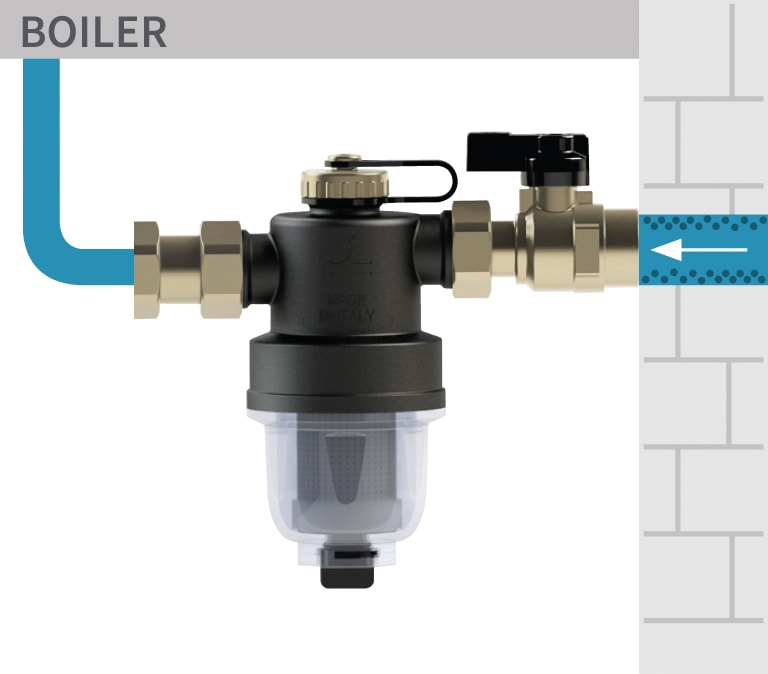

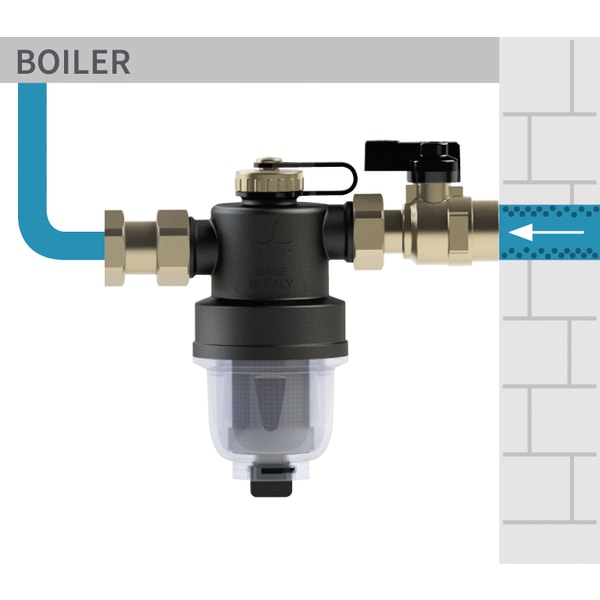

  • for applications where space is limited: horizontal, vertical or 90° angle installation

Designed for use below wall-mounted heat generators for continuous removal of solid impurities from heating systems that can damage other system components (heat exchangers, condensers, valves, pumps, etc.).
The sludge separator ensures clean water, reliable operation, better and faster heat transfer and thus contributes to reduced fuel consumption and emissions. Suitable for hot water heating systems, underfloor heating systems and other system equipment with water/glycol mixtures. Rust, lime particles, calcium, magnesium, oxides, carbonates and sludge as well as larger particles such as metal chips or construction residues are removed from the water – without the use of chemicals. Ideally, the unit is installed in the return line upstream of the heat generator.

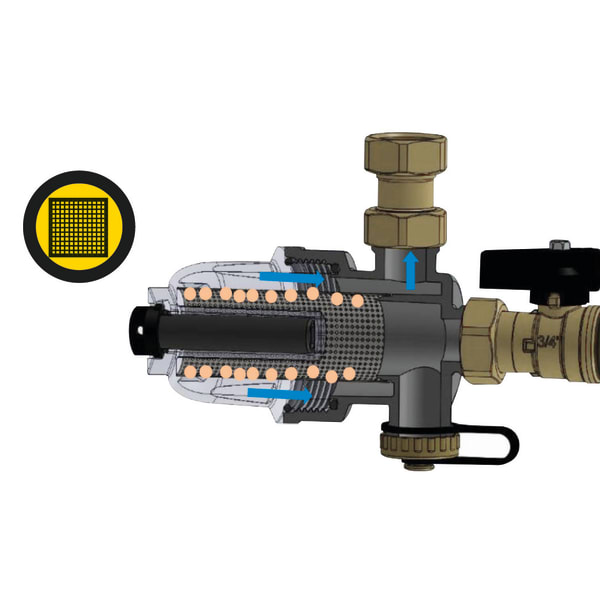

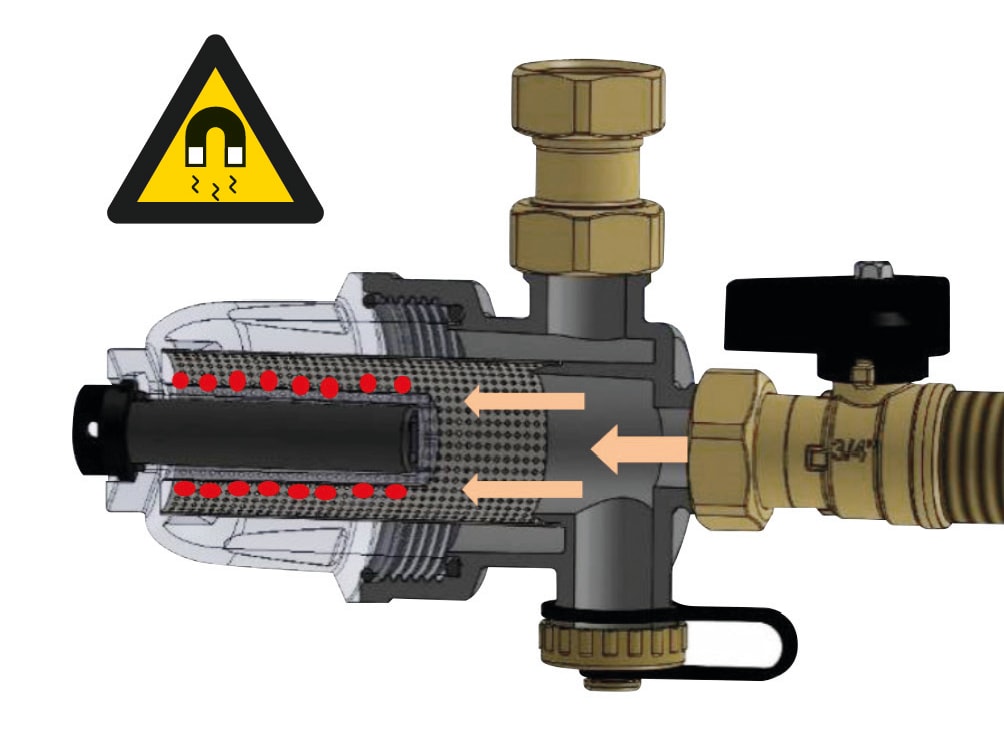

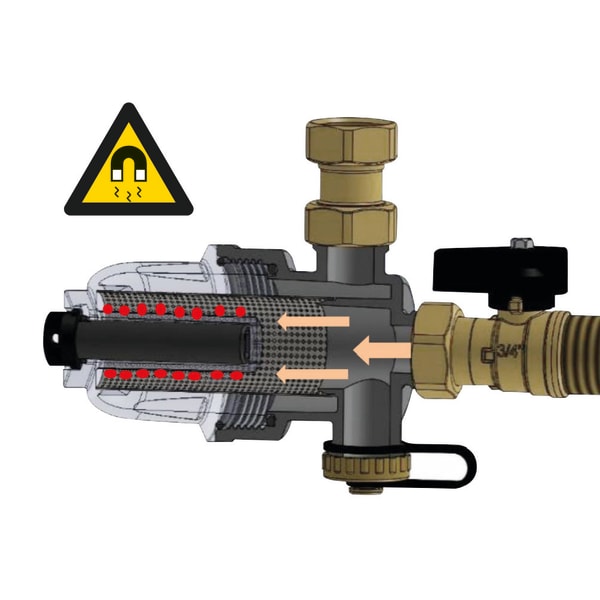

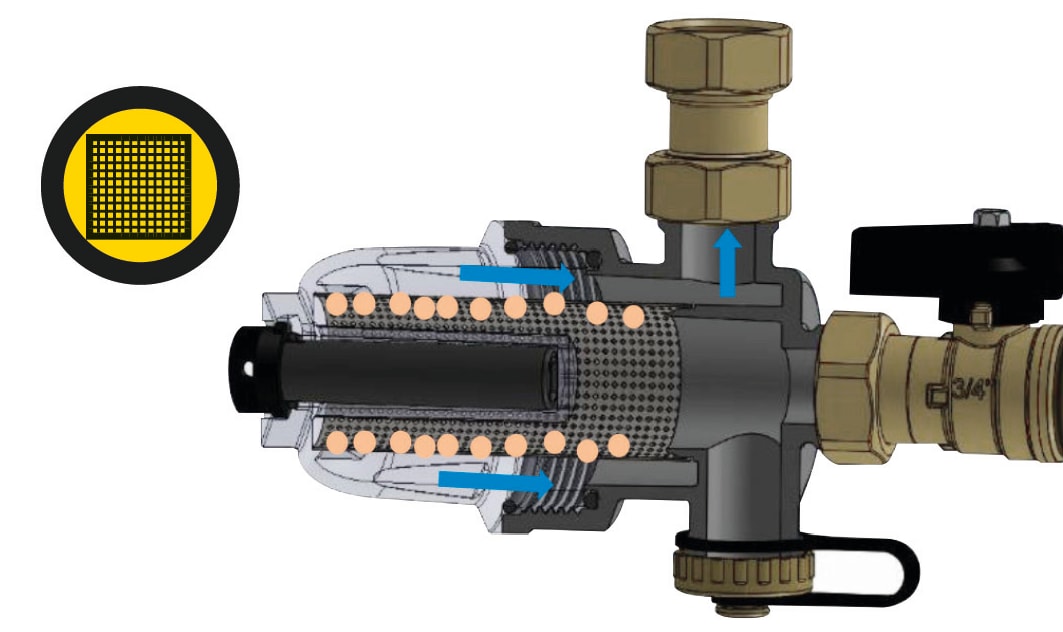

Extremely compact sludge separator with transparent filter cup and magnet insert. A drain valve or plug can be integrated for opening and draining. When the system water flows into the separator, metallic particles such as rust or metal chips are removed by a strong magnet. Other, non-metallic particles are removed by a 800 μm stainless steel sieve. Collected impurities can be removed quickly via the integrated drain valve. The sludge separator can be disassembled for thorough cleaning.

material
Housing:
Plastic (PA66 with 30 % glass fibre)
Connection pieces:
Brass
Filter sieve:
Stainless steel
Operating pressure
at max. 50 °C:
  6 bar
at max. 90 °C:
  3 bar
Flow coefficient Kvs
5.3 m³/h
Flow rate
max. 2 m³/h
Operating temperature range
Ambient:
0/90 °C
Capacity
139 ml
Connections
System:
G¾
Filter sieve
Mesh size:
800 μm (pre-assembled)
Magnet insert
Neodymium 1.2 T
Mounting position
horizontal, vertical, 90° angle
Scope of delivery
  • Magnetite sludge separator with 800 µm filter sieve
  • Montagewerkzeug

Click the corresponding image for detail views, additional information and dimension tables.

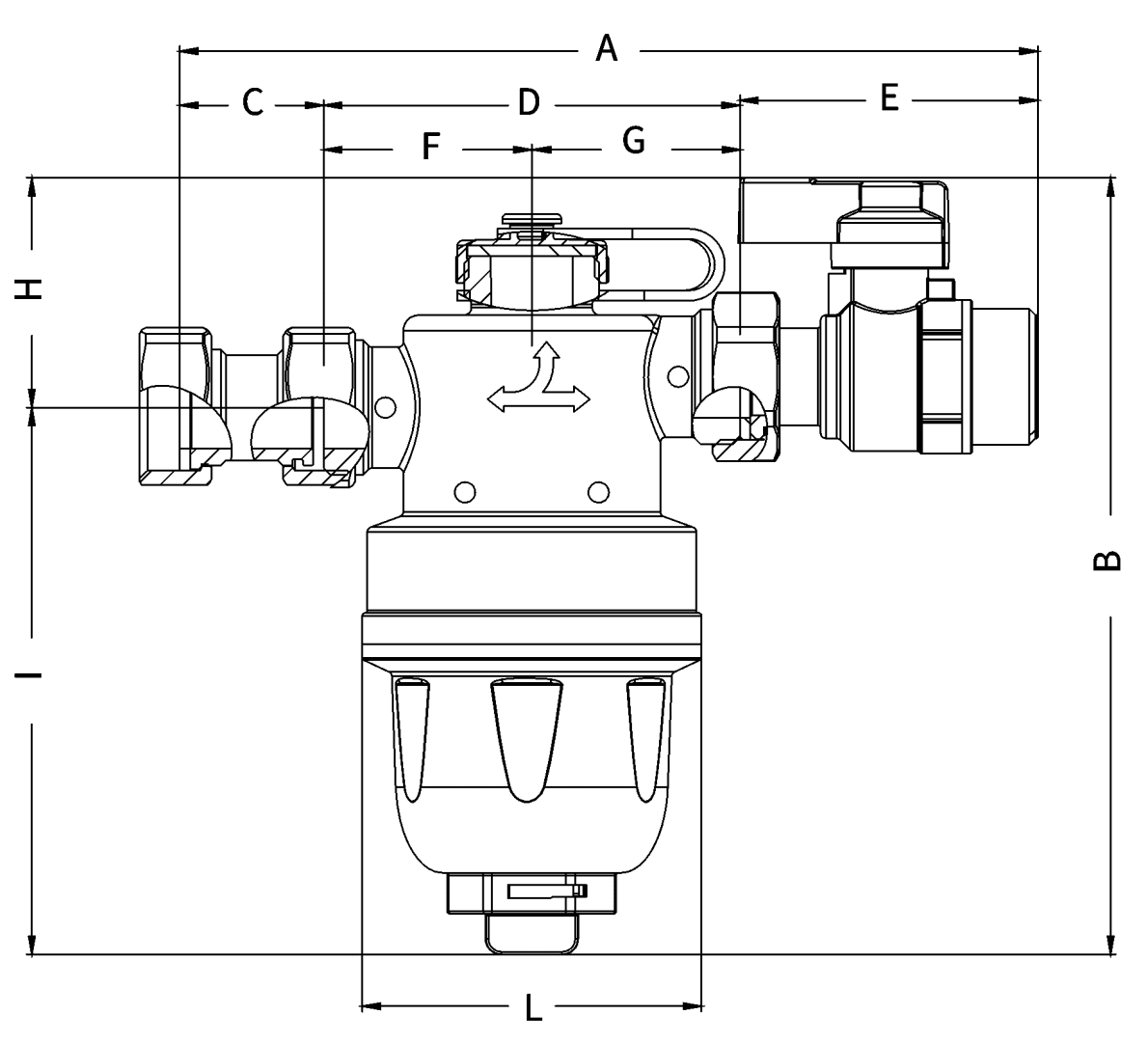

Maße (mm)
