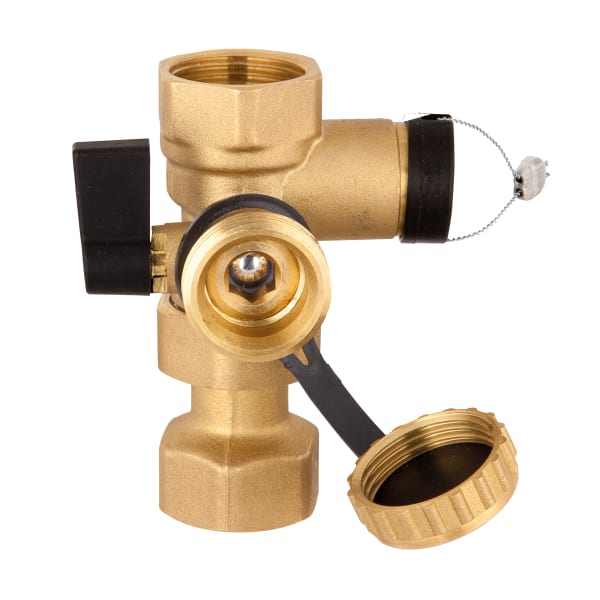

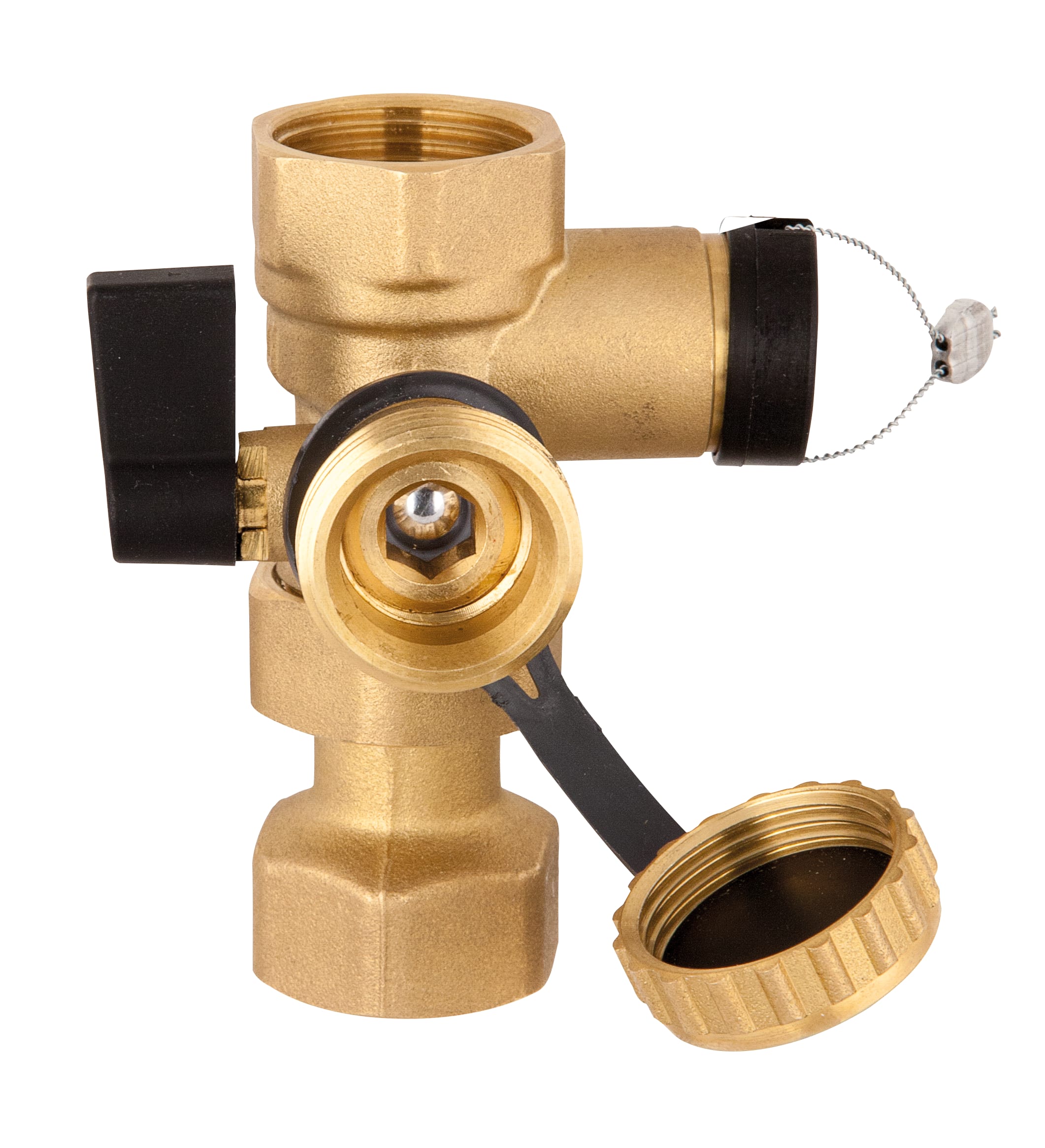

anti-tamper cap valve with boiler filling and drain valve KFE

Variants

  • integrated boiler filling and drain valve KFE for easy draining of the expansion vessel
  • high draining capacity for easy and fast draining
  • with shut-off valve which can be secured against inadvertent closing by means of a lead seal

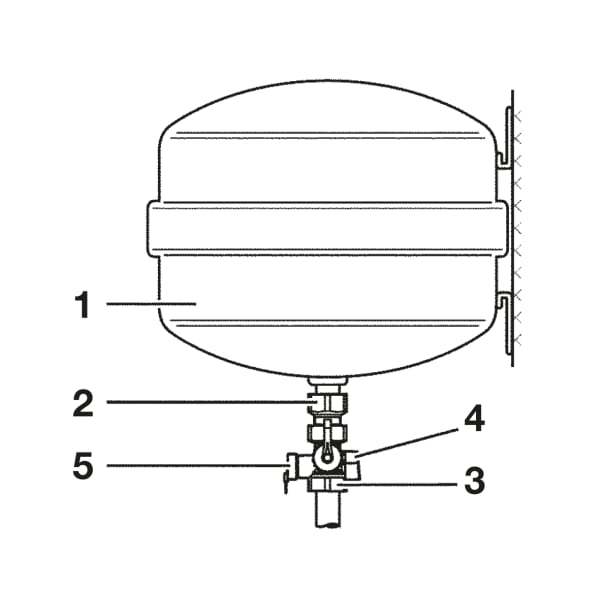

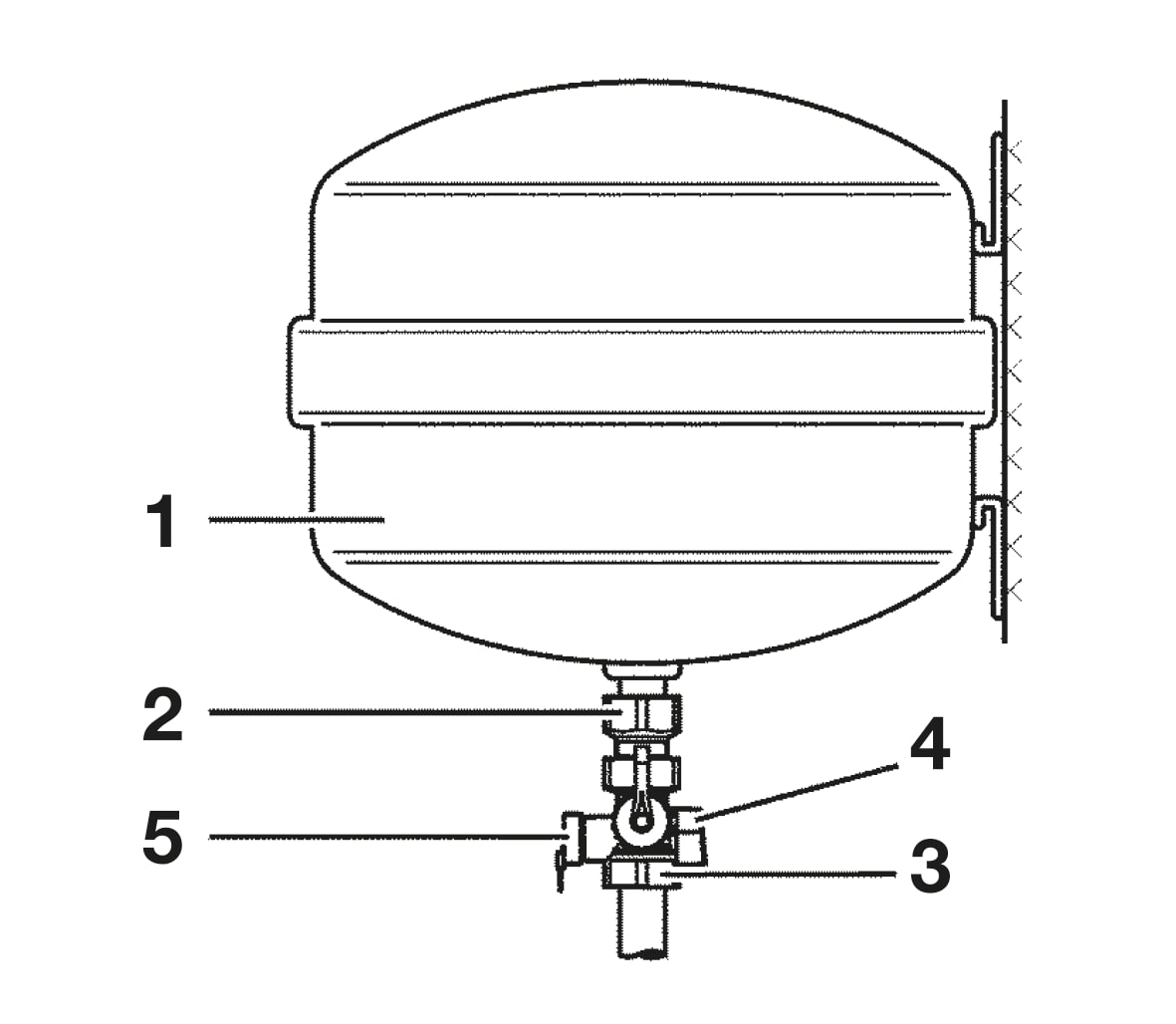

For connection, maintenance and checks of diaphragm expansion vessels in heating systems as per EN 12828 and in solar systems. To be installed at the water inlet of the expansion vessel.

Anti-tamper cap valve with screw connection G¾ x G¾ or G1 x G1. The shut-off valve is secured against inadvertent closing by means of a cap and a lead seal. The integrated boiler filling and drain valve KFE (connection: G¾ eurocone) allows for easy draining of the expansion vessel. For this purpose, a hose can be connected by means of a union nut. The expansion vessel can be shut off from the heating system and drained with a high draining capacity (time saving) via the drain valve for the required function check or for replacement.

Part no.
Anti-tamper cap valve G¾ x G¾with integrated boiler filling and drain valve KFE G¾77949
Anti-tamper cap valve G1 x G1with integrated boiler filling and drain valve KFE G¾77950
  • in-stock items
  • manufactured goods

Operating pressure
max. 10 bar
Operating temperature range
Medium:
0/120 °C
Connections
Inlet x outlet:
G¾ x G¾
Boiler filling and drain valve KFE:
G¾ male eurocone
Drain capacity
Kvs
anti-tamper cap valve with boiler filling and drain valve KFE: 1.5 m³/h
