Flow meter DFM 15-2M | 80969

Flow meter DFM 15-2M

in-stock items

integrated ball valve for adjustment and shutting off
direct indication of the flow rate in l/min
adjustment without diagram, table or measuring instrument
available with many connection types

For hydraulic balancing and flow monitoring in heating/cooling systems, air conditioning systems, solar systems and geothermal systems. DFM allows for fast hydraulic balancing of the system or of system components without diagrams, tables or measuring instruments. Suitable for heating and cooling water as well as water mixtures with standard corrosion protection and antifreeze agents.

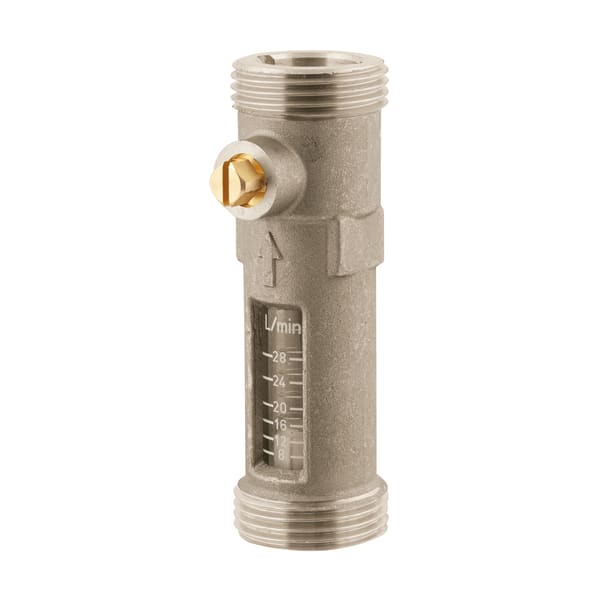

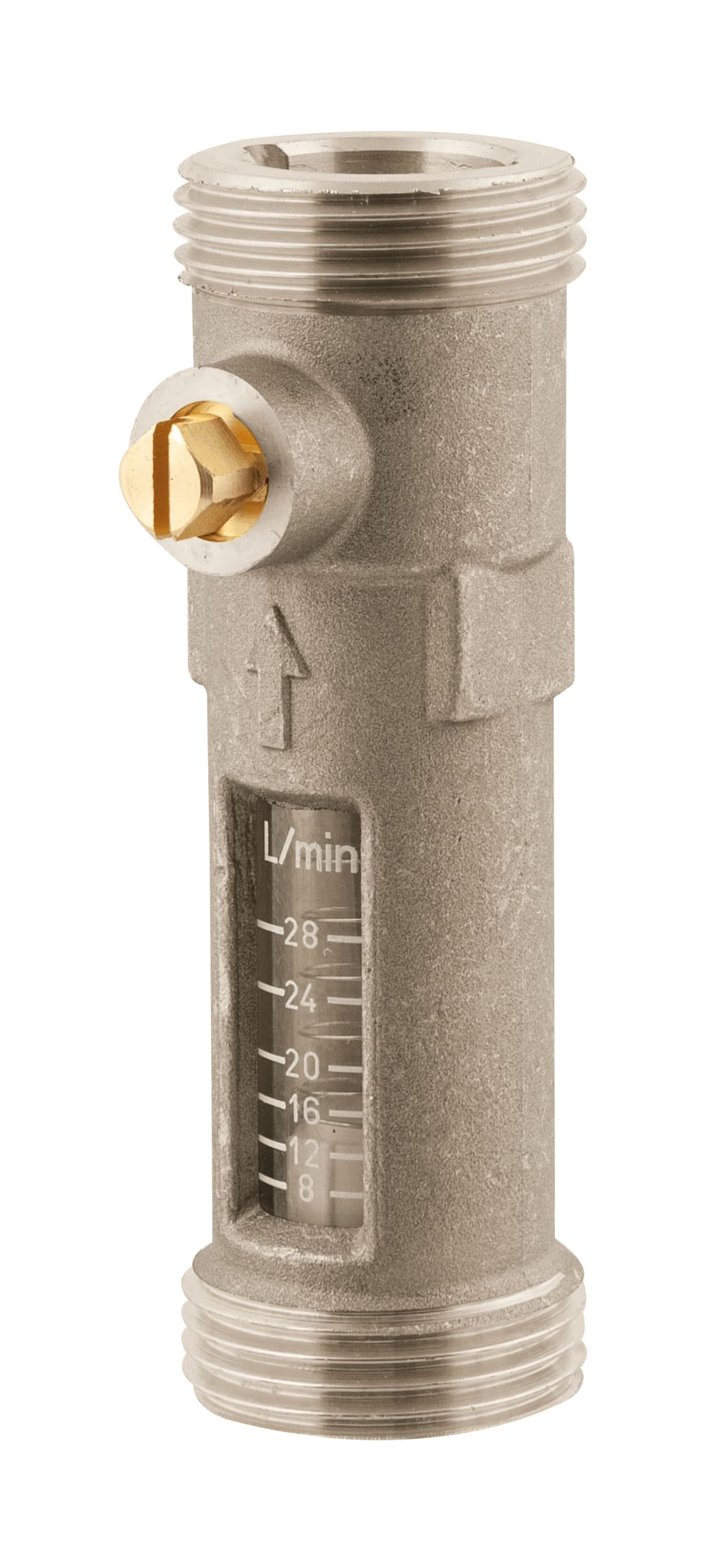

Compact flow meter with scale and ball valve for shutting off and adjustment. The flow meter can be installed in pipes in a horizontal, tilted or vertical position. Adjustments are made by means of a screwdriver via the adjustment screw. The reading mark corresponds to the lower edge of the rotameter/float. Systems with correct hydraulic balancing provide for optimum energy distribution and cost-efficient operation.

Operating temperature range

: max. 120 °C, short-term 160 °C

Operating pressure: max. 10 bar

Measuring principle: Rotameter type with counter spring

Measuring range: 8/28 l/min

Nominal diameter: DN 15

Housing: Brass, nickel-plated

Connection: G1 male x G1 male

Mounting position: horizontal, tilted or vertical

Options

other nominal diameters
andere Anschlüsse
other measuring ranges
