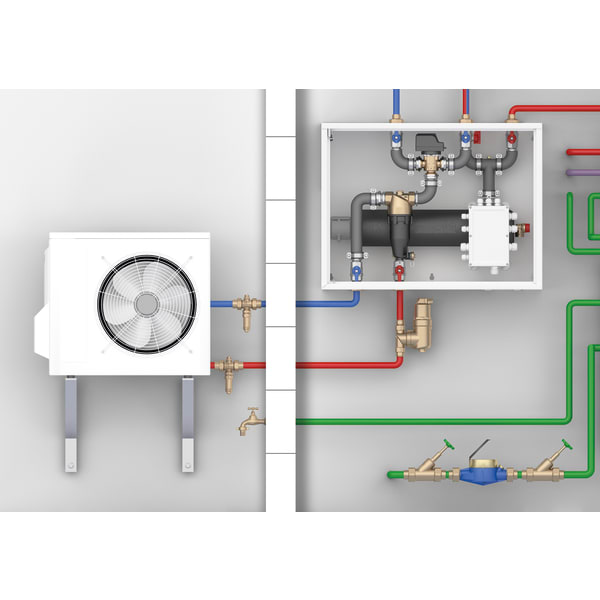

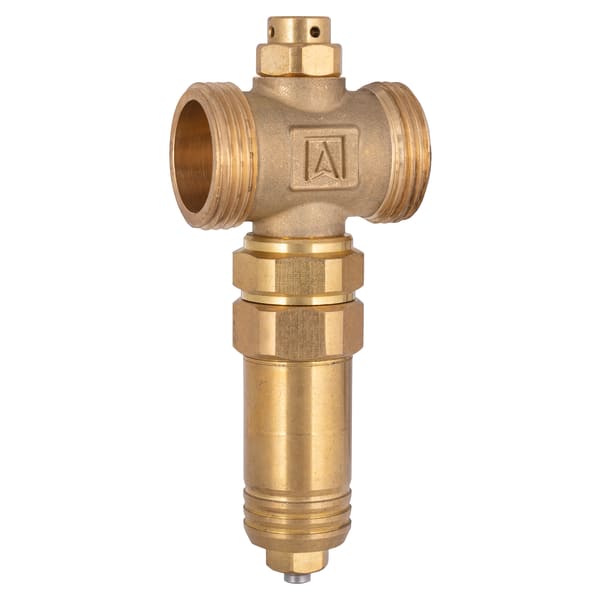

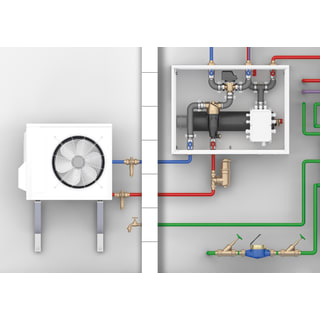

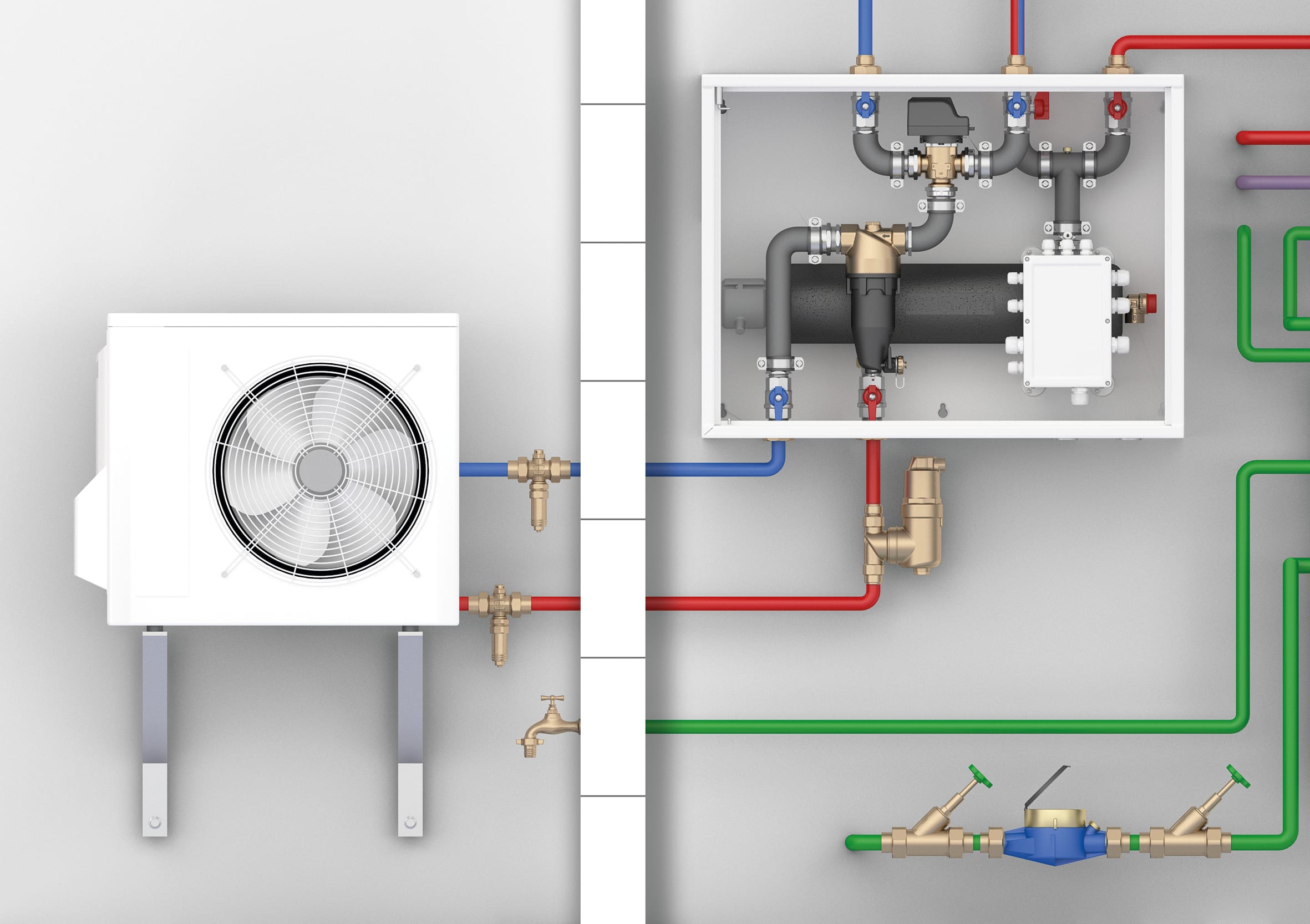

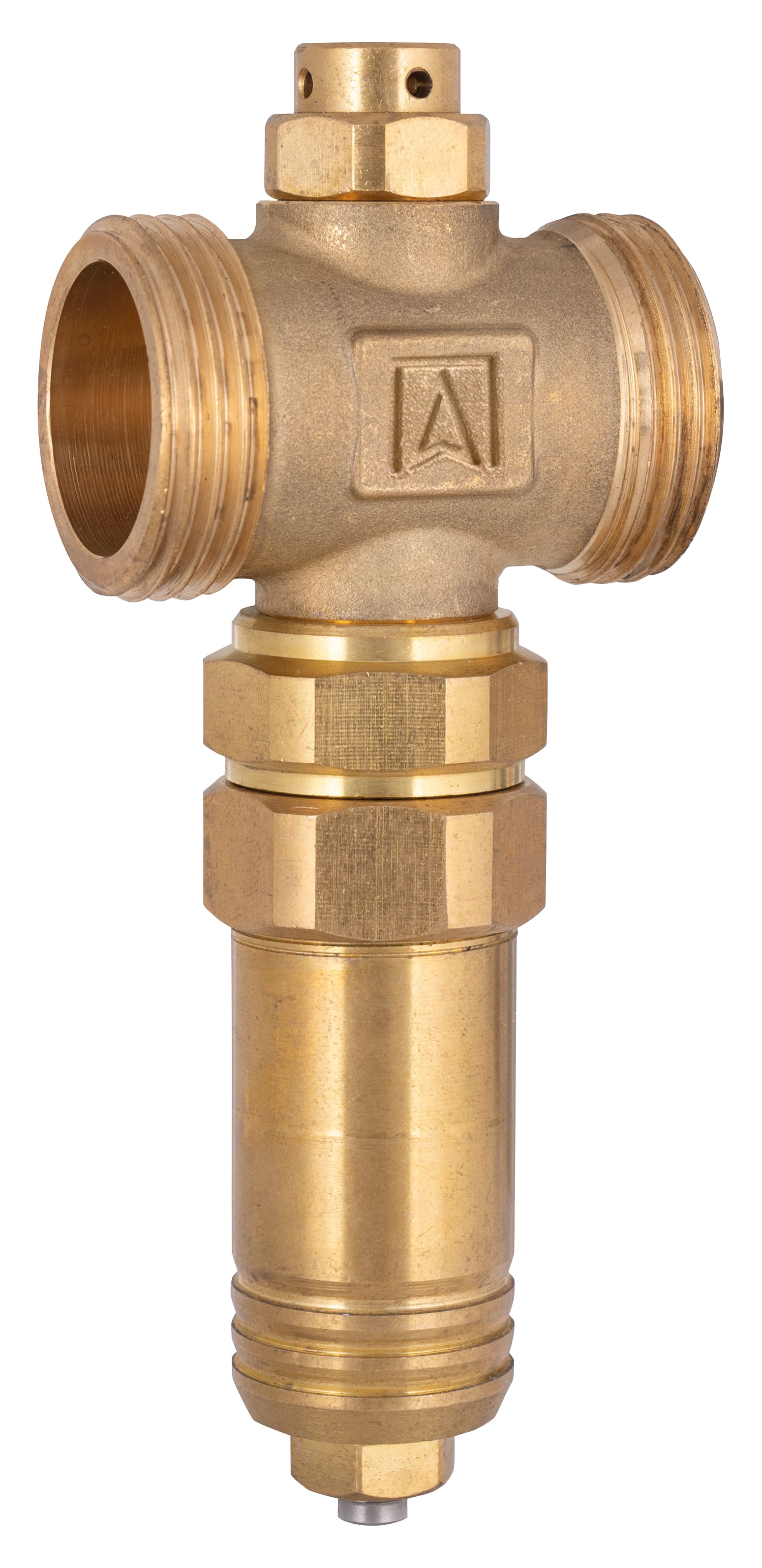

Images 2 Frost protection valve AAV Frostschutzventil für Wärmepumpen Variants Documents Benefits for protecting monobloc or hydrosplit heat pumps against frost damage in the case of malfunctions or power outagehelps to avoid major damage to system componentswith integrated vacuum breakerintegrated mounting valve for easy replacement of the thermostatic elementmaintenance-free Application For applications with monobloc or hydrosplit heat pumps that are connected directly to the heating circuit water outdoors. Description A frost protection valve with integrated vacuum breaker is installed in the flow and return lines of the system. The valve must be installed as close as possible to the outdoor unit of the heat pump so that sensitive components of the heat pump are protected from damage caused by freezing of the heating circuit water. If maintenance is required, the thermostatic cartridge can be replaced, checked and reinstalled without draining the heating circuit water thanks to the integrated mounting valve.If the temperature of the medium in the heating system drops to 3 °C, the thermostatic element inside the valve opens so the medium can flow to the outside. The resulting negative pressure opens the vacuum breaker and supports the draining of components such as the heat exchanger, pipes, pumps or valves. If the temperature of the medium rises above 4 °C, the thermostatic element automatically shuts off the flow of the medium from the system. Variants Technical data Downloads Variants Part no.Frost protection valve AAV 10281375Frost protection valve AAV 30281376 in-stock items manufactured goods Technical data System connectionAAV 102: G1 maleFlow coefficient KvsAAV 102: 55 m³/hNominal pressuremax. 10 barOpening temperature (medium)3 °C (± 1 °C)Closing temperature (medium)4 °C (± 1 °C)Operating temperature rangeMedium: 0/70 °CAmbient: -30/+60 °CMaterialHousing: brass (CW617N)spring: Stainless steelseals: EPDM Downloads Frostschutzventil AAV PDF English German English German Frostschutzventil AAV 102, 302 PDF Download
