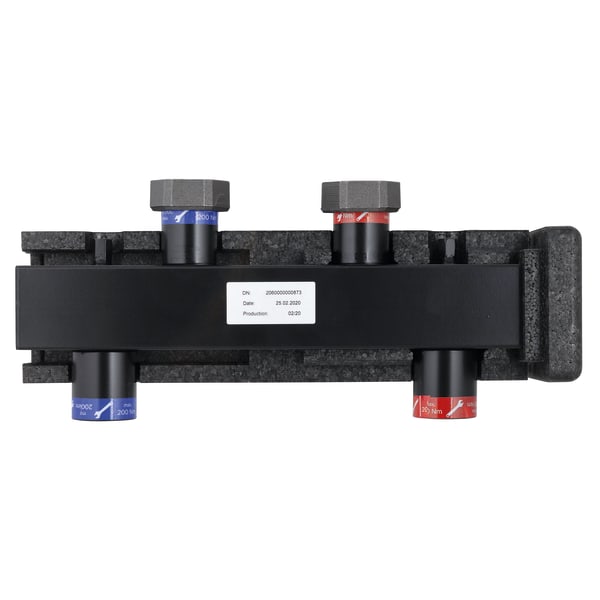

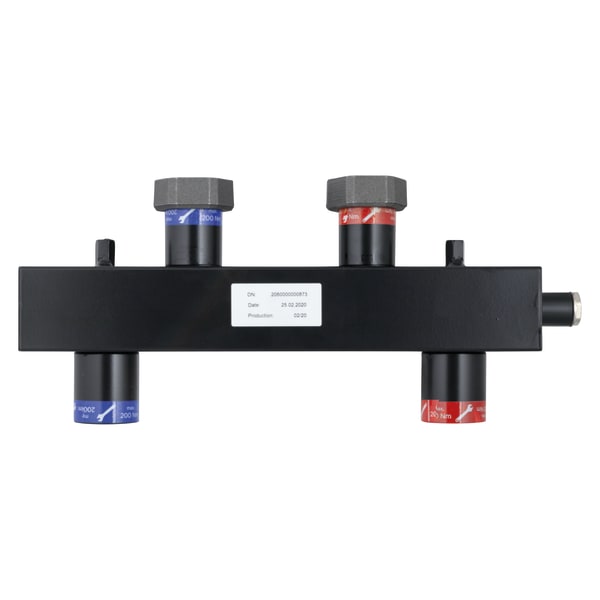

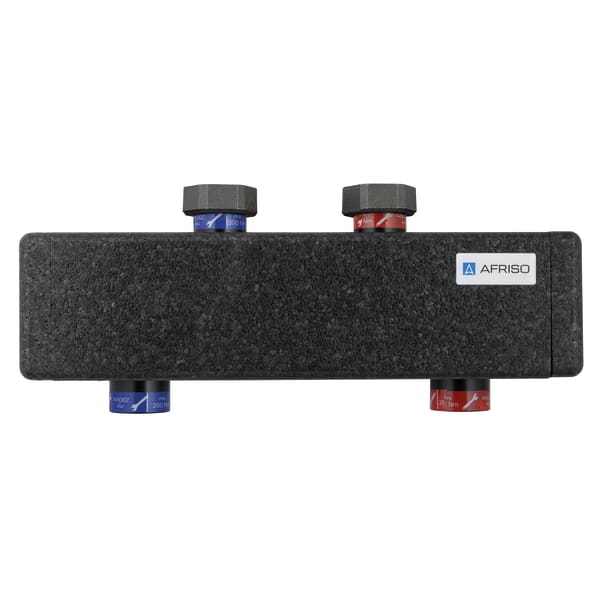

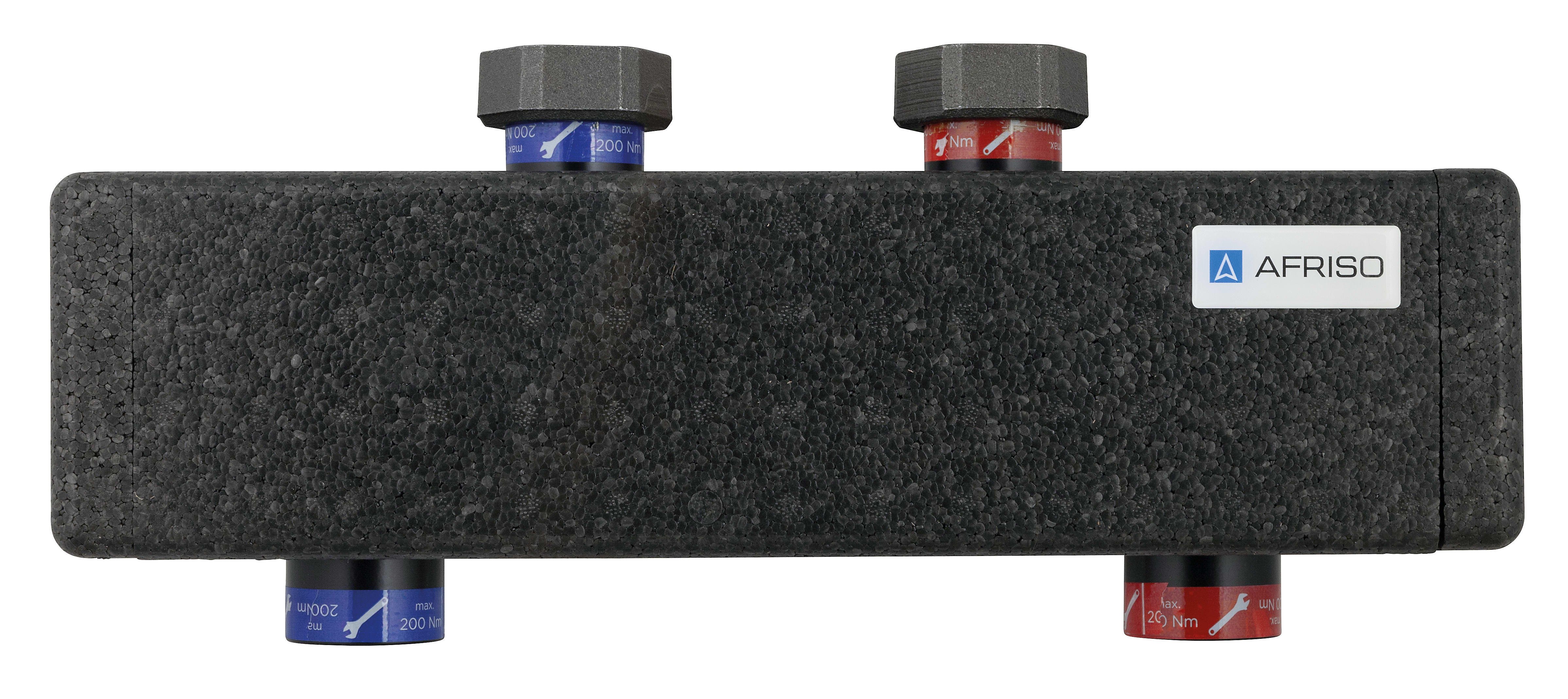

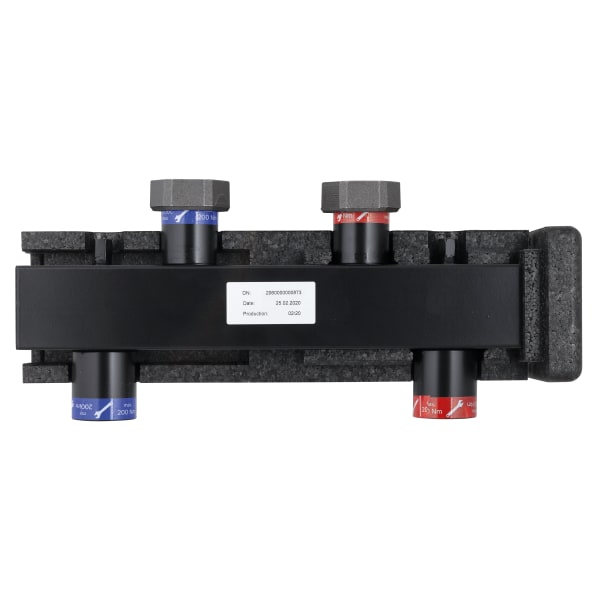

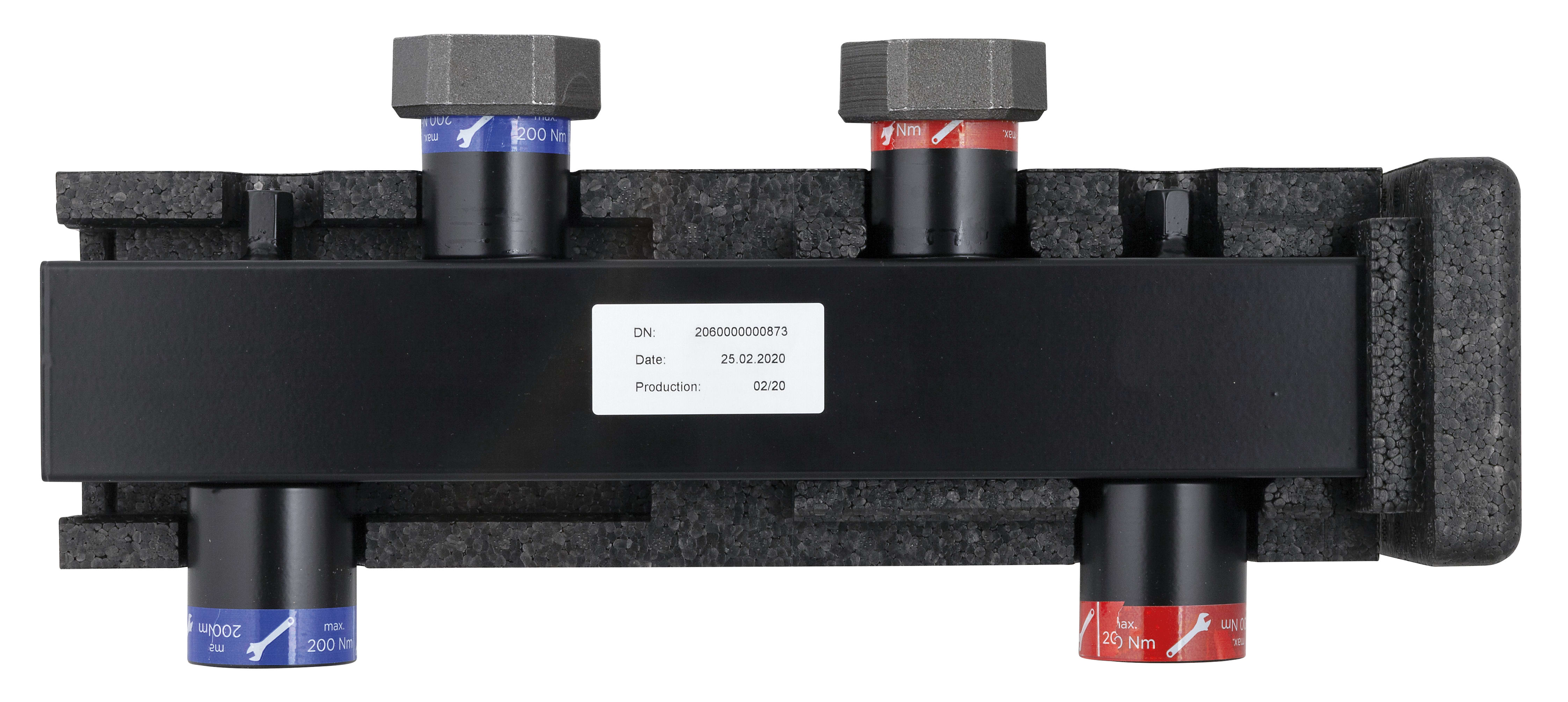

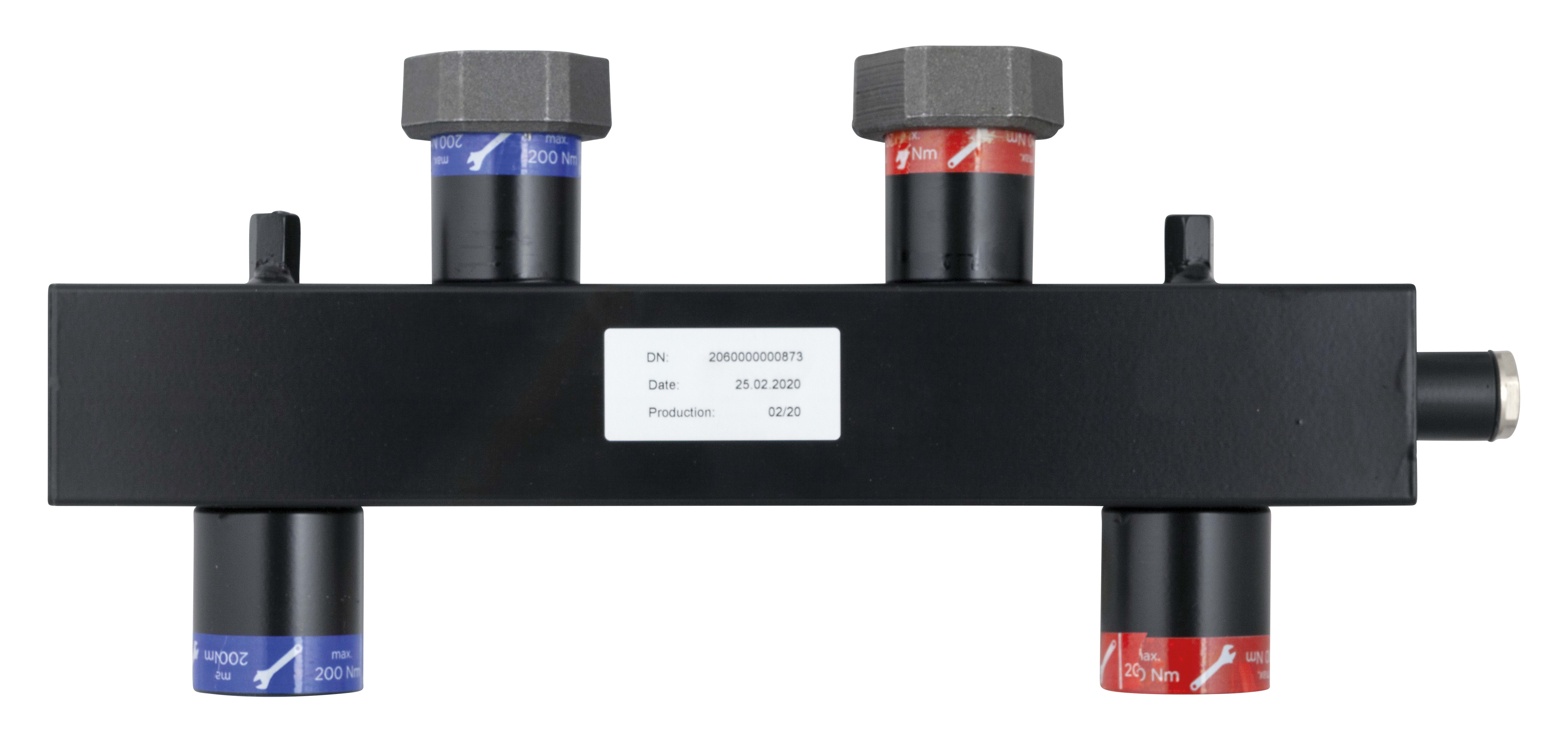

hydraulic separator

for heating pump assemblies PrimoTherm®

Variants Documents

For distribution of the heating circuit water in sealed heating systems as per EN 12828 from the boiler to the heating pump assemblies PrimoTherm®.

Hydraulic separator for retrofitting boiler manifold KSV (without hydraulic separator).

Part no.
hydraulic separator for KSV 125 70 kW77317
hydraulic separator for KSV 125 160 kW77323
  • in-stock items
  • manufactured goods

system connections
boiler side
  70 kW: Threaded socket G1¼ female
Manifolds
  70 kW: union nut G1½, flat-sealing
Operating temperature range
Medium:
max. 110 °C
Flow
  70 kW: 3 m³/h
System pressure
max. 6 bar
Heat insulation
Polypropylene EPP
