KSG Magnum

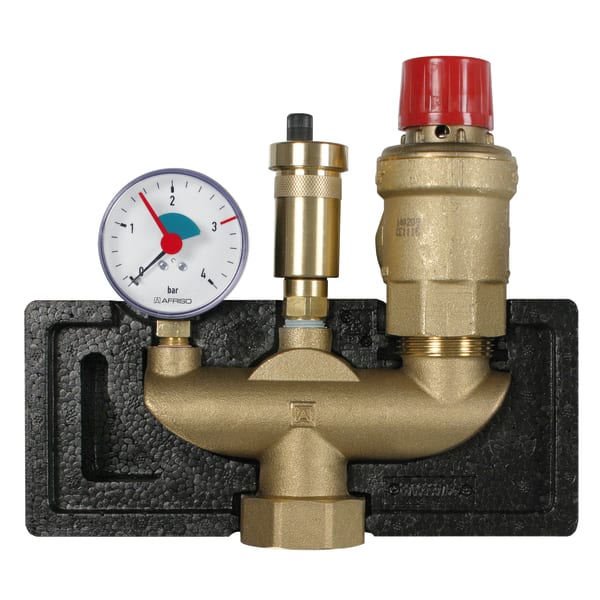

Boiler safety group assembly

Variants Documents

  • time-saving installation with pre-assembled, tightness-tested assembly
  • Vent chamber for collecting and separating the air and the water in the heating system
  • Quick air vent PrimoVent with two-way venting principle for automatic venting
  • pressure gauge for heating installations for direct indication of the system pressure
  • safety valve for protection against overpressure
  • Service-friendly: Quick air vent can be replaced without draining
  • for heating systems with a capacity of up to 200 / 350 kW

For sealed heating systems as per EN 12828 with a capacity of up to 200 / 350 kW.

Complete, pre-assembled, tightness-tested boiler safety group assembly. Consisting of carrier, pressure gauge for indicating the system pressure, quick air vent with aqua stop and diaphragm safety valve MS, in form-fit heat insulation. With self-sealing mounting valve for easy replacement of the quick air vent.

Heat capacityResponse pressureboiler connectionPart no.
Boiler safety group assembly KSG Magnummax. 200 kW  3 barG1¼ IG77627
Boiler safety group assembly KSG Magnummax. 350 kW  3 barG1½ female77628
  • in-stock items
  • manufactured goods

connection boiler
max. 200 kW: G1¼ IG
Operating temperature range
max. 120 °C
Dimensions
W x H x D:
230 x 190 x 105 mm
Insulation
Polypropylene EPP
Carrier
Brass
Diaphragm safety valve MS
Inlet x outlet
max. 200 kW: G1 x G1¼
Seal:
PTFE sealing ring, can be rotated
Response pressure:
  3 bar
Pressure gauges for heating installations
Range:
0/4 bar
Diameter:
63 mm
Connection:
G¼ bottom
quick air vent with aqua stop
Input:
G⅜
Nominal pressure:
  12 bar
