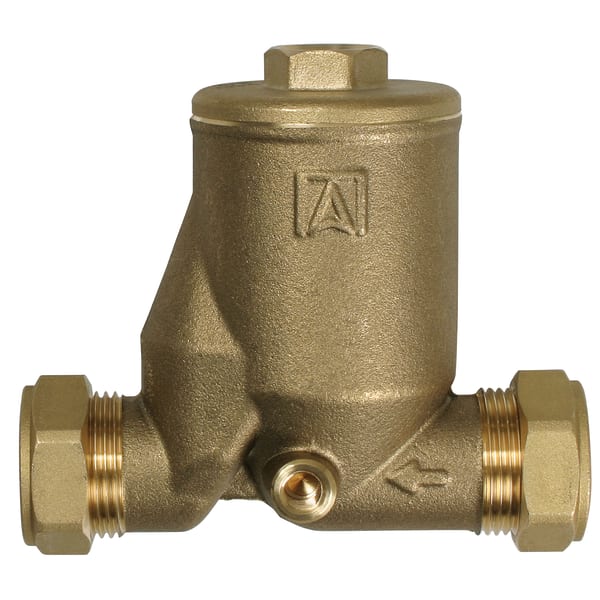

Luftabscheider, Klemmringverschraubung | 77851

in-stock items

for thermal solar systems with operating temperatures up to 150 °C and operating pressures up to 6 bar
continuous, automatic venting of the system
Cost savings due to fewer malfunctions and longer service life of the system

Air separator for use in solar thermal systems or in sealed heating systems as per EN 12828 with operating temperatures of up to 150 °C and operating pressures of up to 6 bar. The air separator removes the air from the heat transfer fluid. The air collects in the housing and can be released via a quick air vent or a manual vent valve connected at the G⅜ threaded connection. Compression fitting for Cu pipe ∅ 22 mm at both ends.

Housing: Brass

Operating pressure: max. 6 bar

Operating temperature range

Medium:: max. 150 °C

Connections

: Compression fitting for Cu pipe Ø 22 mm
