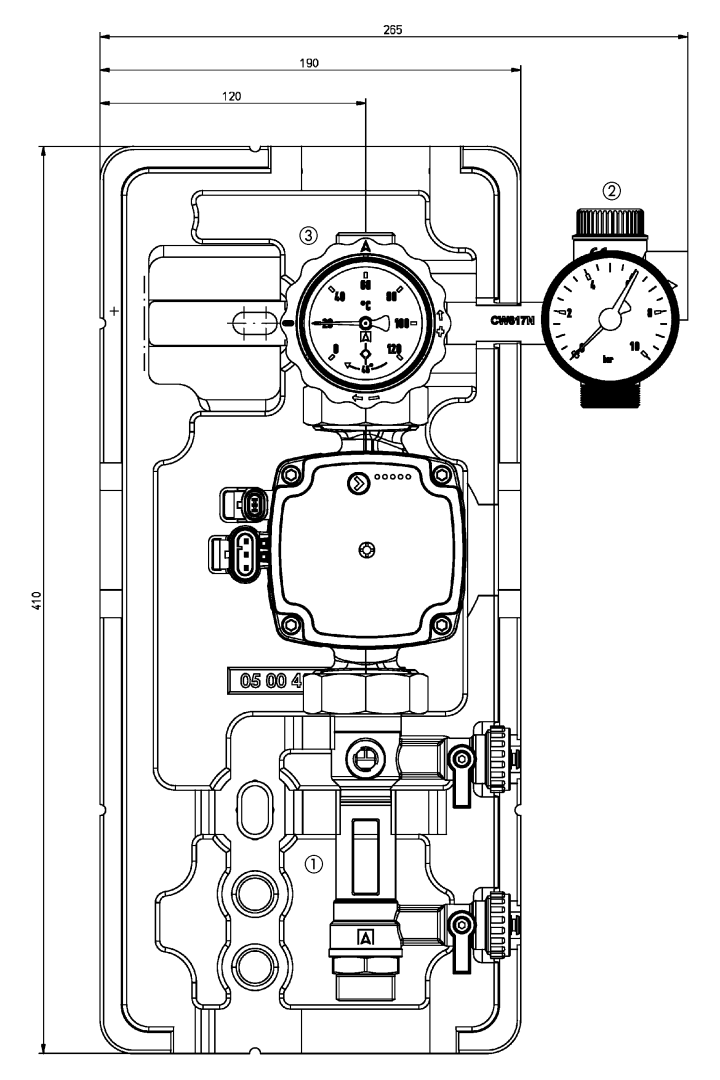

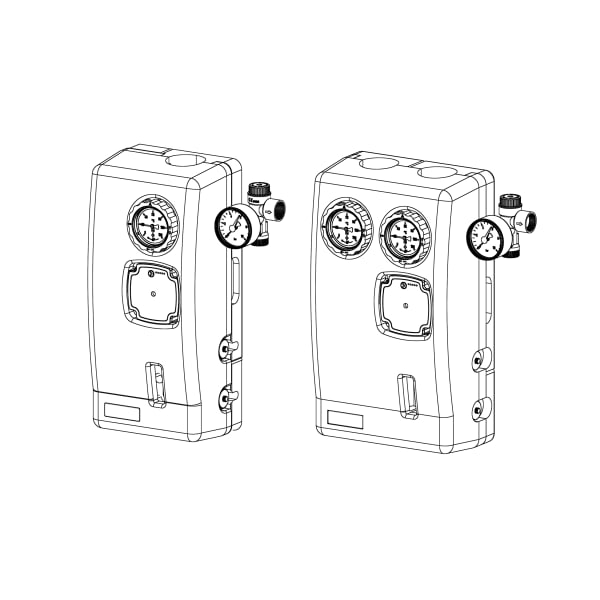

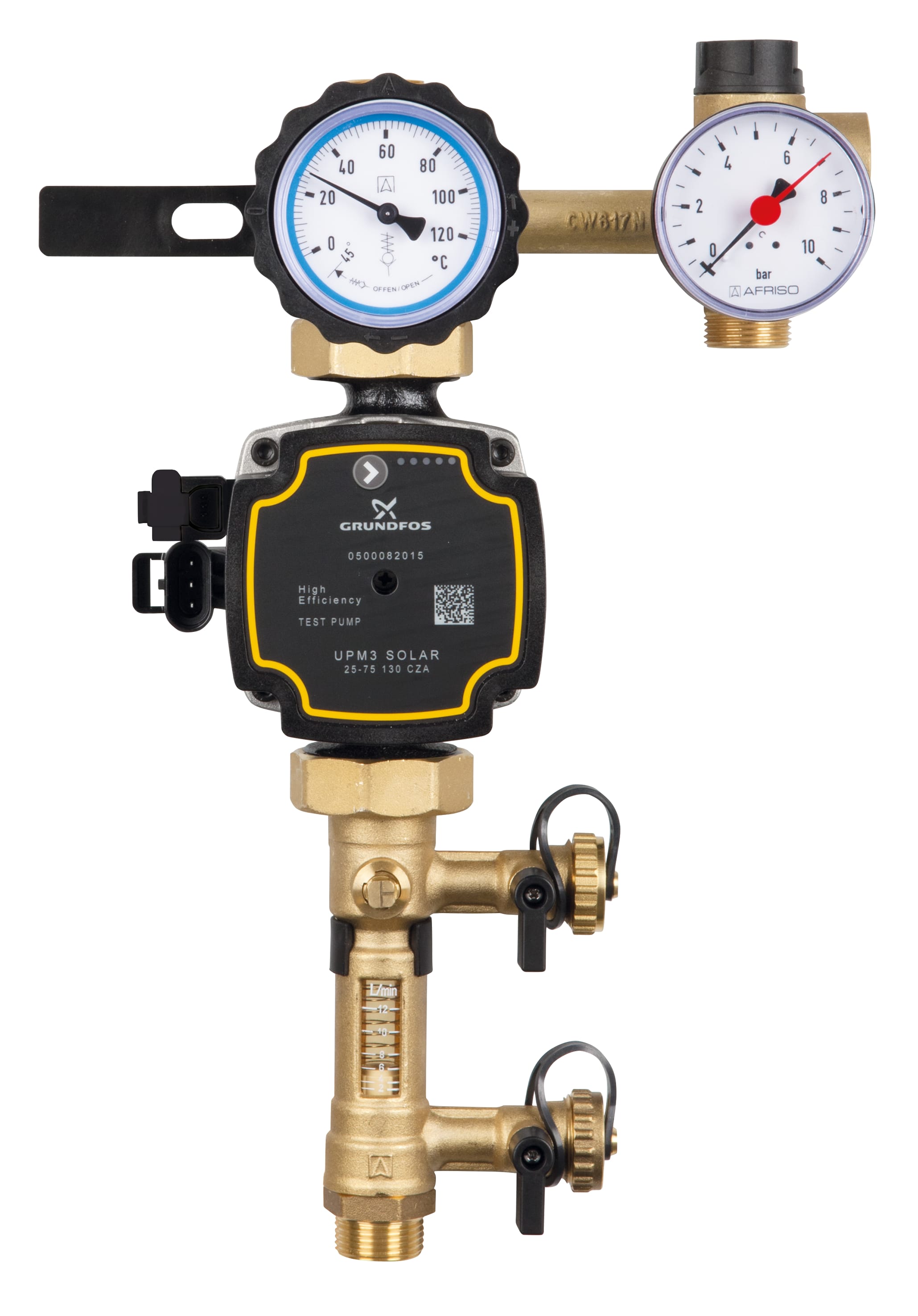

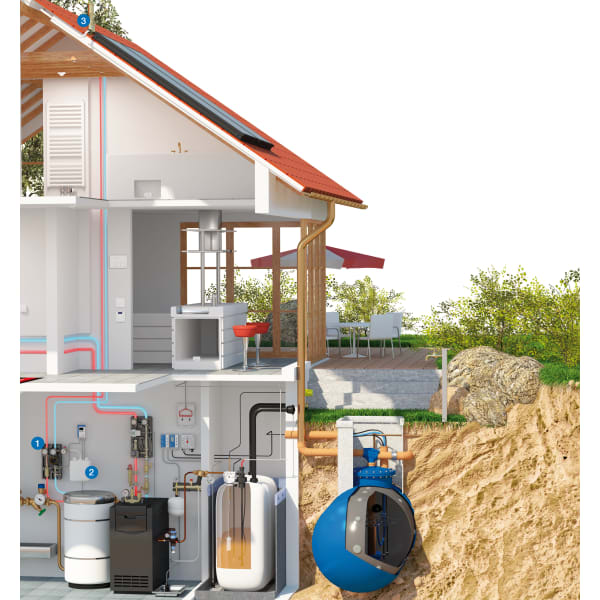

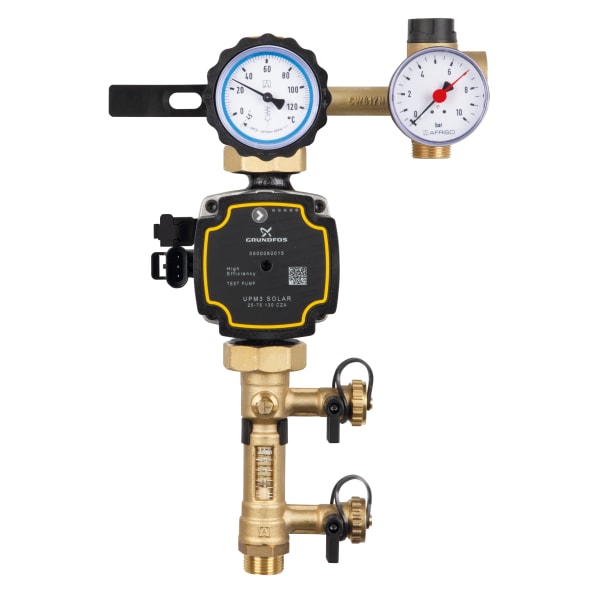

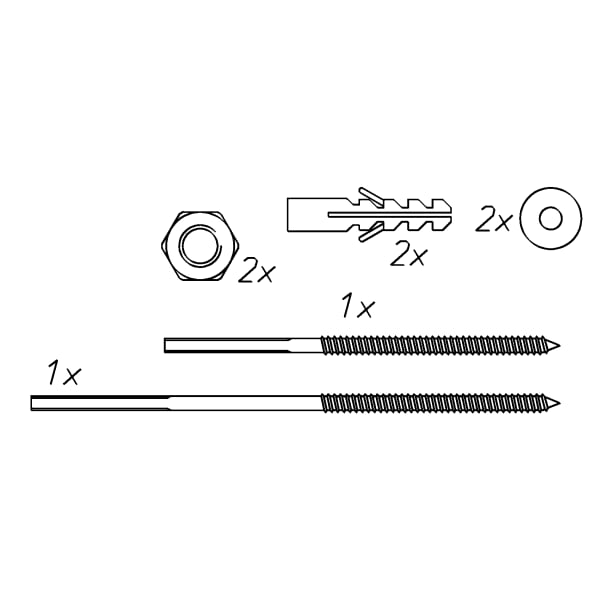

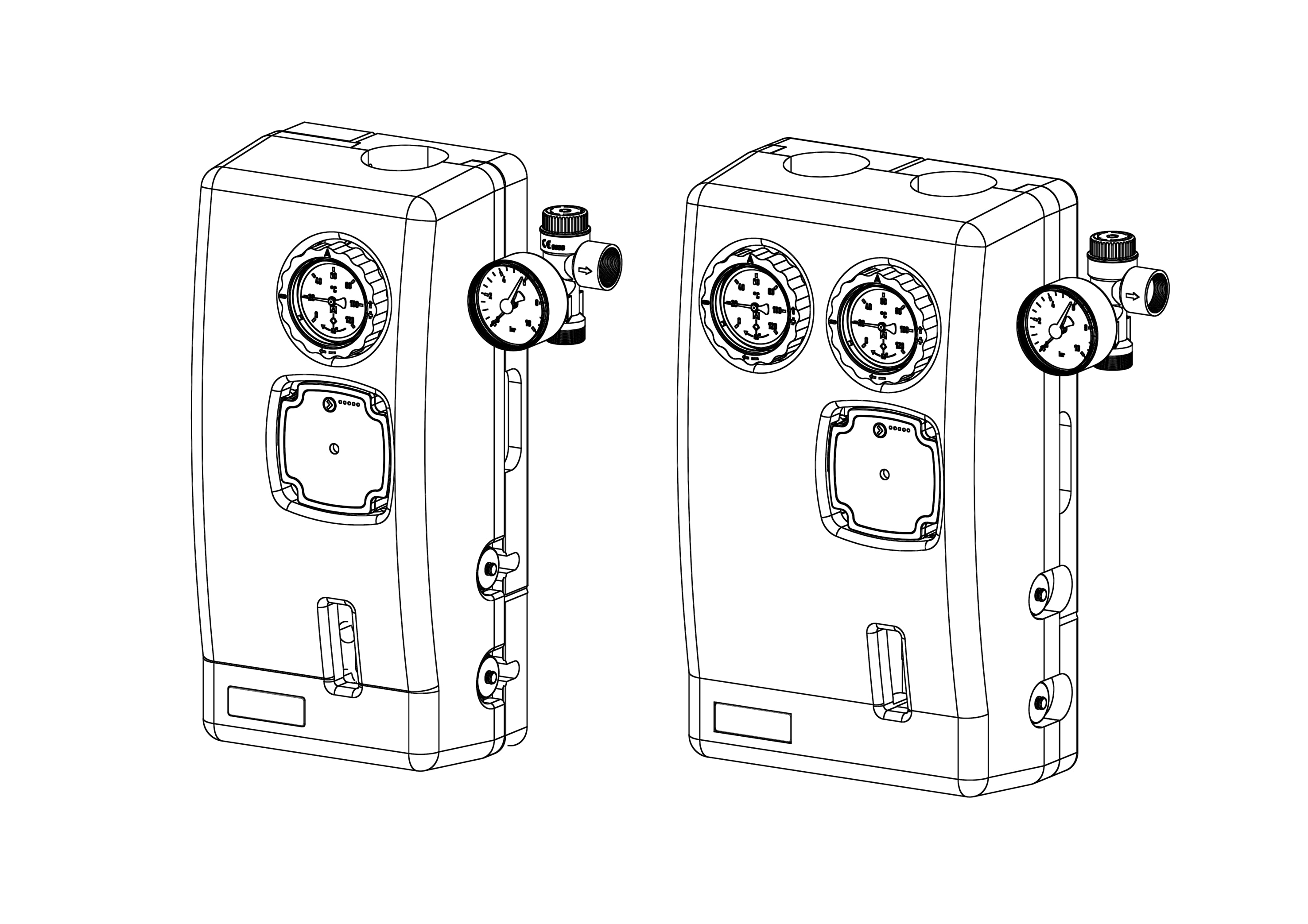

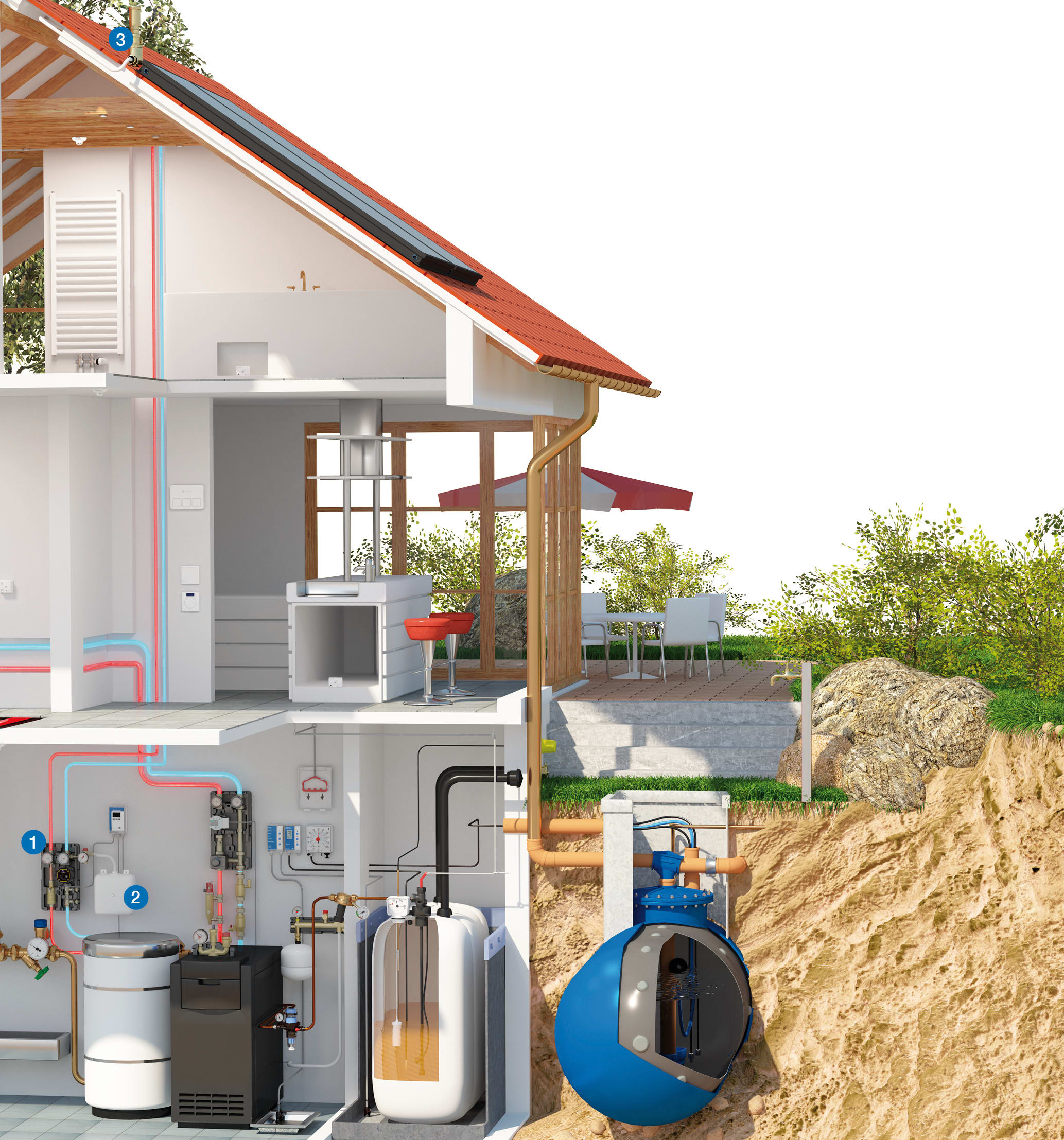

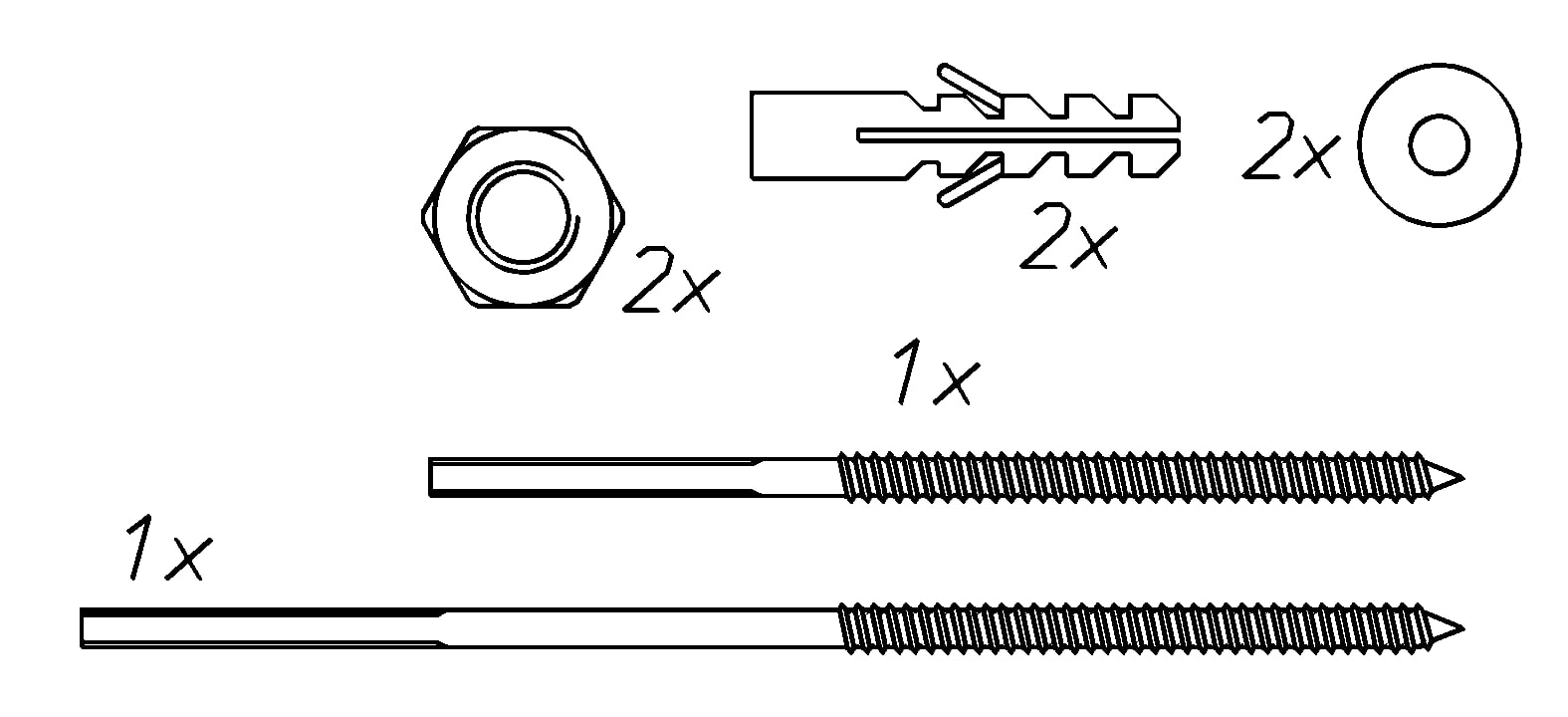

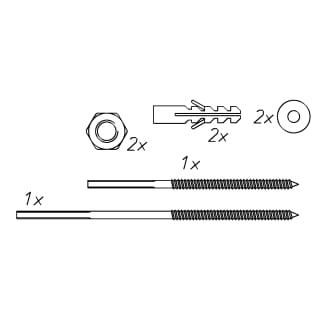

Solar pump assembly PrimoSol® 130-4 collector tank for solar liquid air separator combination Solar LKS PrimoSol® completely pre-assembled with circulation pump and mounting accessories Insulation 130-1 and 130-4 The insulation is also used to package the product for protected transport Images 4 Back Solar pump line PrimoSol® 130-1 2–12 l/min | 77886 Solar pump line PrimoSol® 130-1 in-stock items Downloads Benefits pre-assembled, tightness-tested and heat-insulated assemblyIntegrated filling and flushing uniteasy, fast mountingmaximum reliabilityErP-ready: Electronics with increased energy efficiency reduces negative impact on the environment Application Solar pump assembly/line for connection of collector and storage tank in intrinsically safe, sealed solar thermal systems. PrimoSol® 130 circulates heat transfer fluids such as water/glycol mixtures in the system. Description Complete, pre-assembled and tightness-tested solar pump assembly/line with all required safety and functional components, including form-fit heat insulation.Depending on the version, the return line (return/cold) consists of:Circulation pumpFlow meter with ball valve for shut-off, pump end with flange and union nut G1½. Measuring range: 2–12 l/min. With integrated filling and flushing unit, system connection: G¾ male thread.Combination valve with system connection G3/4 male thread, pump end with flange and union nut G1½. With adjustable gravity brake and thermometer in the hand wheel (blue mark, range 0/120 °C).Safety group assembly with connection G¾ for expansion vessel. With solar safety valve 6 bar, outlet Rp¾ female thread, pressure gauge Ø 63 mm, 0/10 bar, mounting valve.The flow line consists of (130-4 only):Combination valve with adjustable gravity brake and thermometer in the handle (red mark, range 0/120 °C) with system connection G3/4 male threadVent pot to remove the gas from the heat transfer fluid with system connection G¾ male. Transparent hose 200 mm as venting aid.The heat insulation is also used to package the product for protected transport. The safety valve of the safety group assembly complies with Pressure Equipment Directive 2014/68/EC. Technical data Technical drawings Downloads Technical data Axis distance 100 mmsystem connectionsG¾ maleOperating temperature rangeAmbient: max. 40 °CMedium: max. 120 °Cshort-term 160 °CSystem pressuremax. 6 barFlow meter 2 − 12 l/minInsulationPolypropylene EPPCirculation pumpGrundfos UPM 3 Solar 25-75Length: 130 mmDegree of protection: IP 42 (EN 60529)Supply voltageAC 230 V, 50 HzPower input/pumping head19 W/4.5 m28 W/5,5 m35 W/6.5 m45 W/7,5 m Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Solarpumpenstrang PrimoSol® 130-1 Durchflussmesser mit Kugelhahn sowie Befüll- und Spüleinrichtung Sicherheitsgruppe Kombihahn mit Thermometer (Rücklauf/kalt) Maße (mm) Downloads Solar pump line PrimoSol® 130-1 77886 datasheet variant Domestic Technology PDF English German (Germany) system assemblies for domestic technology brochures PDF English German (Germany)
Solar pump line PrimoSol® 130-1 77886 datasheet variant Domestic Technology PDF English German (Germany)
