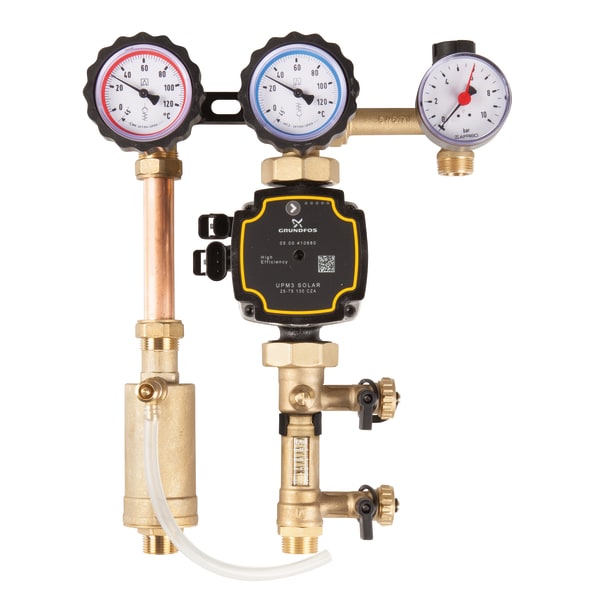

PrimoSol®130-4

Solar pump assembly

Variants Documents

  • pre-assembled, tightness-tested and heat-insulated assembly
  • with flow meter with ball valve, integrated filling and flushing unit and vent pot for degassing the heat transfer fluid in the flow line
  • ErP-ready: Electronics with increased energy efficiency reduces negative impact on the environment

Solar pump assembly/line for connection of collector and storage tank in intrinsically safe, sealed solar thermal systems. PrimoSol® 130 circulates heat transfer fluids such as water/glycol mixtures in the system.

Complete, pre-assembled and tightness-tested solar pump assembly/line with all required safety and functional components, including form-fit heat insulation.
Depending on the version, the return line (return/cold) consists of:
Circulation pump
Flow meter with ball valve for shut-off, pump end with flange and union nut G1½. Measuring range: 2–12 l/min. With integrated filling and flushing unit, system connection: G¾ male thread.
Combination valve with system connection G3/4 male thread, pump end with flange and union nut G1½. With adjustable gravity brake and thermometer in the hand wheel (blue mark, range 0/120 °C).
Safety group assembly with connection G¾ for expansion vessel. With solar safety valve 6 bar, outlet Rp¾ female thread, pressure gauge Ø 63 mm, 0/10 bar, mounting valve.
The flow line consists of (130-4 only):
Combination valve with adjustable gravity brake and thermometer in the handle (red mark, range 0/120 °C) with system connection G3/4 male thread
Vent pot to remove the gas from the heat transfer fluid with system connection G¾ male. Transparent hose 200 mm as venting aid.
The heat insulation is also used to package the product for protected transport. The safety valve of the safety group assembly complies with Pressure Equipment Directive 2014/68/EC.

Part no.
Solar pump assembly PrimoSol®130-42–12 l/min, with Grundfos UPM 3 Solar 25–7577889
Solar pump assembly PrimoSol®130-42–12 l/min, without circulation pump77859
Solar pump assembly PrimoSol®130-48–38 l/min, with Grundfos UPM 3 Solar 25–7577018
  • in-stock items
  • manufactured goods

Axis distance
  100 mm
system connections
G¾ male
Operating temperature range
Ambient:
max. 40 °C
Medium:
max. 120 °C
Medium:
short-term 160 °C
System pressure
max. 6 bar
max.
Flow meter
2 − 12 l/min
Insulation
Polypropylene EPP
Circulation pump
Grundfos UPM 3 Solar 25-75
Length:
130 mm
Degree of protection:
IP 42 (EN 60529)
Supply voltage
AC 230 V, 50 Hz
Power input/pumping head
19 W/4.5 m
28 W/5,5 m
35 W/6.5 m
45 W/7,5 m
