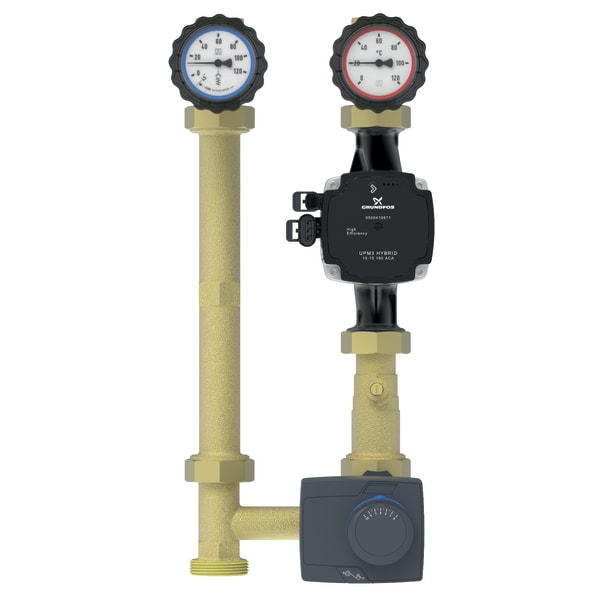

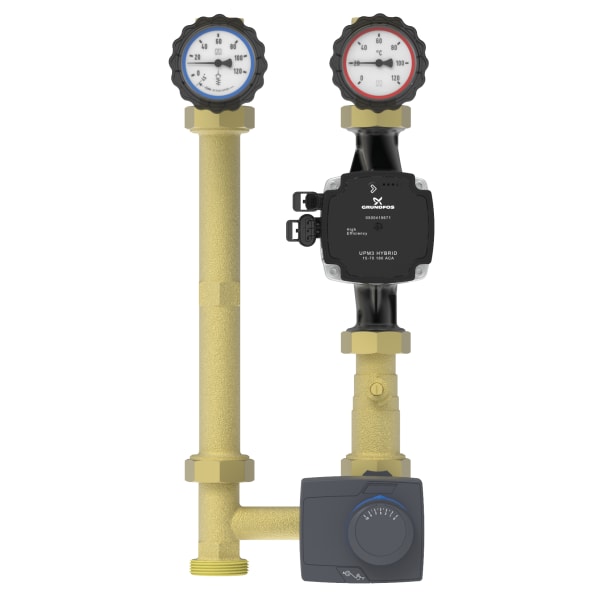

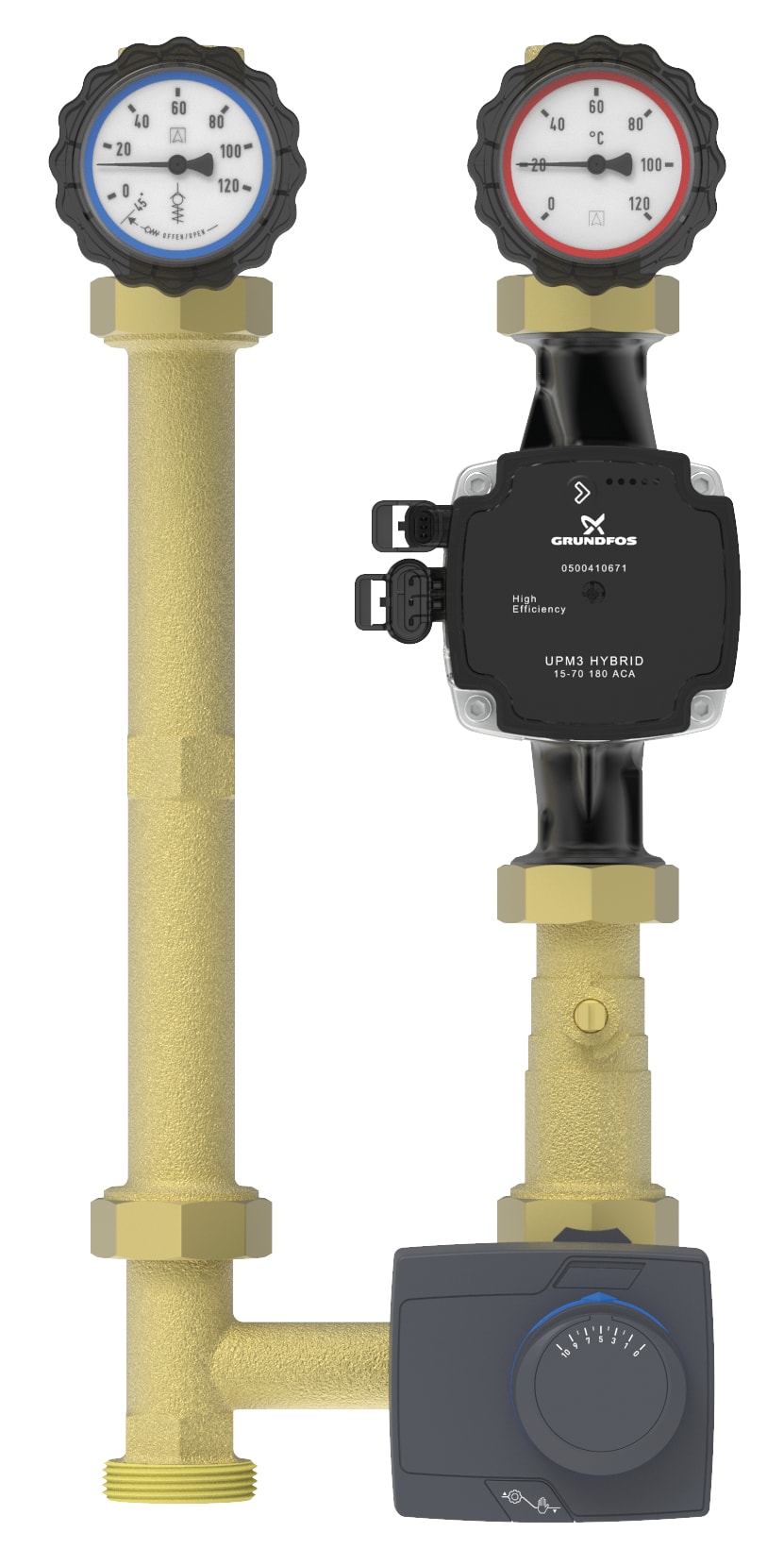

PrimoTherm® 180-2 DN25 KVS Vario | 77301

Heating pump assembly

in-stock items
Documents

  • pre-assembled, tightness-tested and heat-insulated assembly
  • robust mixer with adjustable flow coefficient Kvs from 2.5 to 12 m³/h
  • Adaptation of flow coefficient Kvs also possible during operation (under system pressure)
  • eligible for heating optimization program (BAFA)

Heating pump assembly for use in mixed heating circuits. With the 3-way mixer and the actuator, the flow temperature can be adjusted to a desired temperature by adding water from the return. The new mixer with adjustable flow coefficient Kvs offers the HVAC professional maximum flexibility in adapting the system to individual control requirements. The flow coefficient Kvs can be modified at any later point in time, even if the system is under pressure. This way, a great variety of mixer/pump assemblies can be covered with a single version. PrimoTherm® 180-2 is also available as version RTA. It can be used to increase the return temperature with solid fuel burners which have a controller for increasing the return temperature.

Complete, pre-assembled and tightness-tested heating pump assembly with all required functional components, form-fit insulation.
The flow line consists of:
Combination valve with thermometer in the hand wheel (red mark, range 0/120 °C)
Ball valve below the pump
3-way mixing valve ARV 325 KVS Vario with adjustable flow coefficient Kvs and ProClick adapter system
Maintenance-free, silent actuator ARM 343 (6 Nm, 120 s, AC 230 V) with 0/90° angle of rotation, indication for direction of rotation, selector key "Manual/Automatic Mode" and ProClick adapter system
System connection G1½ male (boiler), G1 female (heating circuit). Suitable for pumps DN 25 with G1½ x 180 mm.
The return line consists of:
Combination valve with gravity brake, thermometer in the handle (blue mark, range 0/120 °C)
Pipe for length compensation with screw connection
T piece for mixer connection
System connection G1½ male (boiler), G1 female (heating circuit)
Difference version RTA
Interchanged colour codes of thermometers
3-way mixer wit flow coefficient Kvs 12 m3/h (not adjustable)
System connection (storage) with additional connection flanges G1 female
Additional mounting bracket for upside down or lateral mounting
Scope of delivery does not include pump

Axis distance
  125 mm
system connections
Boiler:
G1½ male
Heating circuit:
G1 female
Operating temperature range
Medium:
max. 95 °C
Medium:
short-term 120 °C
System pressure
max. 10 bar
max.
Nominal size
DN 25
Flow coefficient Kvs
adjustable: 2.5 – 4 – 5 – 6 – 8 – 12 m3/h
Leak rate
mixing valve ARV 325 KVS Vario: < 0.05 % flow coefficient Kvs
Insulation
Polypropylene EPP
Dimensions
W x H x D:
250 x 475 x 152 mm
Circulation pump
Grundfos UPM3 HYBRID 25-70/180
Length
180 mm
Degree of protection
IP 44 (EN 60529)
Supply voltage
AC 230 V, 50 Hz
Energy efficiency class
A
Power input
Grundfos UPM3 HYBRID 25-70/180: 2 − 52 W
pumping head
Grundfos UPM3 HYBRID 25-70/180: max. 7 m
pumping volume
Grundfos UPM3 HYBRID 25-70/180: max. 3.6 m³/h
operating modes/settings
Grundfos UPM3 HYBRID 25-70/180: PWM-A (4),
PWM-C (4),
constant volume flow PP (3),
konstanter Druck CP (3),
constant speed of rotation (3)
