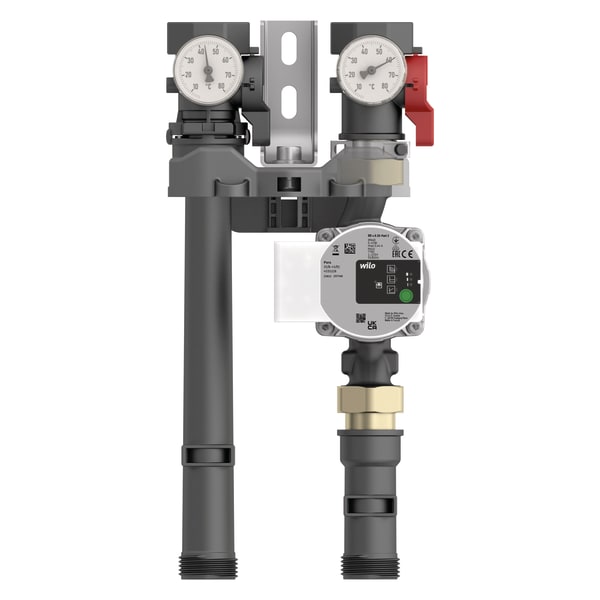

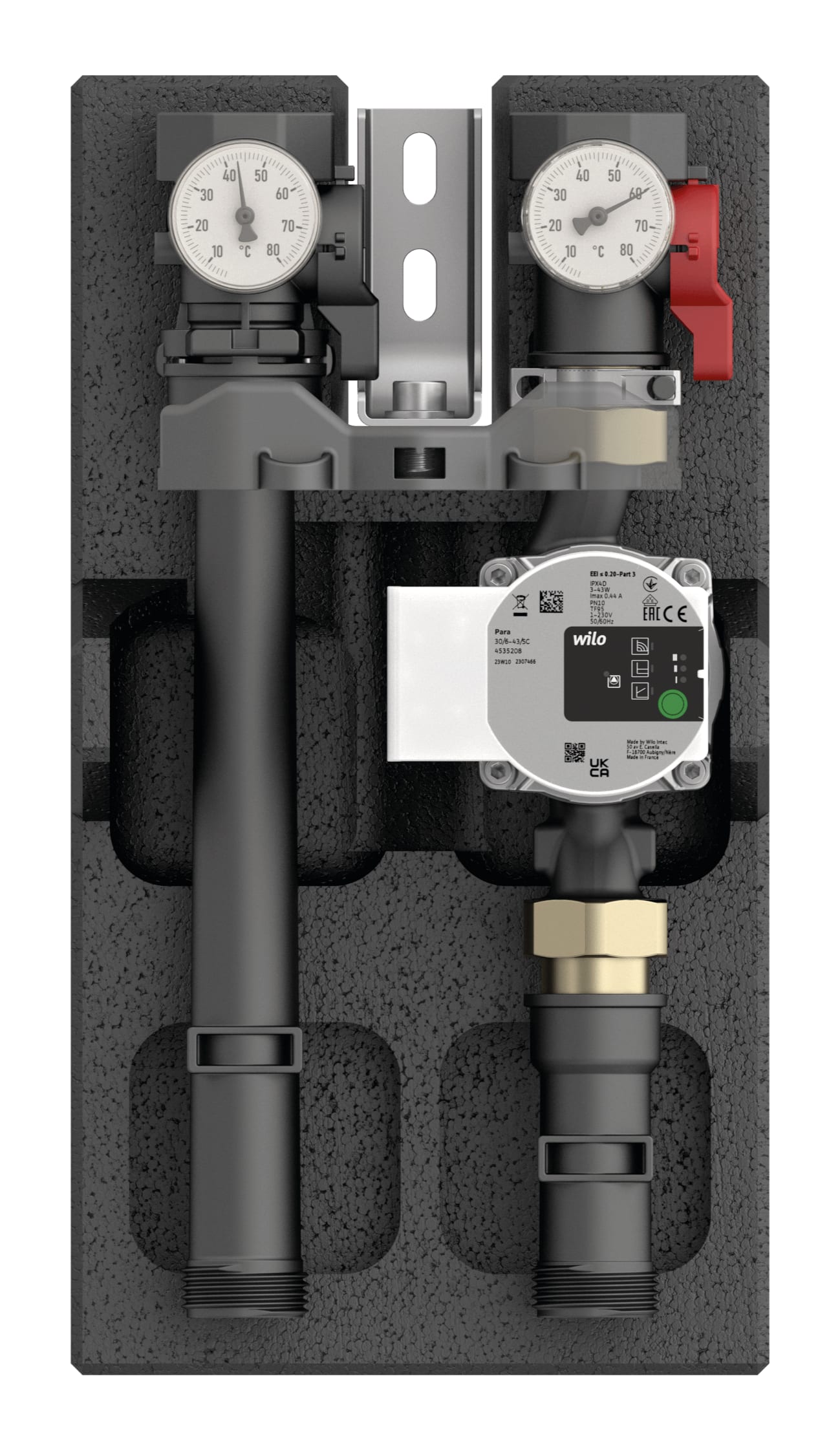

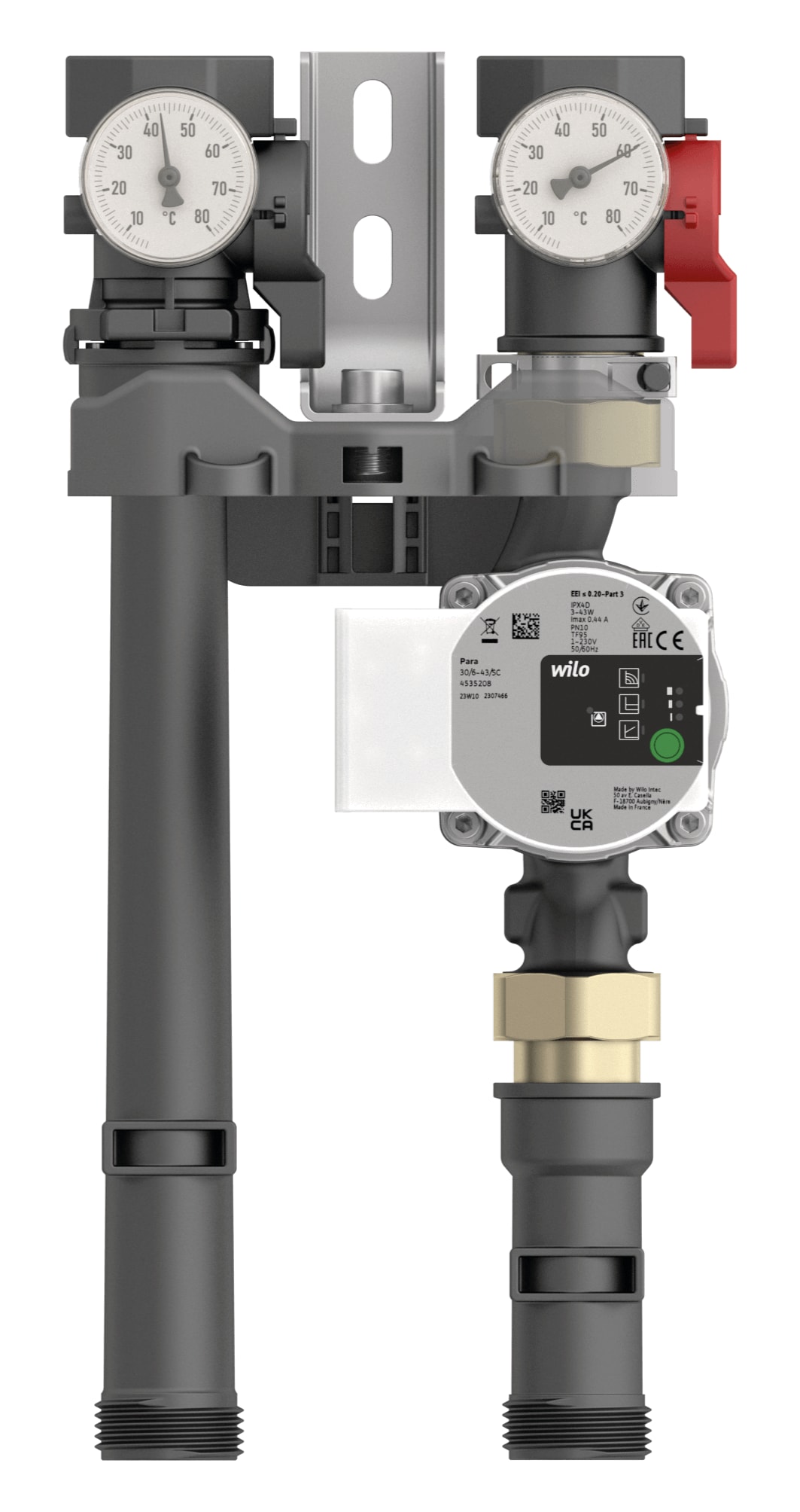

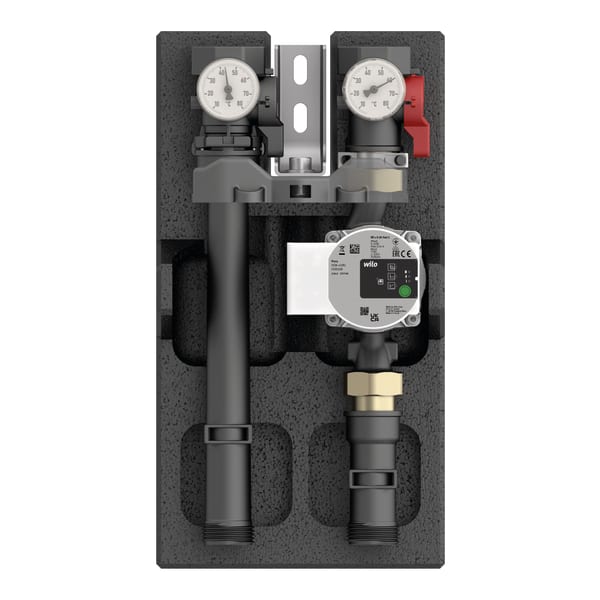

Images 3 Back Heating pump assembly | 77337 Heating pump assembly PrimoTherm® C 130-1 DN20 in-stock items Downloads Benefits pre-assembled, tightness-tested and heat-insulated assemblymodular system with flow at left or righteasy, fast mountingwith high-efficiency pump class Aeligible for heating optimization program (BAFA) Application Heating pump assembly for use in non-mixed heating circuits, specially for storage tank charging. It connects the heating boiler and the pipe system. Description Complete, pre-assembled and tightness-tested heating pump assembly made of high-grade polymer material with all required functional components, form-fit heat insulation and wall mounting unit.The flow line consists of:Shut-off valve with thermometer holder (red handle)Thermometer flow (5 to 80 °C)Plastic pipe for length compensationSuitable for circulation pumps DN 20 with G1 x 130 mmThe return line consists of:Shut-off valve with thermometer holder (black handle)Thermometer return (5 to 80 °C)Gravity brakePlastic pipe for length compensation pump / mixer Technical data Technical drawings Downloads Technical data Axis distance 90 mmsystem connectionsBoiler: G1 maleHeating circuit: G1 femaleOperating temperature rangeMedium: max. 60 °C at 6 bar,max. 70 °C bei 5 bar,max. 90 °C at 3 barNominal sizeDN 20Flow coefficient Kvs5.7 m³/hHeat insulationPolypropylene EPPDimensionsW x H x D: 189 x 335 x 240 mmCirculation pumpWilo Para 15-130/6-43/SC-12Length130 mmDegree of protectionIP 44 (EN 60529)Supply voltageAC 230 V, 50 HzEnergy efficiency classAPower inputWilo Para 15-130/6-43/SC-12: 3 − 43 kWpumping headWilo Para 15-130/6-43/SC-12: max. 6.7 mpumping volumeWilo Para 15-130/6-43/SC-12: max. 3.2 m³/hProportional pressure control1Constant pressure control1Fixed speed of rotation1 Technical drawings Click the corresponding image for detail views, additional information and dimension tables. PrimoTherm® C 130-1 mit AFRISO-Pumpe Maße (mm) Downloads 900_400_1187-0.PDF Brief instructions PDF Download
